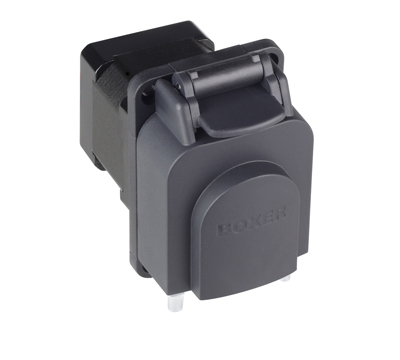

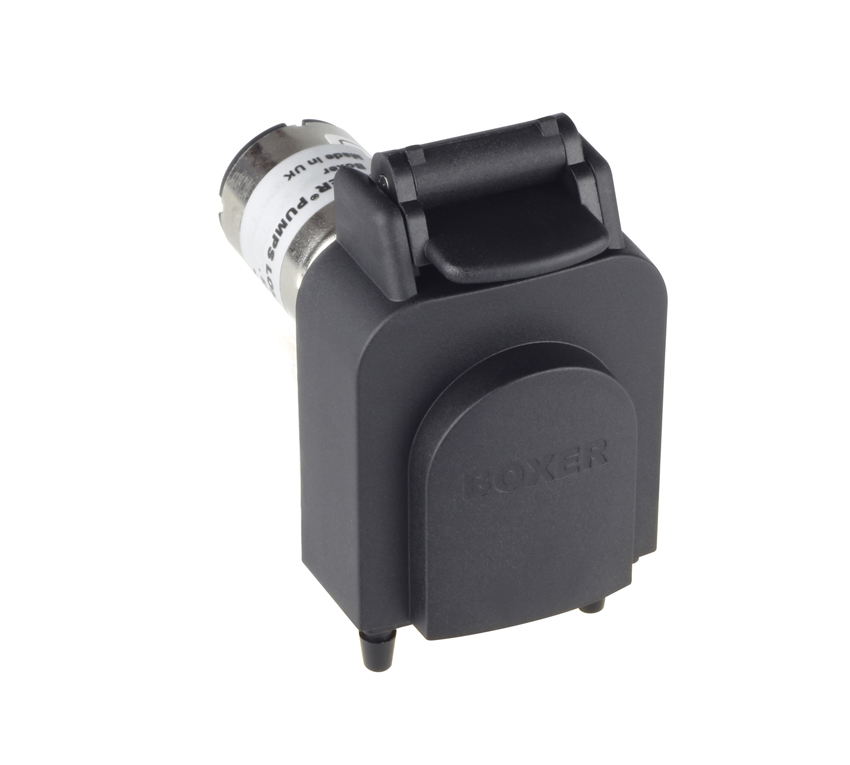

9QQ Series

The 9QQ series is a unique, cost effective and extremely versatile miniature peristaltic pump range designed for accurate dispensing of liquids.

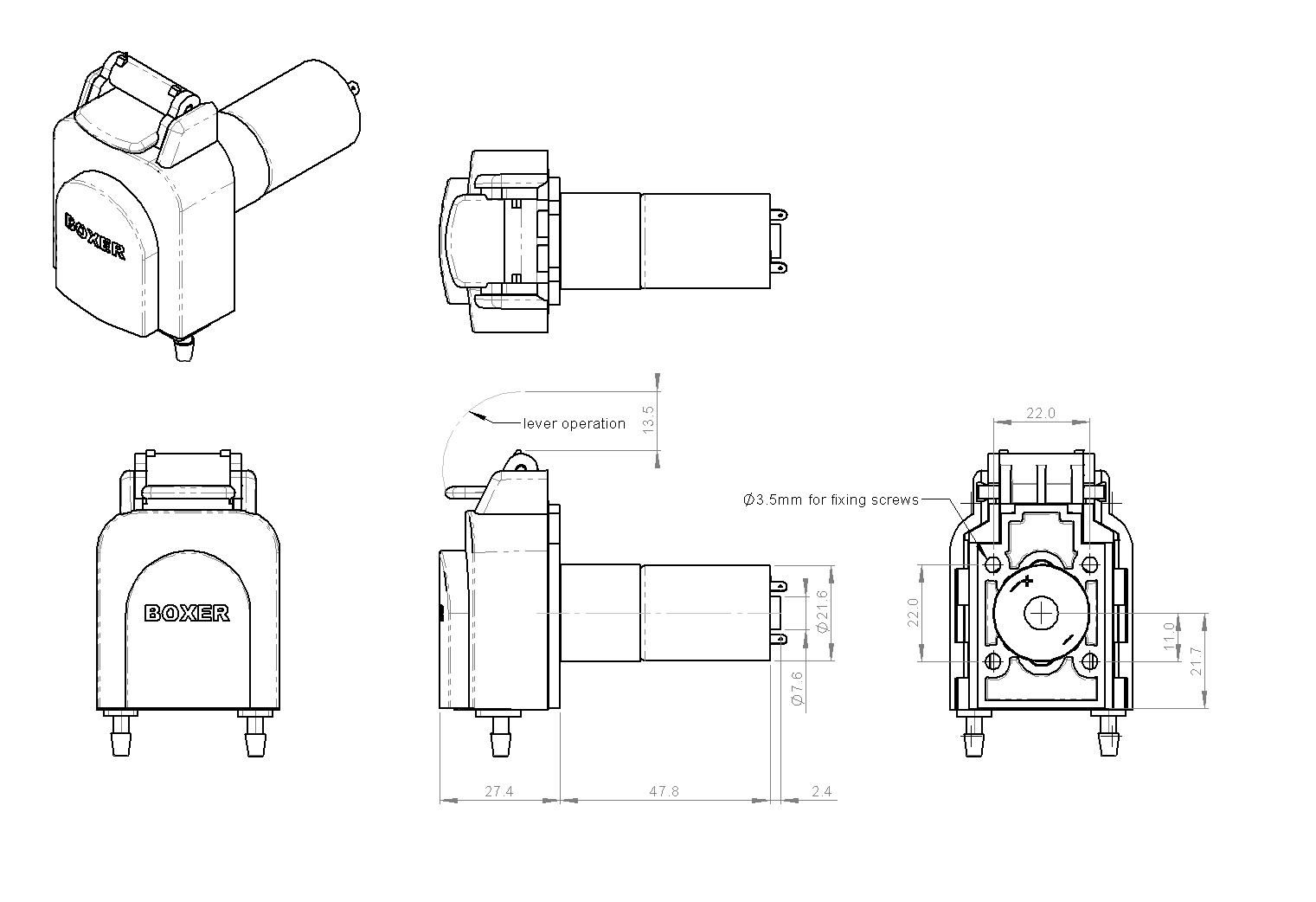

DC / Gear motor versions offer a range of 33 to 520 rpm with optional shaft encoder providing accurate feedback of rotor speed.

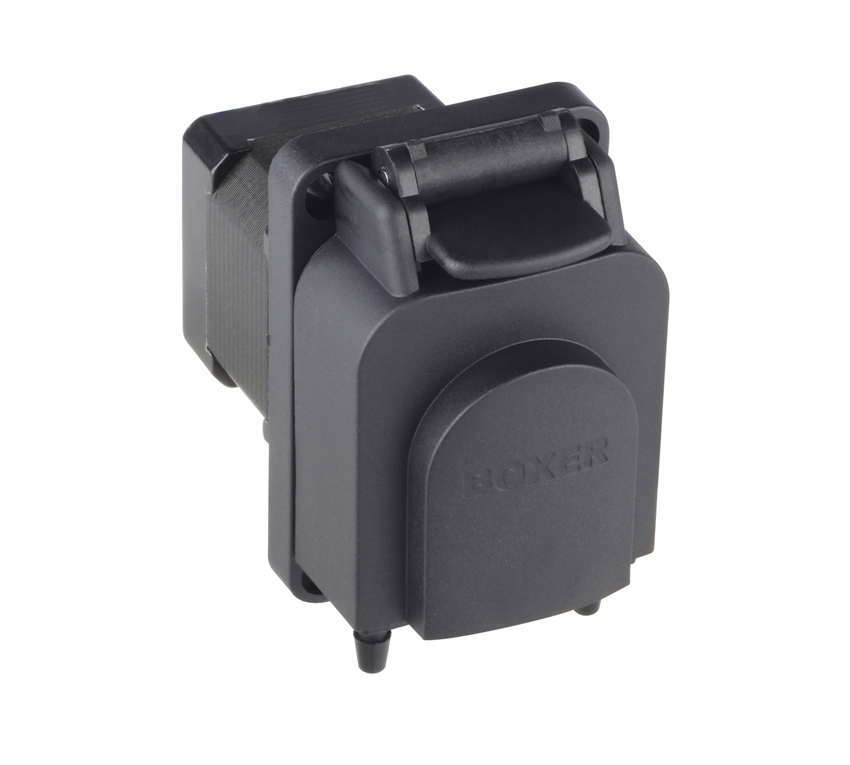

Stepper motor versions offer the versatility of finite speed control. 3 supporting driver options are vailable.

› Flow rates from 0.4 ml/min (or lower using stepper motor) to 200 ml/min
› Continuous tube or tube sets
› Easy tube change
› Unique floating saddle to enhance tube life and/or limit pressure
› 5 different tube sizes
› 4 different tube materials
› 2 channels available for 1 mm tubes
› 3 different roller configurations

Tubing / tube clips must always be ordered separately.

The 9QQ supersedes the 9K series.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Economic and versatile. 5 different speeds available in 12 and 24 V.
Flow Data
ID Ø 0.5 mm tube 16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller)
ID Ø 1.0 mm tube 55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube 190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube 340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube 400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller)

RPM (at nominal voltage)
12 V 116 / 315 / 520
24 V 33 / 107 / 315 / 520

Power Consumption 3.5 to 5.0 W

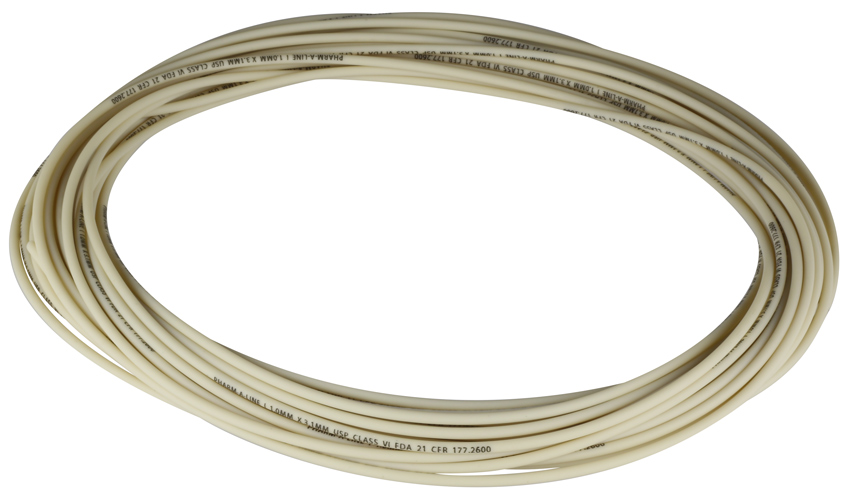

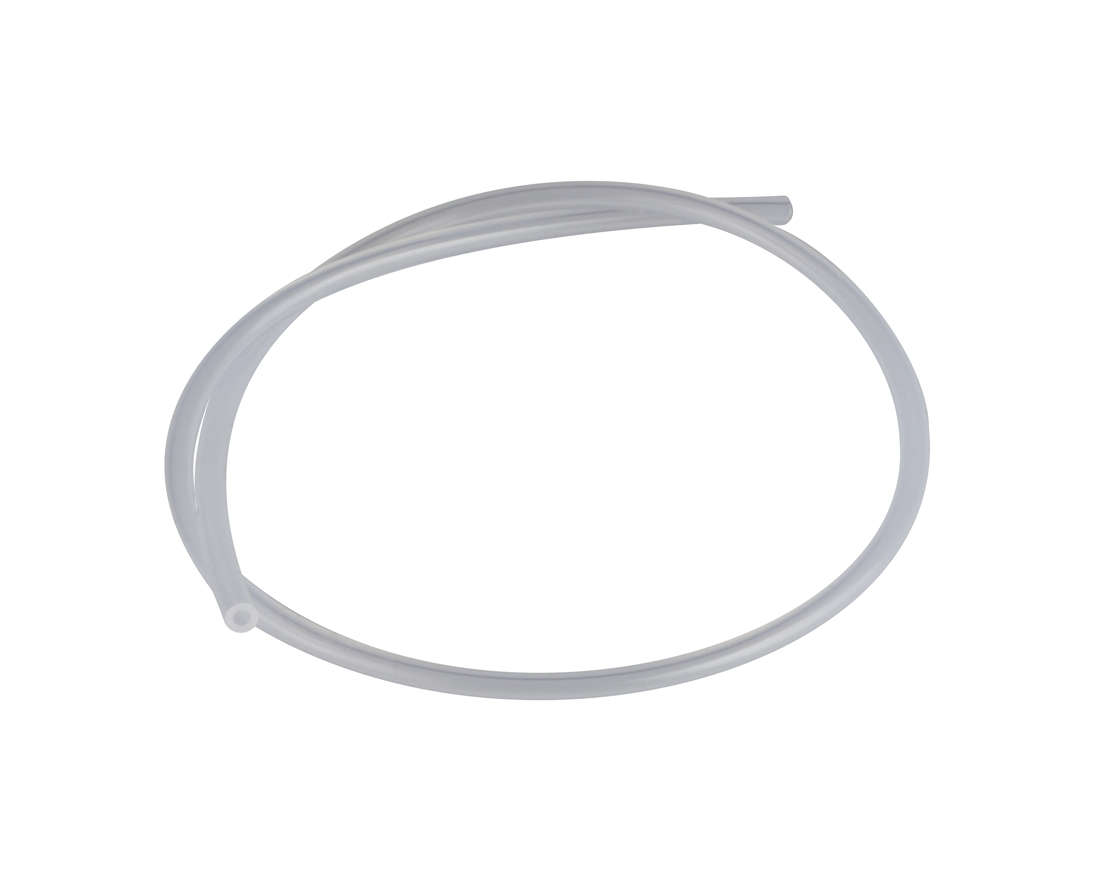

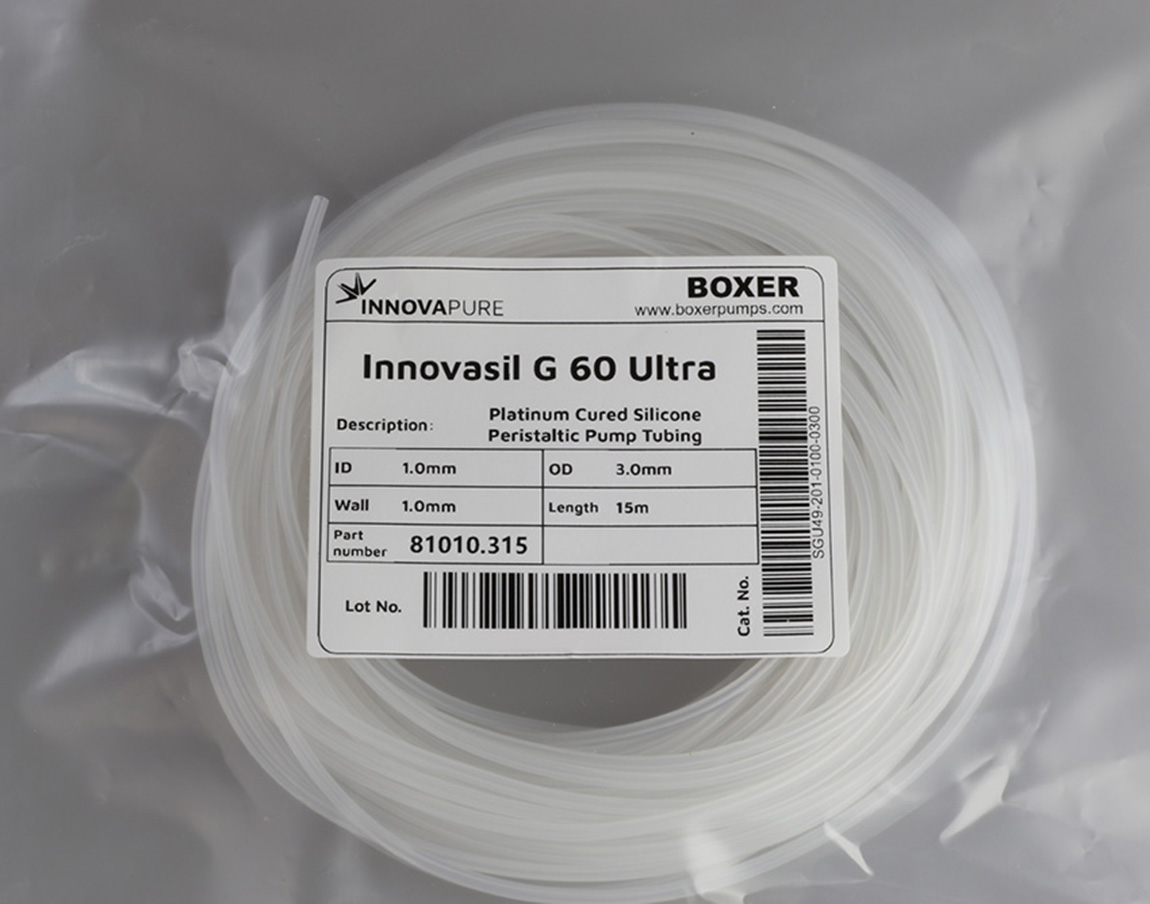

Tube Materials Pharm-a-line / Silicone / Lagoprene / ED-Plex

Tube Connectors
ID Ø 0.5 mm tube (internal) 0.5 to 1.0 mm* (external)
ID Ø 1.0 mm tube (internal) 1.5 to 2.0 mm* (external)
ID Ø 2.0 mm tube (internal) 2.0 to 2.5 mm* (external)
ID Ø 3.0 mm tube (internal) 3.0 to 3.5 mm* (external)
ID Ø 3.5 mm tube (internal) 3.0 to 3.5 mm* (external)
  *depends on tube material being used
  Further information ⇒ Accessories

Max pressure 1 bar
Max vacuum -950 mbar
DC motor life >2000 hour
Weight 130 g
Optional encoder 10 pulses per motor revolution (associated rotor speed depends in gear ratio)

All data measured with 'run-in' Pharm-a-line continuous tubing and H2O.



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 9010.930
Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 116 rpm, 3 Roller
122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9022.930
Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 315 rpm, 3 Roller
122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9007.930
Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 520 rpm, 3 Roller
122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9016.930
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 33 rpm, 3 Roller
122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9012.930
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 107 rpm, 3 Roller
122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9008.930
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 315 rpm, 3 Roller
122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9015.930
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 520 rpm, 3 Roller
122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

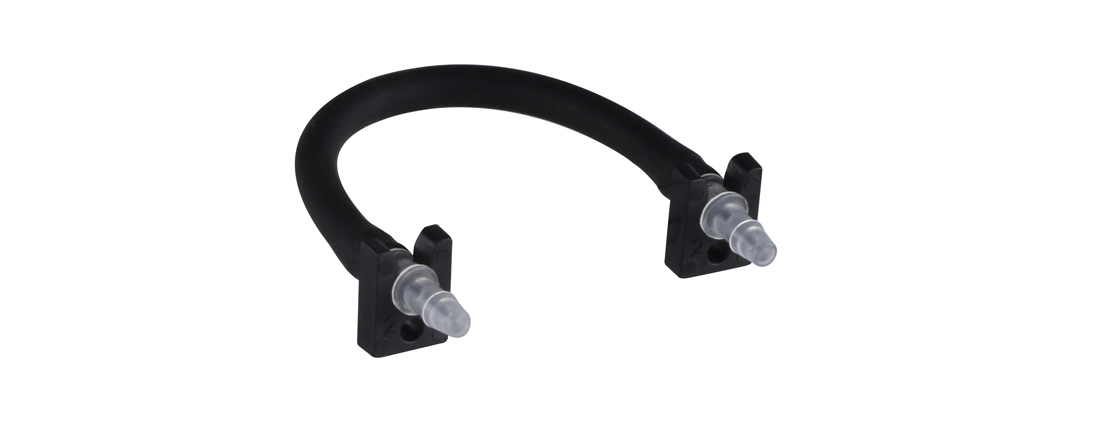

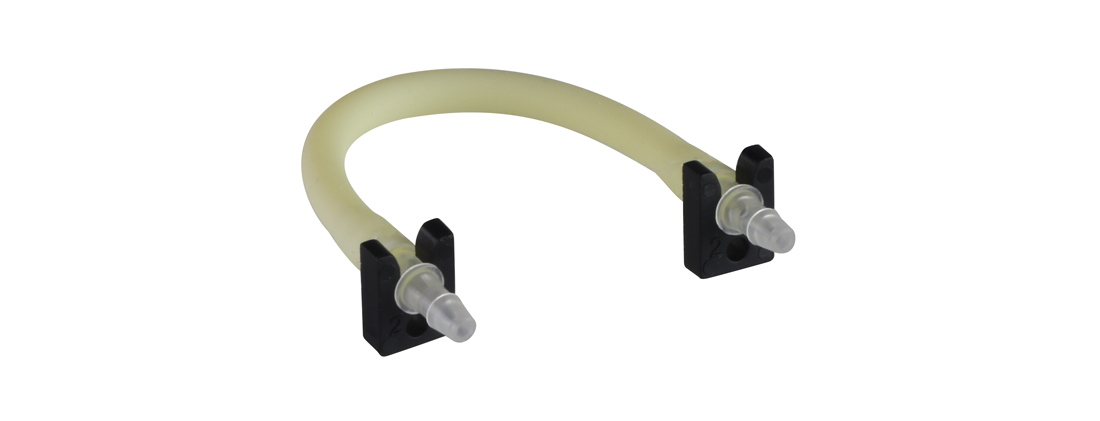

Teilenummer: 9000.761

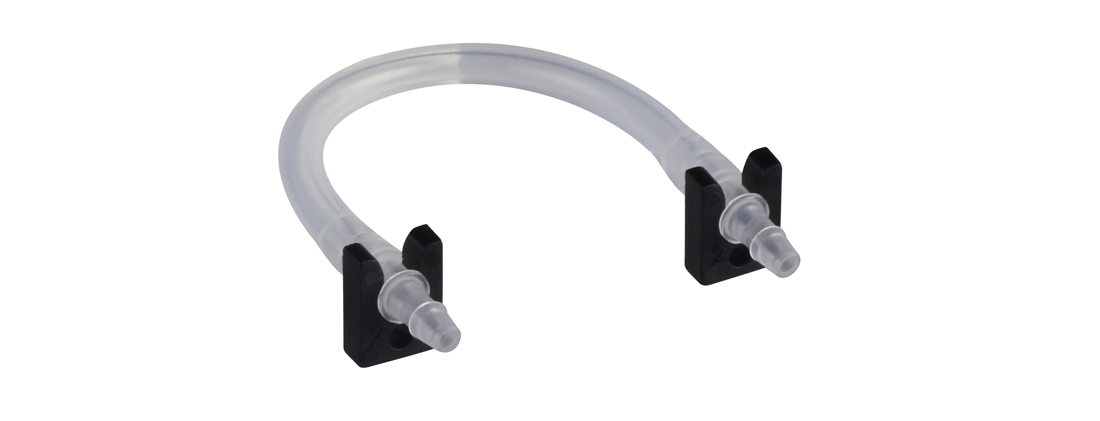

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.762

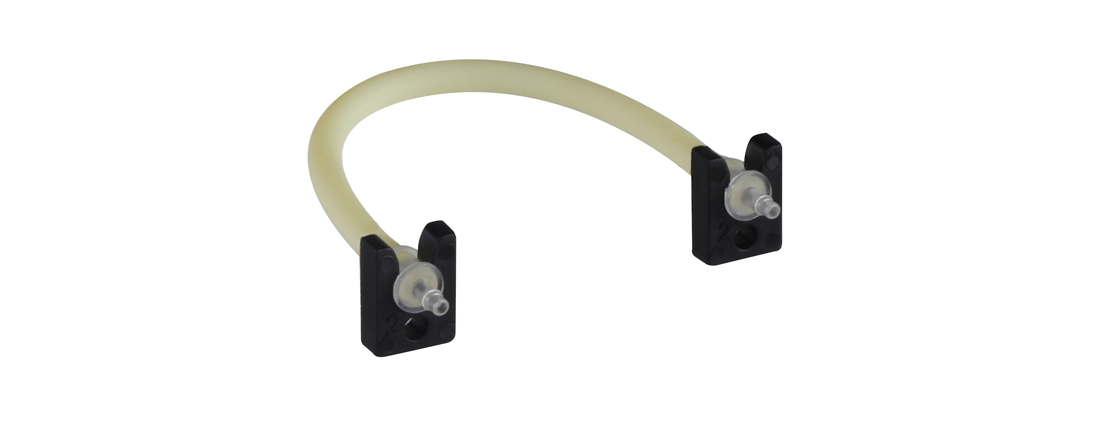

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.763
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.764
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.765
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.300
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.301
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.302
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.303
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.304
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 9510.930
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 116 rpm, 3 Roller
148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9522.930
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 315 rpm, 3 Roller
148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9507.930
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 520 rpm, 3 Roller
148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9516.930
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 33 rpm, 3 Roller
148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9512.930
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 107 rpm, 3 Roller
148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9508.930
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 315 rpm, 3 Roller
148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9515.930
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 520 rpm, 3 Roller
148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 9000.761
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.762
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.763
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.764
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.765
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.300
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.301
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.302
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.303
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.304
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

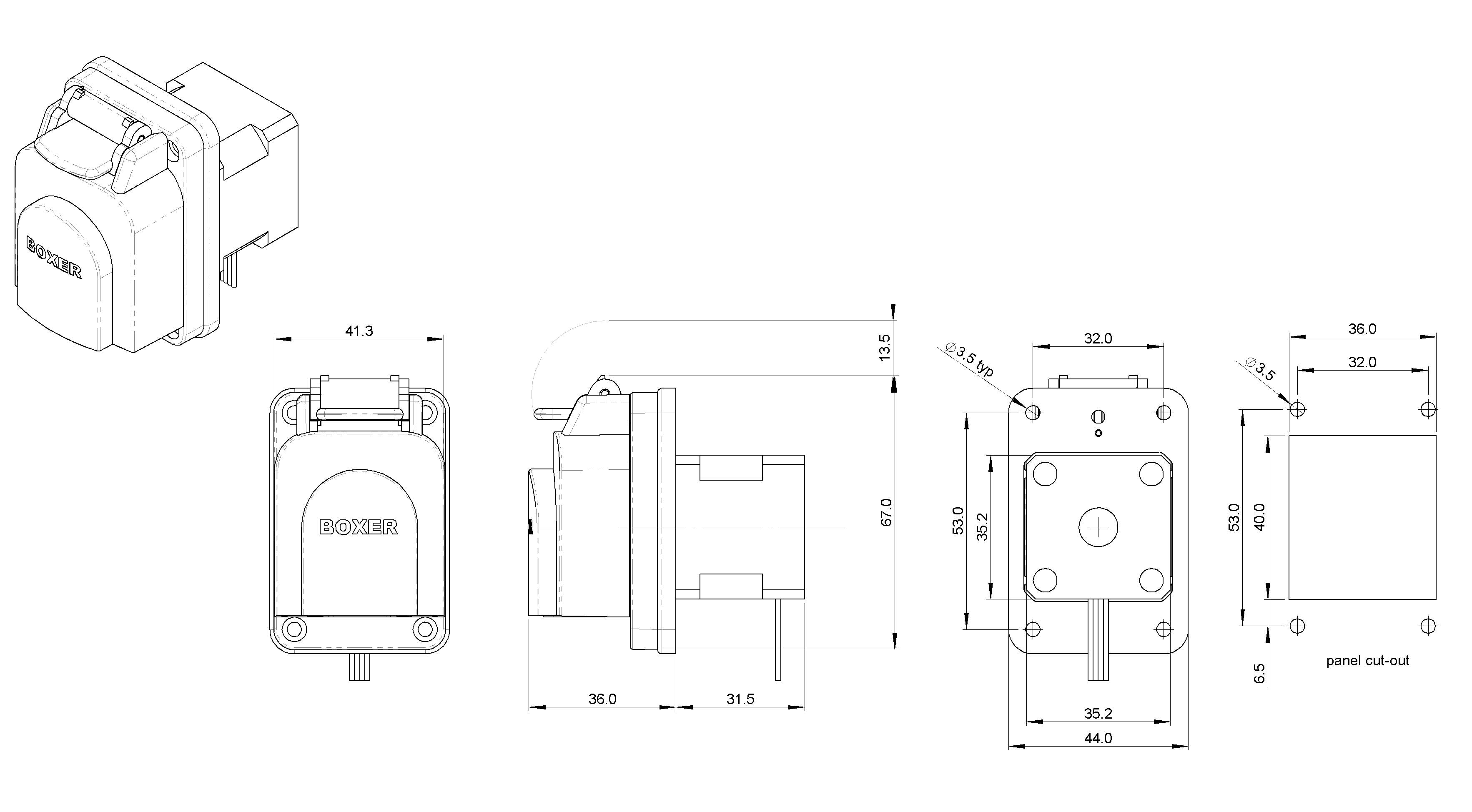

Excellent dosing control available in 24 V
Flow Data
ID Ø 0.5 mm tube 16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller)
ID Ø 1.0 mm tube 55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube 190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube 340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube 400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller)

RPM 0 to 500 rpm
  (higher speeds possible depending upon tube material, tube ID, number of rollers and driving method)

Tube Materials Pharm-a-line / Silicone / Lagoprene / ED-Plex

Tube Connectors
ID Ø 5.0 mm tube (internal) 0.5 to 1.0 mm* (external)
ID Ø 1.0 mm tube (internal) 1.5 to 2.0 mm* (external)
ID Ø 2.0 mm tube (internal) 2.0 to 2.5 mm* (external)
ID Ø 3.0 mm tube (internal) 3.0 to 3.5 mm* (external)
ID Ø 3.5 mm tube (internal) 3.0 to 3.5 mm* (external)
  *depends on tube material being used
  Further information ⇒ Accessories

Max pressure 1 bar
Max vacuum -950 mbar
Motor life >10000 hour
Weight 235 g

All data measured with 'run-in' Pharm-a-line continuous tubing and H2O.



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 9600.930

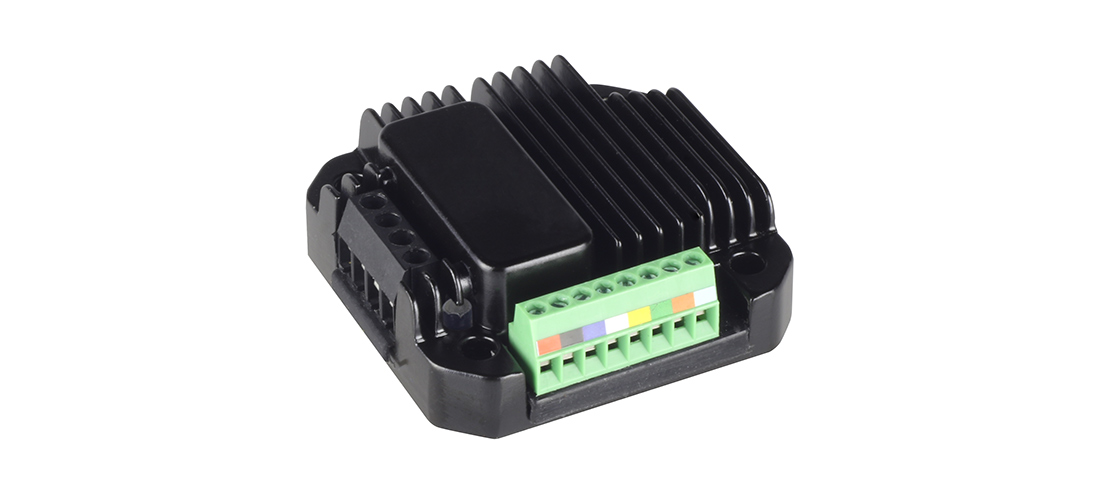

Driver Options: no | Encoder Option: no | Number of Rollers : 3
125,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9600.940
Driver Options: no | Encoder Option: no | Number of Rollers : 4
127,57 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9600.960
Driver Options: no | Encoder Option: no | Number of Rollers : 6
130,95 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9601.930
Driver Options: no | Encoder Option: yes | Number of Rollers : 3
156,55 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9601.940
Driver Options: no | Encoder Option: yes | Number of Rollers : 4
158,24 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9601.960
Driver Options: no | Encoder Option: yes | Number of Rollers : 6
161,61 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 9000.761
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.762
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.763
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.764
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.765
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.300
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.301
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.302
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.303
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.304
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 9660.930
Driver Options: yes | Encoder Option: no | Number of Rollers : 3
216,37 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9660.940
Driver Options: yes | Encoder Option: no | Number of Rollers : 4
218,06 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9660.960
Driver Options: yes | Encoder Option: no | Number of Rollers : 6
221,43 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9661.930
Driver Options: yes | Encoder Option: yes | Number of Rollers : 3
247,03 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9661.940
Driver Options: yes | Encoder Option: yes | Number of Rollers : 4
248,72 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9661.960
Driver Options: yes | Encoder Option: yes | Number of Rollers : 6
252,10 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 9000.761
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.762
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.763
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.764
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.765
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.300
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.301
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9000.302
Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)
7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage
