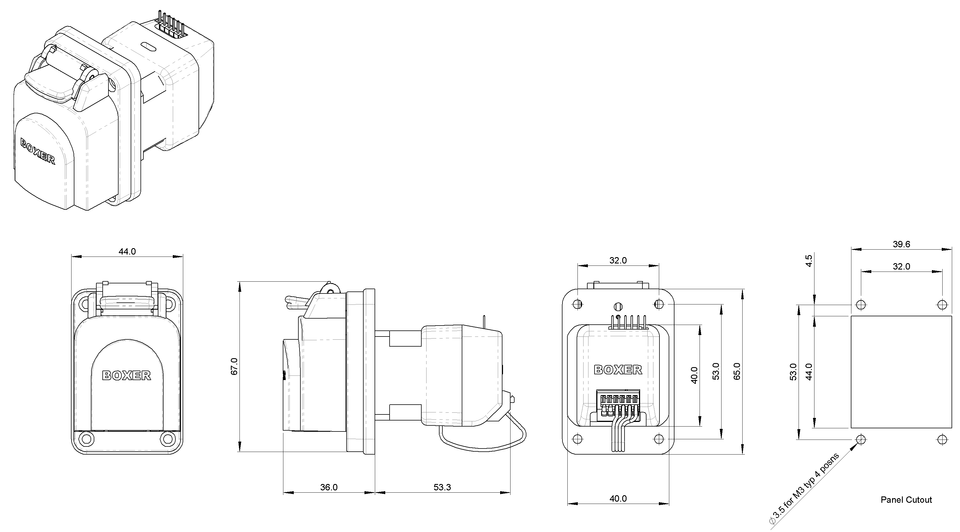

9QQ Series

The 9QQ series is a unique, cost effective and extremely versatile miniature peristaltic pump range designed for accurate dispensing of liquids.

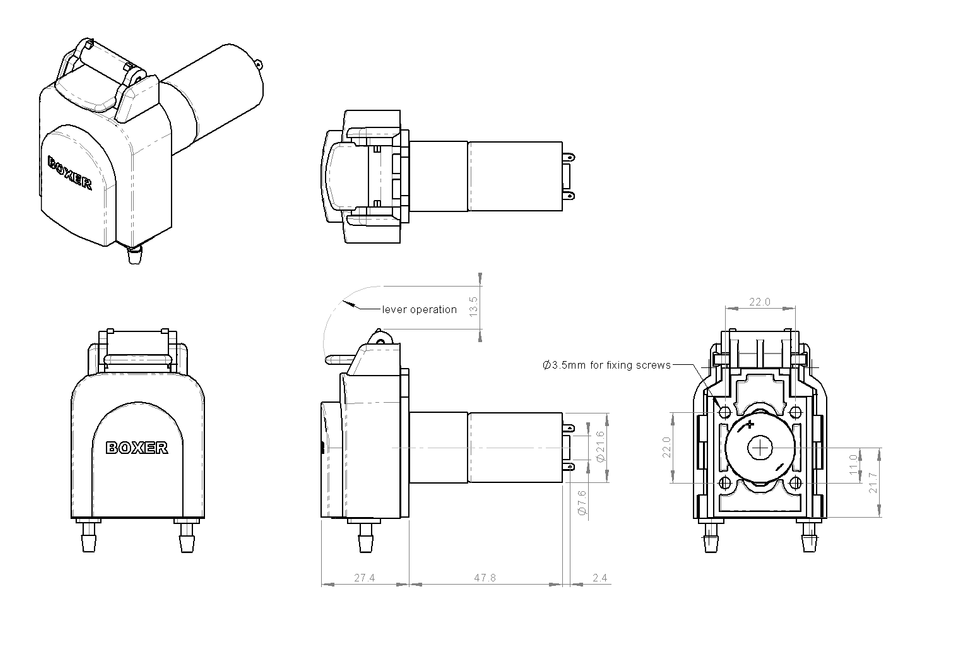

DC / Gear motor versions offer a range of 33 to 520 rpm with optional shaft encoder providing accurate feedback of rotor speed.

Stepper motor versions offer the versatility of finite speed control. 3 supporting driver options are vailable.

› Flow rates from 0.4 ml/min (or lower using stepper motor) to 200 ml/min
› Continuous tube or tube sets
› Easy tube change
› Unique floating saddle to enhance tube life and/or limit pressure
› 5 different tube sizes
› 4 different tube materials
› 2 channels available for 1 mm tubes
› 3 different roller configurations

Tubing / tube clips must always be ordered separately.

The 9QQ supersedes the 9K series.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Economic and versatile. 5 different speeds available in 12 and 24 V.

Flow Data
ID Ø 0.5 mm tube	16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller)
ID Ø 1.0 mm tube	55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube	190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube	340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube	400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller)

RPM (at nominal voltage)
12 V	116 / 315 / 520
24 V	33 / 107 / 315 / 520

Power Consumption	3.5 to 5.0 W

Tube Materials	Pharm-a-line / Silicone / Lagoprene / ED-Plex

Tube Connectors
ID Ø 0.5 mm tube (internal)	0.5 to 1.0 mm* (external)
ID Ø 1.0 mm tube (internal)	1.5 to 2.0 mm* (external)
ID Ø 2.0 mm tube (internal)	2.0 to 2.5 mm* (external)
ID Ø 3.0 mm tube (internal)	3.0 to 3.5 mm* (external)
ID Ø 3.5 mm tube (internal)	3.0 to 3.5 mm* (external)
	*depends on tube material being used
	Further information ⇒ Accessories

Max pressure	1 bar
Max vacuum	-950 mbar
DC motor life	>2000 hour
Weight	130 g
Optional encoder	10 pulses per motor revolution (associated rotor speed depends in gear ratio)

All data measured with 'run-in' Pharm-a-line continuous tubing and H2O.

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Teilenummer: 9010.930

Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 116 rpm, 3 Roller

122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9022.930

Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 315 rpm, 3 Roller

122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9007.930

Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 520 rpm, 3 Roller

122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9016.930

Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 33 rpm, 3 Roller

122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9012.930

Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 107 rpm, 3 Roller

122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9008.930

Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 315 rpm, 3 Roller

122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9015.930

Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 520 rpm, 3 Roller

122,85 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.761

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.762

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.763

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.764

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.765

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.300

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.301

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.302

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.303

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.304

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Teilenummer: 9510.930

Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 116 rpm, 3 Roller

148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9522.930

Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 315 rpm, 3 Roller

148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9507.930

Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 520 rpm, 3 Roller

148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9516.930

Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 33 rpm, 3 Roller

148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9512.930

Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 107 rpm, 3 Roller

148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9508.930

Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 315 rpm, 3 Roller

148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9515.930

Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 520 rpm, 3 Roller

148,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.761

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.762

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.763

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.764

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.765

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.300

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.301

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.302

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.303

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.304

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

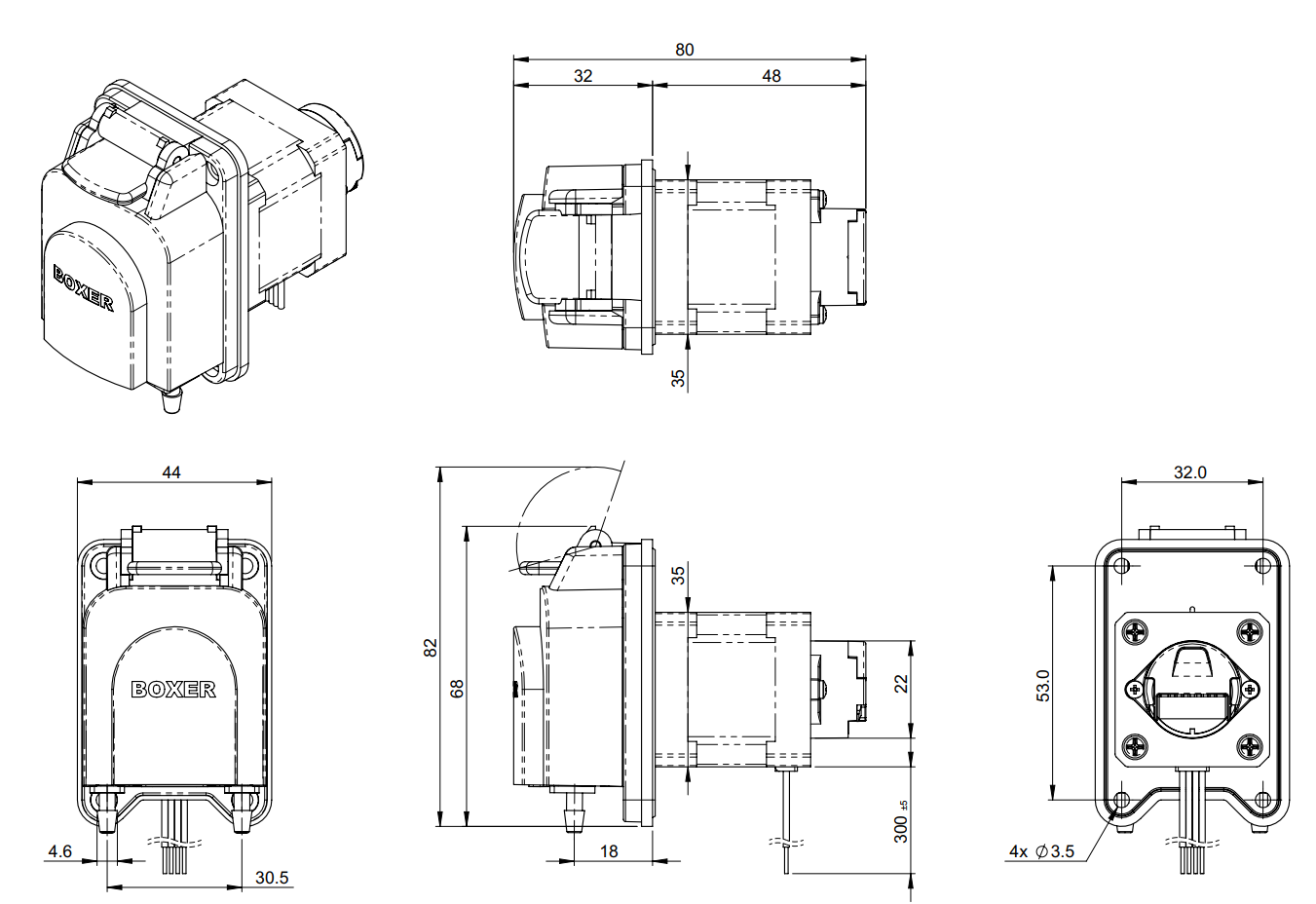

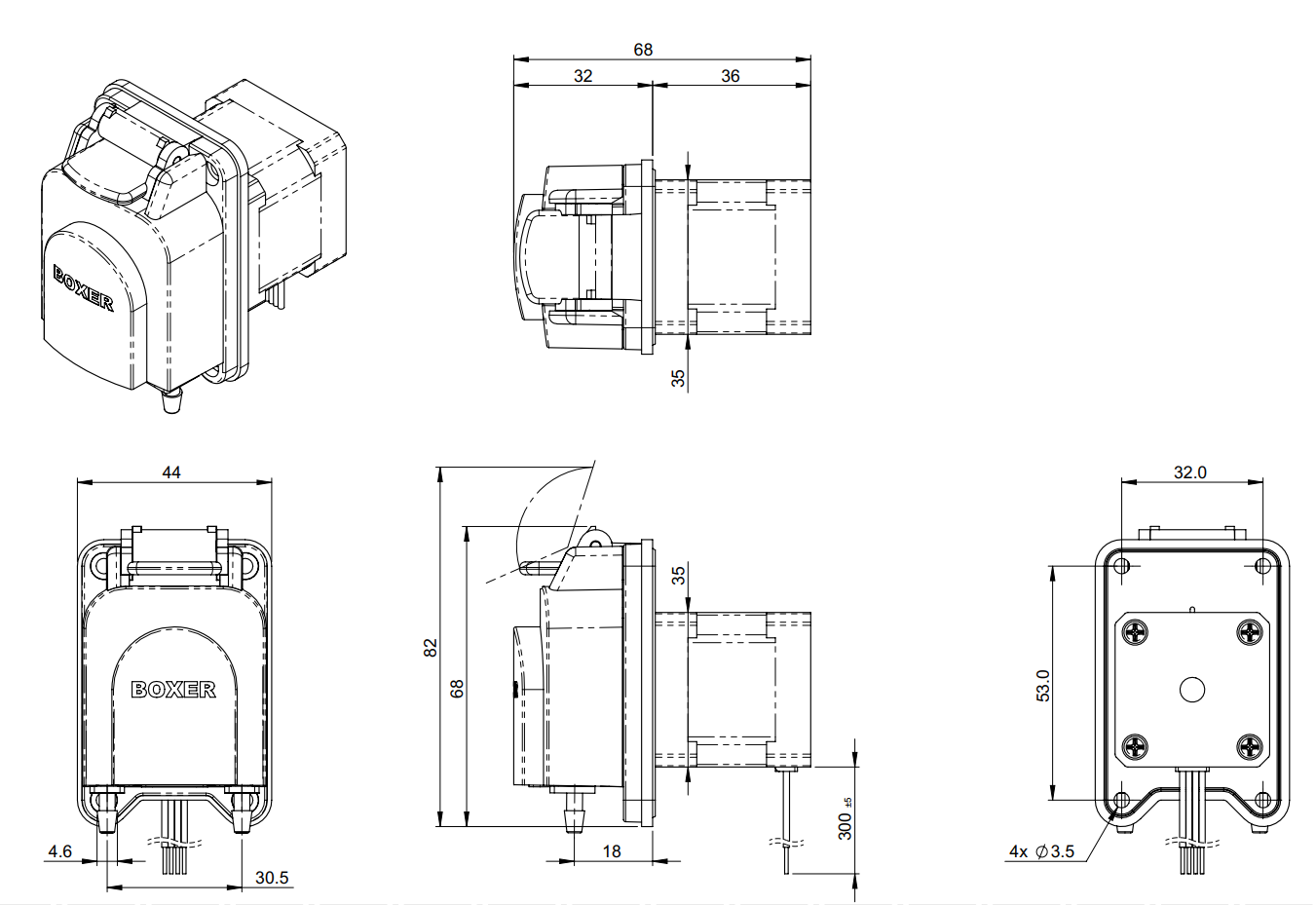

Excellent dosing control available in 24 V

Flow Data
ID Ø 0.5 mm tube	16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller)
ID Ø 1.0 mm tube	55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube	190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube	340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube	400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller)

RPM	0 to 500 rpm
	(higher speeds possible depending upon tube material, tube ID, number of rollers and driving method)

Tube Materials	Pharm-a-line / Silicone / Lagoprene / ED-Plex

Tube Connectors
ID Ø 5.0 mm tube (internal)	0.5 to 1.0 mm* (external)
ID Ø 1.0 mm tube (internal)	1.5 to 2.0 mm* (external)
ID Ø 2.0 mm tube (internal)	2.0 to 2.5 mm* (external)
ID Ø 3.0 mm tube (internal)	3.0 to 3.5 mm* (external)
ID Ø 3.5 mm tube (internal)	3.0 to 3.5 mm* (external)
	*depends on tube material being used
	Further information ⇒ Accessories

Max pressure	1 bar
Max vacuum	-950 mbar
Motor life	>10000 hour
Weight	235 g

All data measured with 'run-in' Pharm-a-line continuous tubing and H2O.

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Teilenummer: 9600.930

Driver Options: no | Encoder Option: no | Number of Rollers : 3

125,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9600.940

Driver Options: no | Encoder Option: no | Number of Rollers : 4

127,57 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9600.960

Driver Options: no | Encoder Option: no | Number of Rollers : 6

130,95 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9601.930

Driver Options: no | Encoder Option: yes | Number of Rollers : 3

156,55 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9601.940

Driver Options: no | Encoder Option: yes | Number of Rollers : 4

158,24 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9601.960

Driver Options: no | Encoder Option: yes | Number of Rollers : 6

161,61 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.761

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.762

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.763

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.764

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.765

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.300

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.301

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.302

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.303

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.304

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Teilenummer: 9660.930

Driver Options: yes | Encoder Option: no | Number of Rollers : 3

216,37 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9660.940

Driver Options: yes | Encoder Option: no | Number of Rollers : 4

218,06 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9660.960

Driver Options: yes | Encoder Option: no | Number of Rollers : 6

221,43 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9661.930

Driver Options: yes | Encoder Option: yes | Number of Rollers : 3

247,03 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9661.940

Driver Options: yes | Encoder Option: yes | Number of Rollers : 4

248,72 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 9661.960

Driver Options: yes | Encoder Option: yes | Number of Rollers : 6

252,10 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.761

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.762

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.763

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.764

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovaprene with PP connectors

Teilenummer: 9000.765

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

10,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.300

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.301

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.302

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.303

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

9K / 9QQ tube set: Innovasil with PP connectors

Teilenummer: 9000.304

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

7,54 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Additional Accessories

Stepper Driver - 2A

115,42 €*

Details

9K / 9QQ tube set: Lagoprene with PP connectors

12,55 €*

Details

Lagoprene (1.0 mm wall)

14,30 €*

Details

ED-Plex (1.0 mm wall)

17,87 €*

Details

9K / 9QQ tube set: Innovasil with PP connectors

7,54 €*

Details

25K Lever (spare part)

9,90 €*

Details

9K / 9QQ tube set: Innovaprene with PP connectors

10,04 €*

Details

Pharm-a-line (1.05 mm wall)

17,92 €*

Details

Silicone (1.0 mm wall)

15,61 €*

Details

9K / 9QQ tube set: Pharmaline with PP connectors

14,12 €*

Details

PWM Flow Controller

65,05 €*

Details

Potentiometer 10 turn with wires

25,45 €*

Details

9K / 9QQ tube set: ED-Plex with PP connectors

13,22 €*

Details

Innovasil (1.0 mm wall)

3,61 €*

Details

Tube Fittings

0,52 €*

Details

Alle Daten sind für Auswahlzwecke repräsentativ, geben jedoch keine Höchst- oder Mindestwerte an. Diese Produkte werden als Komponenten verkauft, die in ein Gerät eingebaut werden sollen. Es liegt in der Verantwortung des Geräteherstellers, die Eignung der Pumpe für die Anwendung zu bestimmen und die Einhaltung aller geltenden Zulassungen und Vorschriften sicherzustellen. Diese Produkte sind nicht für In-vivo-Anwendungen geeignet.
