2KD Series

The 2KD series is a double headed miniature diaphragm pump designed for gas sampling and gas detection. 2 heads allows flexibility of paralllel or series connection to extend the pressure / vacuum capability or to pump 2 totally separate gasses.

Iron core and coreless DC motor options are available in this series.

› Flow rate to 3.7 l/min
› Minimum power power consumption
› Choice of wetted parts
› Low temperature operation

This series is also available in a single head configuration (2K).

Flow control is available in combination with PWM Flow Controller.

Return to Miniature Diaphragm Pumps for Air and Gas range.

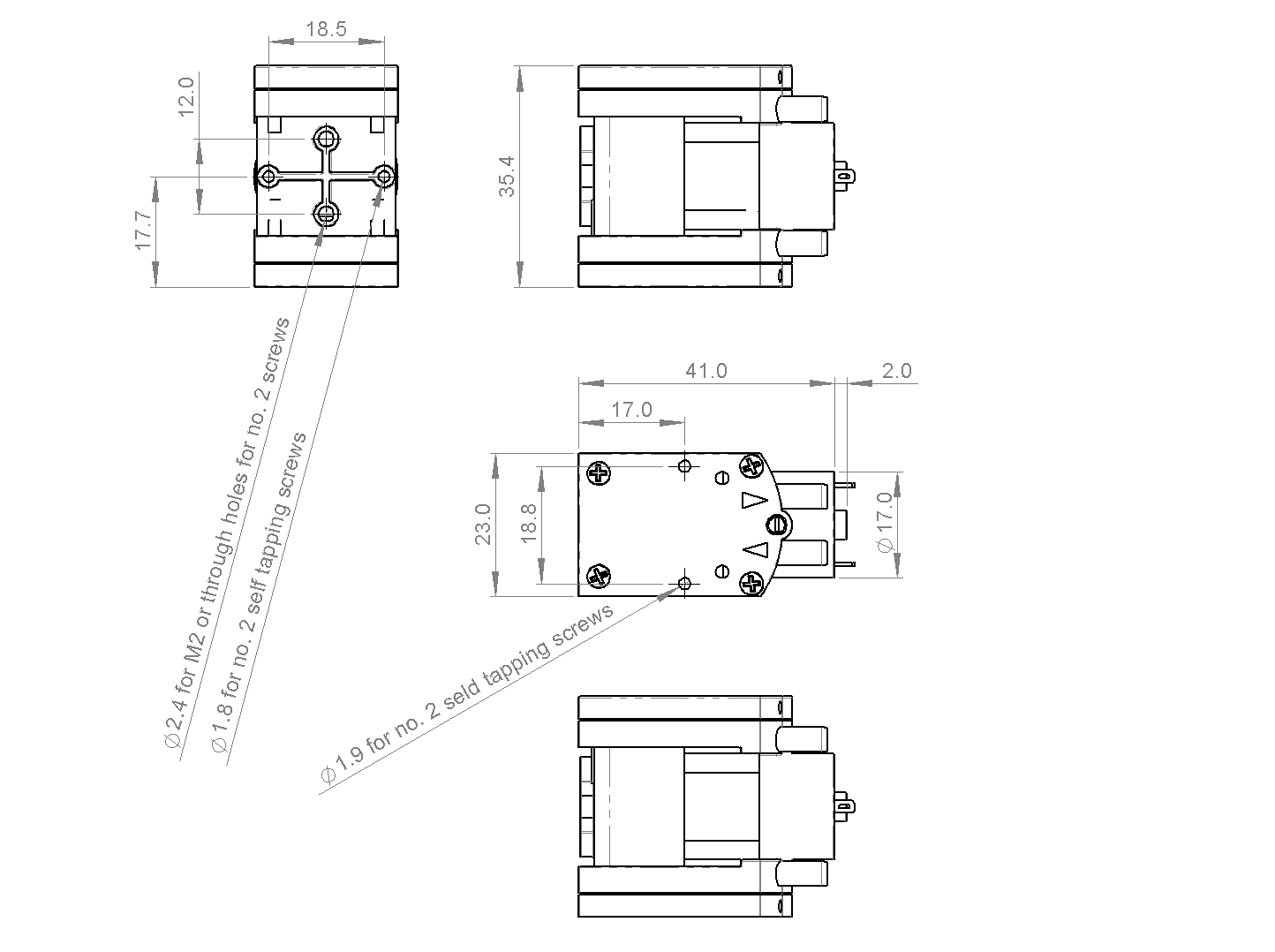

Iron Core Motor - e

Economic motor option available in 4.5 and 6.5 V.

Technical Data

Parallel Connection:
Free Flow 3.7 l/min
Max Pressure +500 mbar
Max Vacuum -300 mbar

Series Connection:
Free Flow 1.8 l/min
Max Pressure 700 mbar
Max Vacuum -550 mbar

Voltage Options 4.5 / 6.5 V DC

Elastomers Options EPDM, Silicone, CR
Other Wetted Parts PPO (Polyphenylene Oxide)
Tube Connection ∅3.5 mm
Weight 39 g







Order Information

Part Number:     2201.001     4.5 V DC / EPDM
Part Number:     2201.002     6.5 V DC / EPDM


Boxer 2KD diaphragm pump

Coreless Motor

Low power consumption with excellent life available in 4.0, 7.0, 9.0, 13.5 and 18.0 V.

Technical Data

Parallel Connection:
Free Flow 3.7 l/min
Max Pressure +500 mbar
Max Vacuum -300 mbar

Series Connection:
Free Flow 1.8 l/min
Max Pressure 700 mbar
Max Vacuum -550 mbar

Voltage Options 4.0 / 7.0 / 9.0 / 13.5 / 18.0 V DC

Elastomers Options EPDM, Silicone, CR
Other Wetted Parts PPO (Polyphenylene Oxide)
Tube Connection ∅3.5 mm
Weight 39 g





Order Information

Part Number:     2200.001     4.0 V DC / EPDM
Part Number:     2200.002     7.0 V DC / EPDM
Part Number:     2200.003     9.0 V DC / EPDM
Part Number:     2200.004     13.5 V DC / EPDM
Part Number:     2200.005     18.0 V DC / EPDM

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
