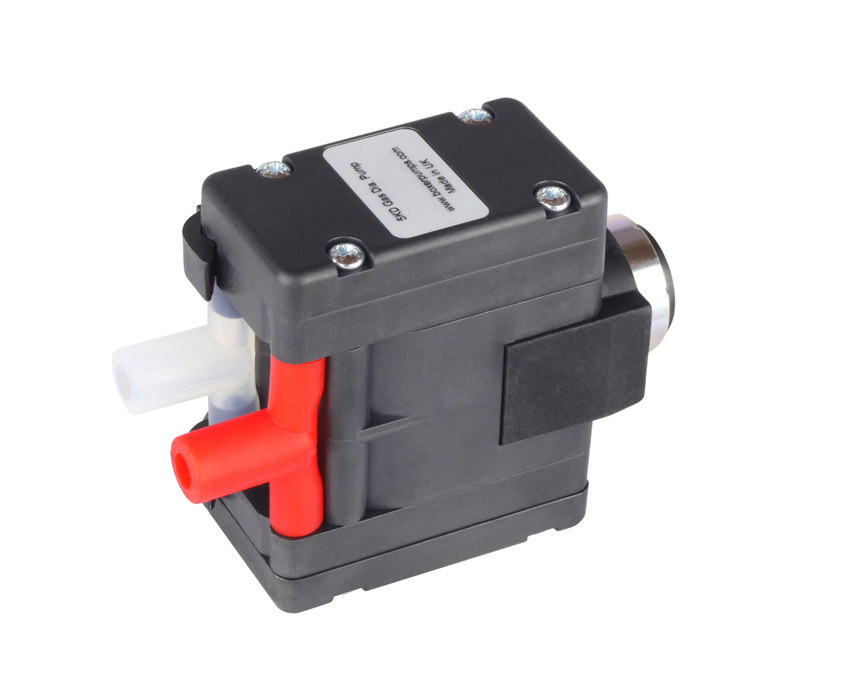

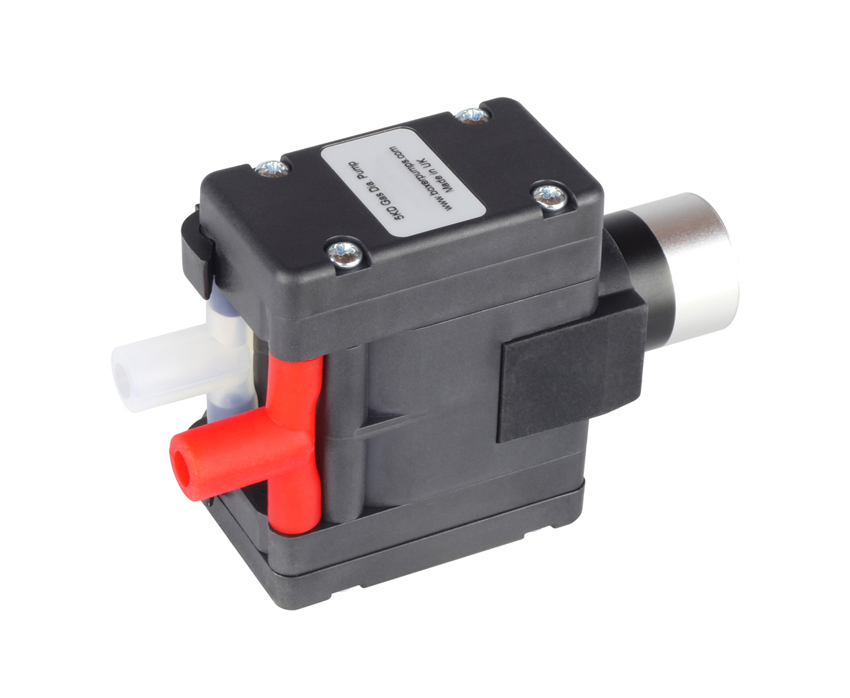

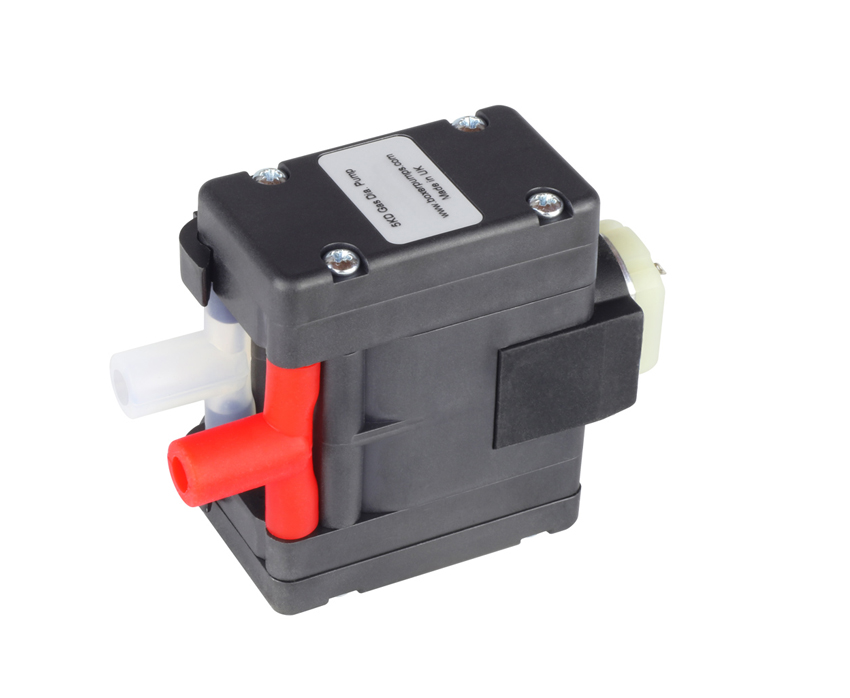

5KD Series
The 5KD series is now a second generation double headed diaphragm pump with unique design and, at 8.5 l/m free flow, offers an extremely high flow performance to size ratio. It is ideally suited to high flow / low pressure applications. Integrated pulsation chambers combined with 2 heads reduces pulsation to an absolute minimum.
Like all other pumps in the Boxer range, this series can be customised to specific requirements. The components are produced in a variety of materials providing compatibility with a wide range of applications.
Motor options include iron core, coreless and brushless DC with integrated driver.
› Flow rate to 8.5 l/min
› High flow to size ratio
› Integrated pulsation dampers
› Complete with mounting clips
Flow control is available in combination with PWM Flow Controller or directly via the 0 to 5 V speed input of for the brushless motor version.
Free Flow | 7.2 l/min |
Max Pressure | +250 mbar |
Max Vacuum | -250 mbar |
Voltage Options | 12 V DC |
Power Consumption | 2.2 to 5.5 W |
Elastomers Options | EPDM / Silicone |
Other Wetted Parts | PPS (polyphenylene sulphide) |
Weight | 145g |
Full data available in PDF datasheet |
![](https://www.boxerpumps.com/media/53/f8/3a/1692798498/5kd-iron-core-e-bombas-de-membrana-81_%281%29.jpg)
![](https://www.boxerpumps.com/media/37/97/28/1692798510/5kd-brushed-membranpumpe-de_%281%29.png)
Sofort verfügbar, Versand innerhalb 1 - 2 Tage
Free Flow | 7.5 l/min |
Max Pressure | +400 mbar |
Max Vacuum | -350 mbar |
Voltage Options | 6 V DC |
Power Consumption | 1.5 to 3.2 W |
Elastomers Options | EPDM / Silicone |
Other Wetted Parts | PPS (polyphenylene sulphide) |
Weight | 165g |
Full data available in PDF datasheet |
![](https://www.boxerpumps.com/media/35/64/f6/1692798236/5kd-coreless-pompe-membrana-7b.png)
Sofort verfügbar, Versand innerhalb 1 - 2 Tage
Free Flow | 8.5 l/min |
Max Pressure | +500 mbar |
Max Vacuum | -400 mbar |
Voltage Options | 24 V DC |
Power Consumption | 4.0 to 10.5 W |
Elastomers Options | EPDM / Silicone |
Other Wetted Parts | PPS (polyphenylene sulphide) |
Weight | 165g |
Full data available in PDF datasheet |
![](https://www.boxerpumps.com/media/c7/fe/11/1692798557/5kd-bldc-diaphragm-pump-b5_%281%29.jpg)
![](https://www.boxerpumps.com/media/11/78/6c/1692798571/5kd-bldc-diaphragm-pump-d5_%281%29.png)
Sofort verfügbar, Versand innerhalb 1 - 2 Tage
