5KS Series

The 5KS miniature diaphragm pump series sets new standards in performance density. An open flow of above 5.5 l/min is available with dimensions of just 5.7 x 4.4 x 3.0 cm and, importantly, this is achieved without excessive motor speeds. This pump has been designed for portable environmental analyser and medical devices.

If desired the 5KS can be run at reduced voltage for lower flows normally associated with pumps of this physical size. At these slow running speeds the 5KS offers exceptional low noise and extended motor life.

Like all other pumps in the Boxer range, this miniature diaphragm pump series can be customised to specific requirements. The components are produced in wide variety of materials providing compatibility with a wide range of applications.

The 5KS is available in 3 motor options: iron core (2 versions) and coreless.

› Flow rate > 5.5 l/min
› Outstanding flow to size ratio
› Slow running for exceptional low noise and high life
› Versatility of 3 motor options

Flow control is available in combination with PWM Flow Controller.

Economic motor option available in 12.0 V.

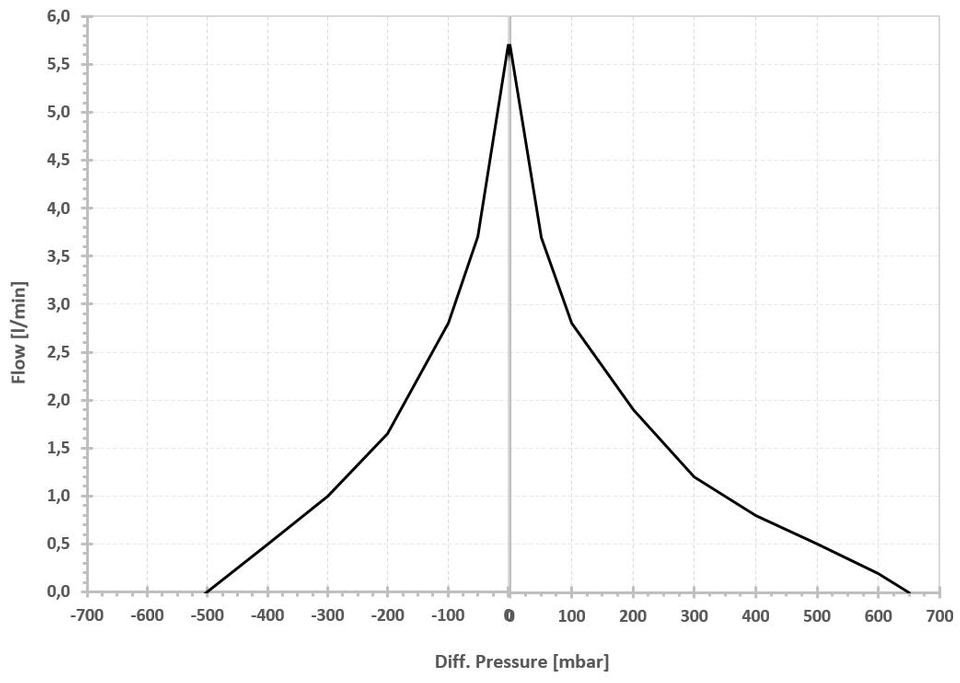

Free Flow 5.7 l/min
Max Pressure 650 mbar
Max Vacuum -500 mbar

Voltage Options 12 V DC
Power Consumption 1.5 to 4 W
Motor Termination Solder tags (no preferred rotational direction)

Operating Temperature Range 5 to +60 °C
Operating Humidity Range 5 to 95% RH

Elastomers Options EPDM, Silicone
Other Wetted Parts PPS (Polyphenylene Sulphide)
Tube Connection Barb for ∅ 5.0 mm tubing
Weight 80g
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 5211.901

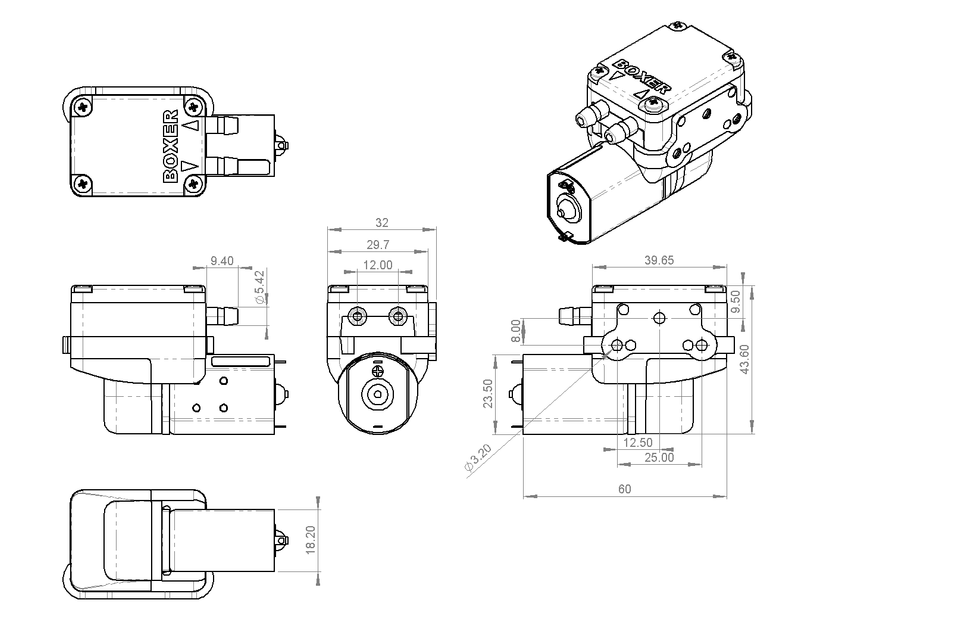

Motor / Voltage: Iron Core -e Motor 12 V
Economic with high life available in 12 and 24 V.

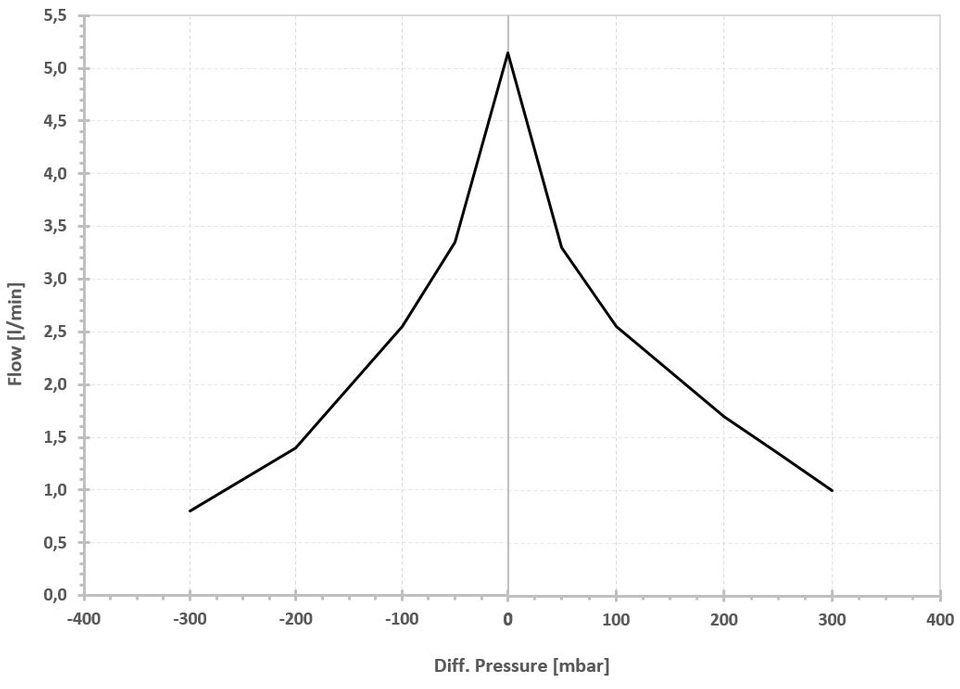

Free Flow 5.1 l/min
Max Pressure +300 mbar
Max Vacuum -300 mbar

Voltage Options 12 / 24 V DC
Power Consumption 1.5 to 4 W
Motor Termination Solder tags (marked + and -)

Operating Temperature Range 5 to +60 °C
Operating Humidity Range 5 to 95% RH

Elastomers Options EPDM, Silicone
Other Wetted Parts PPS (Polyphenylene Sulphide)
Tube Connection Barb for ∅ 5.0 mm tubing
Weight 85g
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 5311.901

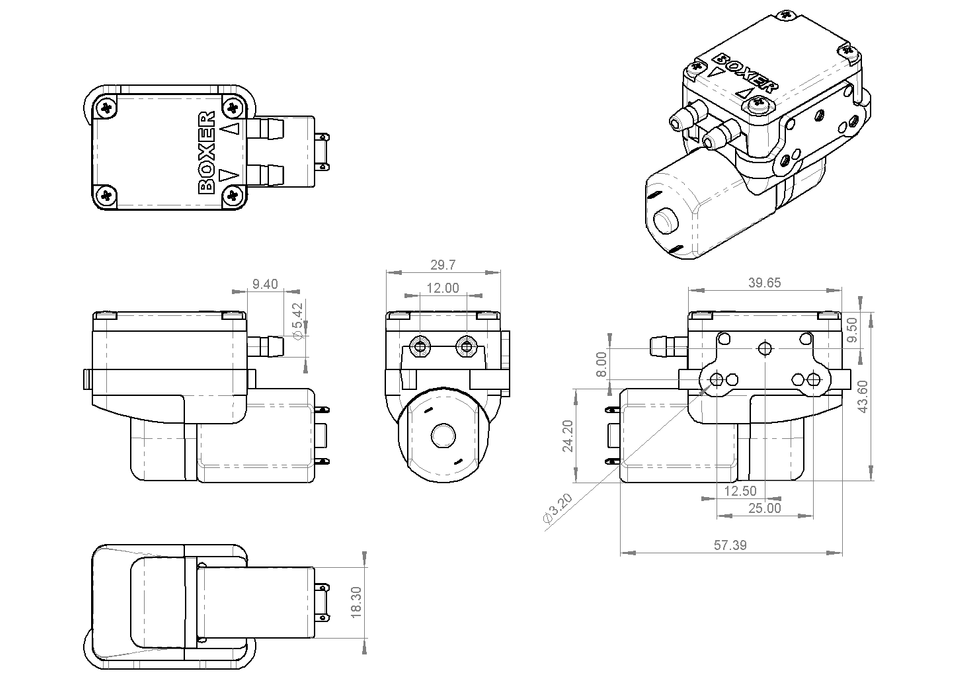

Motor / Voltage: Iron Core Motor 12 V
107,62 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 5311.902
Motor / Voltage: Iron Core Motor 24 V
107,62 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Low power consumption with excellent life available in 6.0 V.

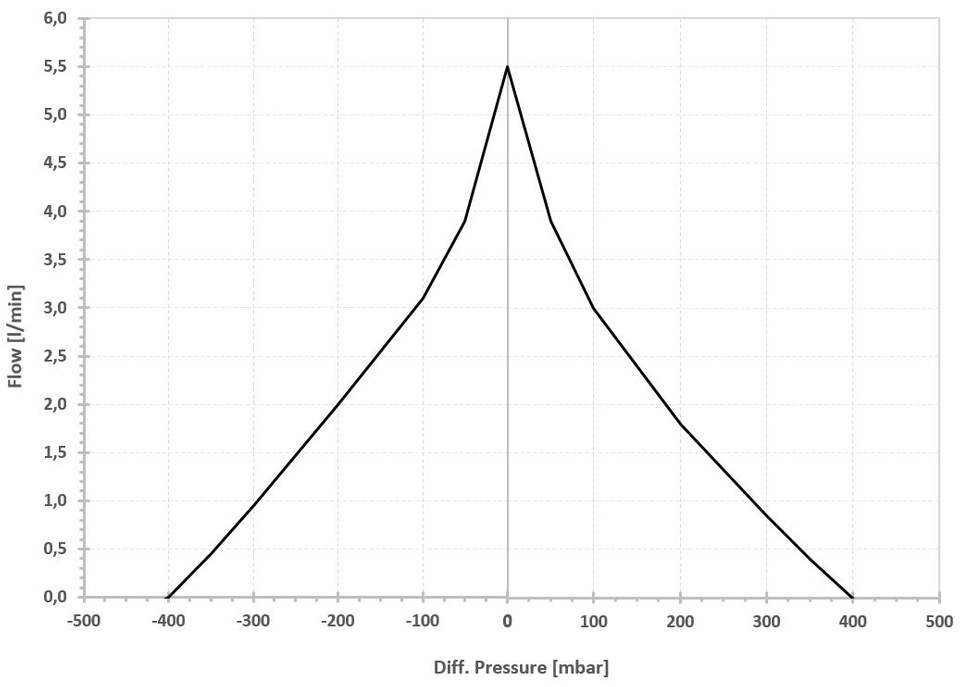

Free Flow 5.5 l/min
Max Pressure 400 mbar
Max Vacuum -400 mbar

Voltage Options 6 V DC
Power Consumption 1.0 to 3 W
Motor Termination 100 mm leads, 7mm stripped / tinned (red +, black -)

Operating Temperature Range 5 to +60 °C
Operating Humidity Range 5 to 95% RH

Elastomers Options EPDM, Silicone
Other Wetted Parts PPS (Polyphenylene Sulphide)
Tube Connection Barb for ∅ 5.0 mm tubing
Weight 100g
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 5101.906

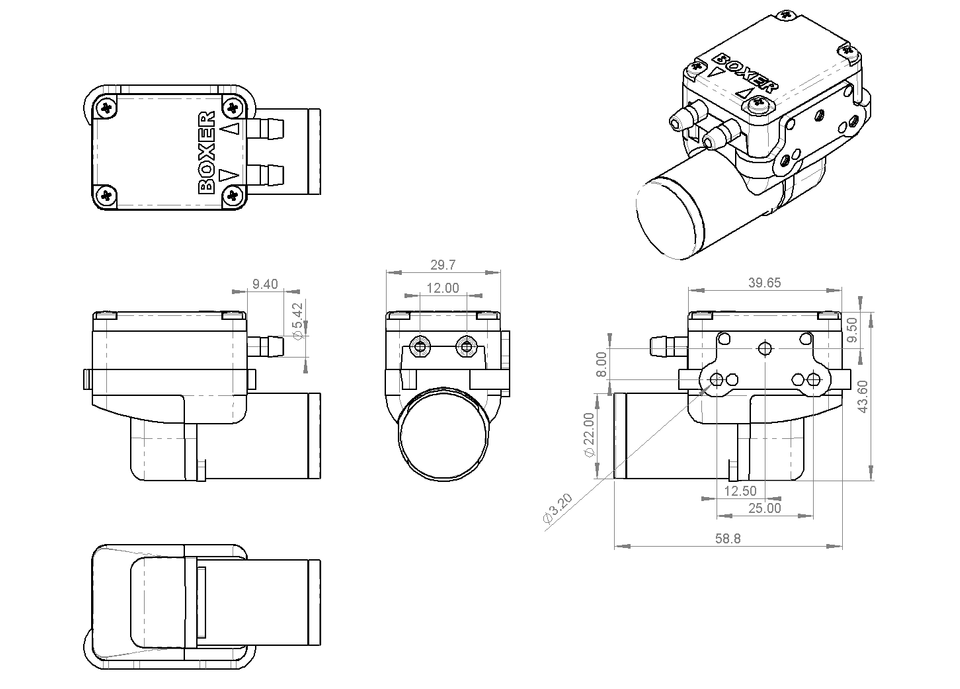

Motor / Voltage: Coreless Motor 6 V
174,53 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage
