11K Series
The 11K series is a miniature diaphragm pump designed for gas sampling applications and, like all other pumps in the Boxer range, can be customised to meet specific requirements. The components are produced in a wide variety of materials providing compatibility with a wide range of applications.
This series is available in iron core (2 versions), and brushless DC motor options.
› Flow rate to 1.8 l/min
› Choice of iron core and brushless motors
› Choice of wetted parts
› Robust and compact design
Flow control is available in combination withPWM Flow Controller.

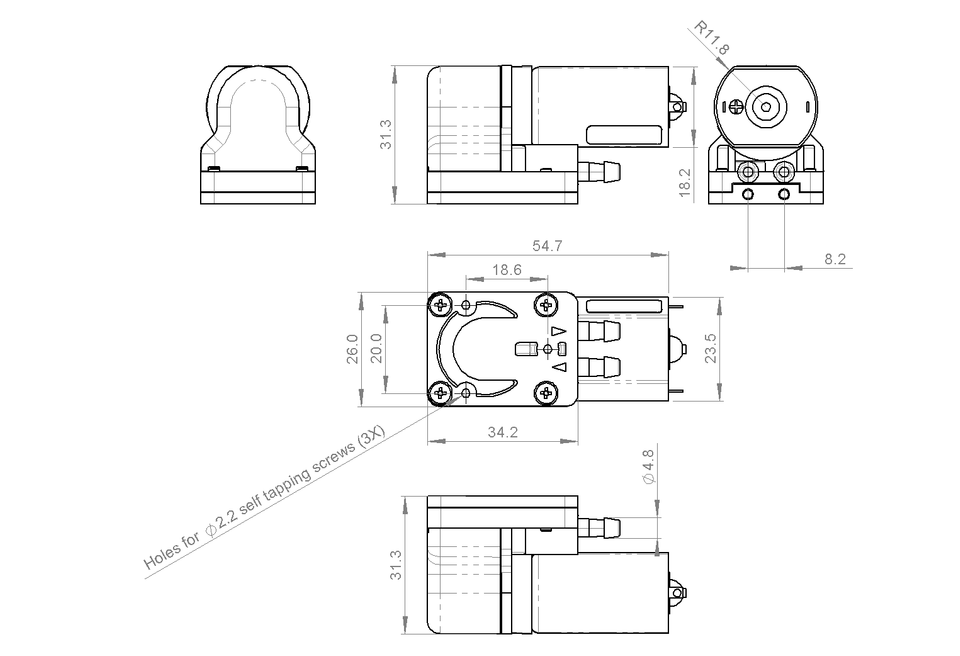

Free Flow | 1.8 l/min |
Max Pressure | +500 mbar |
Max Vacuum | -450 mbar |
Voltage Options | 12 V DC |
Power Consumption | 0.96 to 1.56 W |
Elastomers | EPDM |
Other Wetted Parts | PBT (Polybutylene terephthalate) |
Weight | - g |
![](https://www.boxerpumps.com/media/55/9f/9e/1692626656/11k-bldc-membranpumpe-aa.jpg)
![](https://www.boxerpumps.com/media/c5/b6/db/1692626297/11k-iron-core-22.png)
Sofort verfügbar, Versand innerhalb 1 - 2 Tage

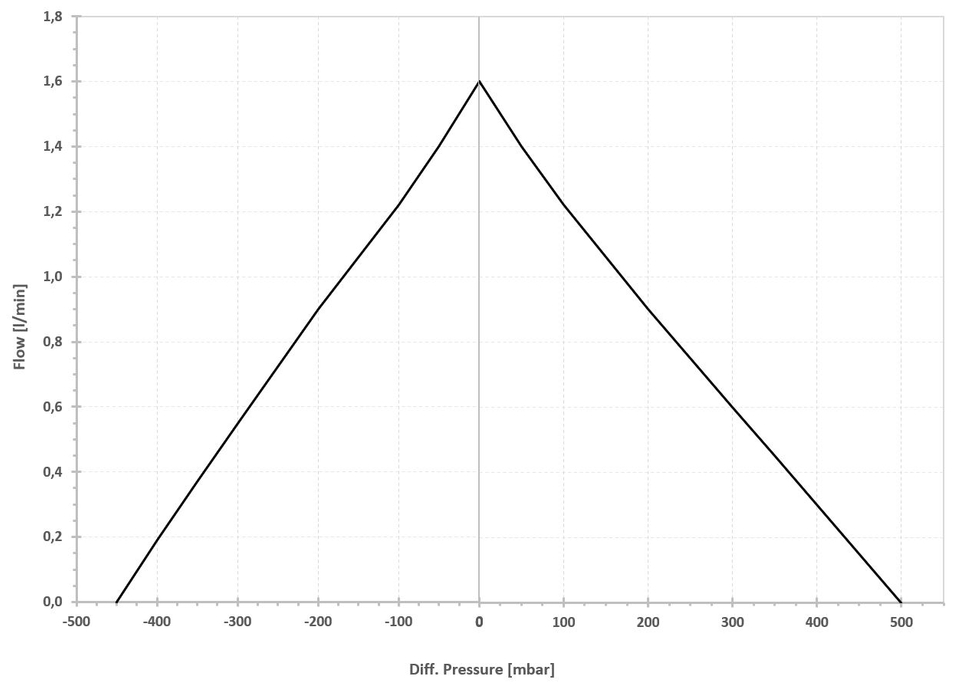

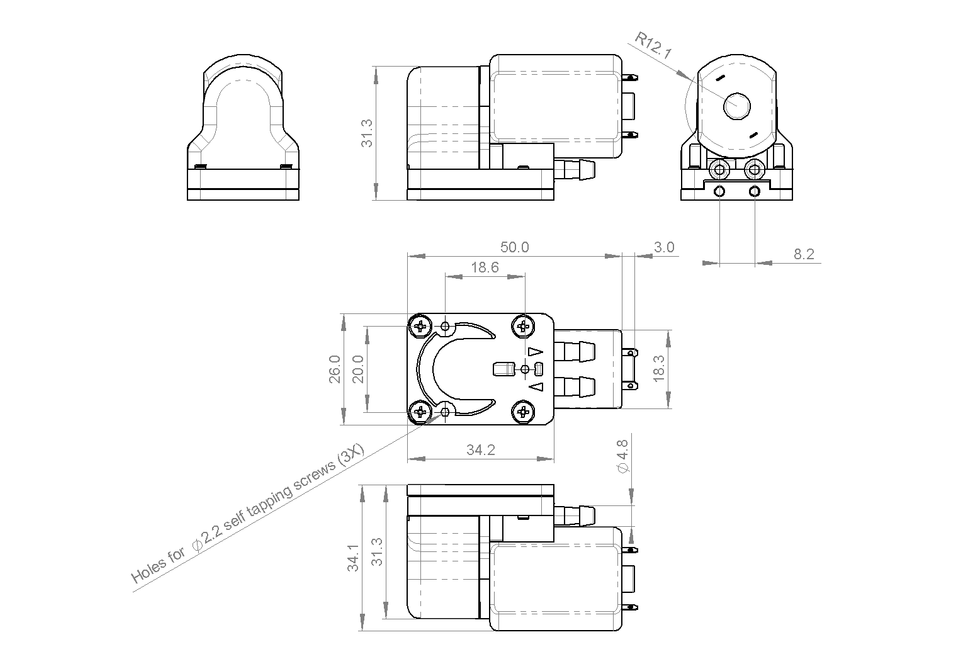

Free Flow | 1.6 l/min |
Max Pressure | 500 mbar |
Max Vacuum | -450 mbar |
Voltage Options | 12 , 24 V DC |
Power Consumption | 0.96 to 1.44 W |
Elastomers | EPDM |
Other Wetted Parts | PBT (Polybutylene terephthalate) |
Weight | 54 g |
![](https://www.boxerpumps.com/media/4b/86/20/1692626438/11k-diaphram-pump-ic-cd.jpg)
![](https://www.boxerpumps.com/media/6b/58/c0/1692626445/11k-iron-core-e-90.png)
Sofort verfügbar, Versand innerhalb 1 - 2 Tage
Sofort verfügbar, Versand innerhalb 1 - 2 Tage

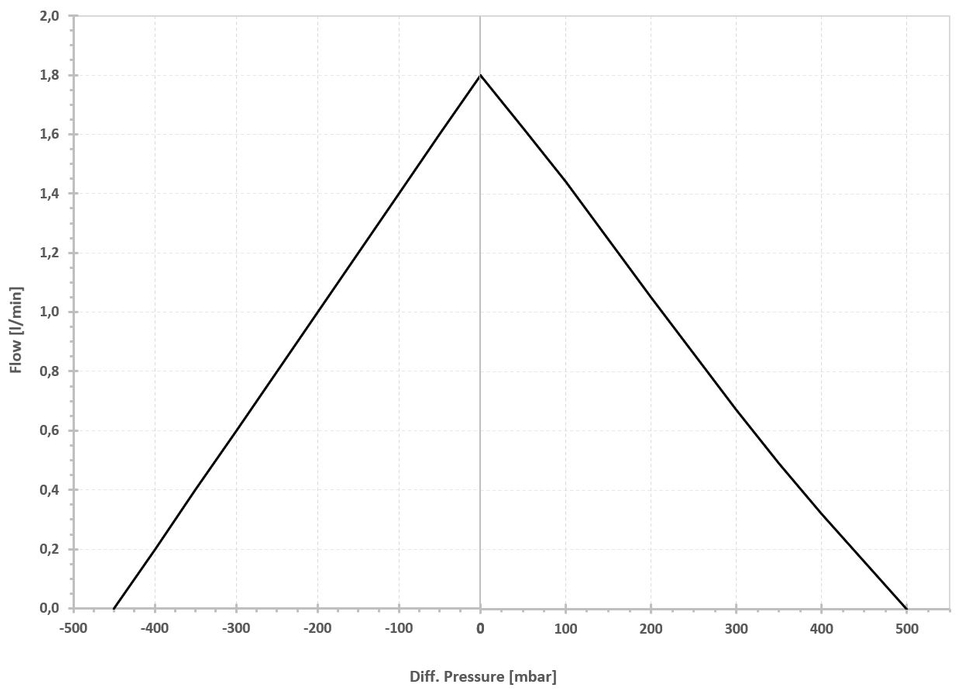

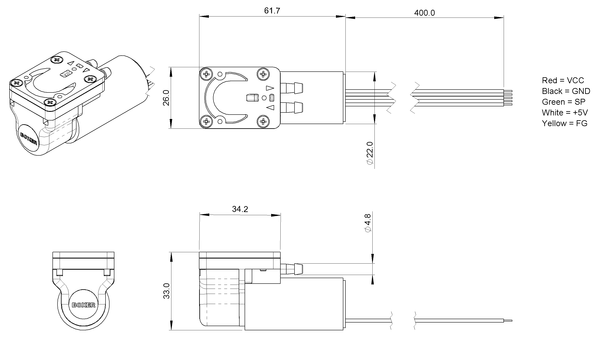

Free Flow | 1.8 l/min |
Max Pressure | 500 mbar |
Max Vacuum | -450 mbar |
Voltage Options | 12 to 24 V DC |
Power Consumption | 1.56 to 2.88 W |
Elastomer | EPDM |
Other Wetted Parts | PBT (Polybutylene terephthalate) |
Weight | 72 g |
![](https://www.boxerpumps.com/media/55/9f/9e/1692626656/11k-bldc-membranpumpe-aa.jpg)
![](https://www.boxerpumps.com/media/f9/a8/be/1692626668/11k-brushless-diaphragm-pump-c1_%281%29.png)
