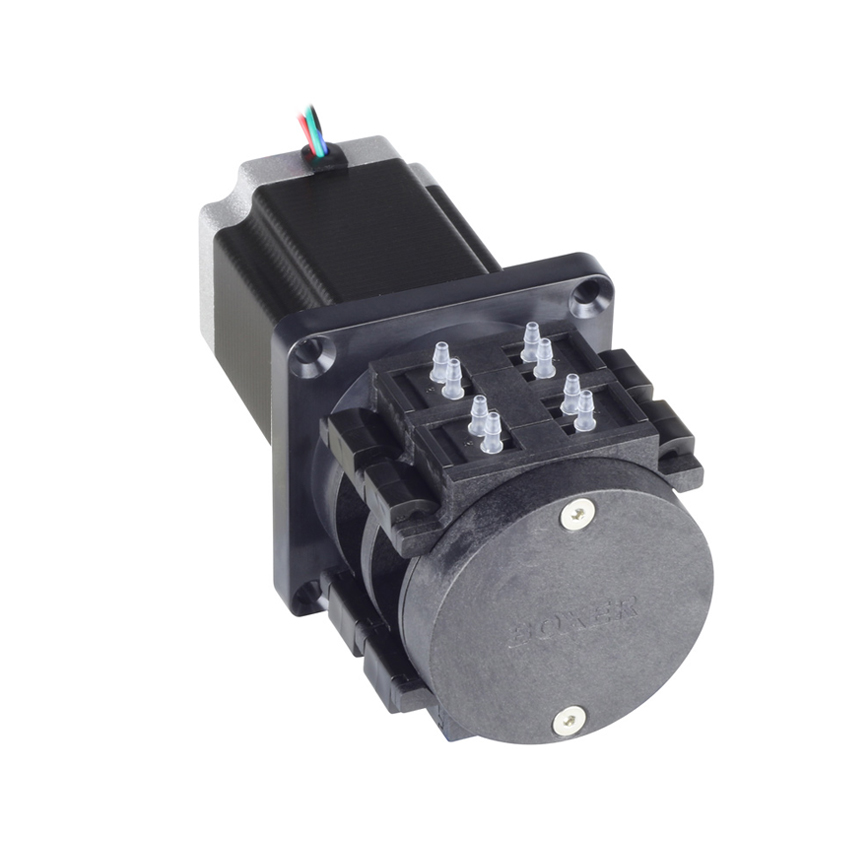

6K Series - for 1.0 mm wall tubing

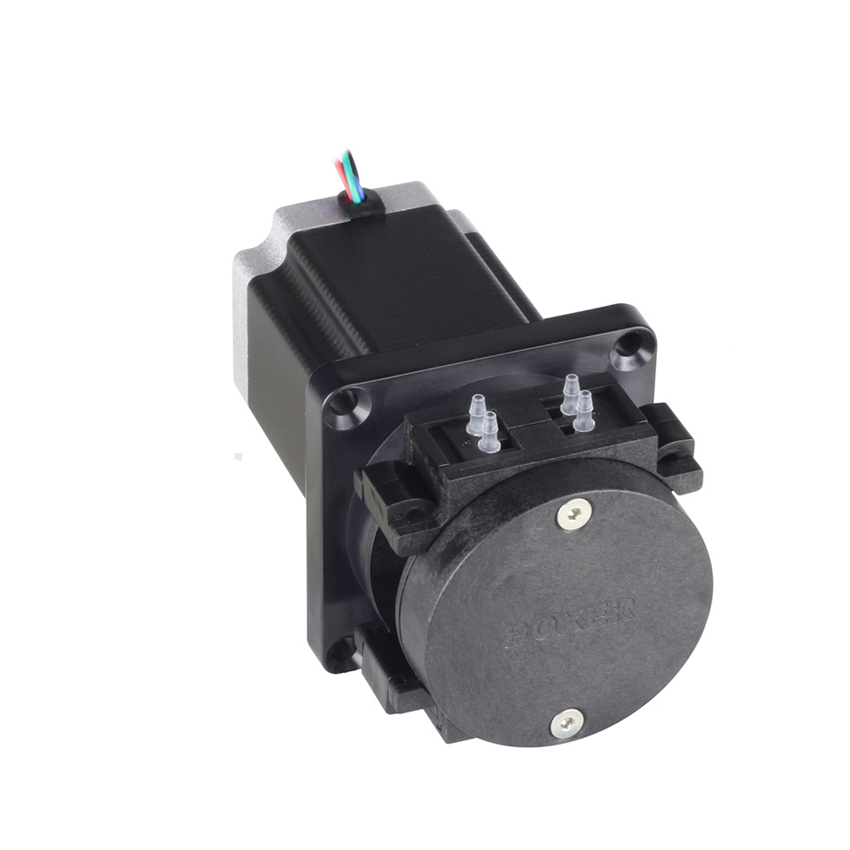

The second generation 6K series is a uniquely compact multichannel peristaltic pump range for accurate dispensing of liquids. The stepper motor drive offers the versatility of finite speed control and, combined with optional optical position sensors, roller position control.

The 6K peristaltic pump is designed for both 1.0 and 1.6 mm wall tubing. This product page details the 1.0 mm wall configurations. For 1.6 mm wall configuration ⇒ 6K for 1.6 mm wall tubing.

› Flow rates from 15 to 384 µl per revolution (per channel)
› Choice of 4, 8 or 12 channels
› Inlet / outlet above and below head to support compact design
› Suitable for 0.5, 1.0, 2.0 and 3.0 mm ID tube
› 4 and 8 roller configurations
› Supplied with motor only or choice of 3 pre-assembled stepper motor drivers
› Option rotor position / speed sensor

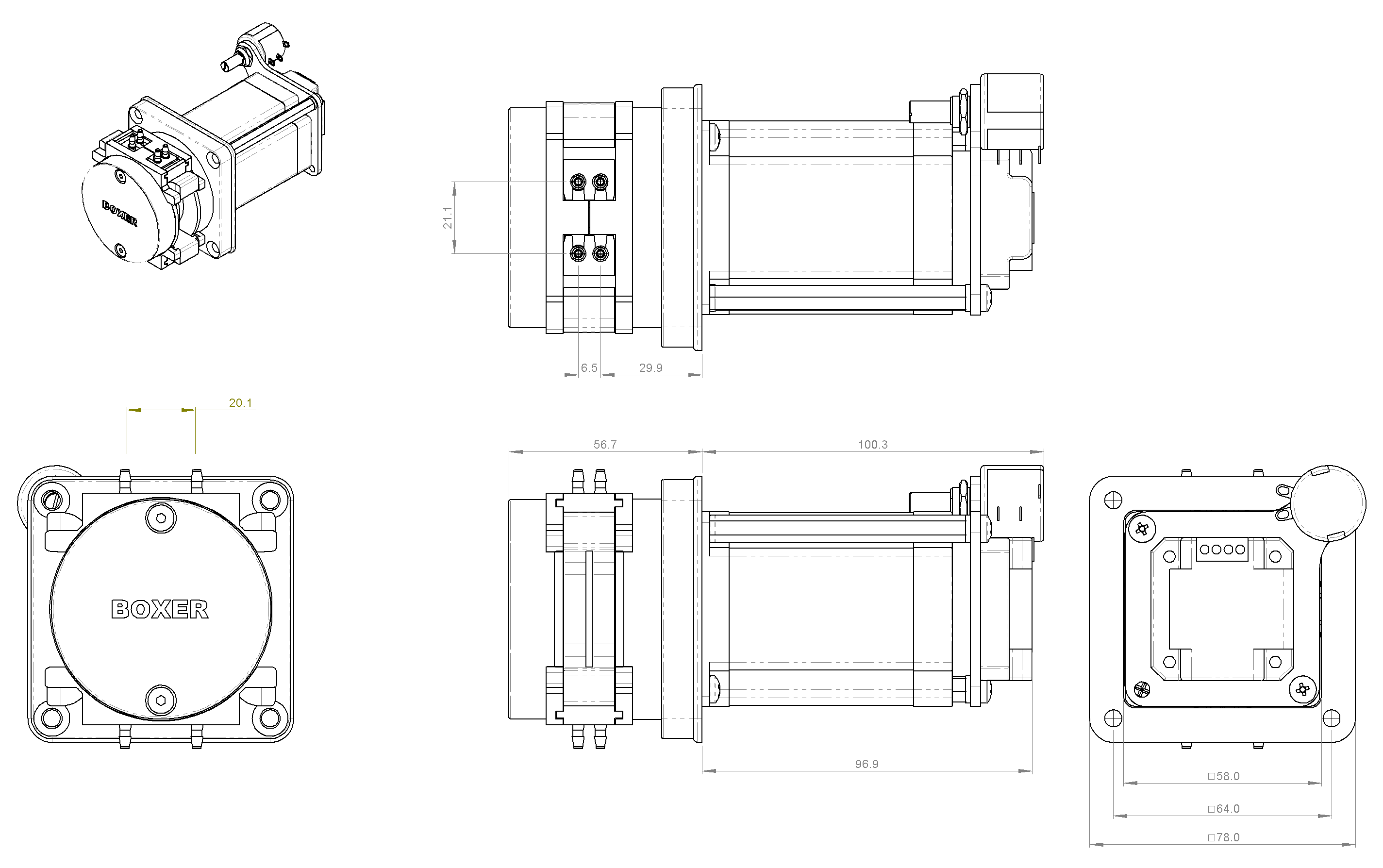

4 Channel with 24 V Stepper Motor
Flow Data per Revolution (per channel)
ID Ø 0.5 mm tube 20 / 15 µl per revolution (4 / 8 Roller)
ID Ø 1.0 mm tube 61 / 41 µl per revolution (4 / 8 Roller)
ID Ø 2.0 mm tube 229 / 132 µl per revolution (4 / 8 Roller)
ID Ø 3.0 mm tube 384 / 187 µl per revolution (4 / 8 Roller)

Flow Data at 300 RPM (max recommended speed)
ID Ø 0.5 mm tube 6.1 / 4.4 ml / min (4 / 8 Roller)
ID Ø 1.0 mm tube 18.7 / 12.4 ml / min (4 / 8 Roller)
ID Ø 2.0 mm tube 68.6 / 39.5 ml / min (4 / 8 Roller)
ID Ø 3.0 mm tube 115.1 / 56.3 ml / min (4 / 8 Roller)

Electrical Data
Power consumption (with ID Ø 3.0 mm tube and including A4 driver) 23 to 33 W
Recommended driver current setting 4.0 A
Max. starting speed (with new tubing) 100 rpm

  Full data available in PDF datasheet



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

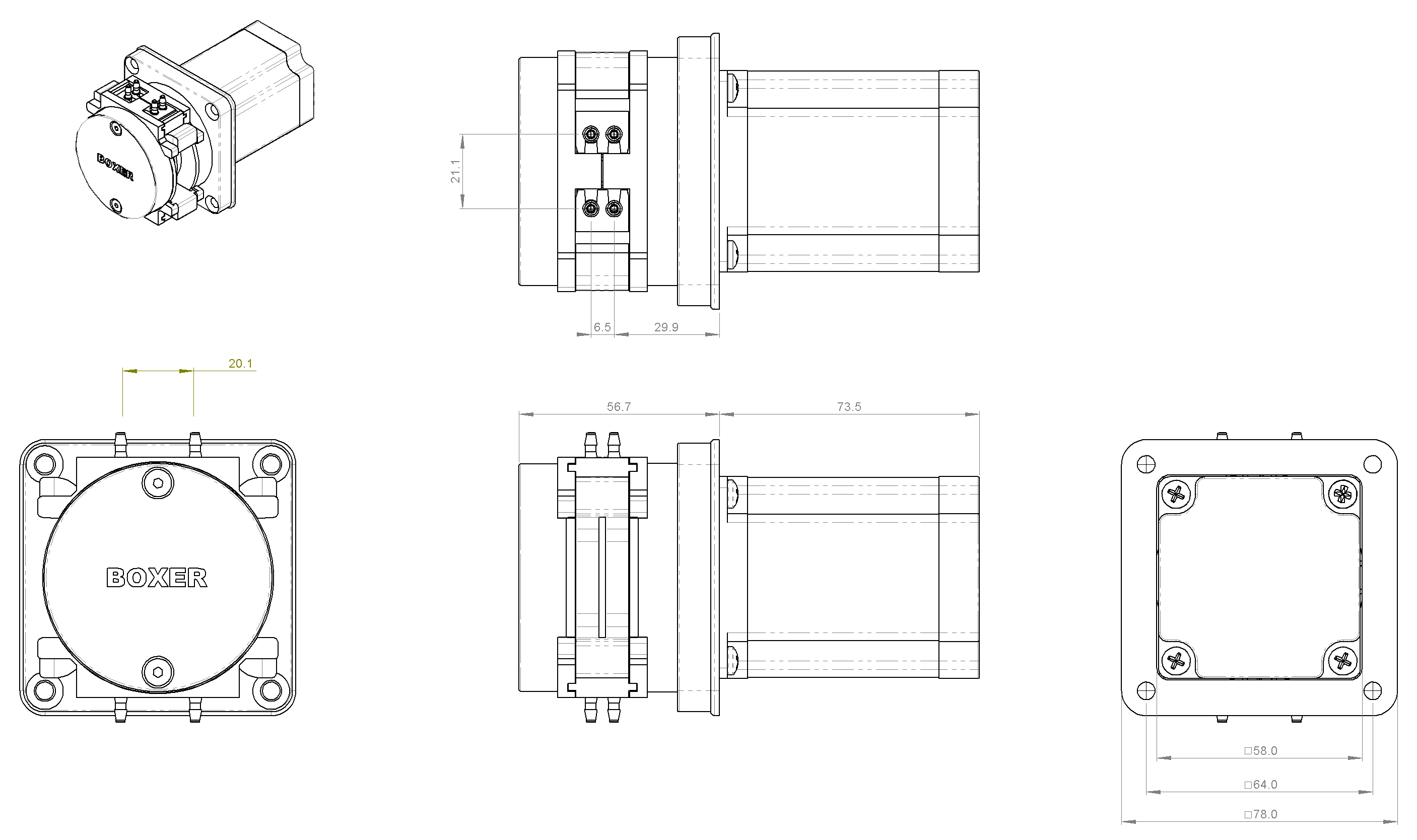

Part Number: 6341.100
Number of Channels: 4 | Number of Rollers : 4 | Driver Options: no
€333.36*

Available, shipping in 1 - 2 days

Part Number: 6331.100
Number of Channels: 4 | Number of Rollers : 8 | Driver Options: no
€340.09*

Available, shipping in 1 - 2 days


1 x tube set and 1 x saddle kit required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613
Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614
Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.104
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers
€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers
€5.01*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

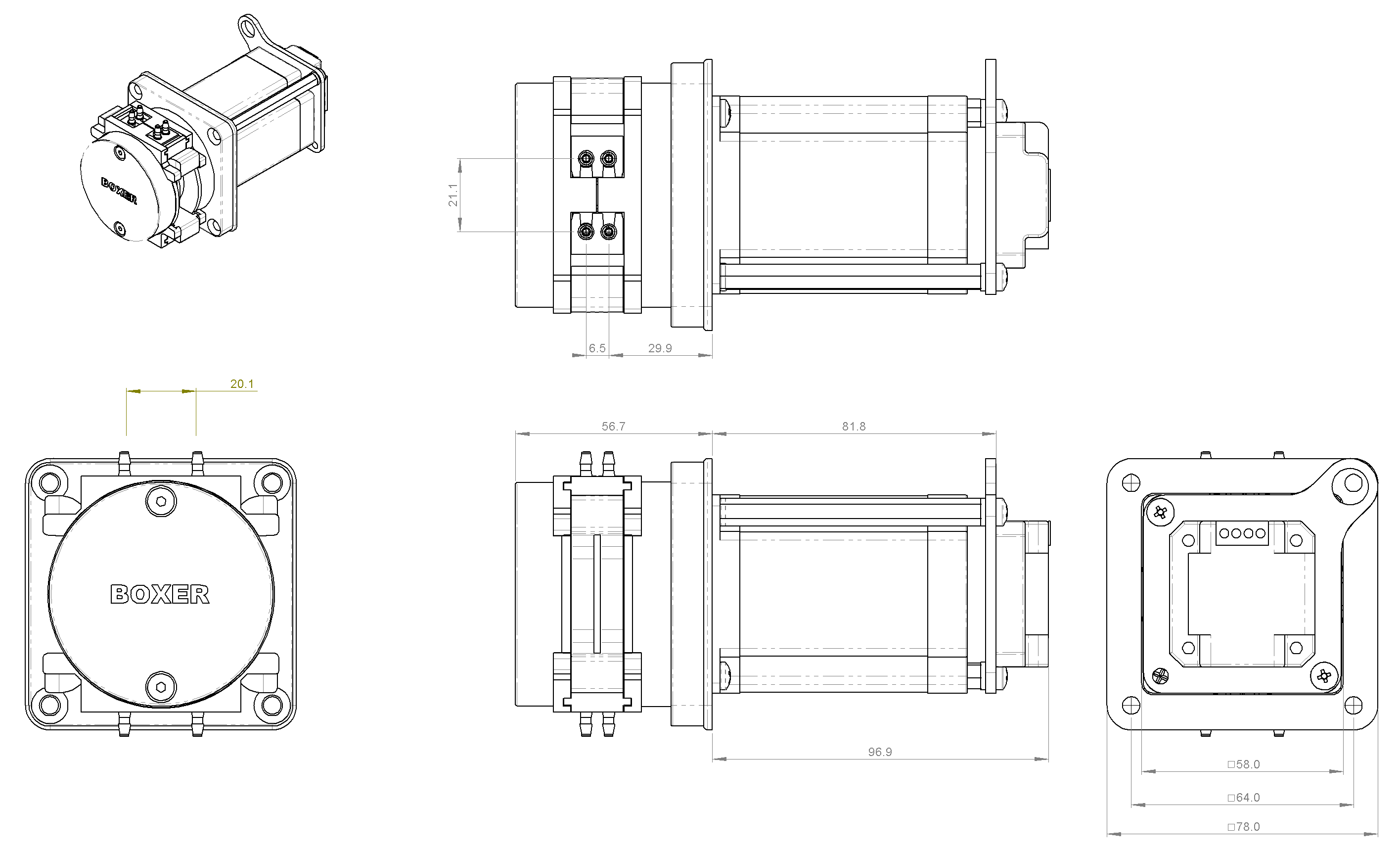

Part Number: 6341.101
Number of Channels: 4 | Number of Rollers : 4 | Driver Options: A4
€470.79*

Available, shipping in 1 - 2 days

Part Number: 6331.101
Number of Channels: 4 | Number of Rollers : 8 | Driver Options: A4
€478.75*

Available, shipping in 1 - 2 days


 1 x tube set and 1 x saddle kit required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613
Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614
Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.104
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers
€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers
€5.01*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 6341.151
Number of Channels: 4 | Number of Rollers : 4 | Driver Options: A4p
€498.01*

Available, shipping in 1 - 2 days

Part Number: 6331.151
Number of Channels: 4 | Number of Rollers : 8 | Driver Options: A4p
€504.74*

Available, shipping in 1 - 2 days


1 x tube set and 1 x saddle kit required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613
Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614
Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.104
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers
€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers
€5.01*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

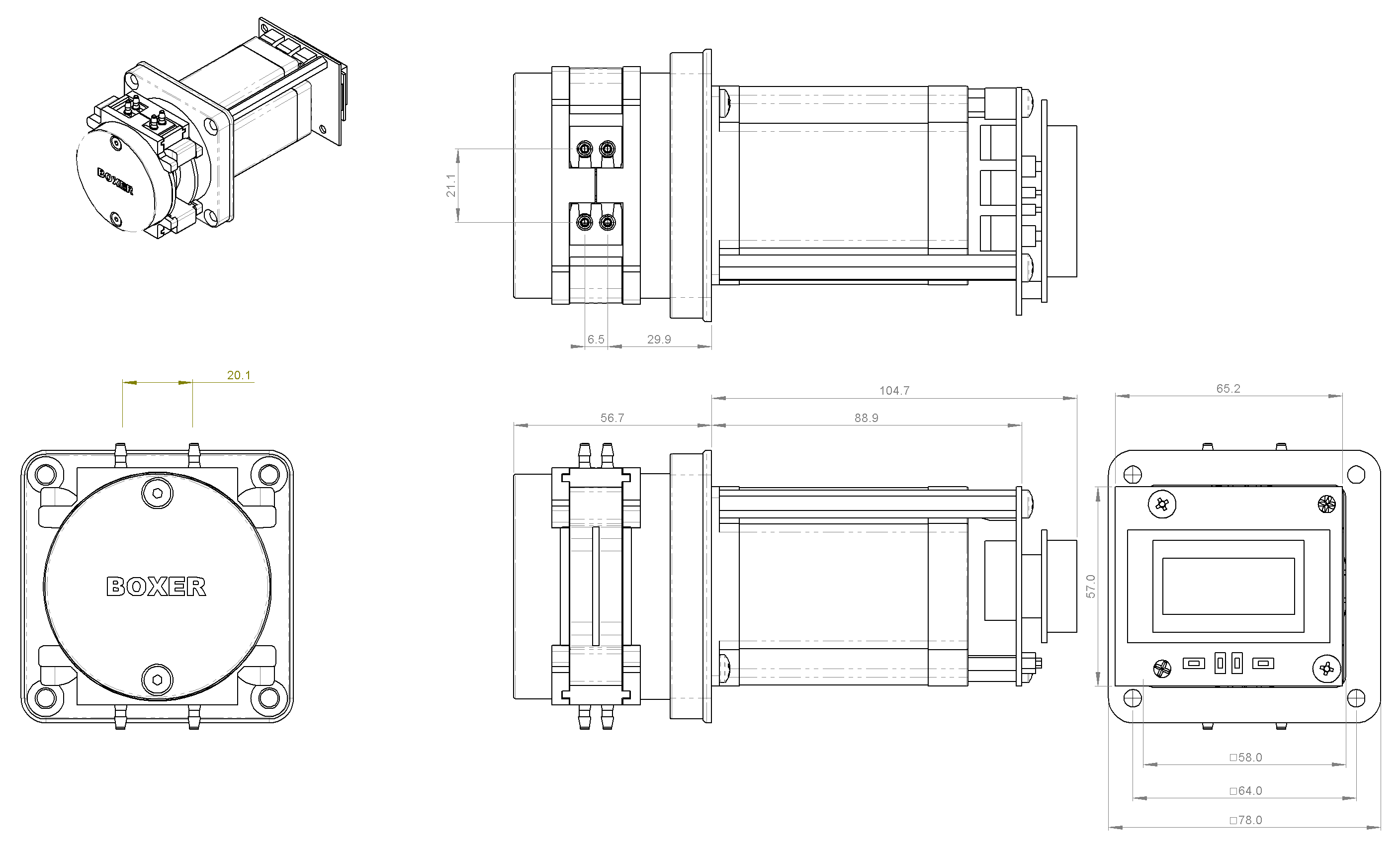

Part Number: 6341.105
Number of Channels: 4 | Number of Rollers : 4 | Driver Options: iD
€541.29*

Available, shipping in 1 - 2 days

Part Number: 6331.105
Number of Channels: 4 | Number of Rollers : 8 | Driver Options: iD
€548.03*

Available, shipping in 1 - 2 days


1 x tube set and 1 x saddle kit required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613
Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614
Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.104
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers
€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers
€5.01*

Available, shipping in 1 - 2 days

8 Channel with 24 V Stepper Motor
Flow Data per Revolution (per channel)
ID Ø 0.5 mm tube 20 / 15 µl per revolution (4 / 8 Roller)
ID Ø 1.0 mm tube 61 / 41 µl per revolution (4 / 8 Roller)
ID Ø 2.0 mm tube 229 / 132 µl per revolution (4 / 8 Roller)
ID Ø 3.0 mm tube 384 / 187 µl per revolution (4 / 8 Roller)

Flow Data at 300 RPM (max recommended speed)
ID Ø 0.5 mm tube 6.1 / 4.4 ml / min (4 / 8 Roller)
ID Ø 1.0 mm tube 18.7 / 12.4 ml / min (4 / 8 Roller)
ID Ø 2.0 mm tube 68.6 / 39.5 ml / min (4 / 8 Roller)
ID Ø 3.0 mm tube 115.1 / 56.3 ml / min (4 / 8 Roller)

Electrical Data
Power consumption (with ID Ø 3.0 mm tube and including A4 driver) 32 to 46 W
Recommended driver current setting 4.0 A
Max. starting speed (with new tubing) 100 rpm

  Full data available in PDF datasheet



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

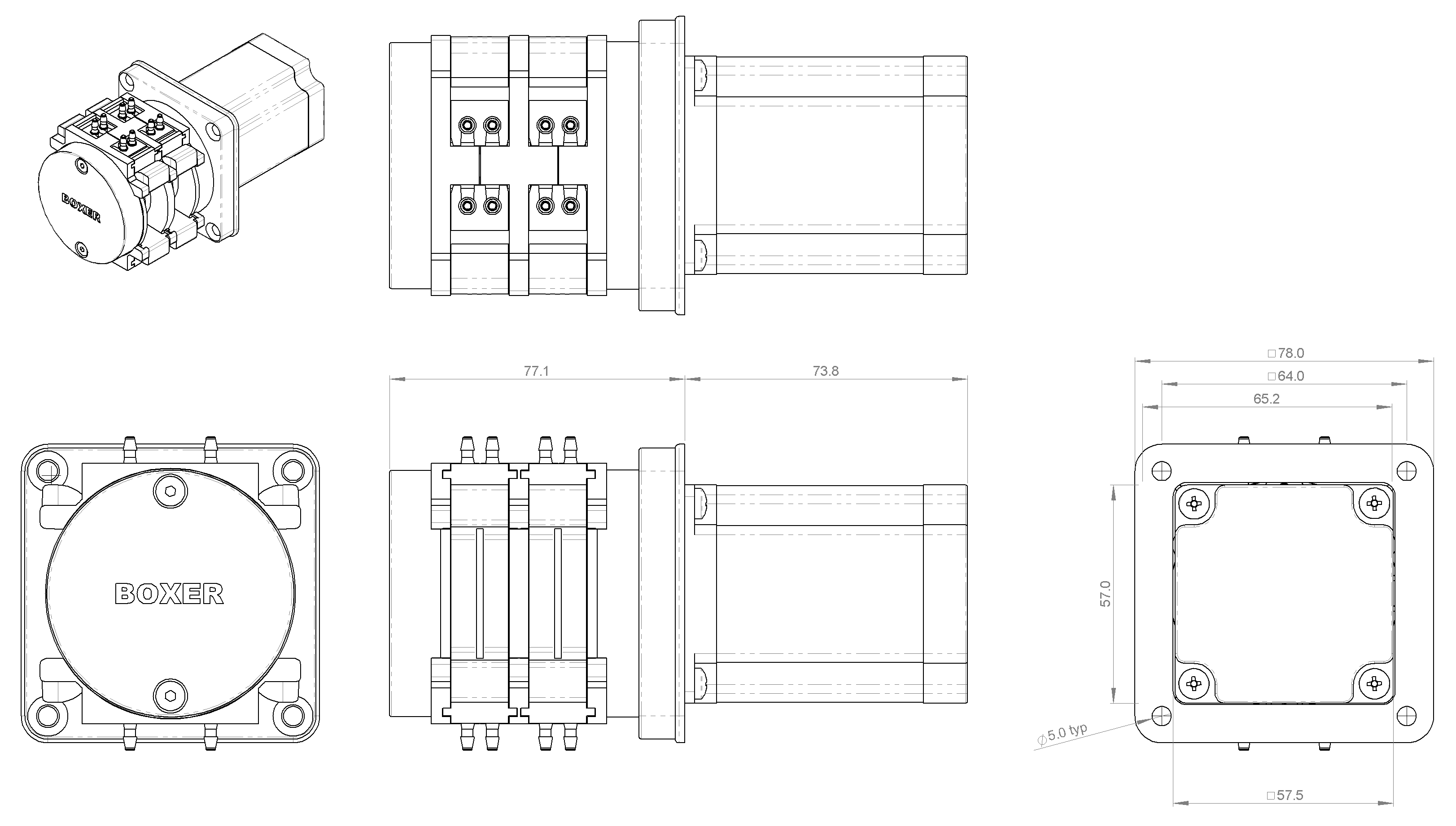

Part Number: 6342.100
Number of Channels: 8 | Number of Rollers : 4 | Driver Options: no
€367.38*

Available, shipping in 1 - 2 days

Part Number: 6332.100
Number of Channels: 8 | Number of Rollers : 8 | Driver Options: no
€374.12*

Available, shipping in 1 - 2 days


2 x tube sets and 2 x saddle kits required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613
Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614
Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.104
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers
€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers
€5.01*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

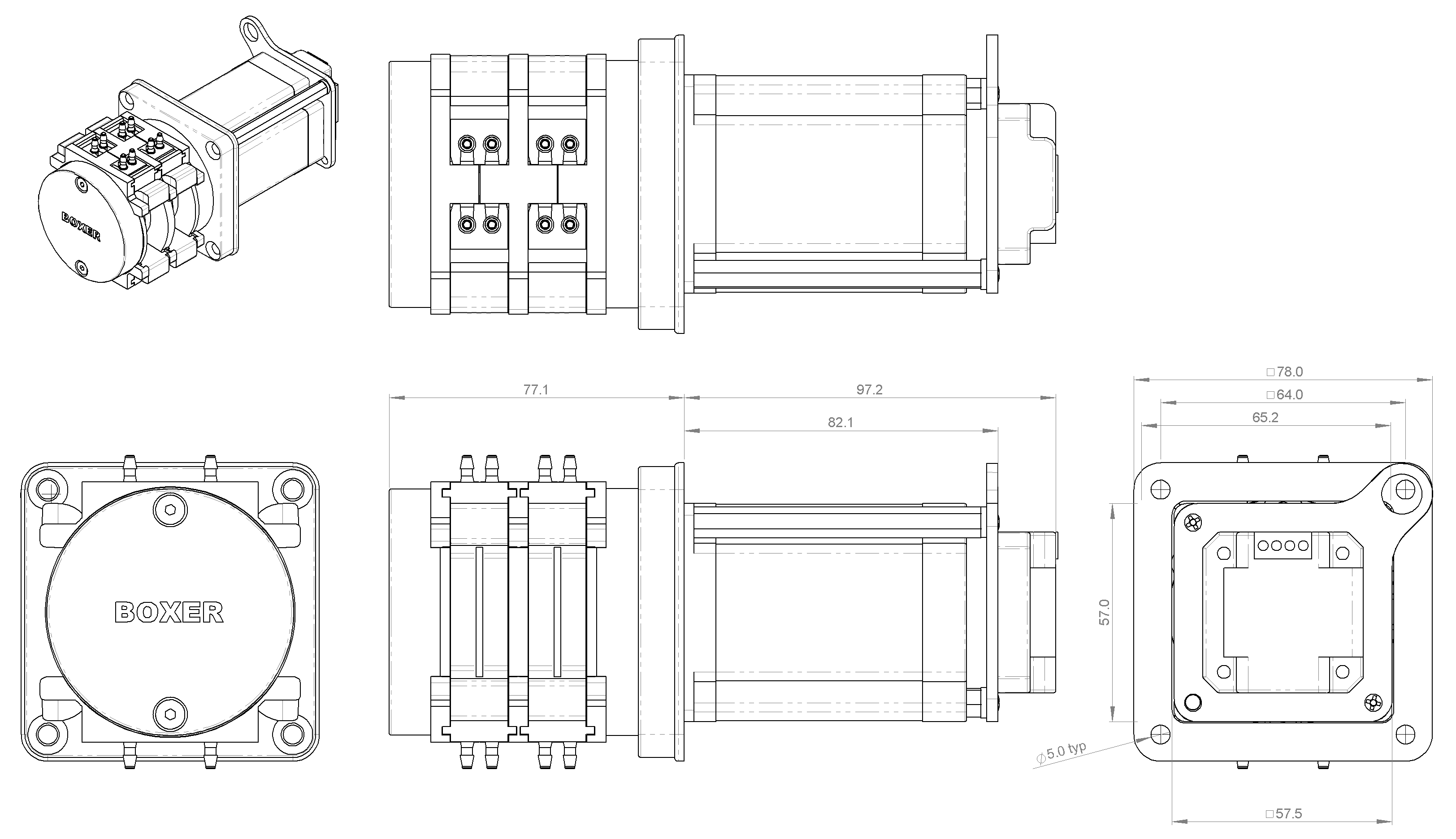

Part Number: 6342.101
Number of Channels: 8 | Number of Rollers : 4 | Driver Options: A4
€506.04*

Available, shipping in 1 - 2 days

Part Number: 6332.101
Number of Channels: 8 | Number of Rollers : 8 | Driver Options: A4
€512.78*

Available, shipping in 1 - 2 days


2 x tube sets and 2 x saddle kits required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613
Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614
Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.104
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers
€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers
€5.01*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

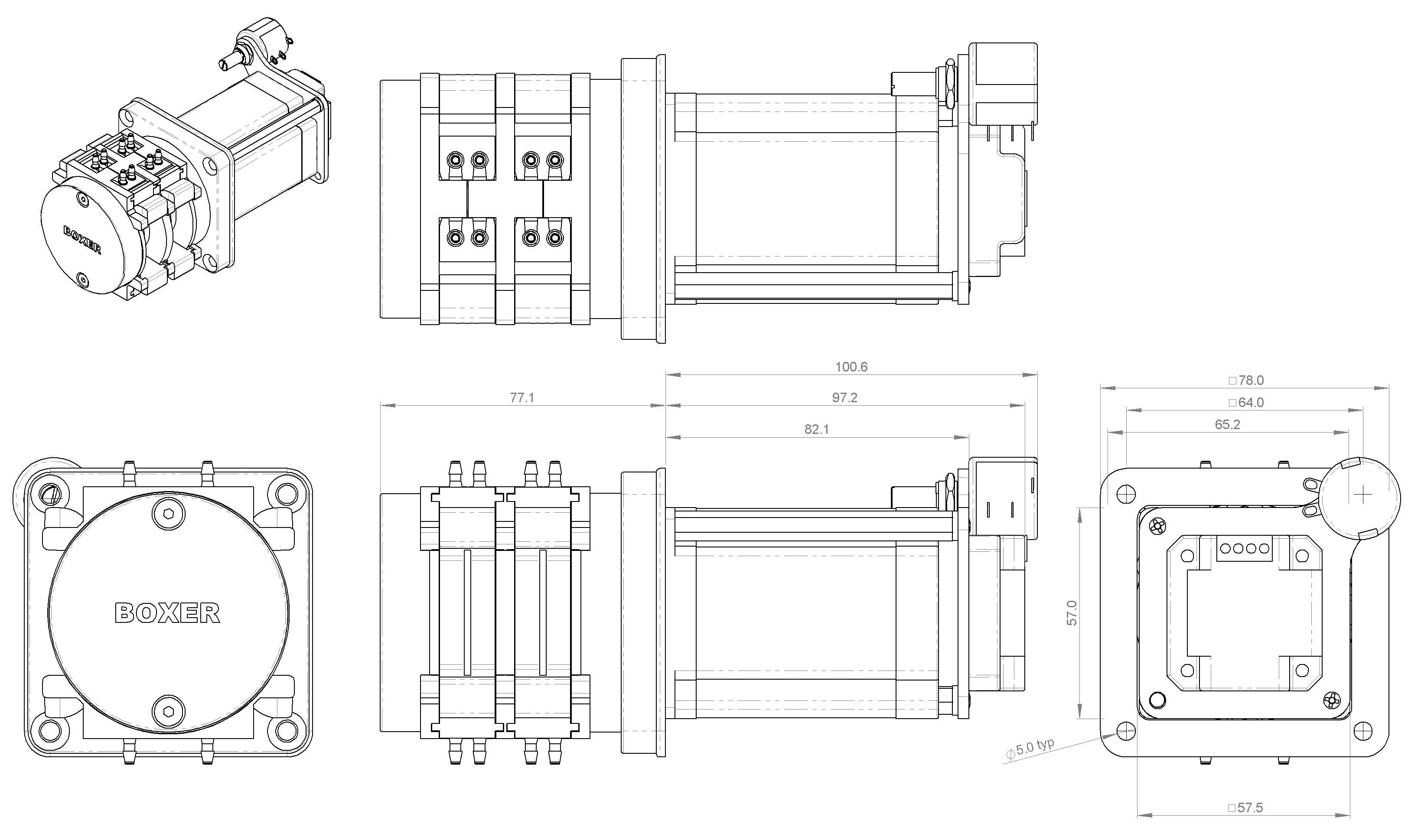

Part Number: 6342.151
Number of Channels: 8 | Number of Rollers : 4 | Driver Options: A4p
€532.02*

Available, shipping in 1 - 2 days

Part Number: 6332.151
Number of Channels: 8 | Number of Rollers : 8 | Driver Options: A4p
€538.78*

Available, shipping in 1 - 2 days


2 x tube sets and 2 x saddle kits required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613
Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614
Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.104
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers
€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers
€5.01*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

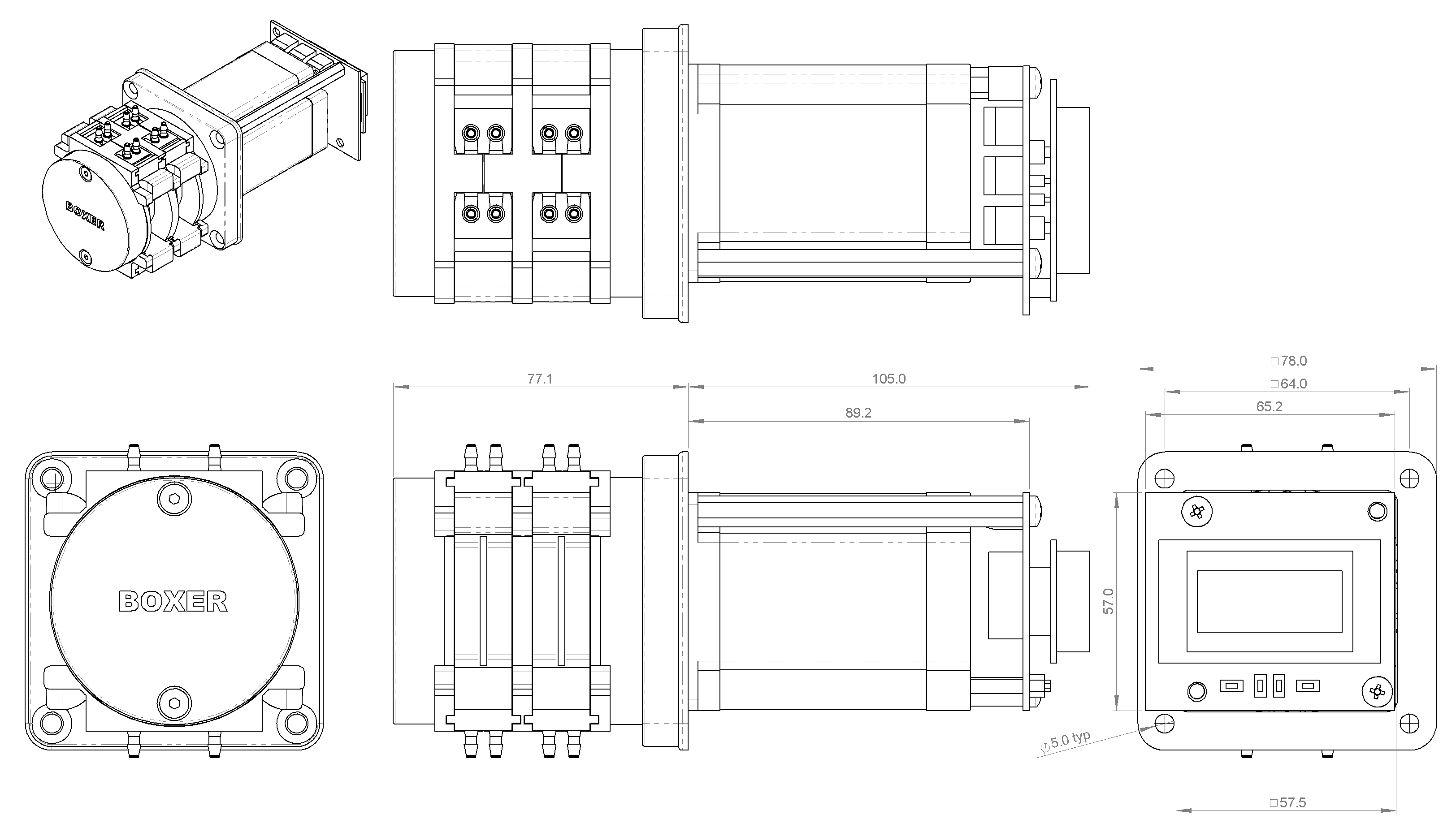

Part Number: 6342.105
Number of Channels: 8 | Number of Rollers : 4 | Driver Options: iD
€575.31*

Available, shipping in 1 - 2 days

Part Number: 6332.105
Number of Channels: 8 | Number of Rollers : 8 | Driver Options: iD
€582.06*

Available, shipping in 1 - 2 days


2 x tube sets and 2 x saddle kits required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613
Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614
Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.104
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers
€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers
€5.01*

Available, shipping in 1 - 2 days

12 Channel with 24 V Stepper Motor
Flow Data per Revolution (per channel)
ID Ø 0.5 mm tube 20 / 15 µl per revolution (4 / 8 Roller)
ID Ø 1.0 mm tube 61 / 41 µl per revolution (4 / 8 Roller)
ID Ø 2.0 mm tube 229 / 132 µl per revolution (4 / 8 Roller)
ID Ø 3.0 mm tube 384 / 187 µl per revolution (4 / 8 Roller)

Flow Data at 300 RPM (max recommended speed)
ID Ø 0.5 mm tube 6.1 / 4.4 ml / min (4 / 8 Roller)
ID Ø 1.0 mm tube 18.7 / 12.4 ml / min (4 / 8 Roller)
ID Ø 2.0 mm tube 68.6 / 39.5 ml / min (4 / 8 Roller)
ID Ø 3.0 mm tube 115.1 / 56.3 ml / min (4 / 8 Roller)

Electrical Data
Power consumption (with ID Ø 3.0 mm tube and including A4 driver) 36 to 53 W
Recommended driver current setting 4.0 A
Max. starting speed (with new tubing) 100 rpm

  Full data available in PDF datasheet



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

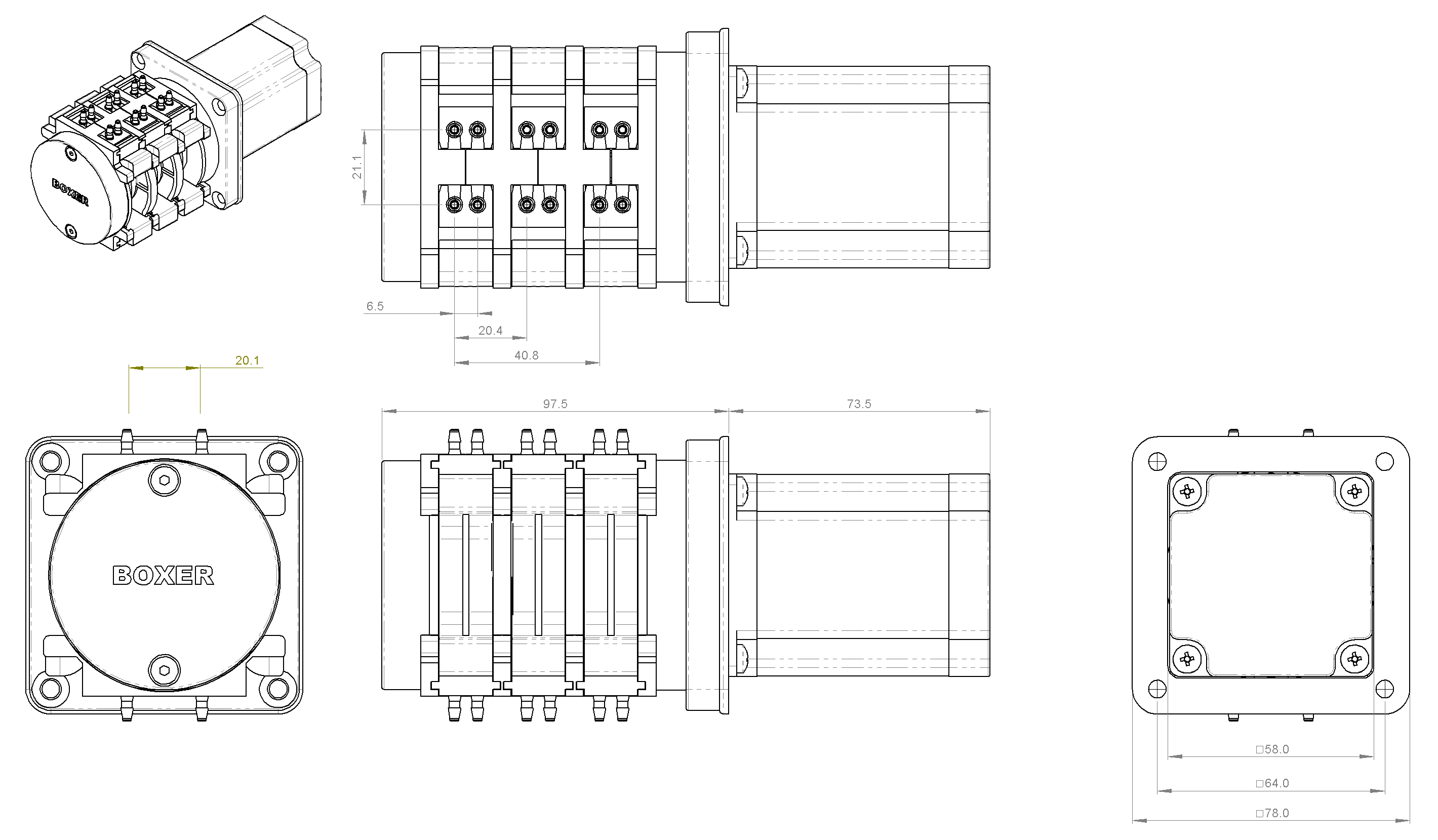

Part Number: 6343.100
Number of Channels: 12 | Number of Rollers : 4 | Driver Options: no
€415.70*

Available, shipping in 1 - 2 days

Part Number: 6353.100
Number of Channels: 12 | Number of Rollers : 8 | Driver Options: no
€422.44*

Available, shipping in 1 - 2 days


3 x tube sets and 3 x saddle kits required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613
Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614
Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.104
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers
€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108
6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers
€5.01*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 6343.101
Number of Channels: 12 | Number of Rollers : 4 | Driver Options: A4
€554.36*

Available, shipping in 1 - 2 days

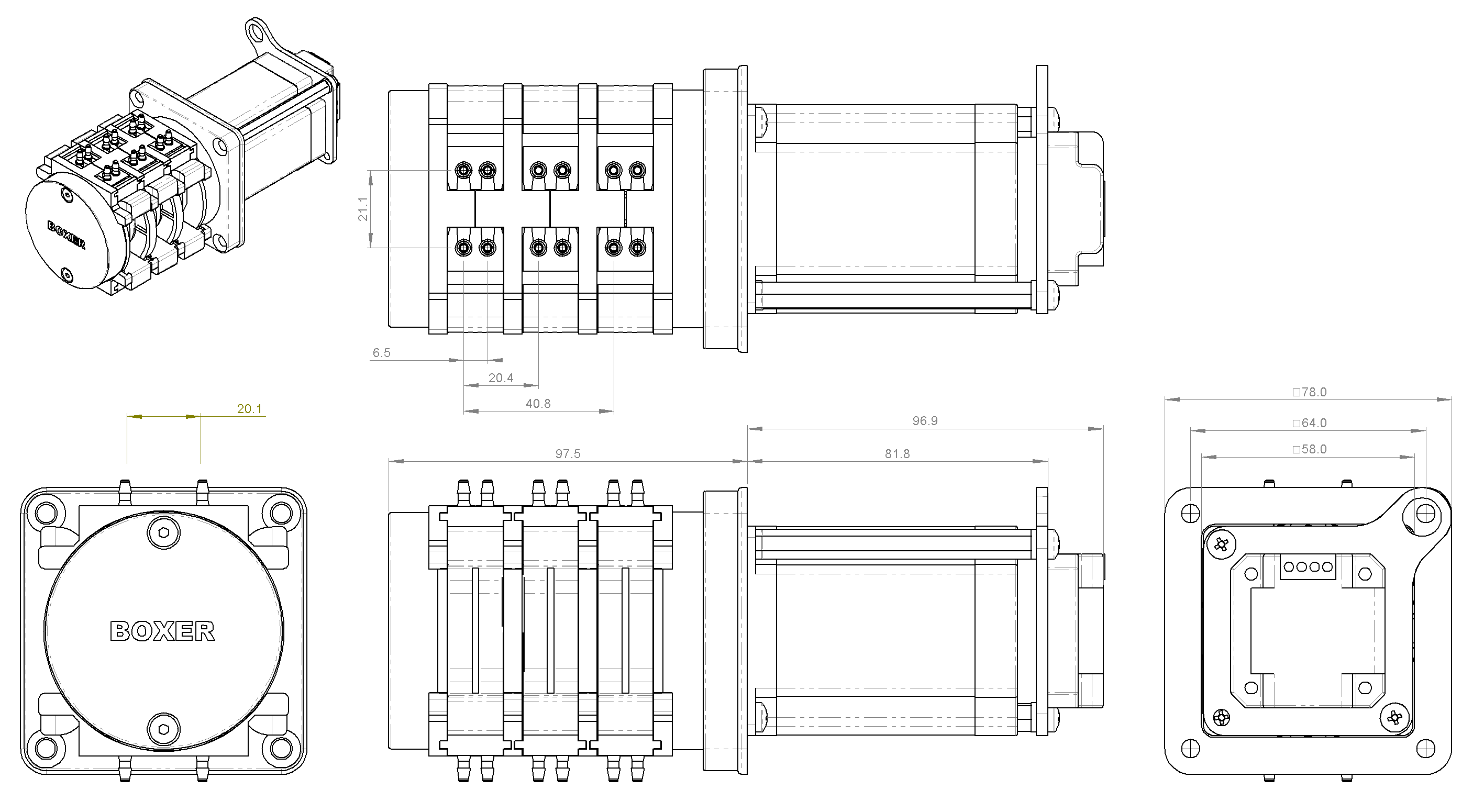

Part Number: 6353.101
Number of Channels: 12 | Number of Rollers : 8 | Driver Options: A4
€561.10*

Available, shipping in 1 - 2 days


3 x tube sets and 3 x saddle kits required per pump:

Accessories

Part Number: 6000.610
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€40.15*

Available, shipping in 1 - 2 days
