6K Series - for 1.6 mm wall tubing

The second generation 6K series is a uniquely compact multichannel peristaltic pump range for accurate dispensing of liquids. The stepper motor drive offers the versatility of finite speed control and, combined with optional optical position sensors, roller position control.

The 6K peristaltic pump is designed for both 1.0 and 1.6 mm wall tubing. This product page details the 1.6 mm wall configurations. For 1.0 mm wall configuration ⇒ 6K for 1.0 mm wall tubing.

› Flow rates from 89 to 489 µl per revolution (per channel)
› Choice of 2, 4 or 6 channels
› Inlet / outlet above and below head to support compact design
› Suitable for 1.6, 2.4 and 3.2 mm ID tube
› Pharm-a-line (PHI), Norprene G or ED-Plex tubing
› 4 and 8 roller configurations
› Supplied with motor only or choice of 3 pre-assembled stepper motor drivers
› Option rotor position / speed sensor

2 Channel with 24 V Stepper Motor

Technical Data

Flow Data per Revolution (per channel)
ID Ø 1.6 mm tube 137 / 89 µl per revolution (4 / 8 Roller)
ID Ø 2.4 mm tube 313 / 167 µl per revolution (4 / 8 Roller)
ID Ø 3.2 mm tube 489 / 214 µl per revolution (4 / 8 Roller)
Flow Data at 300 RPM (max recommended speed)
ID Ø 1.6 mm tube 41.1 / 26.7 ml / min (4 / 8 Roller)
ID Ø 2.4 mm tube 93.9 / 50.2 ml / min (4 / 8 Roller)
ID Ø 3.2 mm tube 146.7 / 64.2 ml / min (4 / 8 Roller)
Electrical Data
Power consumption (with ID Ø 3.2 mm tube and including A4 driver) 17 to 31 W
Recommended driver current setting 4.0 A
Max. starting speed (with new tubing) 100 rpm
Full data available in PDF datasheet

Supplied without stepper driver

Order Information

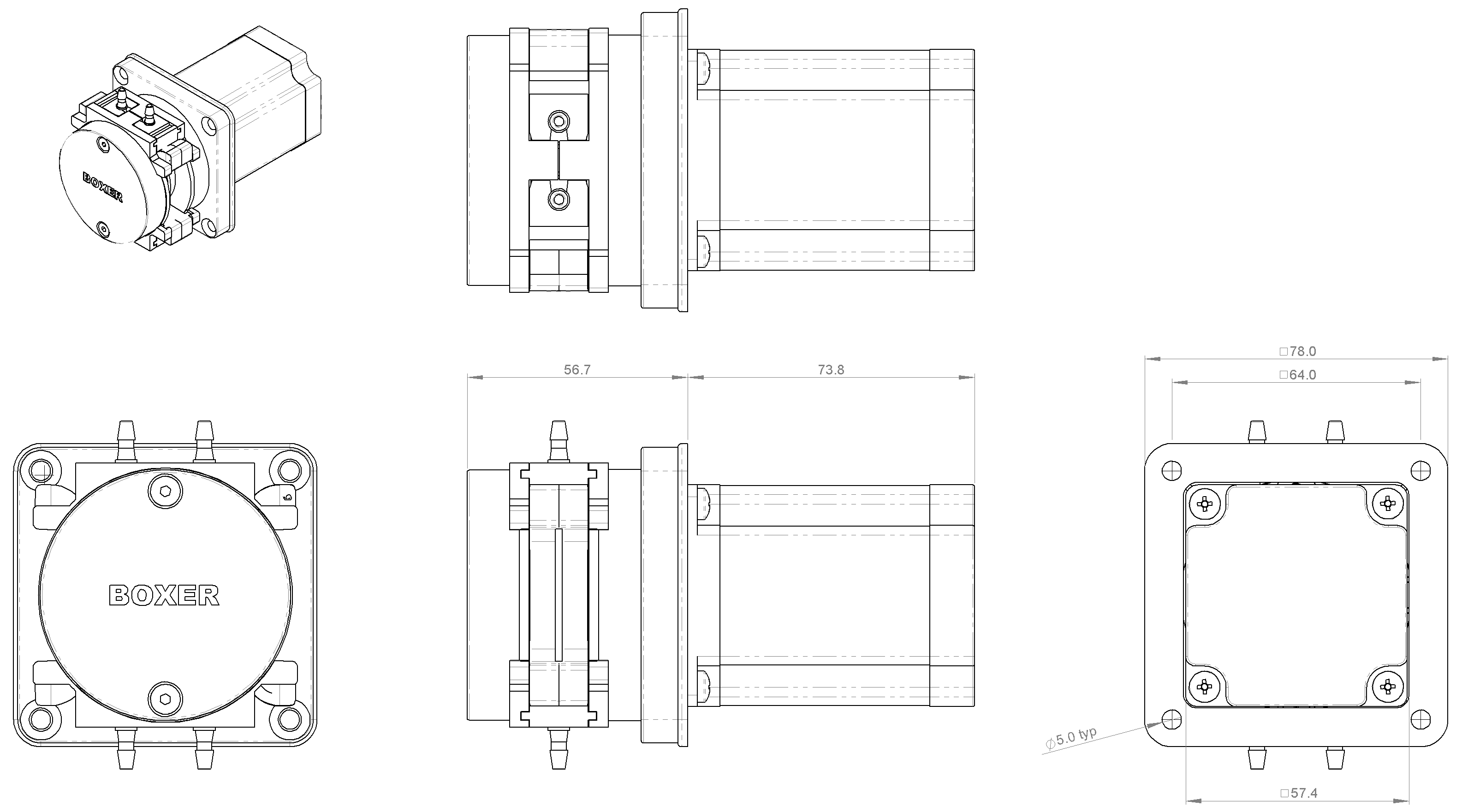

Part Number:     6341.100     24 V Stepper / 2 Channel / 4 Roller     ⇒ BOX-it
Part Number:     6331.100     24 V Stepper / 2 Channel / 8 Roller     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

Driver (sold separately)

Supplied with pre-assembled A4 stepper driver (0 to 5V speed input)

Order Information

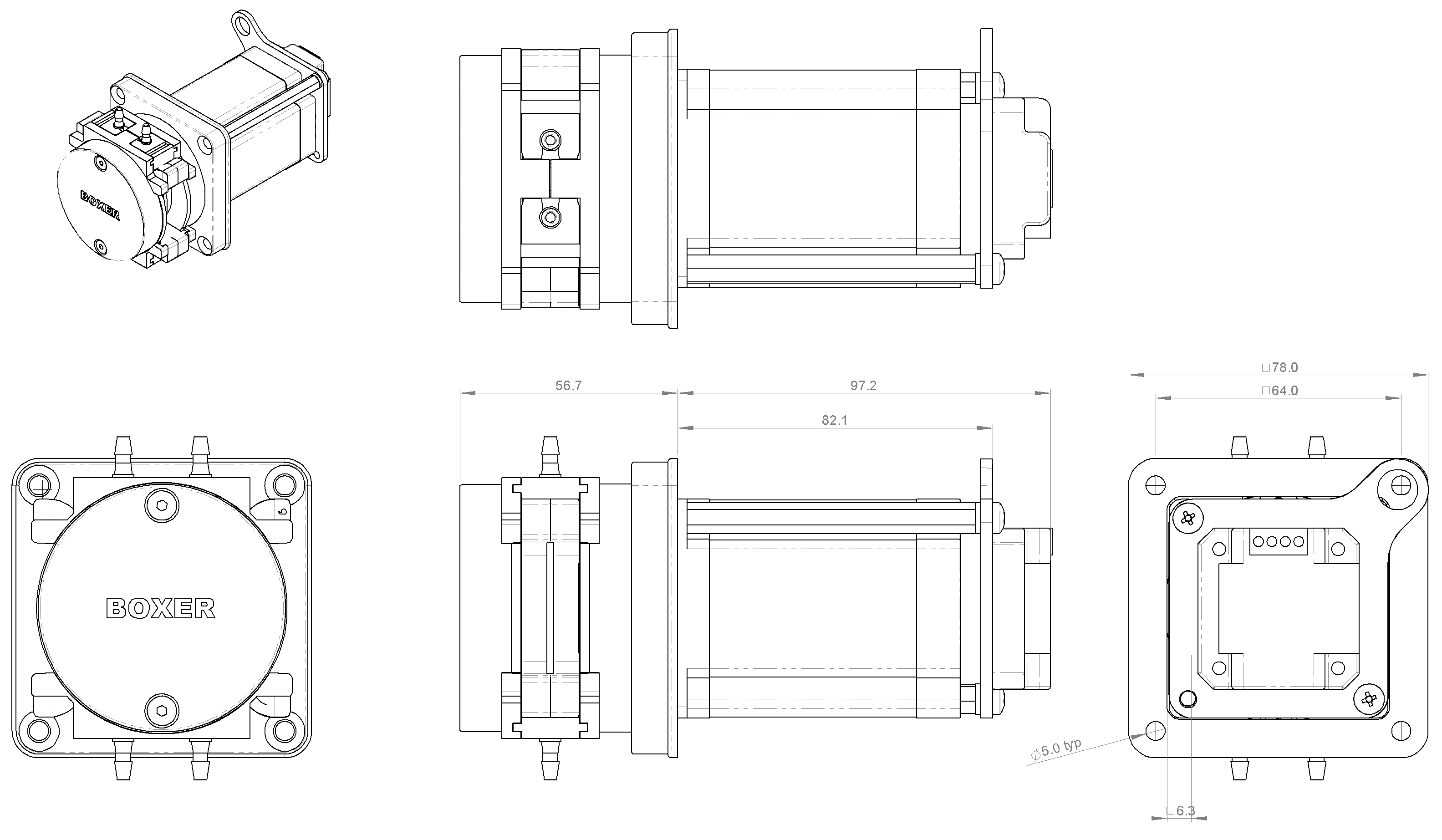

Part Number:     6341.101     24 V Stepper / 2 Channel / 4 Roller / A4 Driver     ⇒ BOX-it
Part Number:     6331.101     24 V Stepper / 2 Channel / 8 Roller / A4 Driver     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

Supplied with pre-assembled A4p stepper driver (10 turn speed potentiometer)

Order Information

Part Number:     6341.151     24 V Stepper / 2 Channel / 4 Roller / A4p Driver     ⇒ BOX-it
Part Number:     6331.151     24 V Stepper / 2 Channel / 8 Roller / A4p Driver     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

Supplied with pre-assembled iD stepper driver (digital / programmable)

Order Information

Part Number:     6341.105     24 V Stepper / 2 Channel / 4 Roller / iD Driver     ⇒ BOX-it
Part Number:     6331.105     24 V Stepper / 2 Channel / 8 Roller / iD Driver     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

4 Channel with 24 V Stepper Motor

Technical Data

Flow Data per Revolution (per channel)
ID Ø 1.6 mm tube 137 / 89 µl per revolution (4 / 8 Roller)
ID Ø 2.4 mm tube 313 / 167 µl per revolution (4 / 8 Roller)
ID Ø 3.2 mm tube 489 / 214 µl per revolution (4 / 8 Roller)
Flow Data at 300 RPM (max recommended speed)
ID Ø 1.6 mm tube 41.1 / 26.7 ml / min (4 / 8 Roller)
ID Ø 2.4 mm tube 93.9 / 50.2 ml / min (4 / 8 Roller)
ID Ø 3.2 mm tube 146.7 / 64.2 ml / min (4 / 8 Roller)
Electrical Data
Power consumption (with ID Ø 3.2 mm tube and including A4 driver) 22 to 32 W
Recommended driver current setting 4.0 A
Max. starting speed (with new tubing) 100 rpm
.

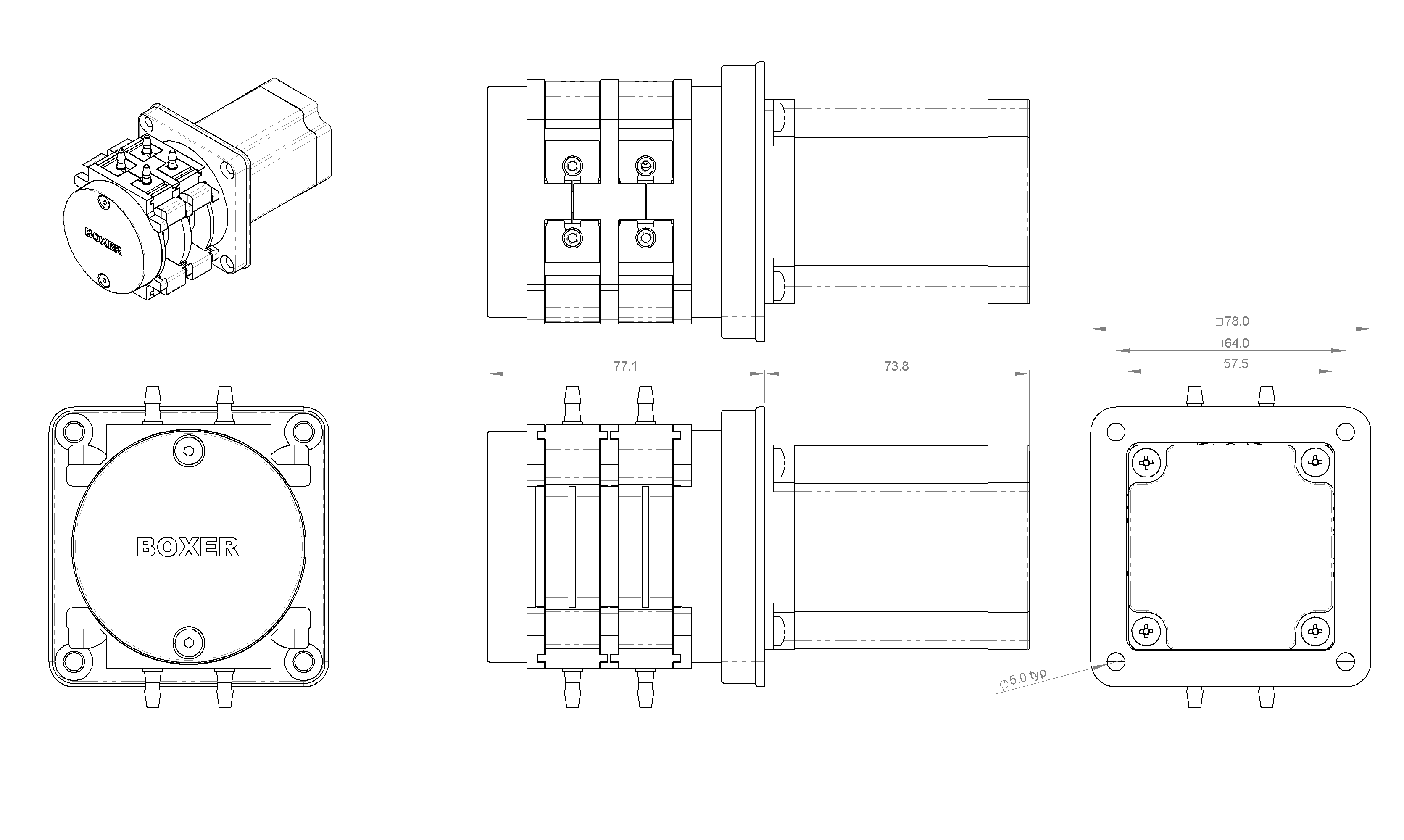

Supplied without stepper driver

Order Information

Part Number:     6342.100     24 V Stepper / 4 Channel / 4 Roller     ⇒ BOX-it
Part Number:     6332.100     24 V Stepper / 4 Channel / 8 Roller     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

Driver (sold separately)

Supplied with pre-assembled A4 stepper driver (0 to 5V speed input)

Order Information

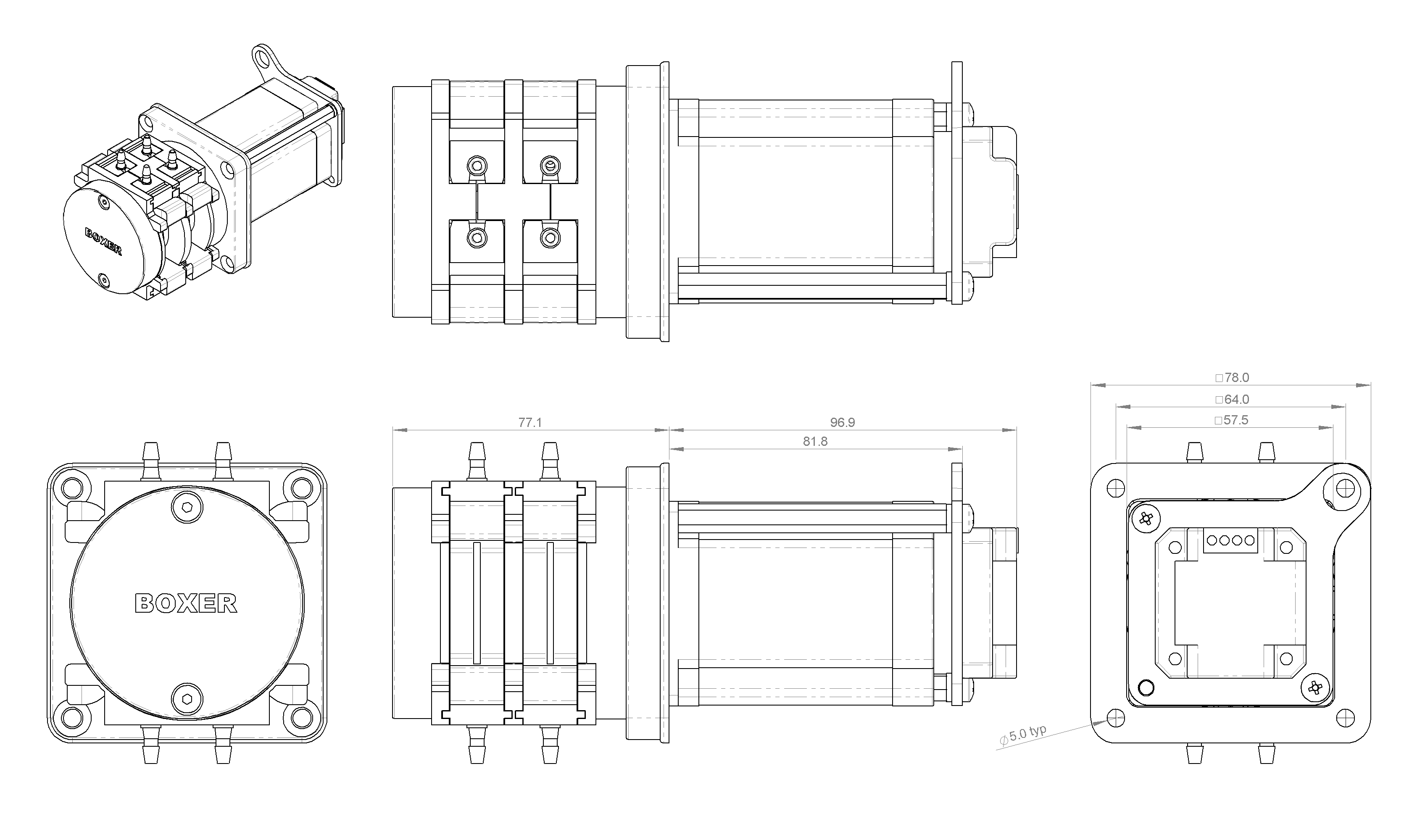

Part Number:     6342.101     24 V Stepper / 4 Channel / 4 Roller / A4 Driver     ⇒ BOX-it
Part Number:     6332.101     24 V Stepper / 4 Channel / 8 Roller / A4 Driver     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

Supplied with pre-assembled A4p stepper driver (10 turn speed potentiometer)

Order Information

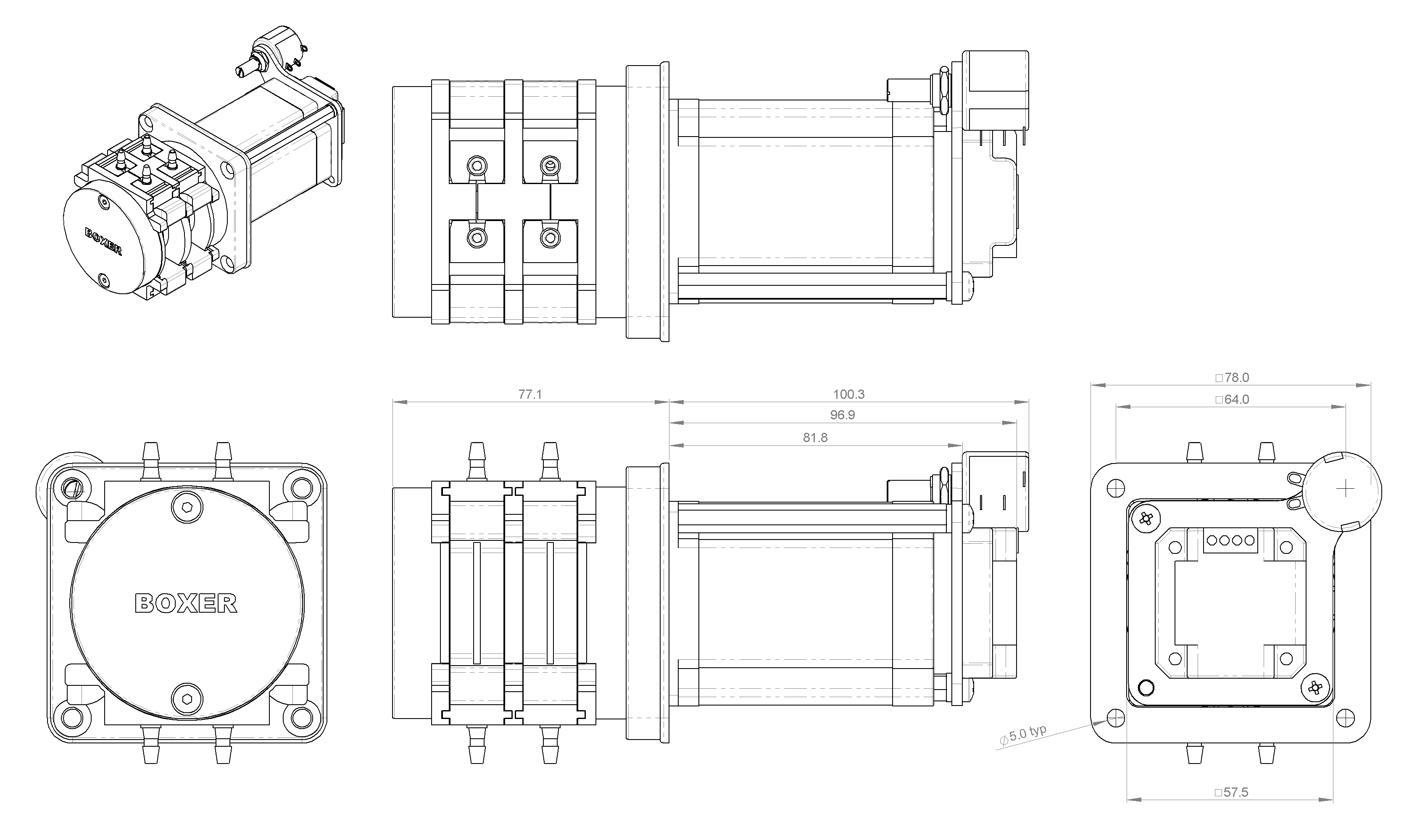

Part Number:     6342.151     24 V Stepper / 4 Channel / 4 Roller / A4p Driver     ⇒ BOX-it
Part Number:     6332.151     24 V Stepper / 4 Channel / 8 Roller / A4p Driver     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

Supplied with pre-assembled iD stepper driver (digital / programmable)

Order Information

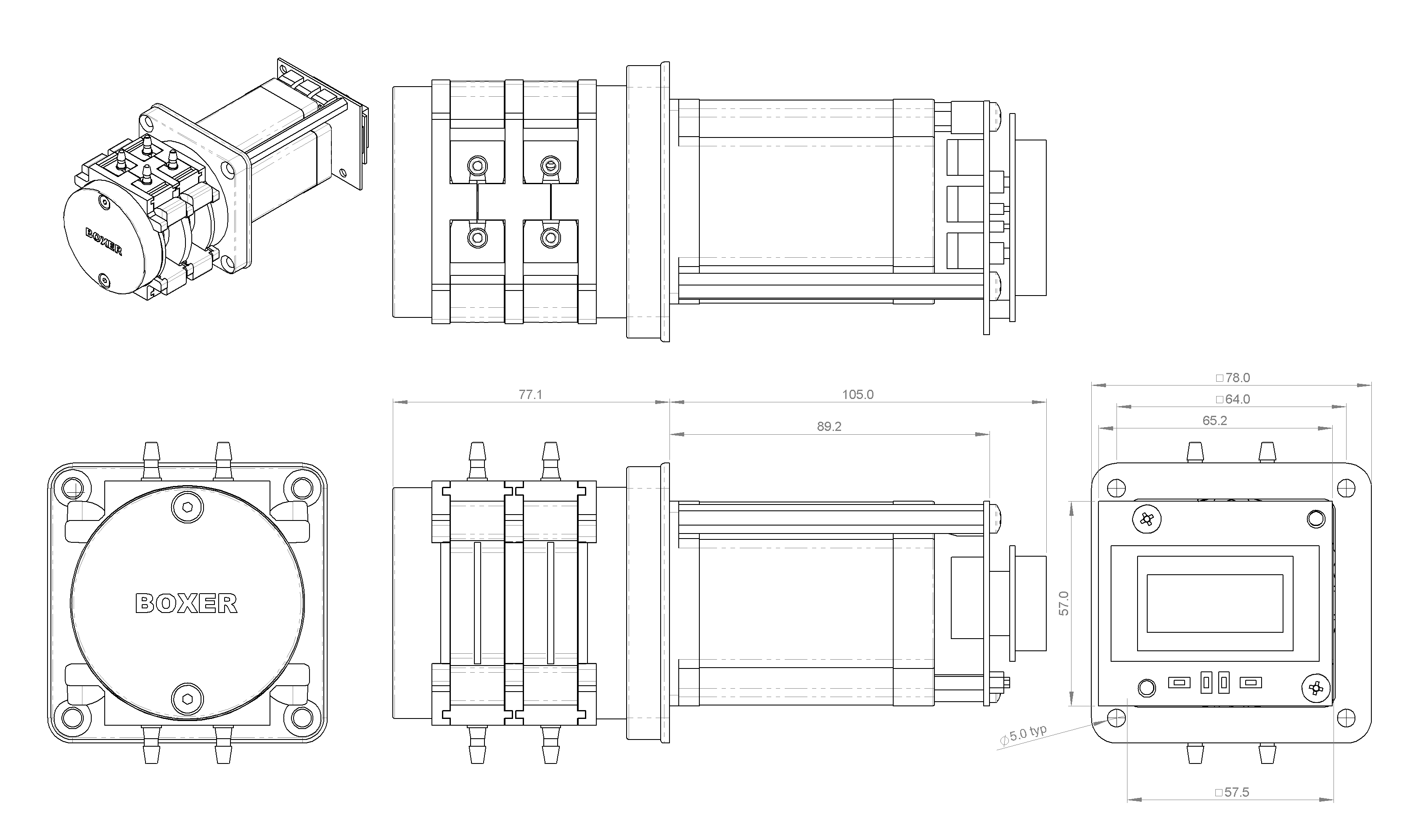

Part Number:     6342.105     24 V Stepper / 4 Channel / 4 Roller / iD Driver     ⇒ BOX-it
Part Number:     6332.105     24 V Stepper / 4 Channel / 8 Roller / iD Driver     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

6 Channel with 24 V Stepper Motor

Technical Data

Flow Data per Revolution (per channel)
ID Ø 1.6 mm tube 137 / 89 µl per revolution (4 / 8 Roller)
ID Ø 2.4 mm tube 313 / 167 µl per revolution (4 / 8 Roller)
ID Ø 3.2 mm tube 489 / 214 µl per revolution (4 / 8 Roller)
Flow Data at 300 RPM (max recommended speed)
ID Ø 1.6 mm tube 41.1 / 26.7 ml / min (4 / 8 Roller)
ID Ø 2.4 mm tube 93.9 / 50.2 ml / min (4 / 8 Roller)
ID Ø 3.2 mm tube 146.7 / 64.2 ml / min (4 / 8 Roller)
Electrical Data
Power consumption (with ID Ø 3.2 mm tube and including A4 driver) 23 to 35 W
Recommended driver current setting 4.0 A
Max. starting speed (with new tubing) 100 rpm
.

Supplied without stepper driver

Order Information

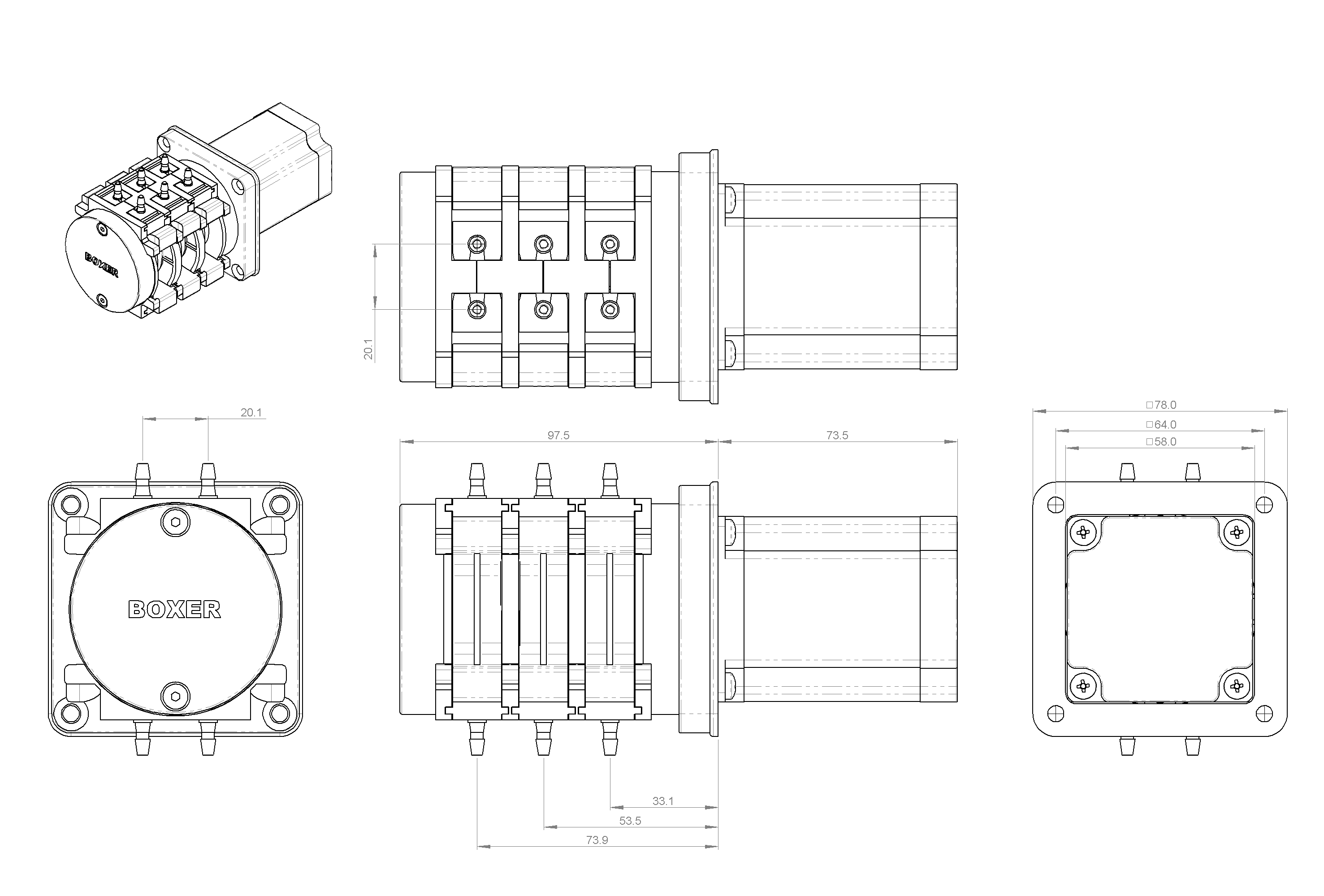

Part Number:     6343.100     24 V Stepper / 6 Channel / 4 Roller     ⇒ BOX-it
Part Number:     6333.100     24 V Stepper / 6 Channel / 8 Roller     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

Driver (sold separately)

Supplied with pre-assembled A4 stepper driver (0 to 5V speed input)

Order Information

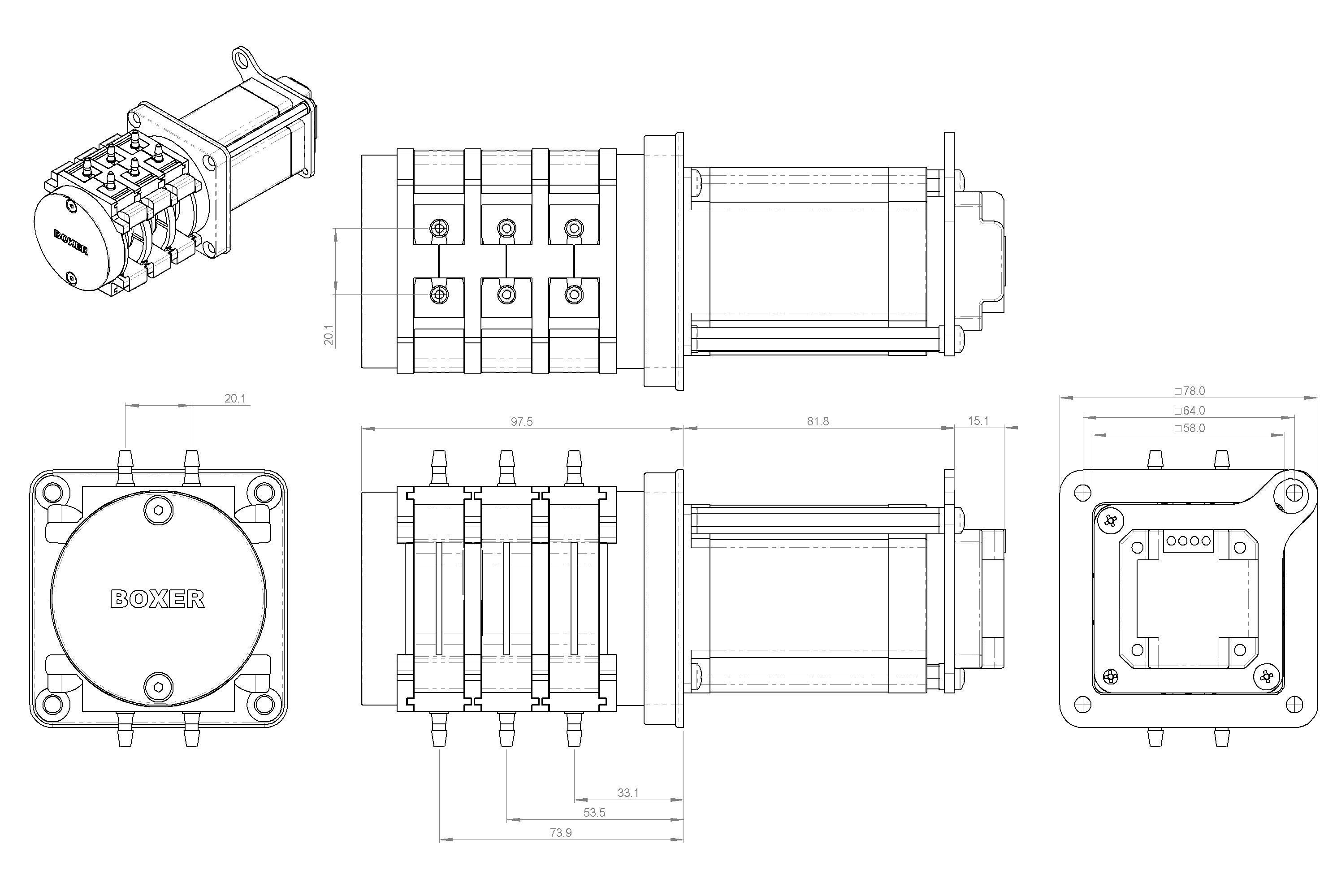

Part Number:     6343.101     24 V Stepper / 6 Channel / 4 Roller / A4 Driver     ⇒ BOX-it
Part Number:     6333.101     24 V Stepper / 6 Channel / 8 Roller / A4 Driver     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

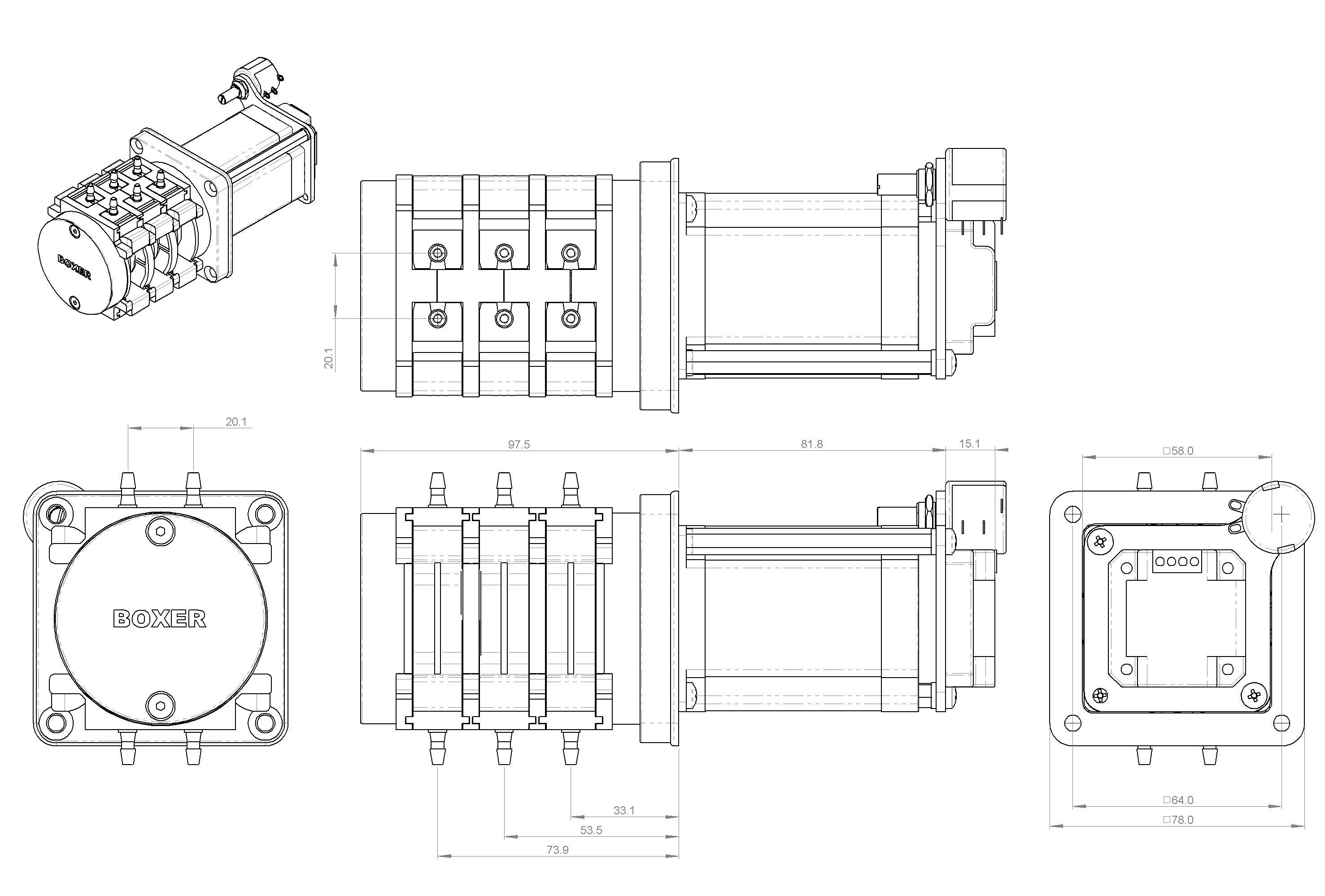

Supplied with pre-assembled A4p stepper driver (10 turn speed potentiometer)

Order Information

Part Number:     6343.151     24 V Stepper / 6 Channel / 4 Roller / A4p Driver     ⇒ BOX-it
Part Number:     6333.151     24 V Stepper / 6 Channel / 8 Roller / A4p Driver     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

Supplied with pre-assembled iD stepper driver (digital / programmable)

Order Information

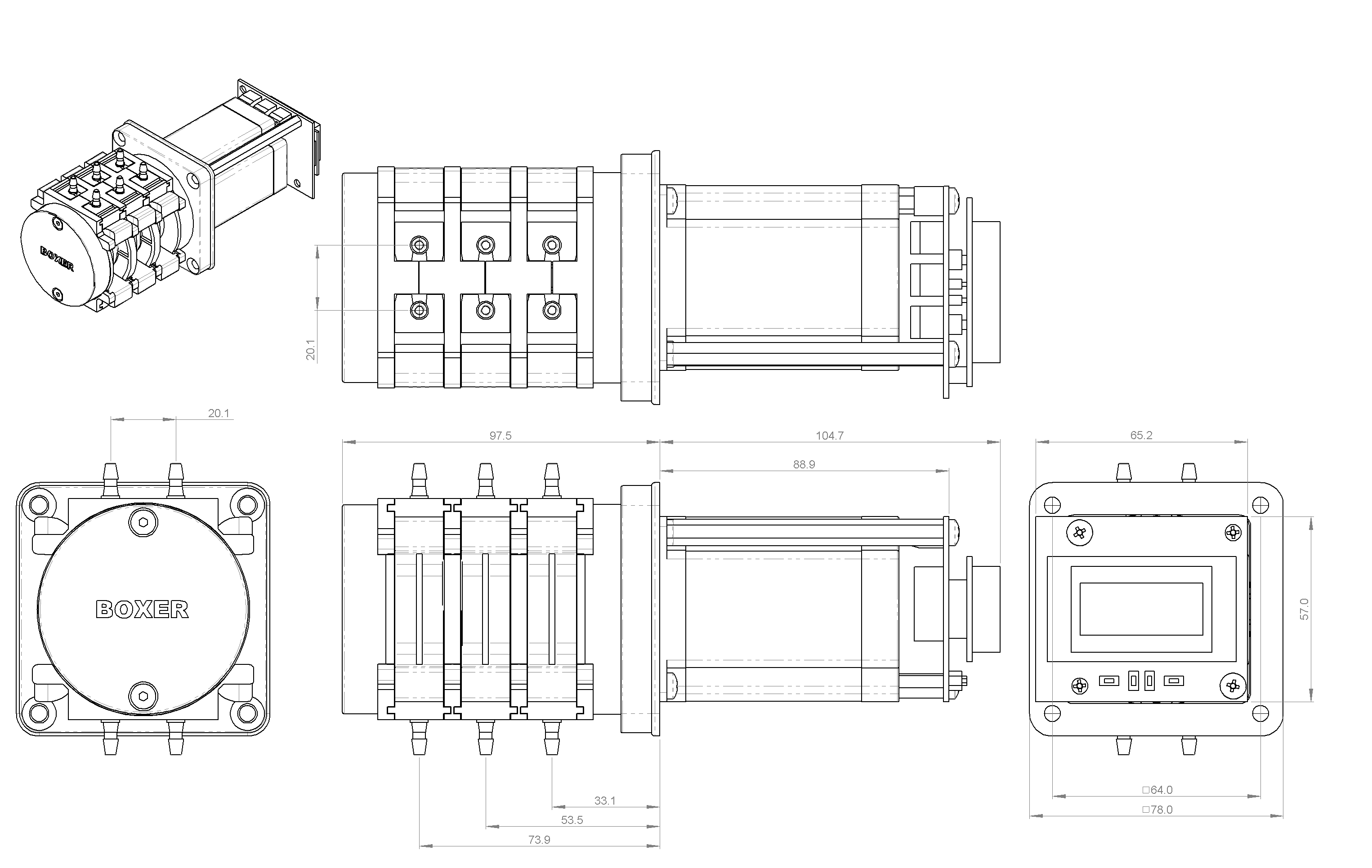

Part Number:     6343.105     24 V Stepper / 6 Channel / 4 Roller / iD Driver     ⇒ BOX-it
Part Number:     6333.105     24 V Stepper / 6 Channel / 8 Roller / iD Driver     ⇒ BOX-it

Tubing and saddles should be ordered separately.

Accessories:
Tubing, Saddles

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use. These products are not suitable for in-vivo applications.
