- BOXER 3MD Liquid Diaphragm Pump Series
3MD Series
The 3MD series is the new compact version of the double headed 3K pump. Highest quality con-rod and motor bearings ensure lowest power consumption and, combined with slow speed, maximum operational life. This series additionally offers a unique detachable motor construction allowing contaminated heads to be economically exchanged.
The 3MD series is offered with 2 different motors: quality DC and brushless DC.
› Flow rate to 2.5 l/min
› Robust / long life
› Detachable motor
› Single (3K) and Quad (3MQ) versions are also available
Gas versions of this series is available with 3K, 3KD and 3KQ.
Fixing brackets are included as standard.
Flow control is available in combination with PWM Flow Controller.
Return to Miniature Diaphragm Pumps for Liquid range.

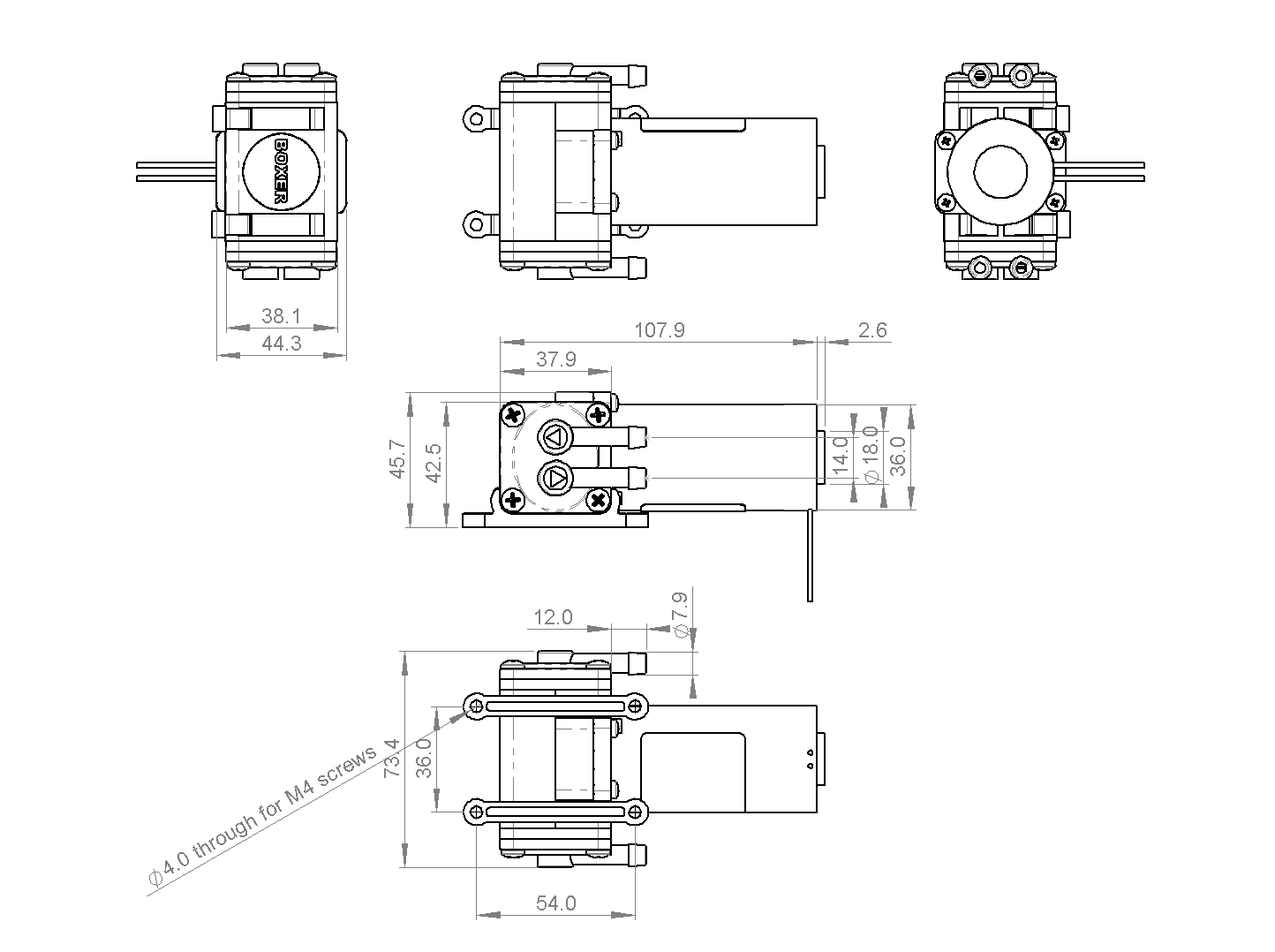

Quality brushed motor available in 12 and 24 V.
Technical Data
| Free Flow | 2.5 l/min |
| Max Pressure | 2.0 bar |
| Max Vacuum | -600 mbar |
| Free Flow (gas / dry) | 3.7 l/min |
| Max suction Height (dry) | 4.5 m H2O |
| Voltage Options | 12 / 24 V DC |
| Power Consumption | 8.4 to 15.5 W |
| Max Ambient Operating Temperature | 50 °C |
| Max Media Temperature | 100 °C |
| Elastomers Options | EPDM / Nitrile |
| Other Wetted Parts | PPS (polyphenylene sulphide) |
| Weight | 420 g |
| The above data is for parallel head connection. Series connection should only be used if higher dry suction height is required. |
Brushless DC motor in 24 V DC with integrated driver.
Long life combined with elegant speed (flow) control via a 0 to 2.0 V DC input, rpm feedback
output and a 5 V DC output is for convenient speed control via external potentiometer.
Available to purchase online via BOX-it (see order information below).
Technical Data
| Free Flow | 2.5 l/min |
| Max Pressure | 2.0 bar |
| Max Vacuum | -600 mbar |
| Free Flow (gas / dry) | 3.7 l/min |
| Max Suction Height (dry) | 4.5 m H2O |
| Voltage Options | 24 V DC |
| Power Consumption | 7.2 to 19.7 W |
| Motor Inputs / Outputs (further details in Motor Information below) | |
| Speed Input | 0 to 2 V (0 to 1600 rpm) |
| Frequency Output | 1 pulse per revolution |
| Voltage Reference Output | 5 V DC (for speed control via external potentiometer) |
| Lead Length | 40 cm (exit position not defined) |
| Max Ambient Operating Temperature | 50 °C |
| Max Media Temperature | 100 °C |
| Elastomers Options | EPDM / Nitrile |
| Other Wetted Parts | PPS (polyphenylene sulphide) |
| Weight | 385 g |
Motor Information
This motor is supplied with 5 wires:
Red + 24 V DC Supply
Black GND
Green 0 to 2.0 V DC (or PWM, min. 15kHz signal) Speed Control
White +5 V DC Output for use with 10 kΩ potentiometer and GND wire
Yellow Frequency Ouput, 1 pulse per revolution with 50% on-time
Speed control is availabe with 2 options (see diagram on right).
The white wire (5V DC Output) is supplied with the lead end insulated. Damage will occur to the driver electronics if this wire is connected to +24 V or GND.
All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
