15KU Series

The 15KU series is a derivative of the popular 15KS series of peristaltic pumps. Unlike the 15KS, the 15KU uses tube sets rather than continuous tube. The series is designed accurate dispensing of liquids for wide ranging applications. It is suitable for 1.6, 2.4, 3.2 or 4.8 mm ID tubing, with an option of dual channel for 1.6 and 2.4 m tubing.

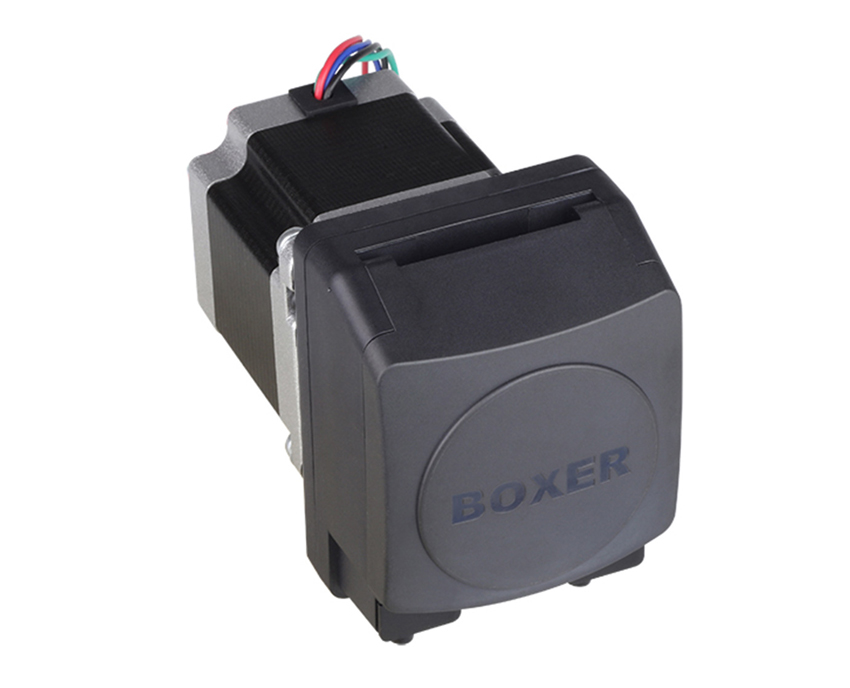

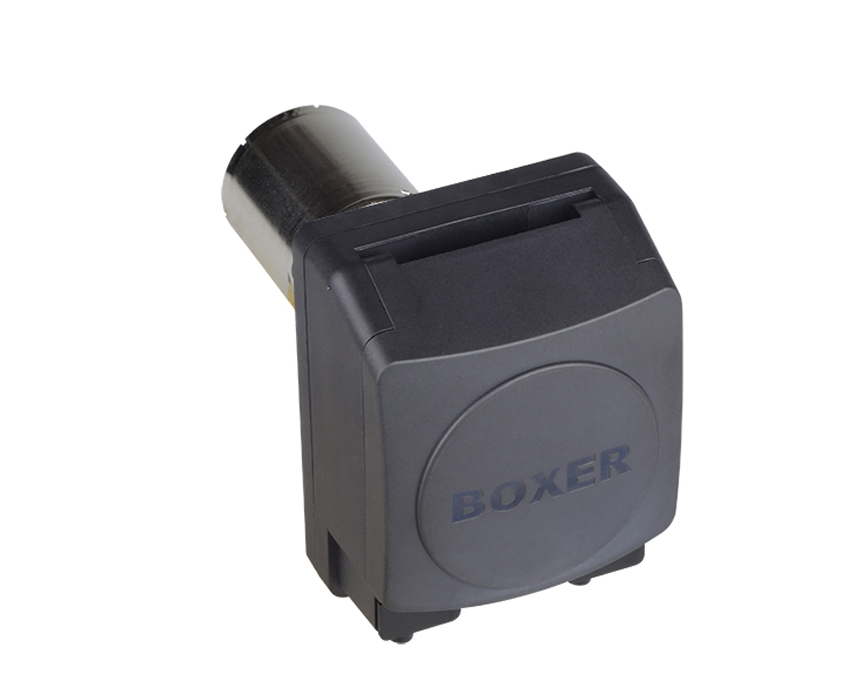

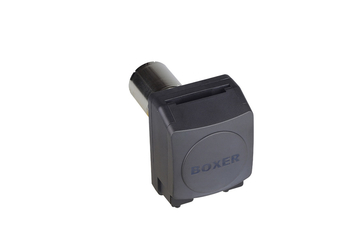

The series is available with DC / Gear motor (6 to 12 V DC or 12 to 24 V DC with gearing offering speeds ranging from 20 to 400 rpm) or 24 V Nema 23 stepper motor (with options for pre-assembled drivers). Both motor versions have options for encoders to enable precise control of flow via closed loop feedback control.

› Flow rates to 690 ml/min
› 1.6, 2.4, 3.2 and 4.8 mm ID tube sets
› Dual channel available for 1.6 and 2.4 mm tube sets
› 3, 4 or 6 roller configurations
› Choice of DC / Gear or Stepper motor drive
› DC / Gear motor available with high definition dual channel encoder (detecting both speed and direction)
› Stepper motor available with speed sensor and with 3 different pre-assembled drivers

Tube set must always be ordered separately.

The 15KU is available with as flip-top version under the series 15KS.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Flow per Revolution
ID Ø 1.6 - single 0.20 / 0.17 / 0.12 ml per revolution (3 / 4 / 6 roller)
ID Ø 1.6 - double 0.40 / 0.35 / 0.25 ml per revolution (3 / 4 / 6 roller)
ID Ø 2.4 - single 0.41 / 0.37 / 0.26 ml per revolution (3 / 4 / 6 roller)
ID Ø 2.4 - double 0.82 / 0.75 / 0.52 ml per revolution (3 / 4 / 6 roller)
ID Ø 3.2 mm - single 0.62 / 0.57 / 0.39 ml per revolution (3 / 4 / 6 roller)
ID Ø 4.8 mm - single 1.25 / 1.02 / 0.54 ml per revolution (3 / 4 / 6 roller)

Flow range per Motor / Gear
12 V 40 rpm 2.0 to 43.8 ml/min
12 V 312 rpm 16.0 to 331.0 ml/min
12 V 437 rpm 20.0 to 438 ml/min
24 V 80 rpm 4.2 to 93.8 ml/min
24 V 312 rpm 17.0 to 338.9 ml/min
24 V 420 rpm 23.0 to 488.0 ml/min

General Data
Power consumption 0.4 to 11.5 W
Motor Type Brushed DC motor with planetary gear
Max pressure 2.0 bar
Max suction height 9.0 m H20
Weight 455 / 430 g (40, 80 / 312, 420, 437 rpm)
Optional sensors Dual channel motor encoder for speed and direction information


  Full data available in PDF datasheet



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15008.300
Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller
168,14 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15011.300
Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller
168,14 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15012.300
Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller
168,14 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15009.300
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller
168,14 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15013.300
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 312 rpm, 4 Roller
168,14 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15014.300
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller
168,14 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 15000.220

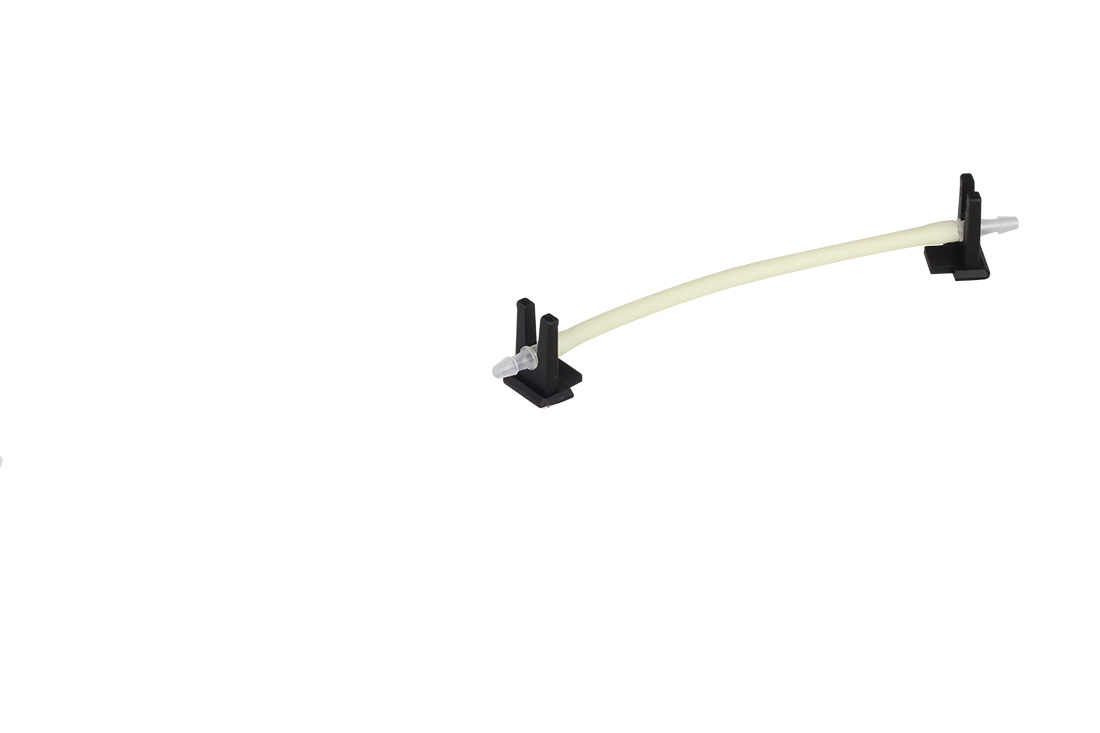

Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.221
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
31,34 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.222
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.223
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
31,34 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.224
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.225
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.226
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.234
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
11,75 €*
Teilenummer: 15000.235
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
23,51 €*
Teilenummer: 15000.236
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
11,75 €*
Teilenummer: 15000.237
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
23,51 €*
Teilenummer: 15000.238
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
11,75 €*
Teilenummer: 15000.239
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
11,75 €*
Teilenummer: 15000.240
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
11,75 €*
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15408.301
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller
249,00 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15411.301
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller
249,00 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15412.301
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller
249,00 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15409.301
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller
249,00 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15413.301
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 312 rpm, 4 Roller
249,00 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15414.301
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller
249,00 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 15000.220
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.221
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
31,34 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.222
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.223
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
31,34 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.224
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.225
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.226
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
15,67 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.234
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
11,75 €*
Teilenummer: 15000.235
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
23,51 €*
Teilenummer: 15000.236
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
11,75 €*
Teilenummer: 15000.237
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
23,51 €*
Teilenummer: 15000.238
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
11,75 €*
Teilenummer: 15000.239
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
11,75 €*
