11K Series

The 11K series is a miniature diaphragm pump designed for gas sampling applications and, like all other pumps in the Boxer range, can be customised to meet specific requirements. The components are produced in a wide variety of materials providing compatibility with a wide range of applications.

This series is available in iron core (2 versions), and brushless DC motor options.

› Flow rate to 1.8 l/min
› Choice of iron core and brushless motors
› Choice of wetted parts
› Robust and compact design

Flow control is available in combination with PWM Flow Controller.

Return to Miniature Diaphragm Pumps for Air and Gas range.

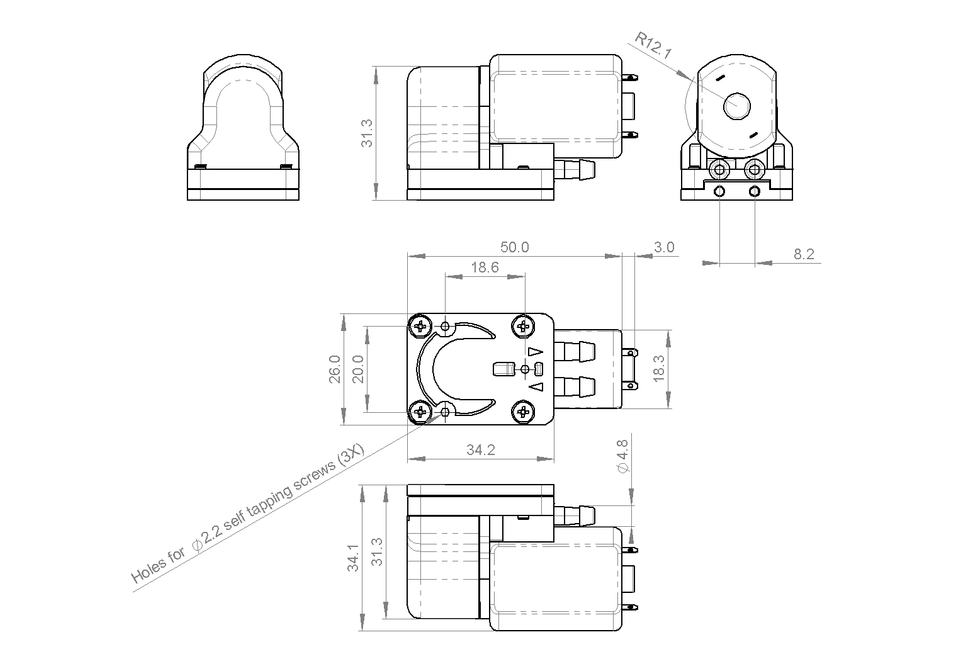

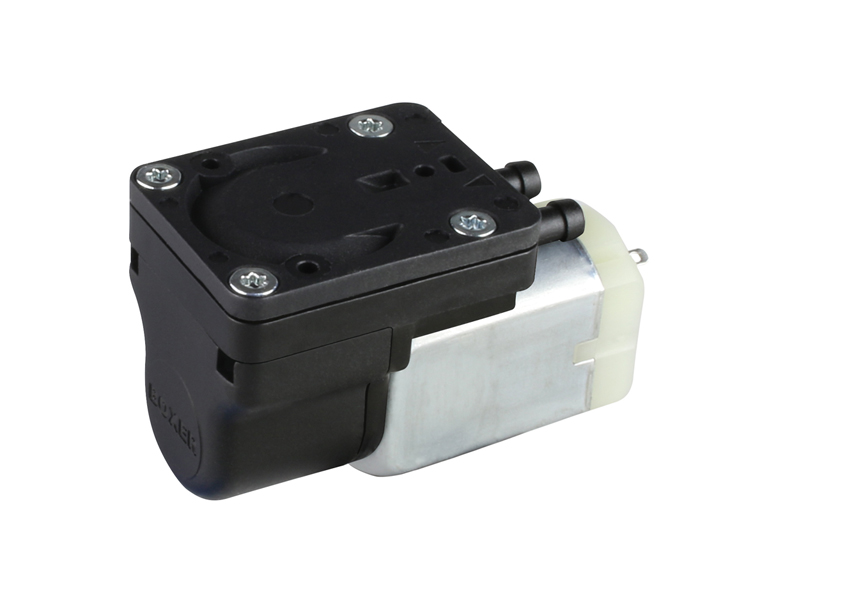

Iron Core Motor - e

Economic motor option available in 12.0 V.

Available to purchase online via BOX-it (see order information below).

Technical Data

Free Flow 1.8 l/min
Max Pressure +500 mbar
Max Vacuum -450 mbar
Voltage Options 12 V DC
Power Consumption 0.96 to 1.56 W
Elastomers EPDM
Other Wetted Parts PBT (Polybutylene terephthalate)
Weight - g





Order Information

Part Number:     1100.212     12 V DC / EPDM     ⇒ BOX-it

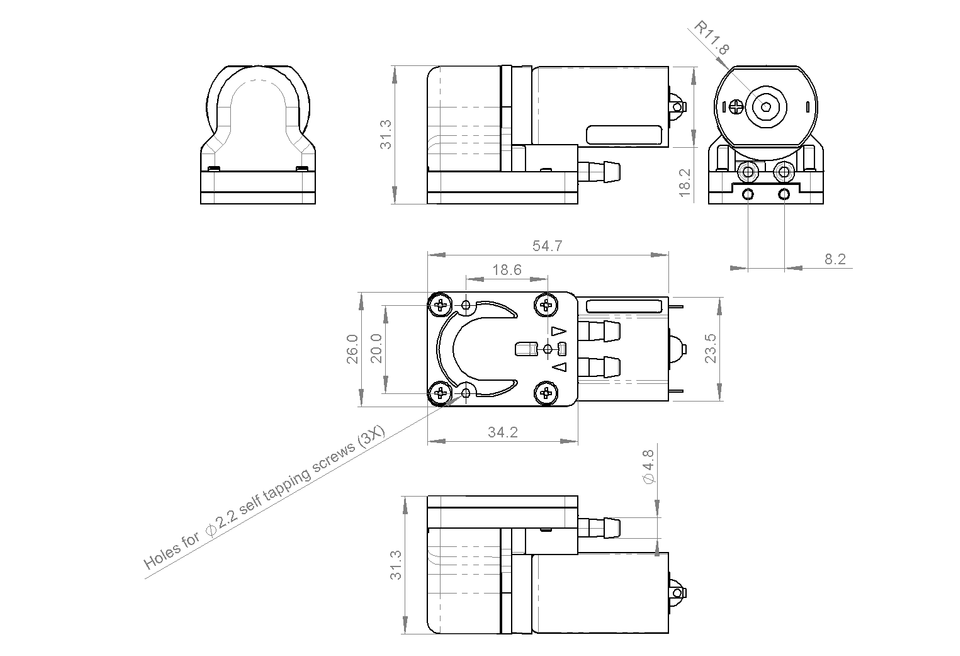

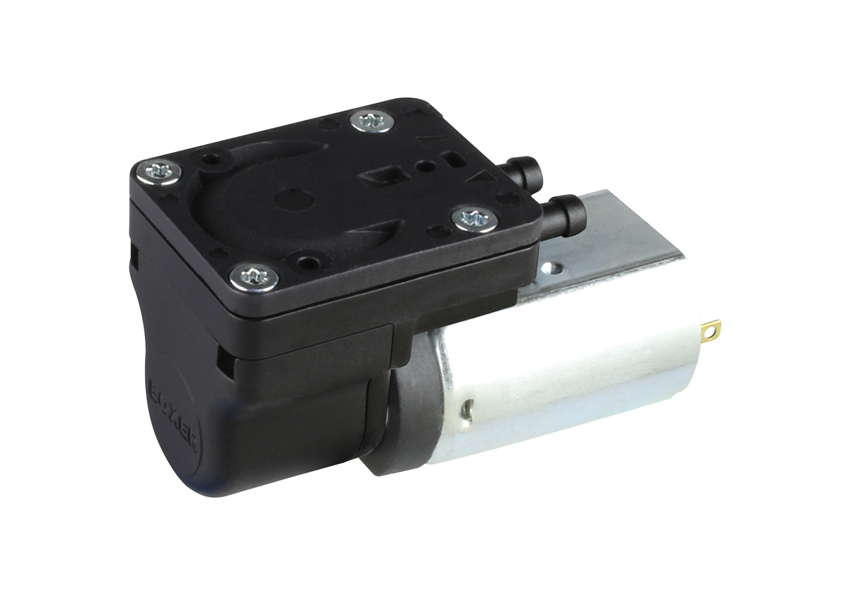

Iron Core Motor

Economic with high life available in 12 and 24 V.

Available to purchase online via BOX-it (see order information below).

Technical Data

Free Flow 1.6 l/min
Max Pressure 500 mbar
Max Vacuum -450 mbar
Voltage Options 12 , 24 V DC
Power Consumption 0.96 to 1.44 W
Elastomers EPDM
Other Wetted Parts PBT (Polybutylene terephthalate)
Weight 54 g





Order Information

Part Number:     1100.211     12 V DC / EPDM     ⇒ BOX-it
Part Number:     1100.206     24 V DC / EPDM     ⇒ BOX-it

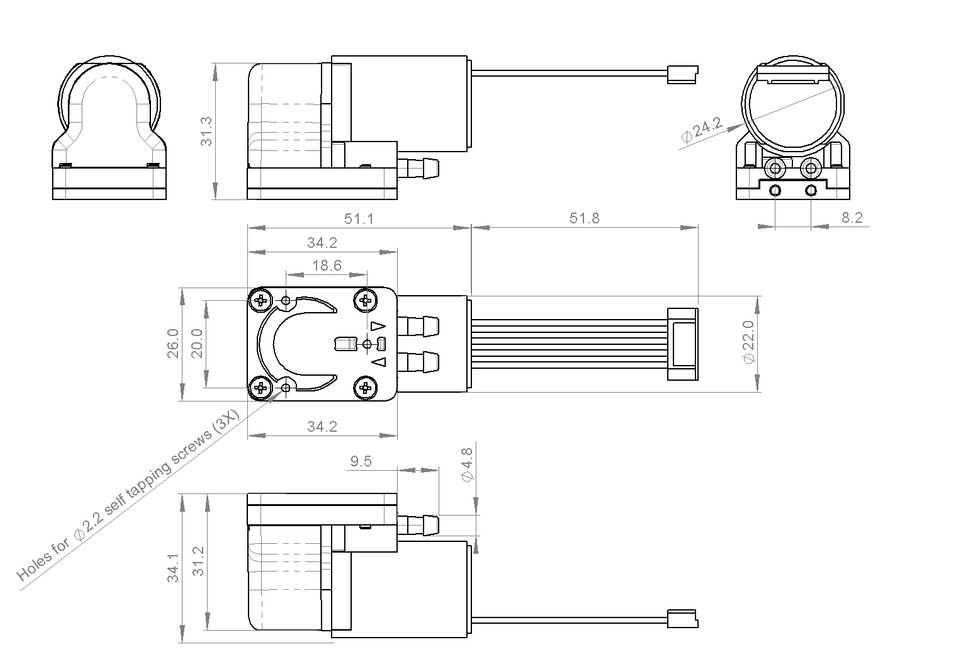

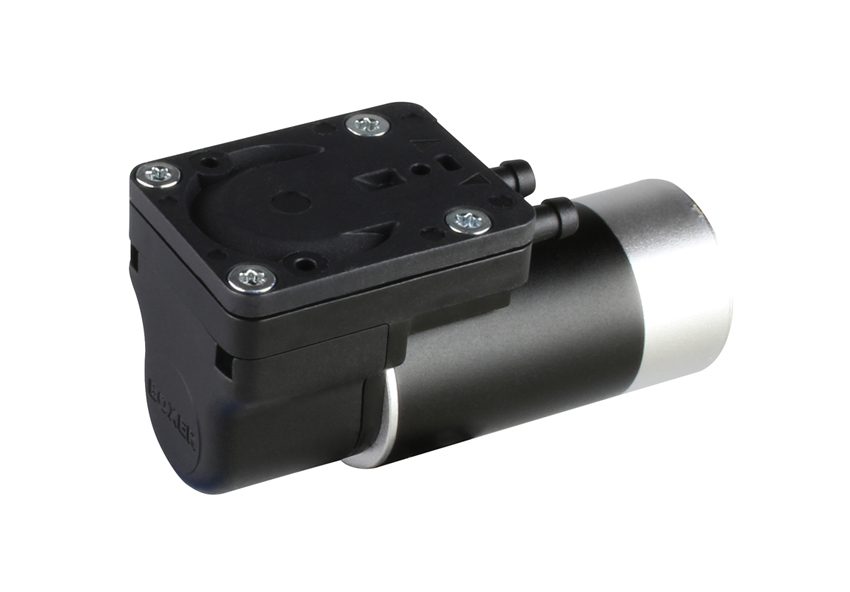

Brushless Motor

Ultimate life and versatility available in 12 to 24 V DC.

Available to purchase online via BOX-it (see order information below).

Technical Data

Free Flow 1.8 l/min
Max Pressure 500 mbar
Max Vacuum -450 mbar
Voltage Options 12 to 24 V DC
Power Consumption 1.56 to 2.88 W
Elastomer EPDM
Other Wetted Parts PBT (Polybutylene terephthalate)
Weight 72 g






Order Information

Part Number:     1100.610     24 V DC / EPDM     ⇒ BOX-it

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
