3KD Diaphragm Pump
Teilenummer:
3112.660
24 V BLDC gas diaphragm pump.
4 wires:
red = supply (+24 V DC)
black = GND
green = speed input (0 to 5V or 0 to 100% PWM)
yellow = tacho output (1 pulse per revolution)
* can be connected to supply voltage for full speed

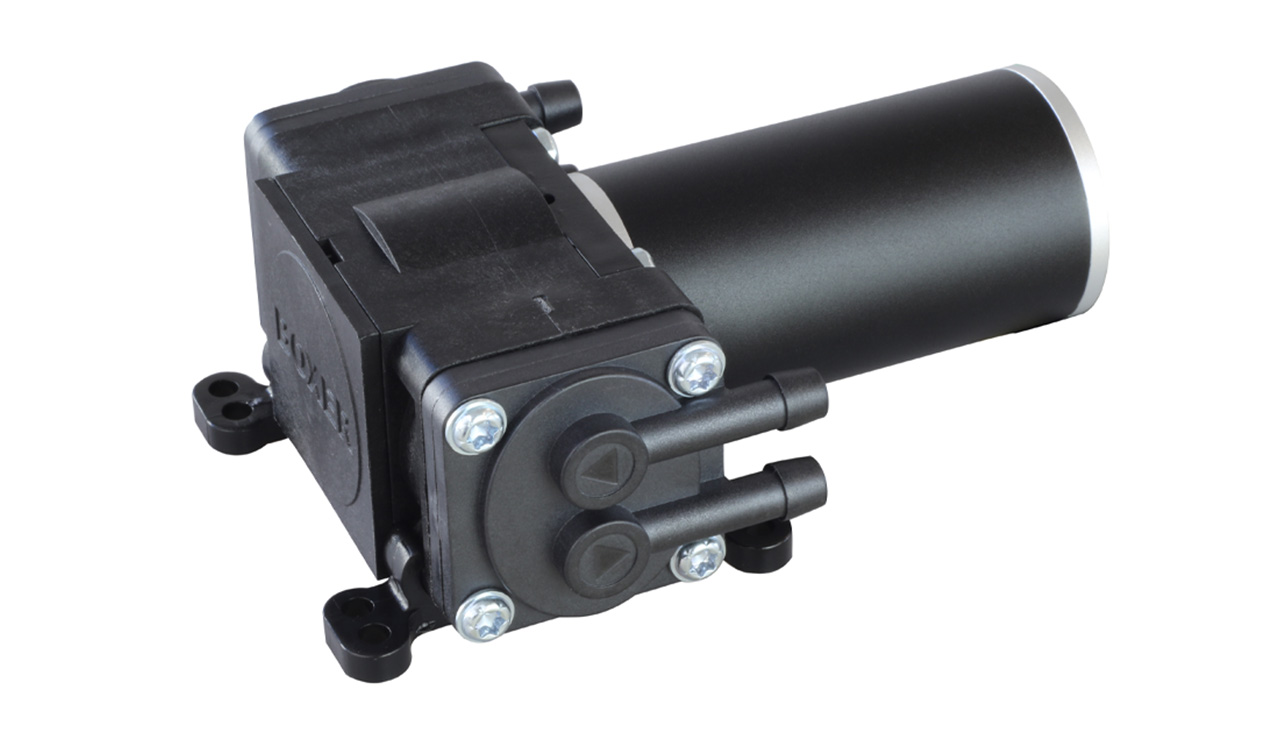

Supplied with 2 mounting clips (as shown in photo).
Recommended tubing: 4.8mm ID silicone (see accessories below)
Produktinformationen "3KD Diaphragm Pump"
Flow to 18.0 l/m
Pressure to 2.0 bar
Vacuum to -900 mbar (series connection)
