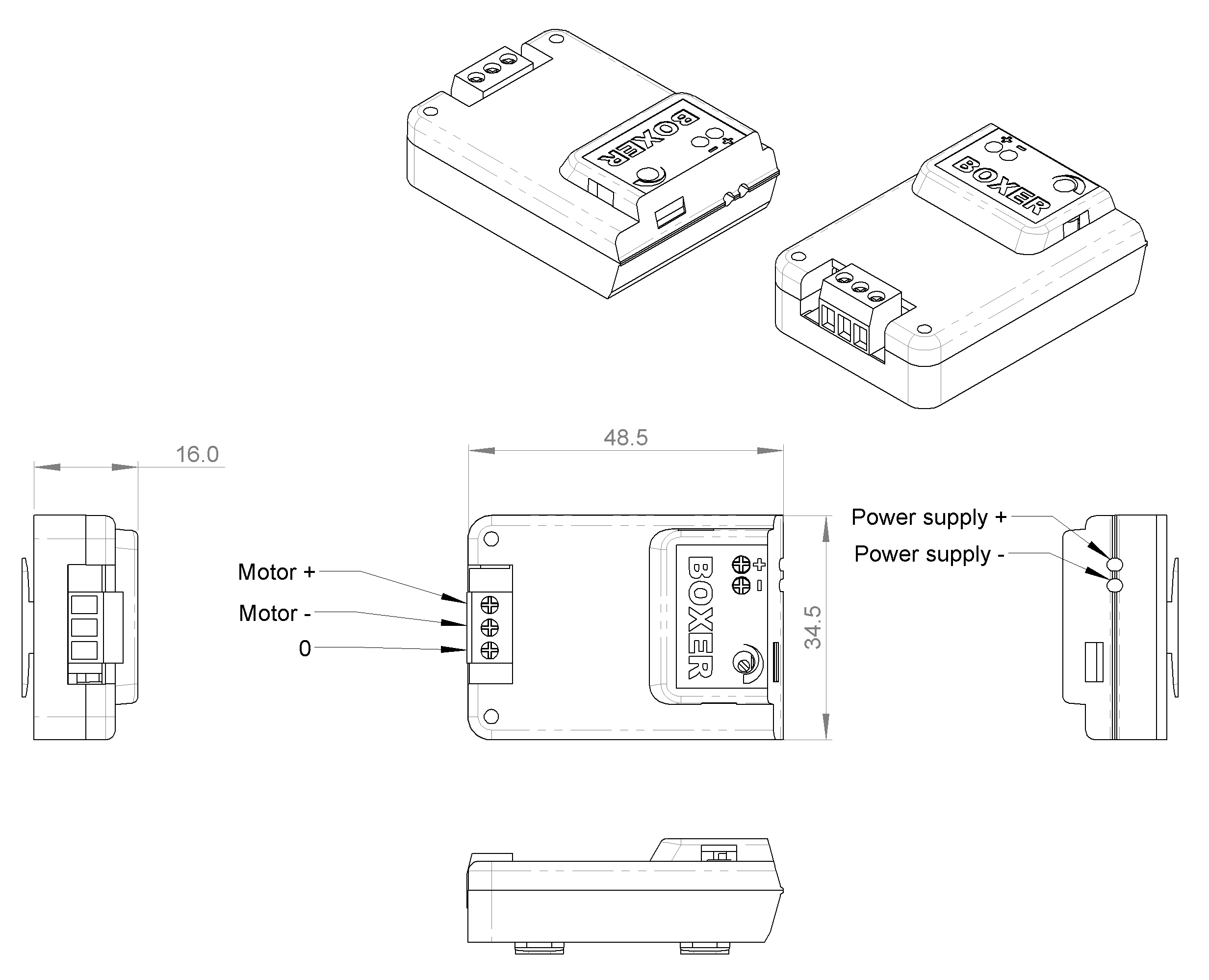

PWM Flow Controller
This PWM flow controller is deisgned for the specific needs of DC motor driven pumps. With a constant DC supply voltage the output can be varied between 0 and 100% through an on-board potentiometer providing optimal flow control of both diaphragm and peristaltic pumps.
Available to purchase online via BOX-it (see order information below).
Technical Data
| Input Voltage | 12 to 24 V DC |
| Maximum Load | 2 A |
| Fuse | 3 A timed, non-resetting |
| Duty Cycle | 0 to 100% |
| Duty Cycle Adjustment | On-board, 15 turn potentiometer |
| PWM Frequency | 10 kHz (nominal) |
