6K Series - for 1.0 mm wall tubing

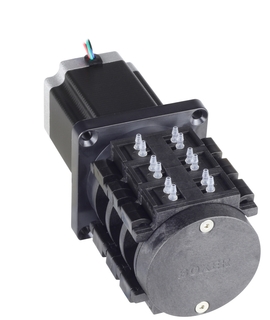

The second generation 6K series is a uniquely compact multichannel peristaltic pump range for accurate dispensing of liquids. The stepper motor drive offers the versatility of finite speed control and, combined with optional optical position sensors, roller position control.
The 6K peristaltic pump is designed for both 1.0 and 1.6 mm wall tubing. This product page details the 1.0 mm wall configurations. For 1.6 mm wall configuration ⇒ 6K for 1.6 mm wall tubing.
› Flow rates from 15 to 384 µl per revolution (per channel)
› Choice of 4, 8 or 12 channels
› Inlet / outlet above and below head to support compact design
› Suitable for 0.5, 1.0, 2.0 and 3.0 mm ID tube
› 4 and 8 roller configurations
› Supplied with motor only or choice of 3 pre-assembled stepper motor drivers
› Option rotor position / speed sensor
4 Channel with 24 V Stepper Motor
Technical Data
| Flow Data per Revolution (per channel) | |
| ID Ø 0.5 mm tube | 20 / 15 µl per revolution (4 / 8 Roller) |
| ID Ø 1.0 mm tube | 61 / 41 µl per revolution (4 / 8 Roller) |
| ID Ø 2.0 mm tube | 229 / 132 µl per revolution (4 / 8 Roller) |
| ID Ø 3.0 mm tube | 384 / 187 µl per revolution (4 / 8 Roller) |
| Flow Data at 300 RPM (max recommended speed) | |
| ID Ø 0.5 mm tube | 6.1 / 4.4 ml / min (4 / 8 Roller) |
| ID Ø 1.0 mm tube | 18.7 / 12.4 ml / min (4 / 8 Roller) |
| ID Ø 2.0 mm tube | 68.6 / 39.5 ml / min (4 / 8 Roller) |
| ID Ø 3.0 mm tube | 115.1 / 56.3 ml / min (4 / 8 Roller) |
| Electrical Data | |
| Power consumption (with ID Ø 3.0 mm tube and including A4 driver) | 23 to 33 W |
| Recommended driver current setting | 4.0 A |
| Max. starting speed (with new tubing) | 100 rpm |
| Full data available in PDF datasheet |
Supplied without stepper driver
Order Information

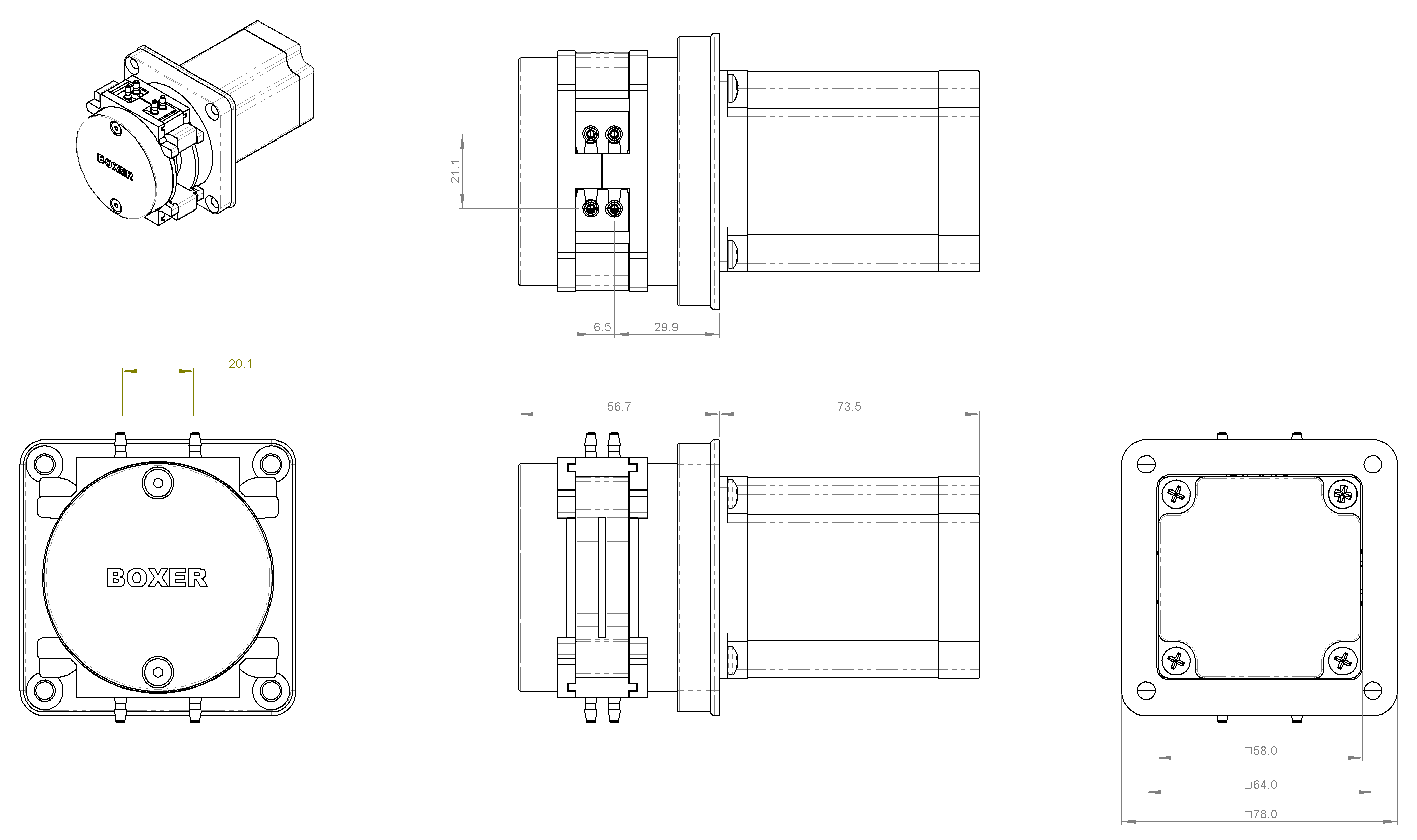

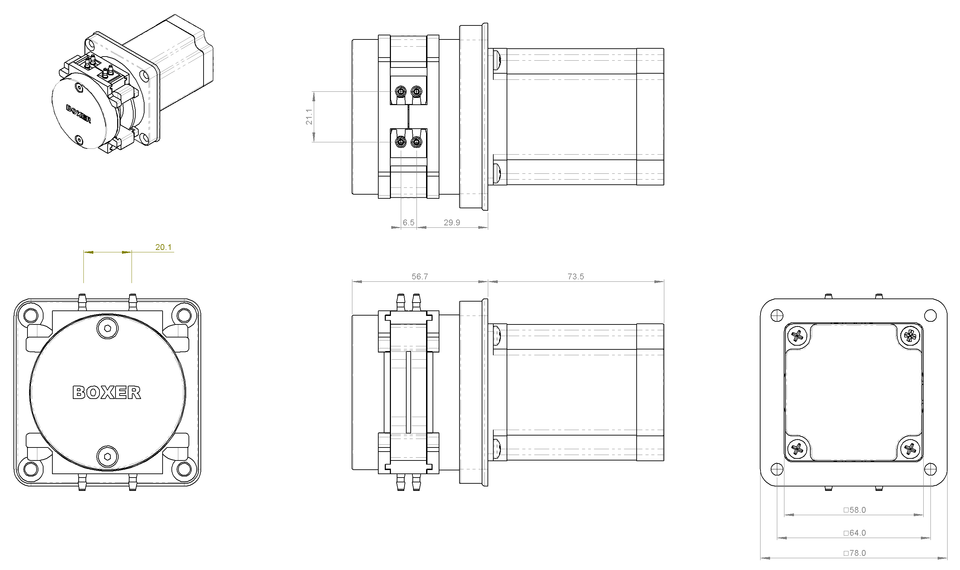

Part Number: 6341.100 24 V Stepper / 4 Channel / 4 Roller ⇒
Part Number: 6331.100 24 V Stepper / 4 Channel / 8 Roller ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles
Driver (sold separately)

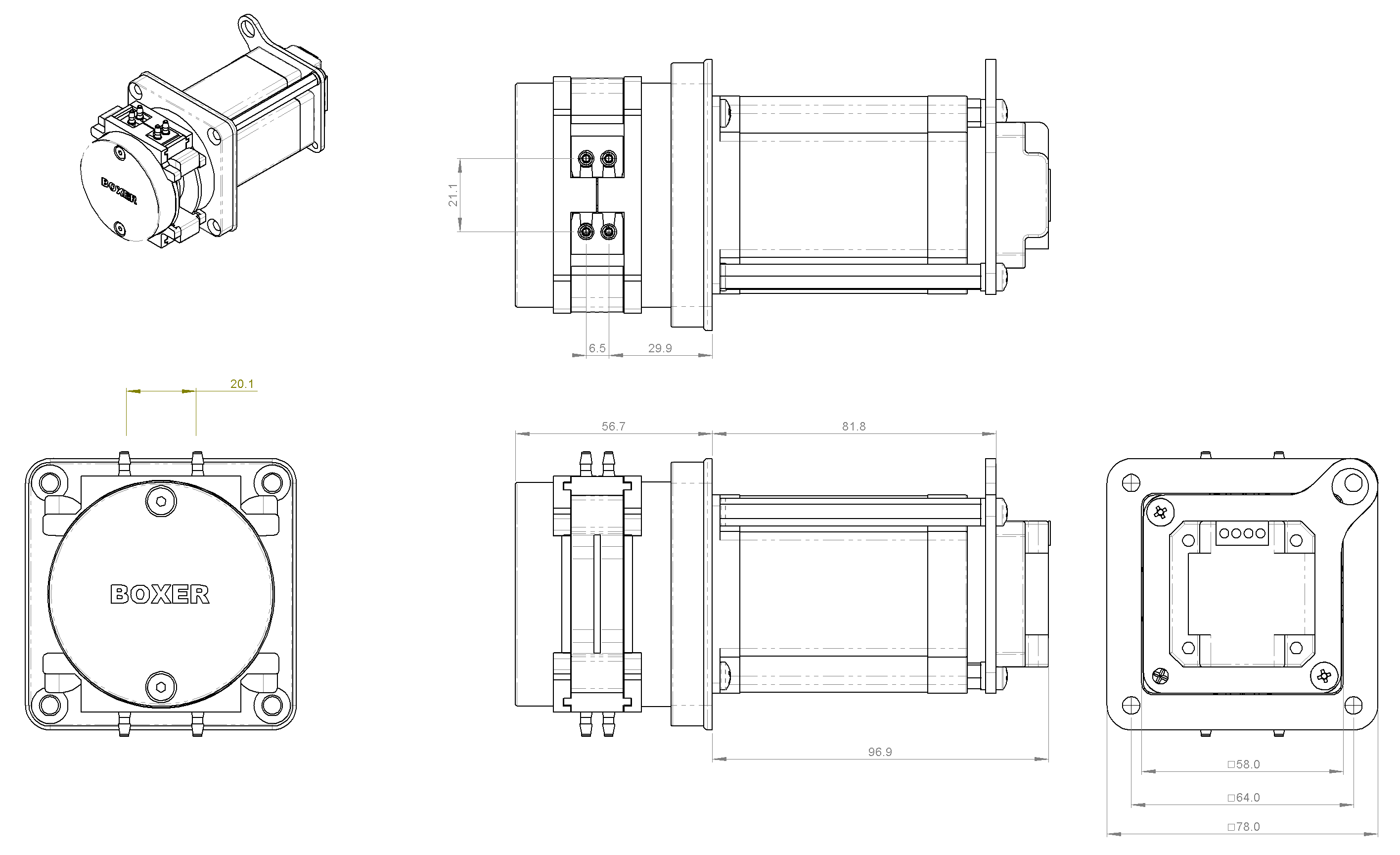

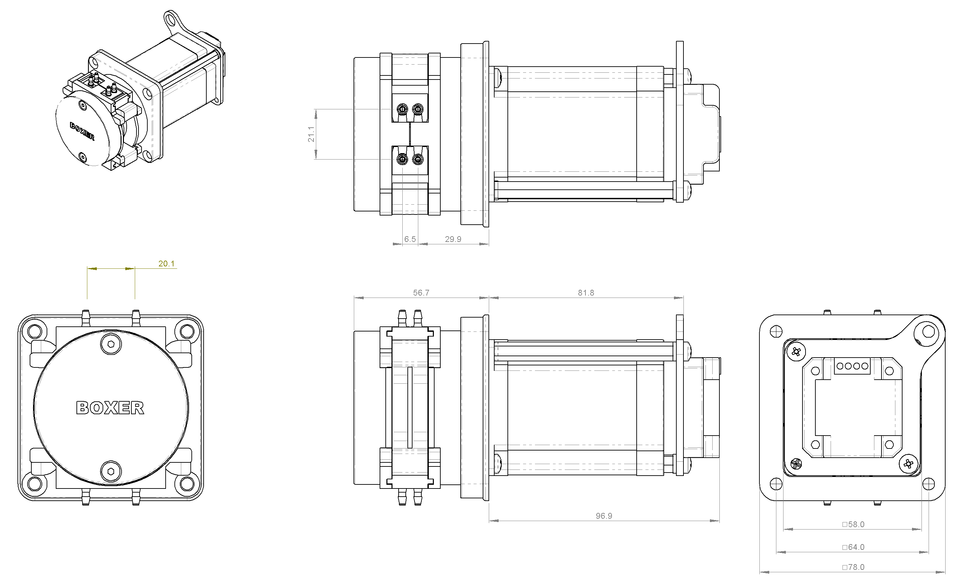

Supplied with pre-assembled A4 stepper driver (0 to 5V speed input)
Order Information
Part Number: 6341.101 24 V Stepper / 4 Channel / 4 Roller / A4 Driver ⇒
Part Number: 6331.101 24 V Stepper / 4 Channel / 8 Roller / A4 Driver ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles

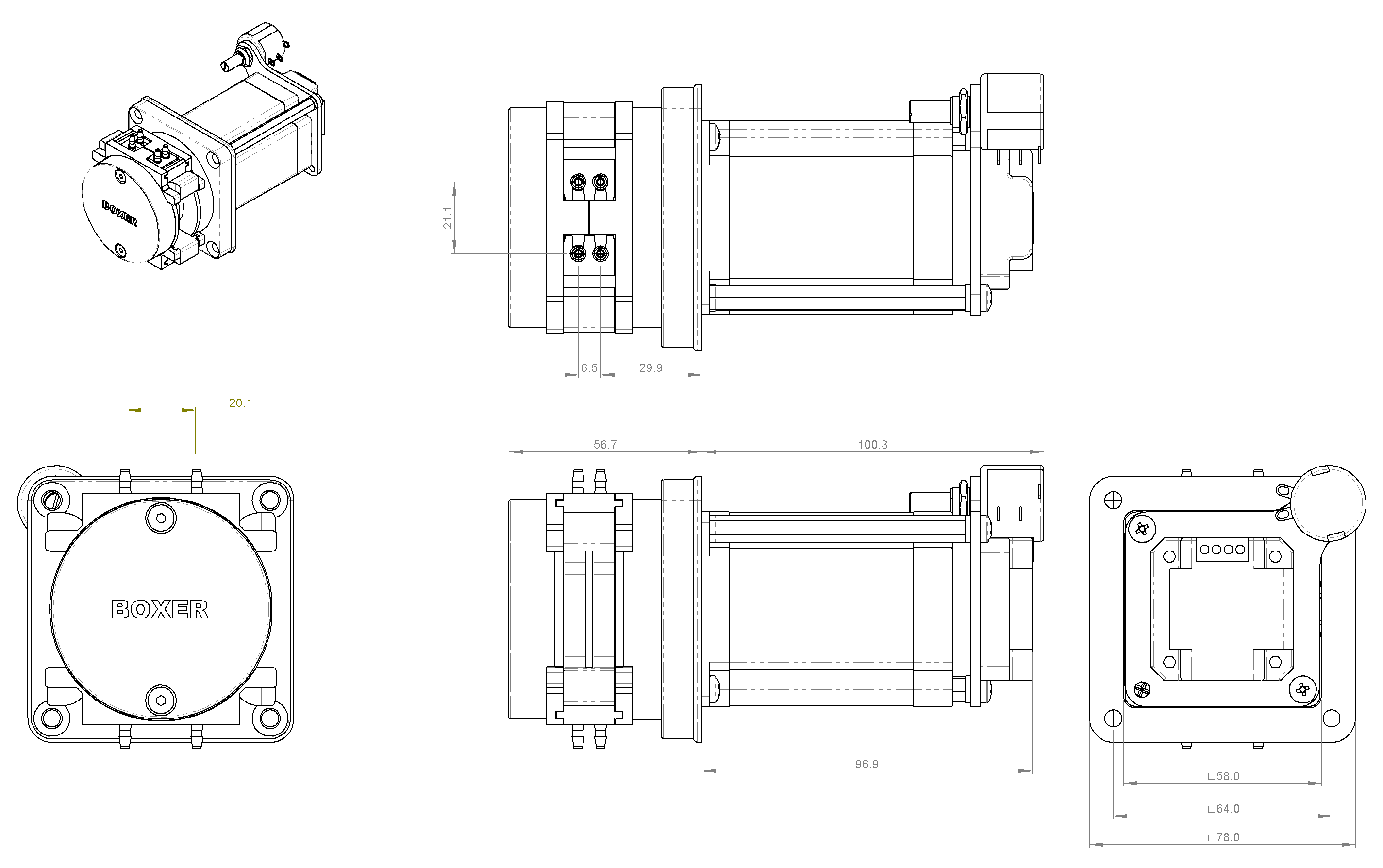

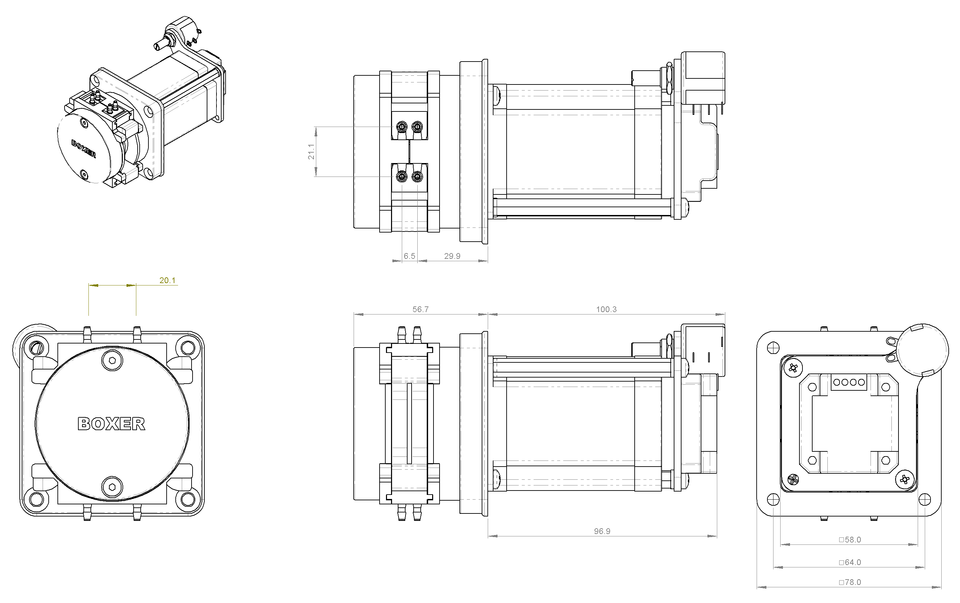

Supplied with pre-assembled A4p stepper driver (10 turn speed potentiometer)
Order Information
Part Number: 6341.151 24 V Stepper / 4 Channel / 4 Roller / A4p Driver ⇒
Part Number: 6331.151 24 V Stepper / 4 Channel / 8 Roller / A4p Driver ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles

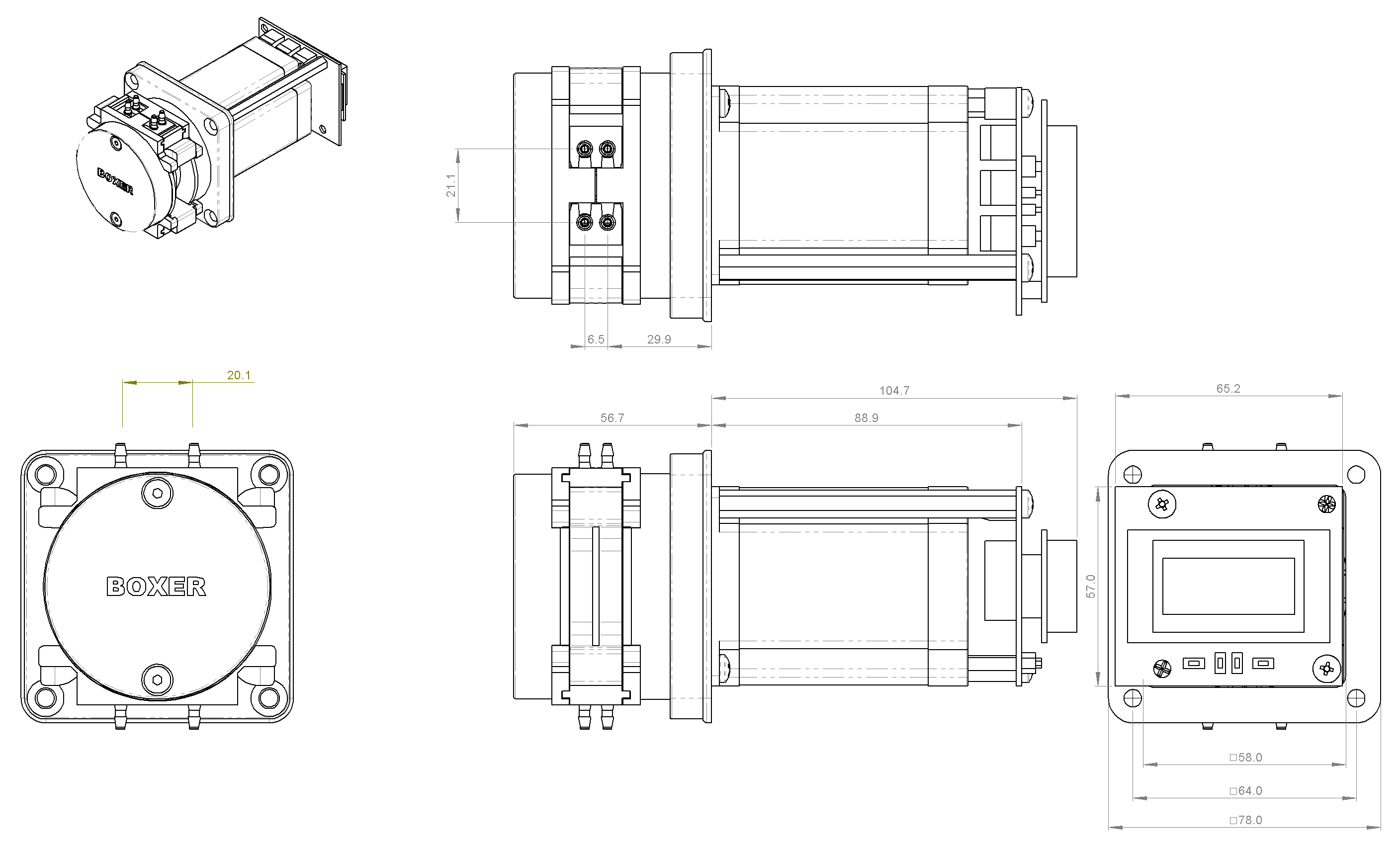

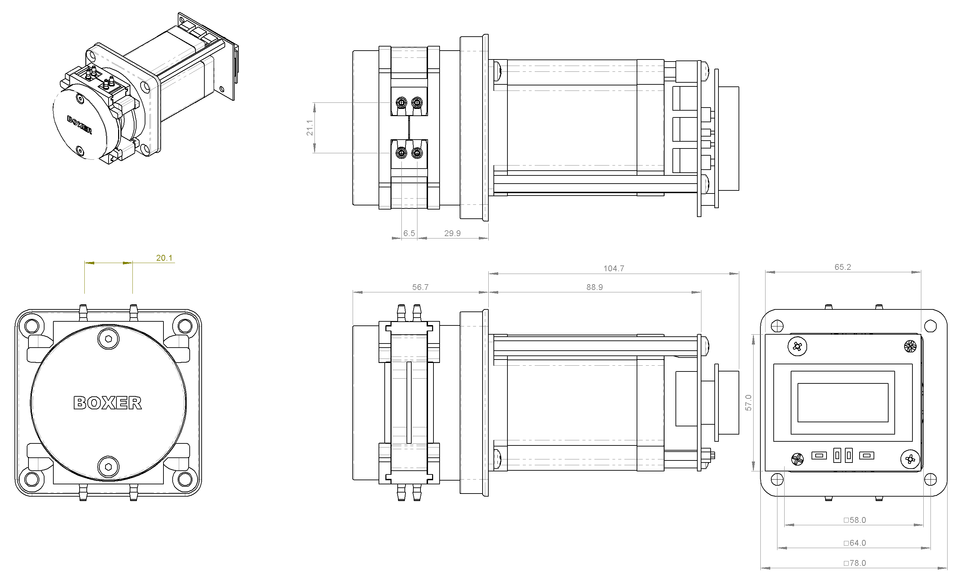

Supplied with pre-assembled iD stepper driver (digital / programmable)
Order Information
Part Number: 6341.105 24 V Stepper / 4 Channel / 4 Roller / iD Driver ⇒
Part Number: 6331.105 24 V Stepper / 4 Channel / 8 Roller / iD Driver ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles
8 Channel with 24 V Stepper Motor
Technical Data
| Flow Data per Revolution (per channel) | |
| ID Ø 0.5 mm tube | 20 / 15 µl per revolution (4 / 8 Roller) |
| ID Ø 1.0 mm tube | 61 / 41 µl per revolution (4 / 8 Roller) |
| ID Ø 2.0 mm tube | 229 / 132 µl per revolution (4 / 8 Roller) |
| ID Ø 3.0 mm tube | 384 / 187 µl per revolution (4 / 8 Roller) |
| Flow Data at 300 RPM (max recommended speed) | |
| ID Ø 0.5 mm tube | 6.1 / 4.4 ml / min (4 / 8 Roller) |
| ID Ø 1.0 mm tube | 18.7 / 12.4 ml / min (4 / 8 Roller) |
| ID Ø 2.0 mm tube | 68.6 / 39.5 ml / min (4 / 8 Roller) |
| ID Ø 3.0 mm tube | 115.1 / 56.3 ml / min (4 / 8 Roller) |
| Electrical Data | |
| Power consumption (with ID Ø 3.0 mm tube and including A4 driver) | 32 to 46 W |
| Recommended driver current setting | 4.0 A |
| Max. starting speed (with new tubing) | 100 rpm |
| Full data available in PDF datasheet |

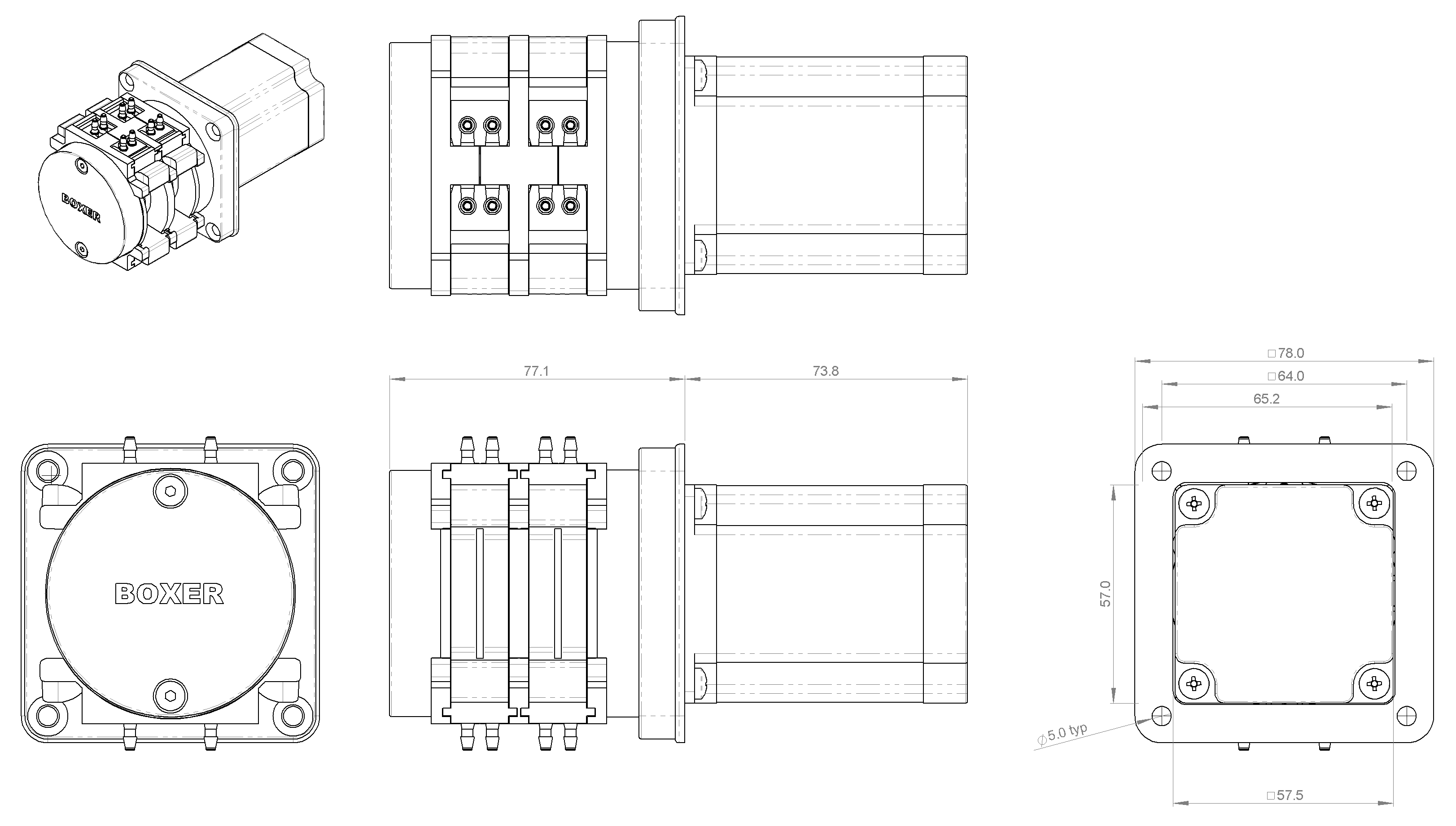

Supplied without stepper driver
Order Information
Part Number: 6342.100 24 V Stepper / 8 Channel / 4 Roller ⇒
Part Number: 6332.100 24 V Stepper / 8 Channel / 8 Roller ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles
Driver (sold separately)

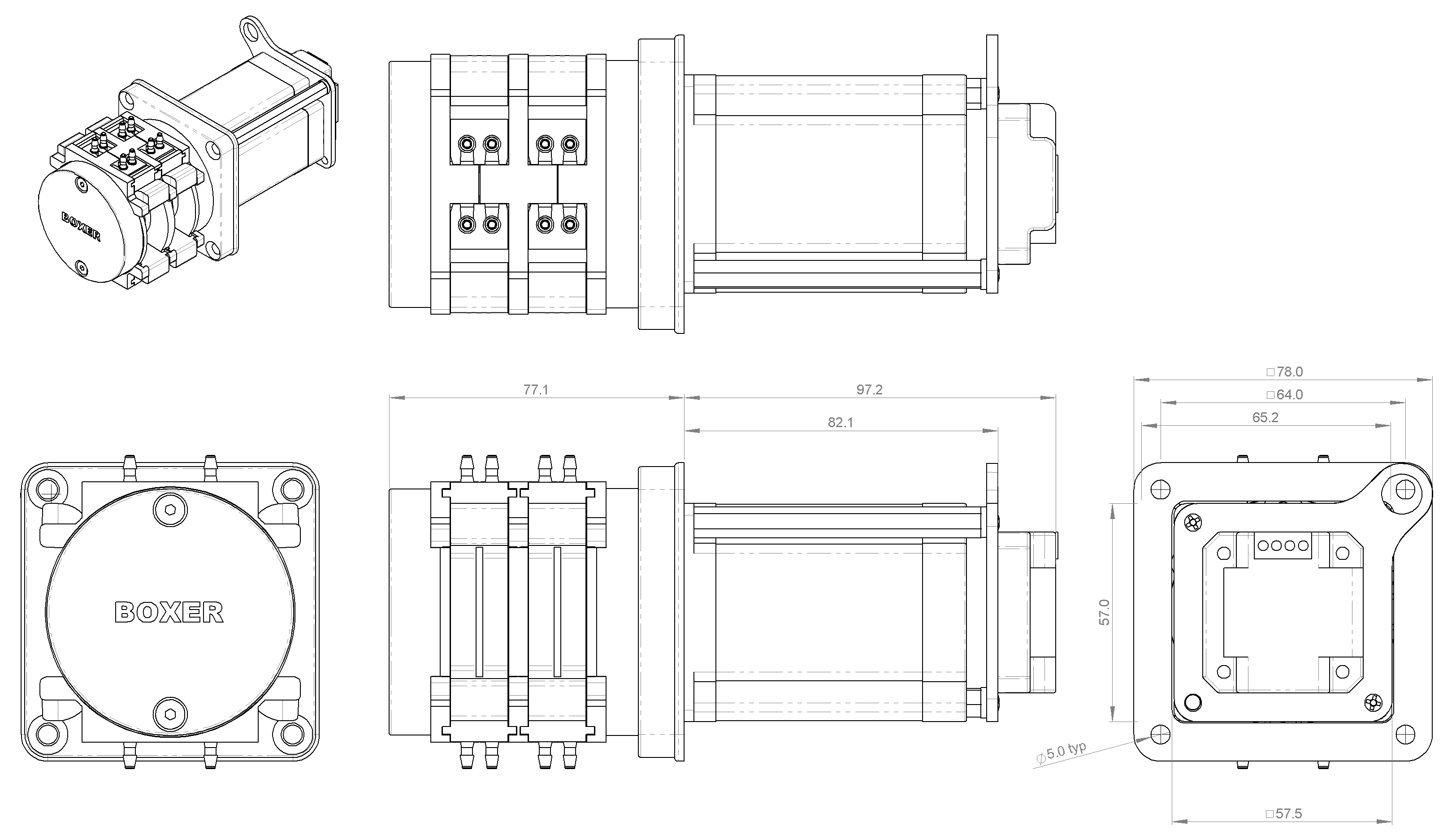

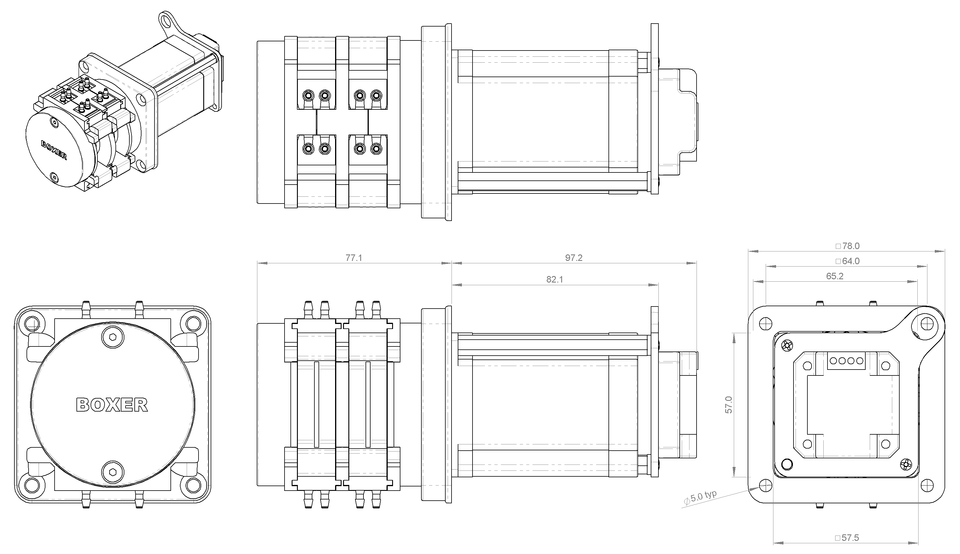

Supplied with pre-assembled A4 stepper driver (0 to 5V speed input)
Order Information
Part Number: 6342.101 24 V Stepper / 8 Channel / 4 Roller / A4 Driver ⇒
Part Number: 6332.101 24 V Stepper / 8 Channel / 8 Roller / A4 Driver ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles

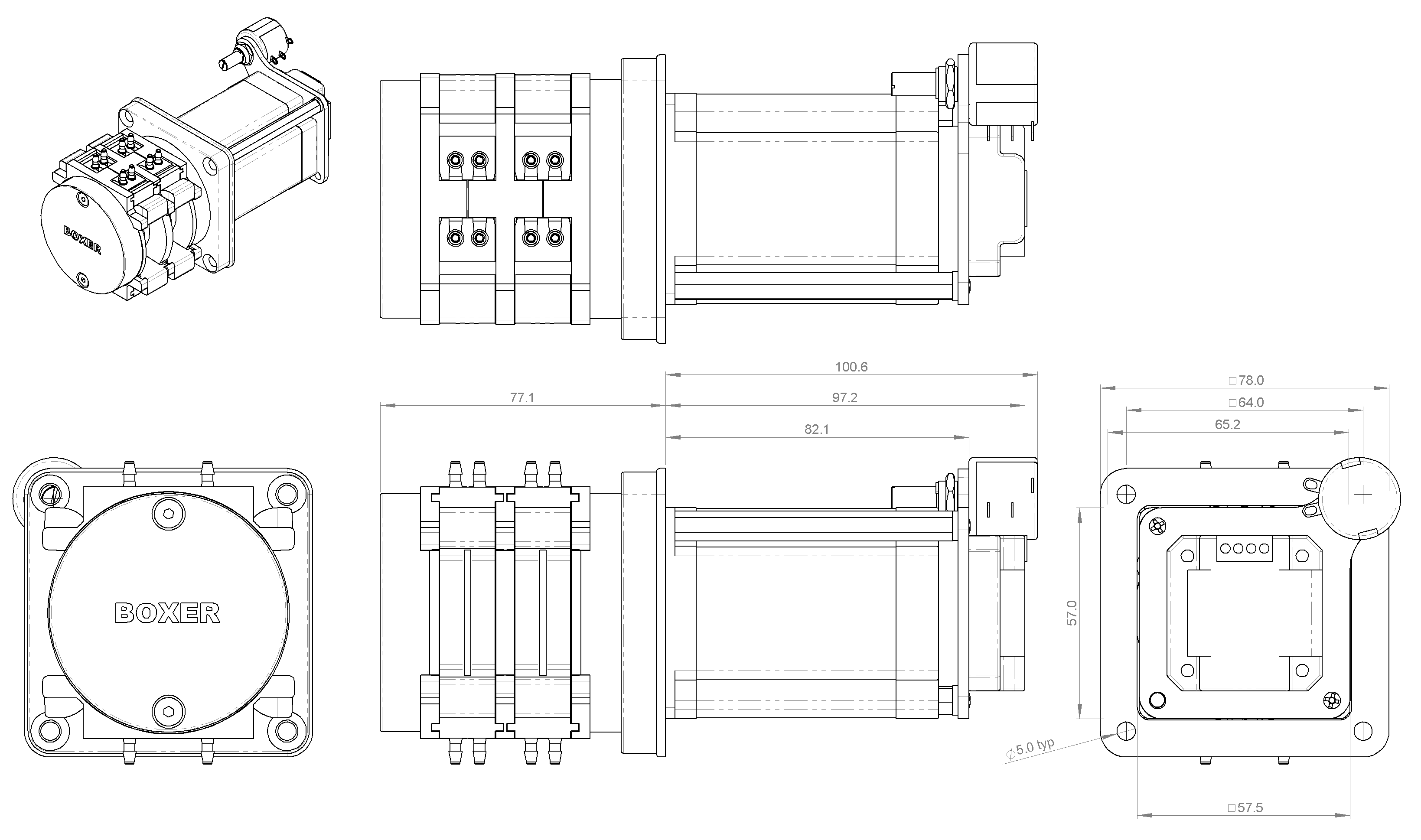

Supplied with pre-assembled A4p stepper driver (10 turn speed potentiometer)
Order Information

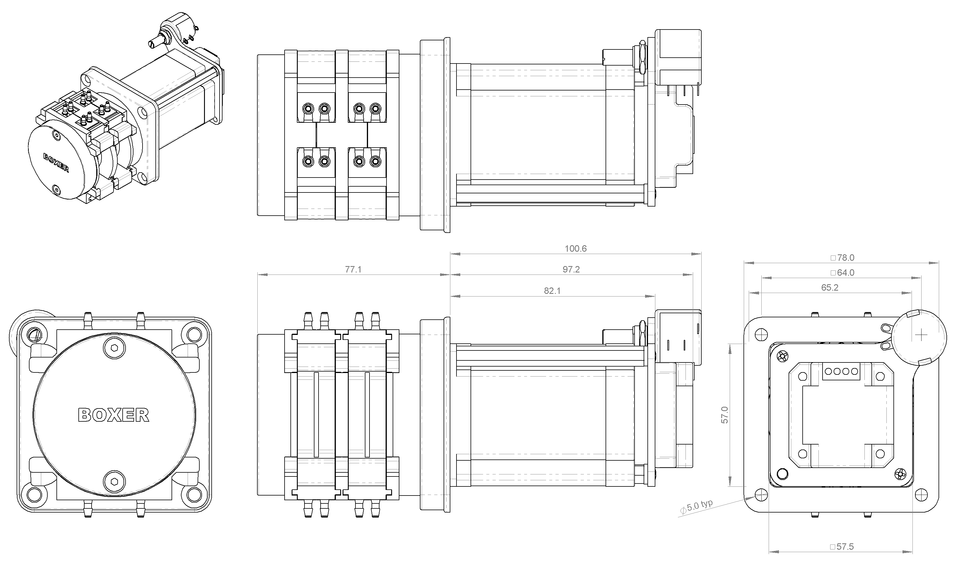

Part Number: 6342.151 24 V Stepper / 8 Channel / 4 Roller / A4p Driver ⇒
Part Number: 6332.151 24 V Stepper / 8 Channel / 8 Roller / A4p Driver ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles

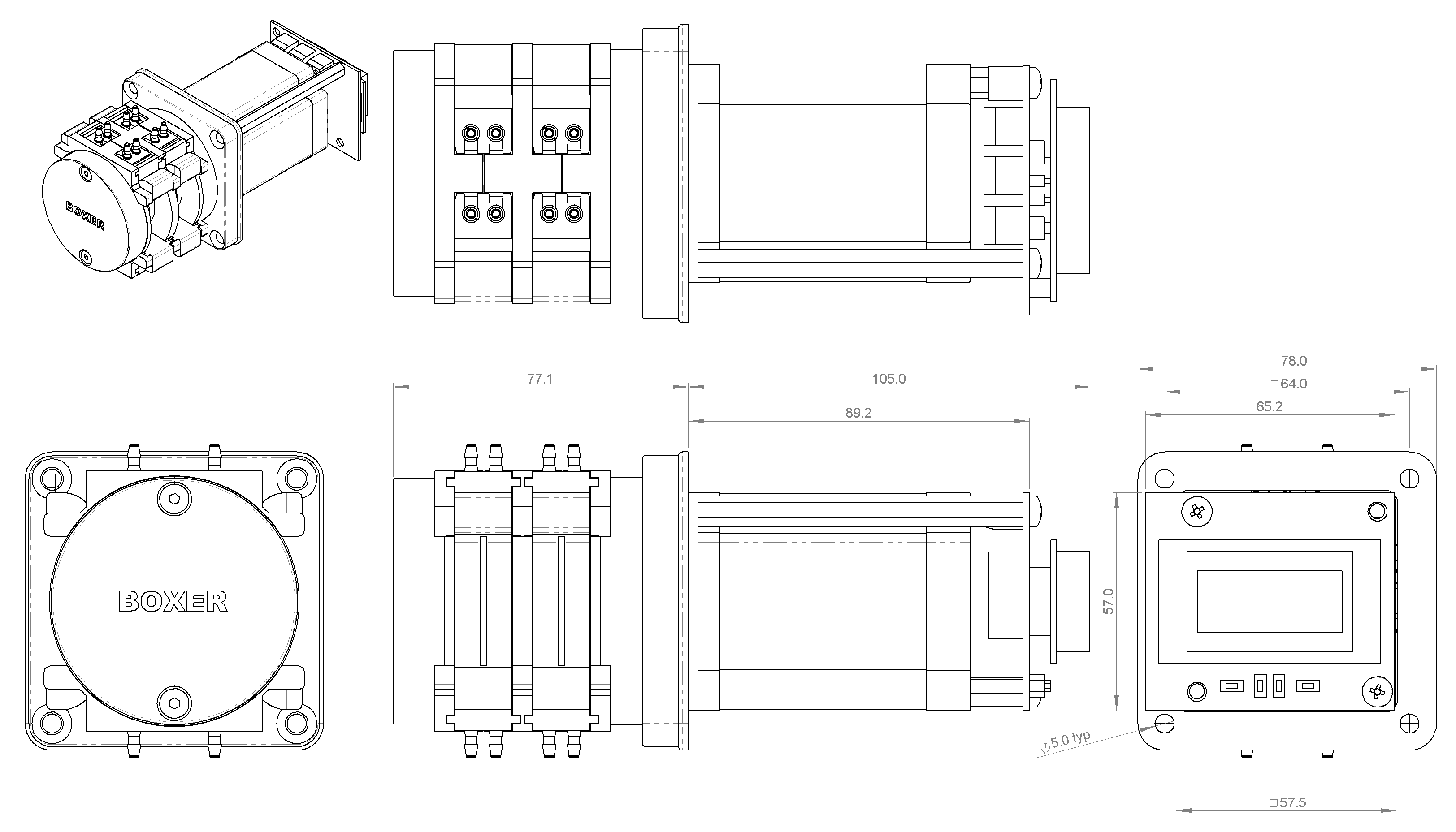

Supplied with pre-assembled iD stepper driver (digital / programmable)
Order Information
Part Number: 6342.105 24 V Stepper / 8 Channel / 4 Roller / iD Driver ⇒
Part Number: 6332.105 24 V Stepper / 8 Channel / 8 Roller / iD Driver ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles
12 Channel with 24 V Stepper Motor
Technical Data
| Flow Data per Revolution (per channel) | |
| ID Ø 0.5 mm tube | 20 / 15 µl per revolution (4 / 8 Roller) |
| ID Ø 1.0 mm tube | 61 / 41 µl per revolution (4 / 8 Roller) |
| ID Ø 2.0 mm tube | 229 / 132 µl per revolution (4 / 8 Roller) |
| ID Ø 3.0 mm tube | 384 / 187 µl per revolution (4 / 8 Roller) |
| Flow Data at 300 RPM (max recommended speed) | |
| ID Ø 0.5 mm tube | 6.1 / 4.4 ml / min (4 / 8 Roller) |
| ID Ø 1.0 mm tube | 18.7 / 12.4 ml / min (4 / 8 Roller) |
| ID Ø 2.0 mm tube | 68.6 / 39.5 ml / min (4 / 8 Roller) |
| ID Ø 3.0 mm tube | 115.1 / 56.3 ml / min (4 / 8 Roller) |
| Electrical Data | |
| Power consumption (with ID Ø 3.0 mm tube and including A4 driver) | 36 to 53 W |
| Recommended driver current setting | 4.0 A |
| Max. starting speed (with new tubing) | 100 rpm |
| Full data available in PDF datasheet |

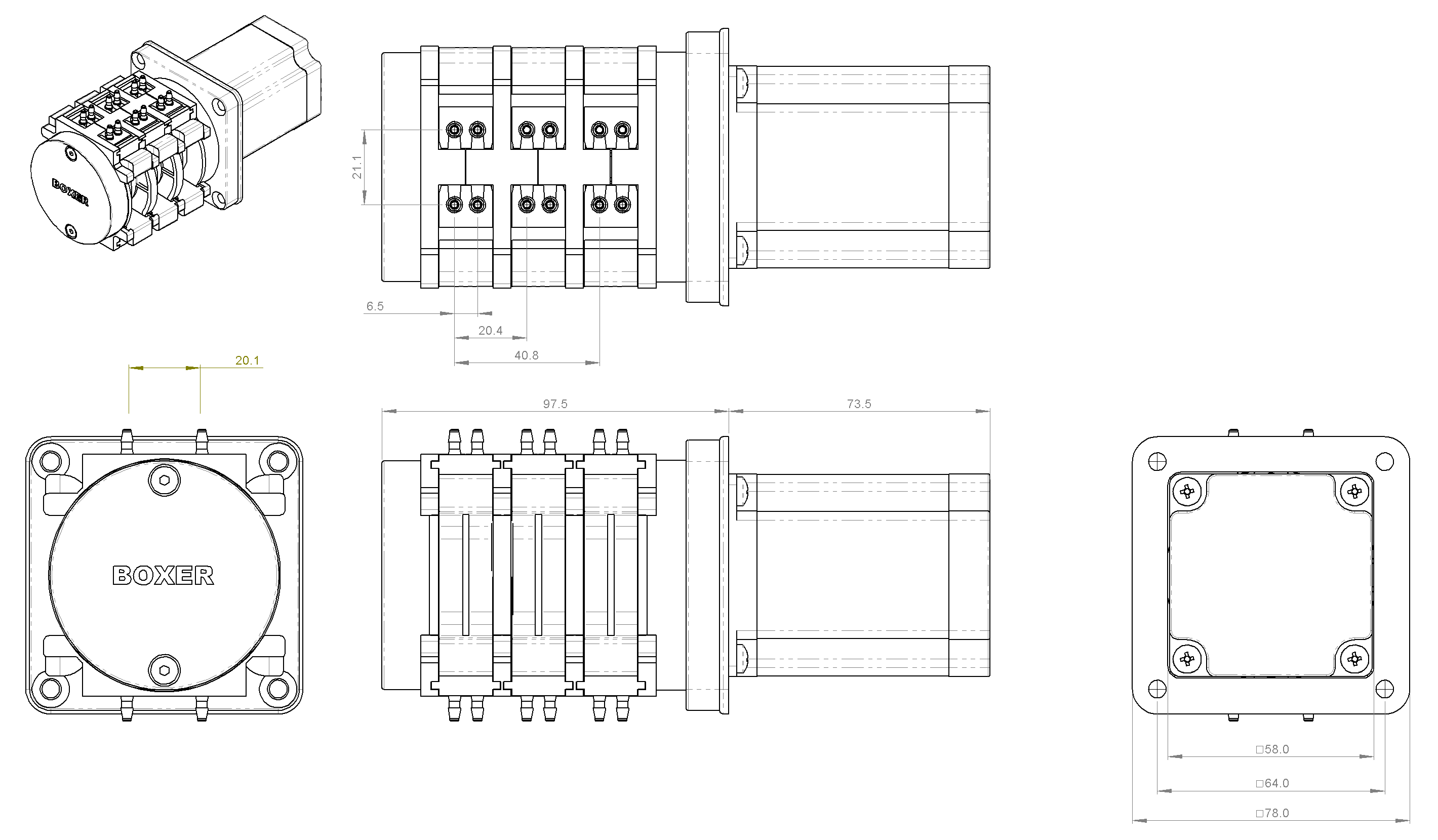

Supplied without stepper driver
Order Information

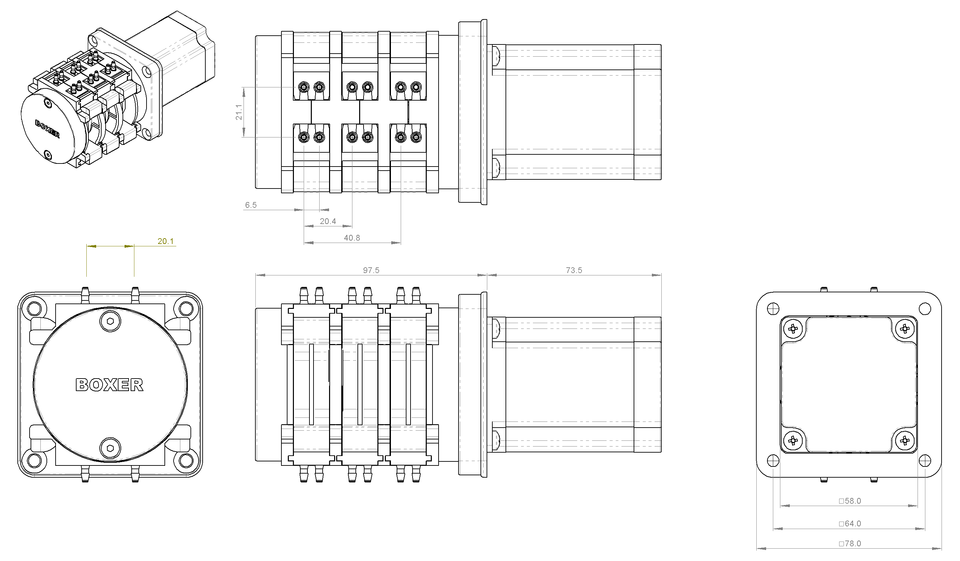

Part Number: 6343.100 24 V Stepper / 12 Channel / 4 Roller ⇒
Part Number: 6353.100 24 V Stepper / 12 Channel / 8 Roller ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles
Driver (sold separately)

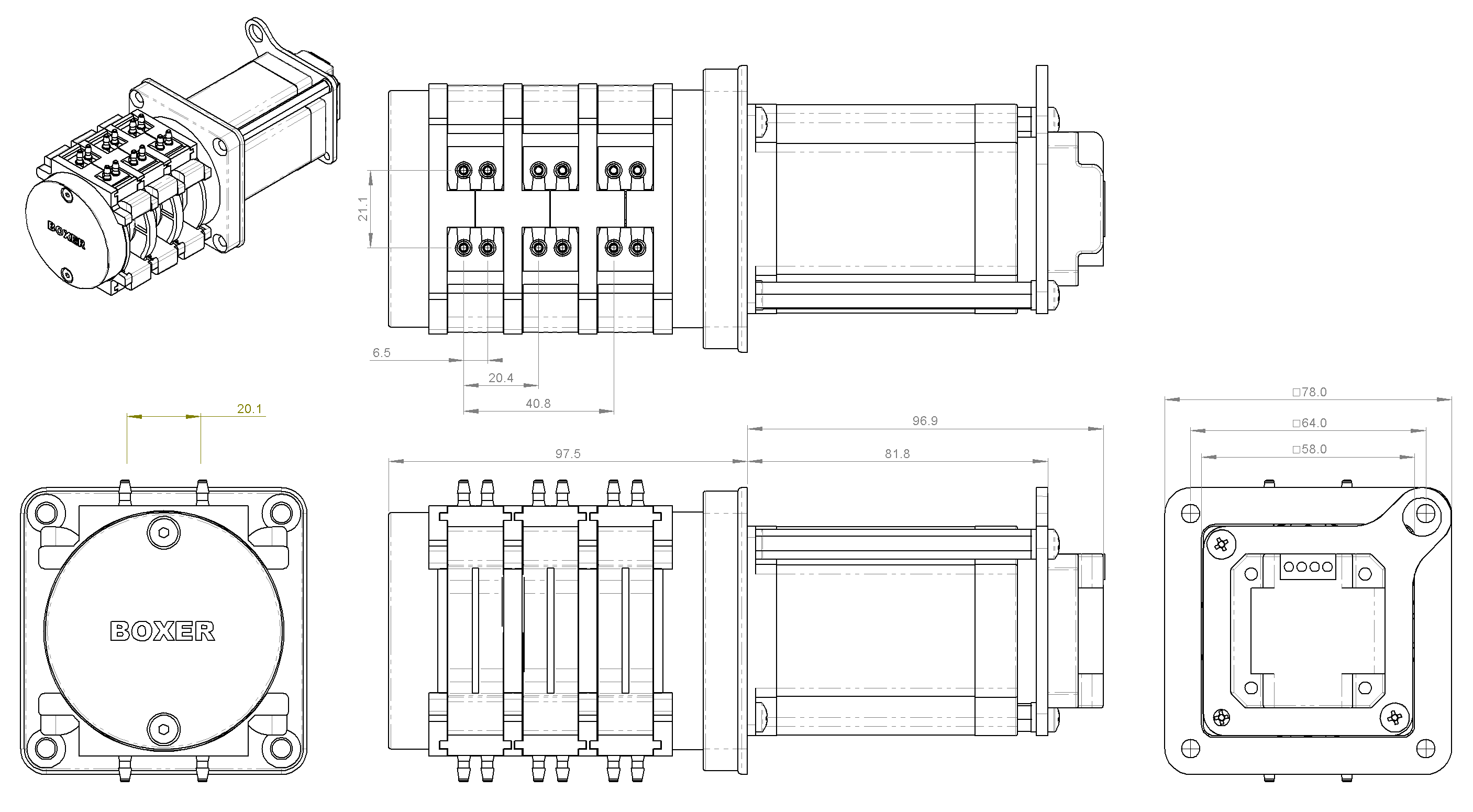

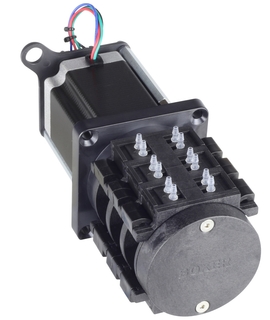

Supplied with pre-assembled A4 stepper driver (0 to 5V speed input)
Order Information
Part Number: 6343.101 24 V Stepper / 12 Channel / 4 Roller / A4 Driver ⇒
Part Number: 6353.101 24 V Stepper / 12 Channel / 8 Roller / A4 Driver ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles

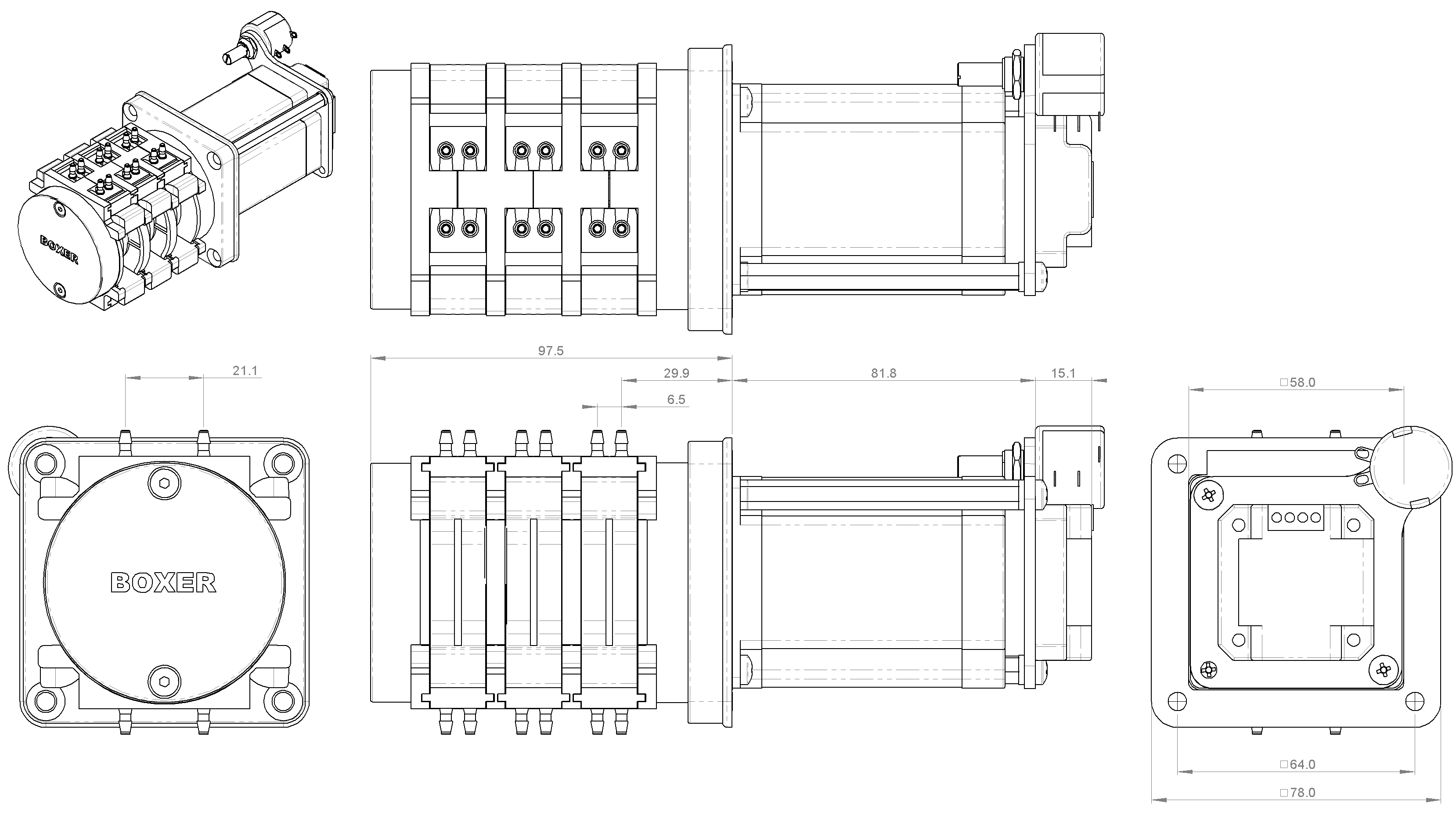

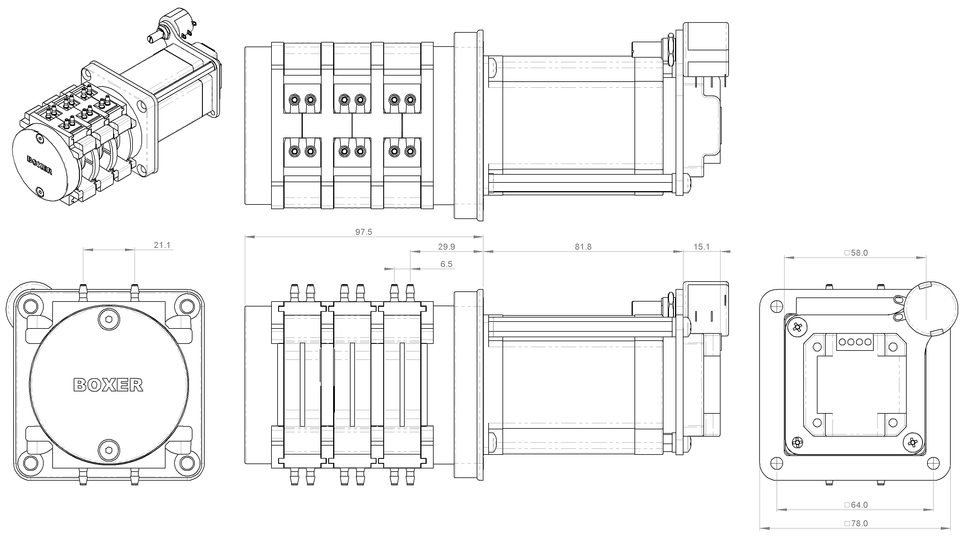

Supplied with pre-assembled A4p stepper driver (10 turn speed potentiometer)
Order Information
Part Number: 6343.151 24 V Stepper / 12 Channel / 4 Roller / A4p Driver ⇒
Part Number: 6353.151 24 V Stepper / 12 Channel / 8 Roller / A4p Driver ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles

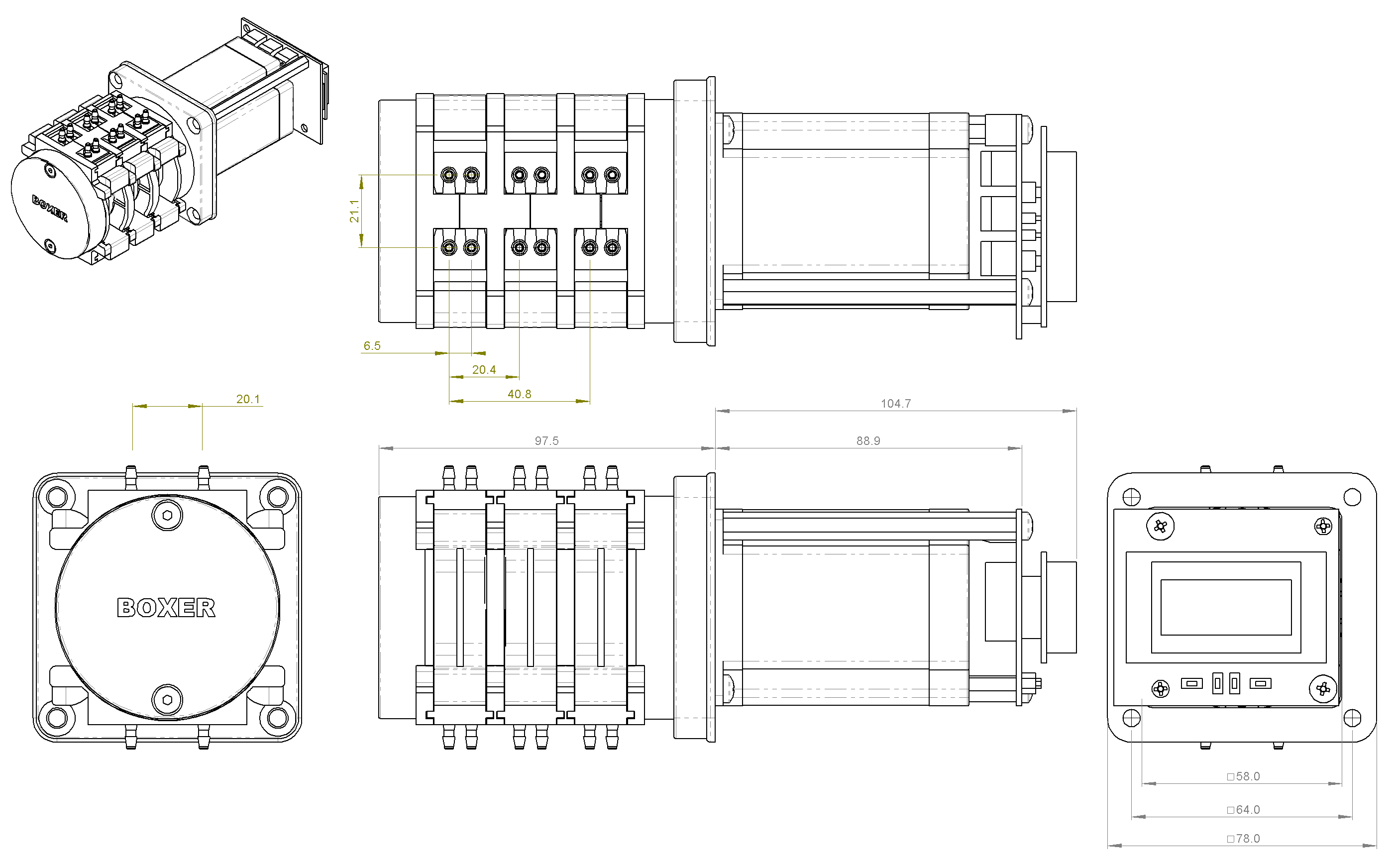

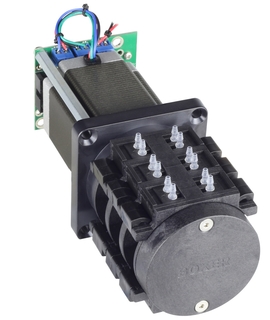

Supplied with pre-assembled iD stepper driver (digital / programmable)
Order Information
Part Number: 6343.105 24 V Stepper / 12 Channel / 4 Roller / iD Driver ⇒
Part Number: 6333.105 24 V Stepper / 12 Channel / 8 Roller / iD Driver ⇒
Tubing and saddles should be ordered separately.
Accessories:
Tubing, Saddles
All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use. These products are not suitable for in-vivo applications.
