19K Series

The 19K series is a diaphragm pump designed for liquids and gas / liquid mixtures. A combination of high hydraulic performance and damping chambers to reduce pulsation makes this a very versatile pump for wide range of applications.

High performance engineering plastics also allows use also in high temperature applications.

Both brushed and brushless motor options are available.

› Flow rate to 0.8 l/min
› Damping chamber for low pulsation
› Strong gas / liquid mixture performance
› Compact design

A gas only verison of this pump (19K) is also available which runs at higher speed and stroke.

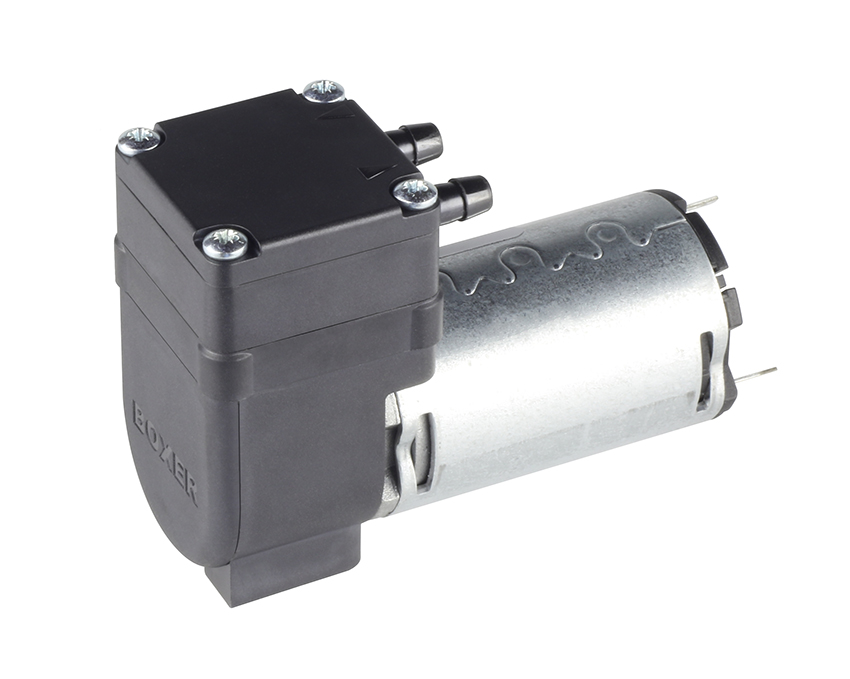

19K with quality DC motor in 12 or 24 V
Free Flow 700 ml/min
Max Pressure 2.0 bar
Max Vacuum 8.0 m H20

Max Suction Height 3.0 m H20

Voltage Options 12 / 24 V DC
Power Consumption 2.6 to 9.6 W

Elastomer Options EPDM / Nitrile / Viton (FKM) / FFKM / Silicone
Other Wetted Parts PPS (polyphenylene sulphide)

Weight 175 g

  Full data available in PDF datasheet
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 19201.016
Motor / Voltage: Brushed Motor 12 V
132,00 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 19201.017
Motor / Voltage: Brushed Motor 24 V
132,00 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 19000.002
3,36 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

19K with brushless DC (BLDC) motor in 24 V with 0 to 5 V speed control and speed signal output
Free Flow 800 ml/min
Max Pressure 2.0 bar
Max Vacuum 8.0 m H20

Max Suction Height 3.0 m H20

Voltage Options 12 / 24 V DC
Power Consumption 4.8 to 10.8 W

Elastomer Options EPDM / Nitrile / Viton (FKM) / FFKM / Silicone
Other Wetted Parts PPS (polyphenylene sulphide)

Weight 215 g

  Full data available in PDF datasheet
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 19201.611
Motor / Voltage: Brushless Motor 24 V
195,94 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 19000.001
5,39 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage
