16K Series

The 16K series is a miniature liquid diaphragm pump designed for wide elections of applications such as medical diagnostics, pharmaceutical, food processing, ink jet printing and water treatment industires.

As standard the pump includes inlet pulsation chamber to ensure smooth liquid transfer.

Motor options include iron core, coreless and BLDC (2 versions).

› Flow rate to 150 ml/min
› Damping chamber for low pulsation
› Wide choice of motors
› Compact design

The pump is self priming and can run dry without damage for long periods of time.

Flow control is available in combination with PWM Flow Controller.

Return to Miniature Diaphragm Pumps for Liquid range.

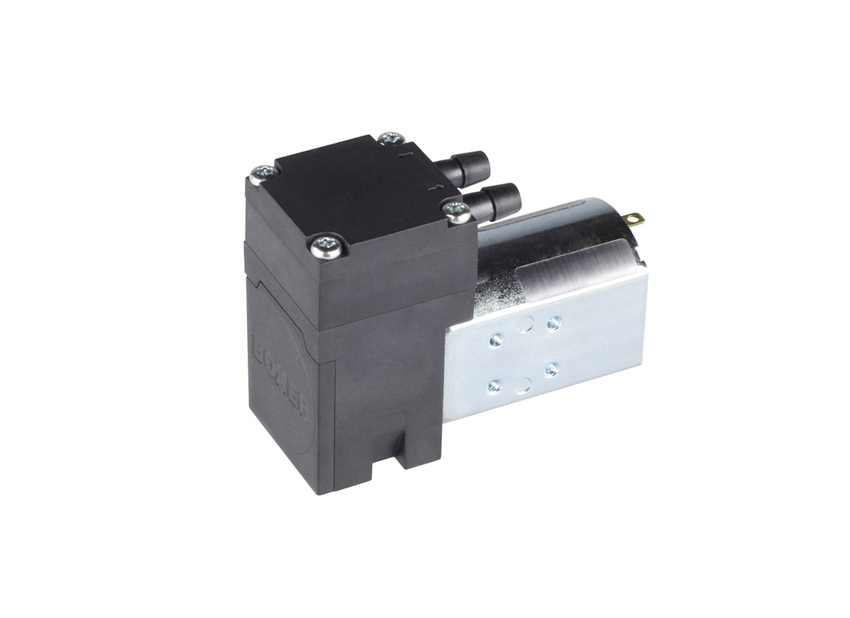

Boxer 16K liquid diaphragm pump

Iron Core Motor

Economic with high life available in 12 and 24 V.

Available to purchase online via BOX-it (see order information below).

Technical Data

Free Flow 150 ml/min
Max Pressure 1.0 bar
Max Vacuum -400 mbar

Free Flow (gas / dry) 250 ml/min
Max suction Height (dry) 3 m H2O

Voltage Options 12 / 24 V DC

Power Consumption 1.2 to 3 W

Elastomers Options EPDM, Nitrile
Other Wetted Parts PPS
Weight 60g





Order Information

Part Number:     16005.000     12 V DC / EPDM     ⇒ BOX-it
Part Number:     16006.000     24 V DC / EPDM     ⇒ BOX-it


Coreless Motor

Low power consumption with excellent life available in 6.0 V.

Technical Data

Free Flow 150 ml/min
Max Pressure 1.0 bar
Max Vacuum -400 mbar

Free Flow (gas / dry) 250 ml/min
Max suction Height (dry) 3 m H2O

Voltage Options 6 V DC

Elastomers Options EPDM, Nitrile
Other Wetted Parts PPS
Weight 65g





Order Information

Part Number:     16015.000     6 V DC / EPDM


Boxer 16K micro liquid diaphragm pump

Brushless Motor - e

Economic and versatile available in 24 V DC.

Technical Data

Free Flow 150 ml/min
Max Pressure 1.0 bar
Max Vacuum -400 mbar

Free Flow (gas / dry) 250 ml/min
Max suction Height (dry) 3 m H2O

Voltage Options 24 V DC

Elastomers Options EPDM, Nitrile
Other Wetted Parts PPS
Weight 60g





Order Information

Part Number:     16016.000     24 V DC / EPDM


Boxer 16K miniature liquid diaphragm pump

Brushless Motor

Ultimate life and versatility available in 24 V DC.

Technical Data

Free Flow 150 ml/min
Max Pressure 1.0 bar
Max Vacuum -400 mbar

Free Flow (gas / dry) 250 ml/min
Max suction Height (dry) 3 m H2O

Voltage Options 24 V DC

Elastomers Options EPDM, Nitrile
Other Wetted Parts PPS
Weight 63g



Order Information

Part Number:     16008.000     24 V DC / EPDM

Part Number:     6900.005     External BLDC Driver, including speed pot and case

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
