15 KS Series

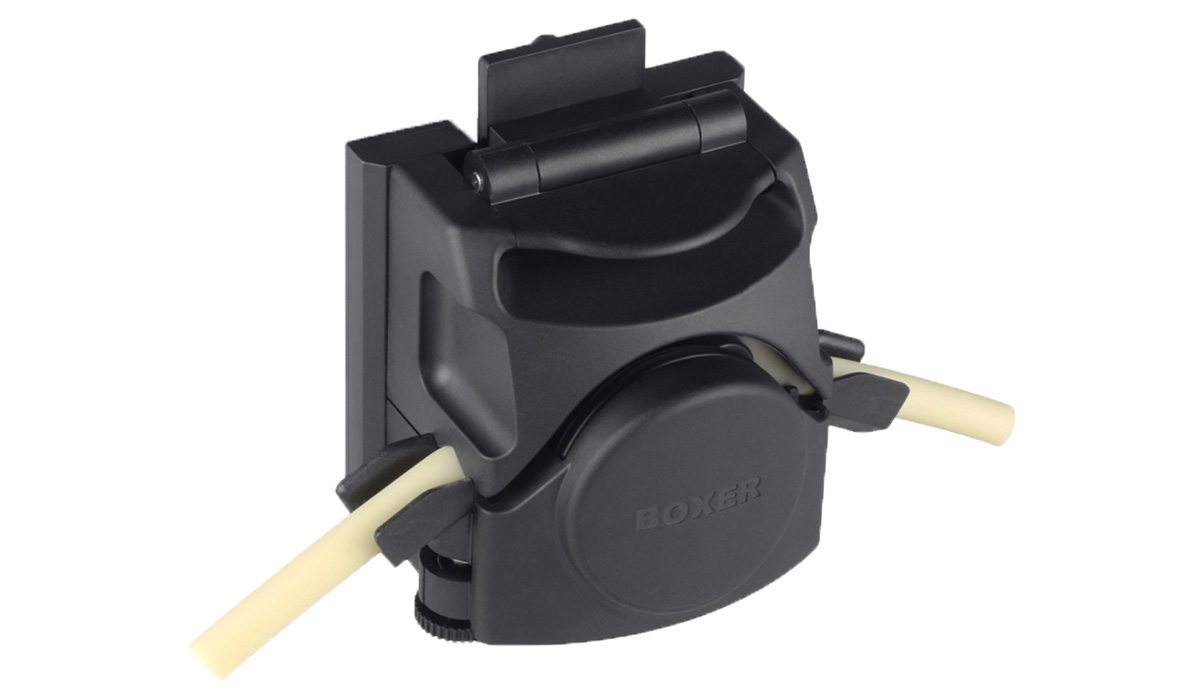

The 15KS series is a unique and versatile peristaltic pump range designed for accurate dispensing of liquids.

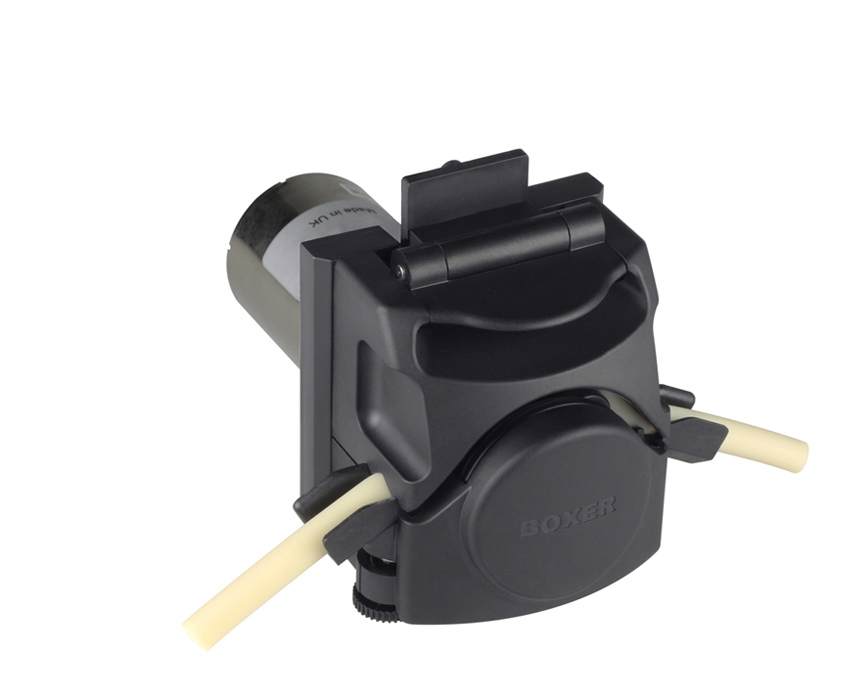

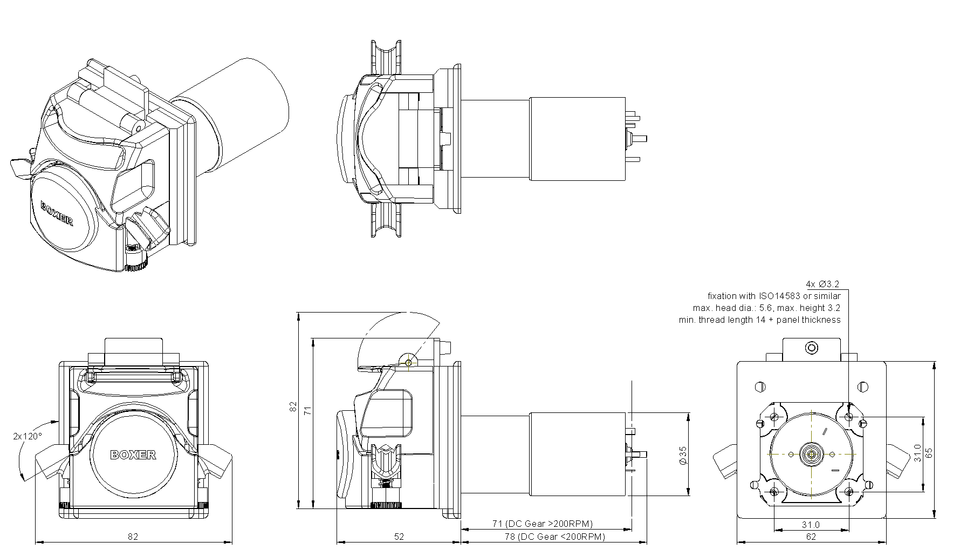

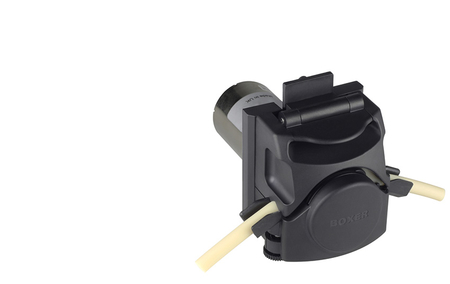

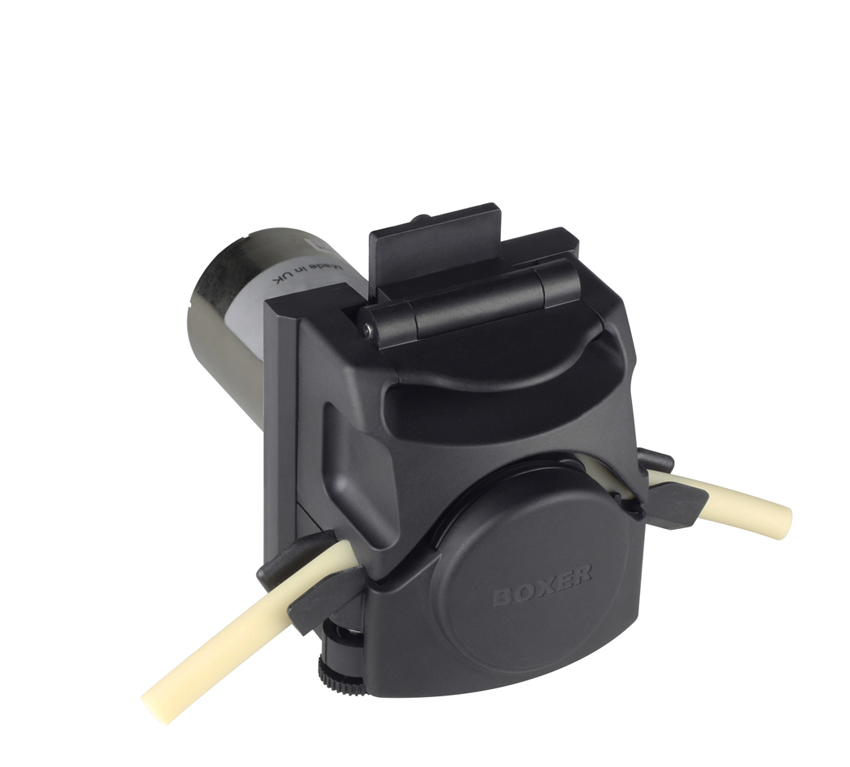

DC / Gear motor versions offer a range of 30 to 420 rpm with optional back shaft encoder providing accurate feedback of rotor speed.

Stepper motor versions offer the versatility of 2 different size motors, supporting driver options and speed sensor.

› Flow rates from zero to 1072 ml/min
› Continuous tube
› Flip-top easy tube exchange
› Clip-on head
› 4 different tube sizes
› 4 different tube materials
› 3 roller configurations

Tubing must always be ordered separately.

The 15KS is available with a floating saddle under the series 15QQ.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Economic and versatile available in 12 and 24 V.
Flow Data
ID Ø 1.6 mm tube 210 / 190 / 170 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.4 mm tube 435 / 390 / 320 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.2 mm tube 730 / 660 / 495 µl per revolution (3 / 4 / 6 Roller)
ID Ø 4.8 mm tube 1340 / 1250 / 830 µl per revolution (3 / 4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM (at nominal voltage)
12 V 30 / 312 / 437
24 V 60 / 298 / 420

Power Comsumption 6.5 to 10.5 W

Tube Materials Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure 2 bar
DC motor life >1000 hour
Weight 405 g

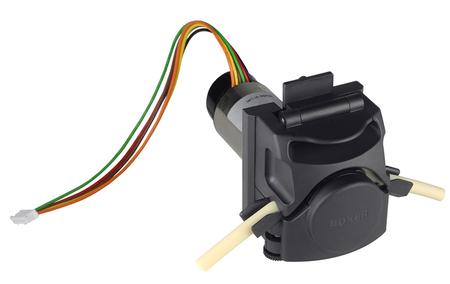

Optional encoder 10 pulses per motor revolution (associated rotor speed depends in gear ratio)



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15008.100
Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller
191,24 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15011.100
Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller
Teilenummer: 15012.100
Encoder Option: no | Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller
179,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15009.100
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller
191,24 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15013.100
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 298 rpm, 4 Roller
179,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15014.100
Encoder Option: no | Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller
179,11 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

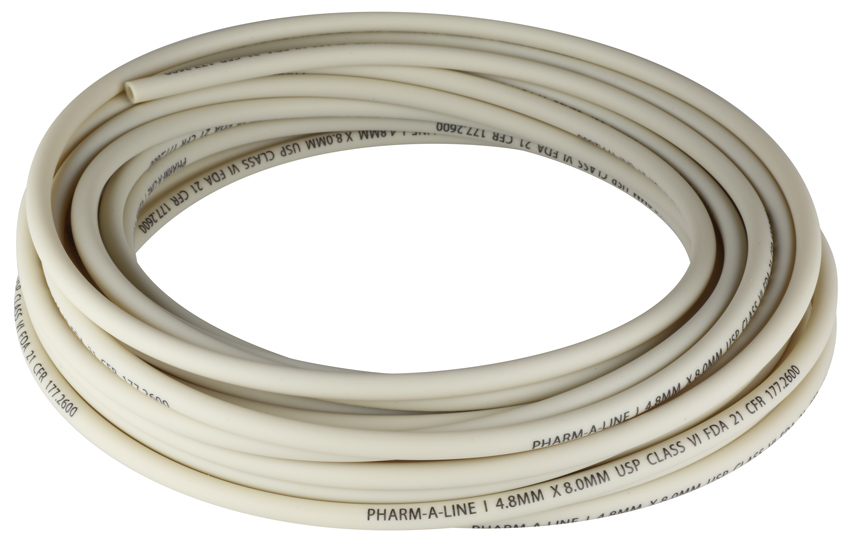

Teilenummer: 15000.216
Size: 1.6 x 1.6 mm (ID x wall)
2,82 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.217
Size: 2.4 x 1.6 mm (ID x wall)
3,13 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.218
Size: 3.2 x 1.6 mm (ID x wall)
3,31 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.219
Size: 4.8 x 1.6 mm (ID x wall)
3,49 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.230
Size: 1.6 x 1.6 mm (ID x wall)
1,73 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.231
Size: 2.4 x 1.6 mm (ID x wall)
1,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.232
Size: 3.2 x 1.6 mm (ID x wall)
2,09 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.233
Size: 4.8 x 1.6 mm (ID x wall)
2,21 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15408.100
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller
274,94 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15411.100
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller
Teilenummer: 15412.100
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller
262,80 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15409.100
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller
274,94 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15413.100
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 298 rpm, 4 Roller
262,80 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15414.100
Encoder Option: yes | Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller
262,80 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 15000.216
Size: 1.6 x 1.6 mm (ID x wall)
2,82 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.217
Size: 2.4 x 1.6 mm (ID x wall)
3,13 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.218
Size: 3.2 x 1.6 mm (ID x wall)
3,31 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.219
Size: 4.8 x 1.6 mm (ID x wall)
3,49 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.230
Size: 1.6 x 1.6 mm (ID x wall)
1,73 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.231
Size: 2.4 x 1.6 mm (ID x wall)
1,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.232
Size: 3.2 x 1.6 mm (ID x wall)
2,09 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.233
Size: 4.8 x 1.6 mm (ID x wall)
2,21 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

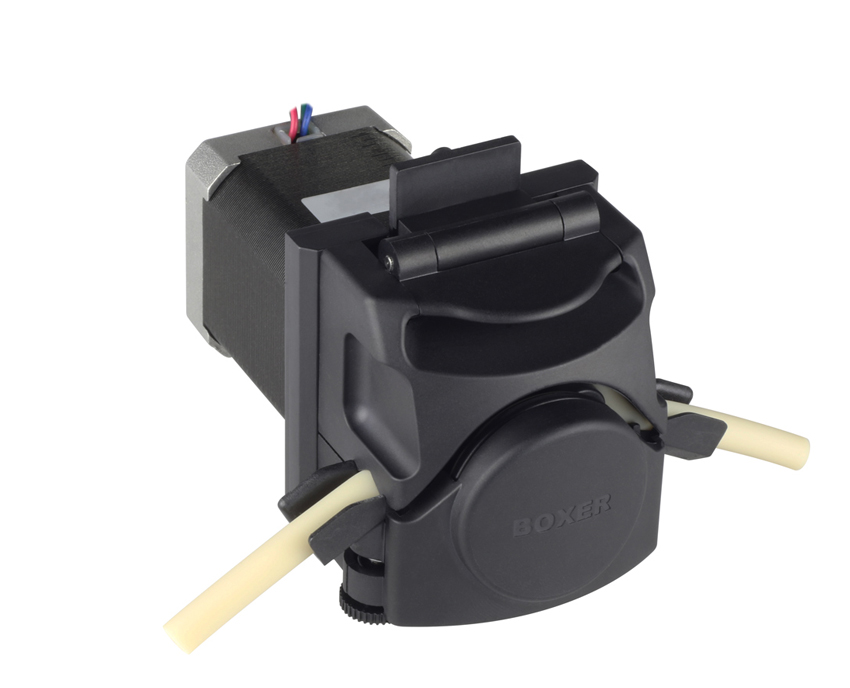

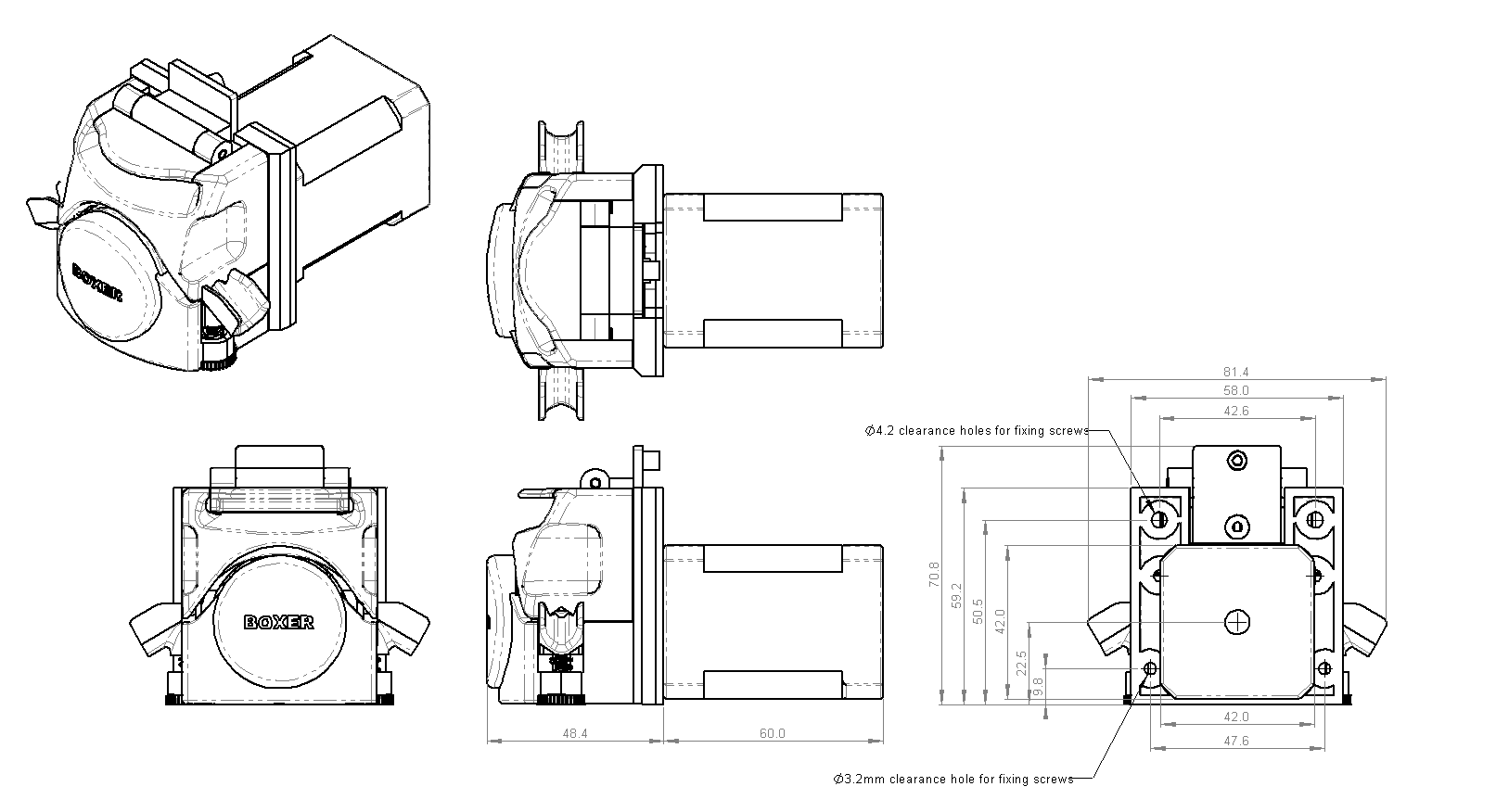

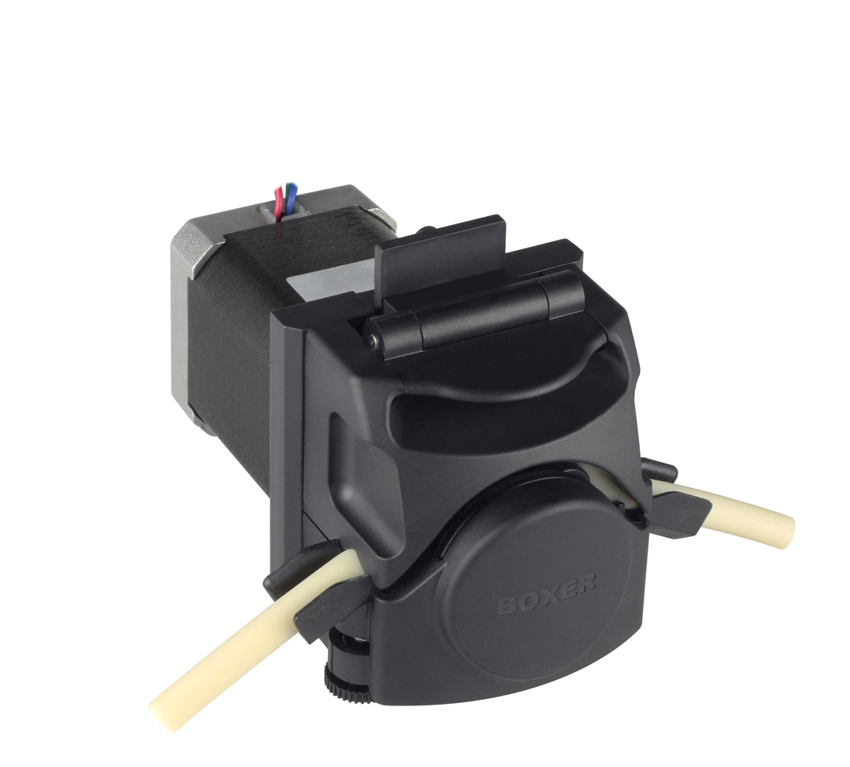

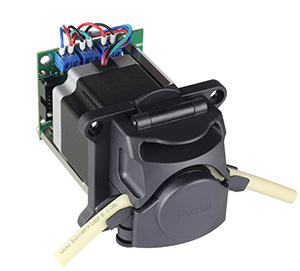

The 15KS is available with 2 different size 24 V stepper motors. The Nema 17 version is compact, light weight. lower power consumption Supplied with stepper motor only or complete with assembled driver.
Flow Data
ID Ø 1.6 mm tube 210 / 190 / 170 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.4 mm tube 435 / 390 / 320 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.2 mm tube 730 / 660 / 495 µl per revolution (3 / 4 / 6 Roller)
ID Ø 4.8 mm tube 1340 / 1250 / 830 µl per revolution (3 / 4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM 0 to 500 RPM

Power Comsumption 7.0 to 12.0 W

Tube Materials Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure 2 bar
Motor life >10000 hour
Weight 655 g



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15601.100
Motor / Driver Options: Nema 17 | Number of Rollers : 3
161,25 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15602.100
Motor / Driver Options: Nema 17 | Number of Rollers : 4
162,99 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15603.100
Motor / Driver Options: Nema 17 | Number of Rollers : 6
166,49 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 15000.216
Size: 1.6 x 1.6 mm (ID x wall)
2,82 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.217
Size: 2.4 x 1.6 mm (ID x wall)
3,13 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.218
Size: 3.2 x 1.6 mm (ID x wall)
3,31 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.219
Size: 4.8 x 1.6 mm (ID x wall)
3,49 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.230
Size: 1.6 x 1.6 mm (ID x wall)
1,73 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.231
Size: 2.4 x 1.6 mm (ID x wall)
1,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.232
Size: 3.2 x 1.6 mm (ID x wall)
2,09 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.233
Size: 4.8 x 1.6 mm (ID x wall)
2,21 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15651.101

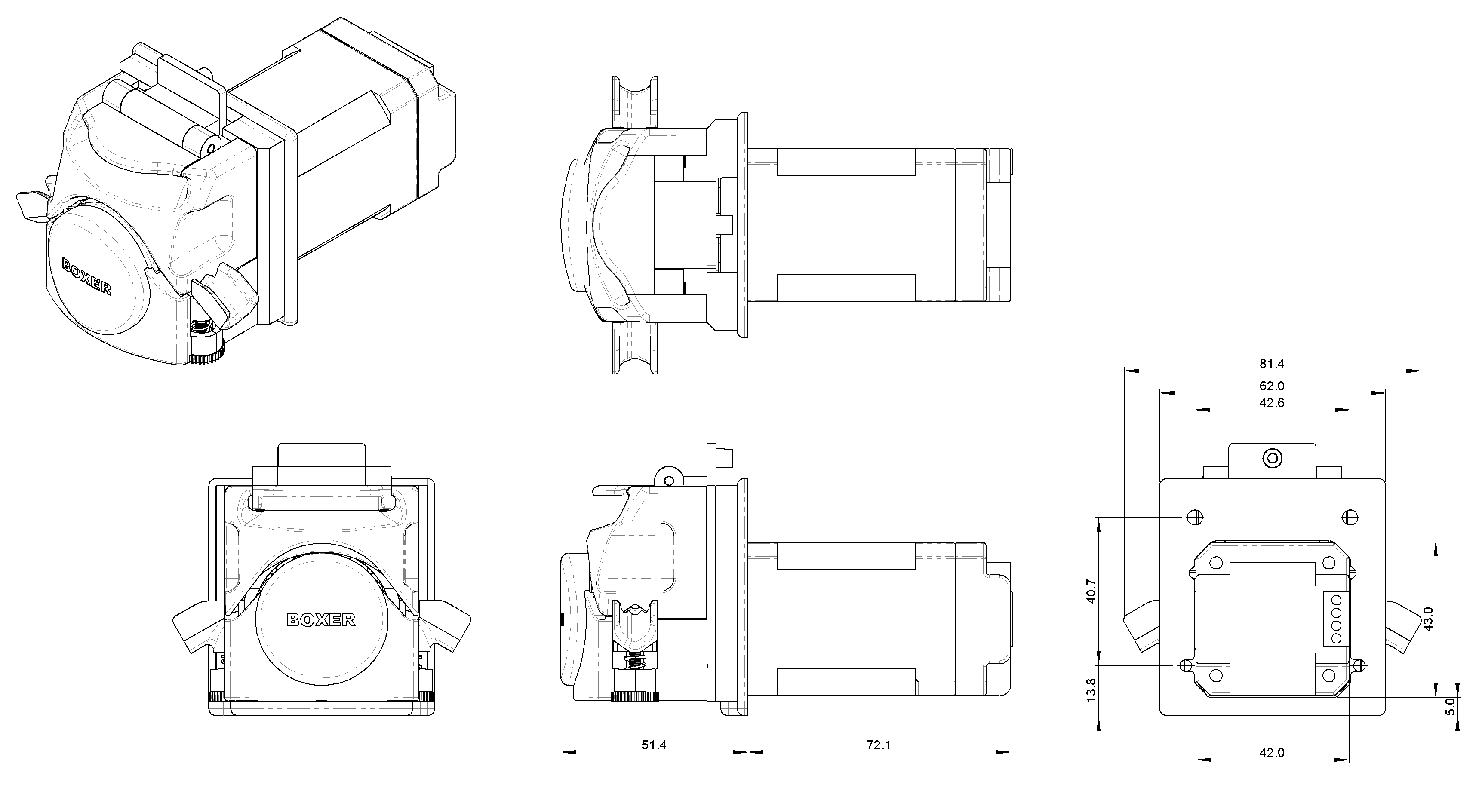

Motor / Driver Options: Nema 17 + A2 Driver | Number of Rollers : 3
235,20 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15652.101
Motor / Driver Options: Nema 17 + A2 Driver | Number of Rollers : 4
236,95 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15653.101
Motor / Driver Options: Nema 17 + A2 Driver | Number of Rollers : 6
240,44 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 15000.216
Size: 1.6 x 1.6 mm (ID x wall)
2,82 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.217
Size: 2.4 x 1.6 mm (ID x wall)
3,13 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.218
Size: 3.2 x 1.6 mm (ID x wall)
3,31 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.219
Size: 4.8 x 1.6 mm (ID x wall)
3,49 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.230
Size: 1.6 x 1.6 mm (ID x wall)
1,73 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.231
Size: 2.4 x 1.6 mm (ID x wall)
1,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.232
Size: 3.2 x 1.6 mm (ID x wall)
2,09 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.233
Size: 4.8 x 1.6 mm (ID x wall)
2,21 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

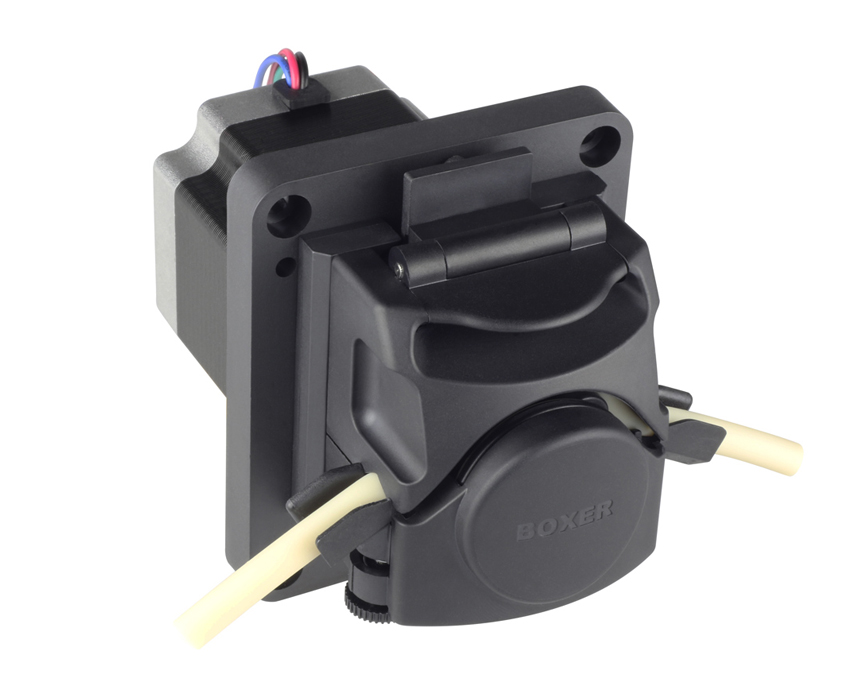

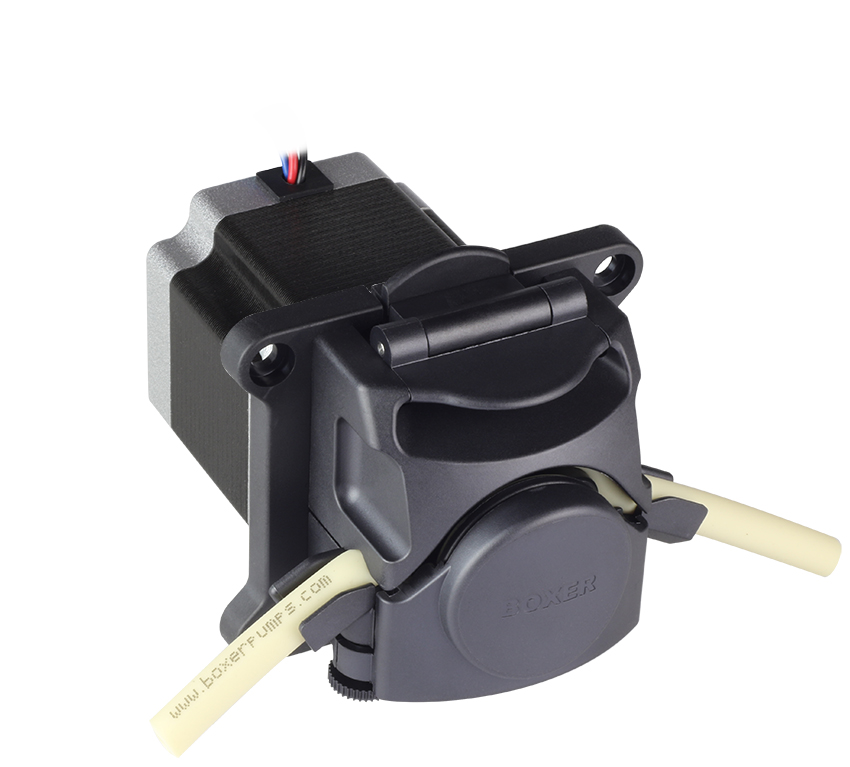

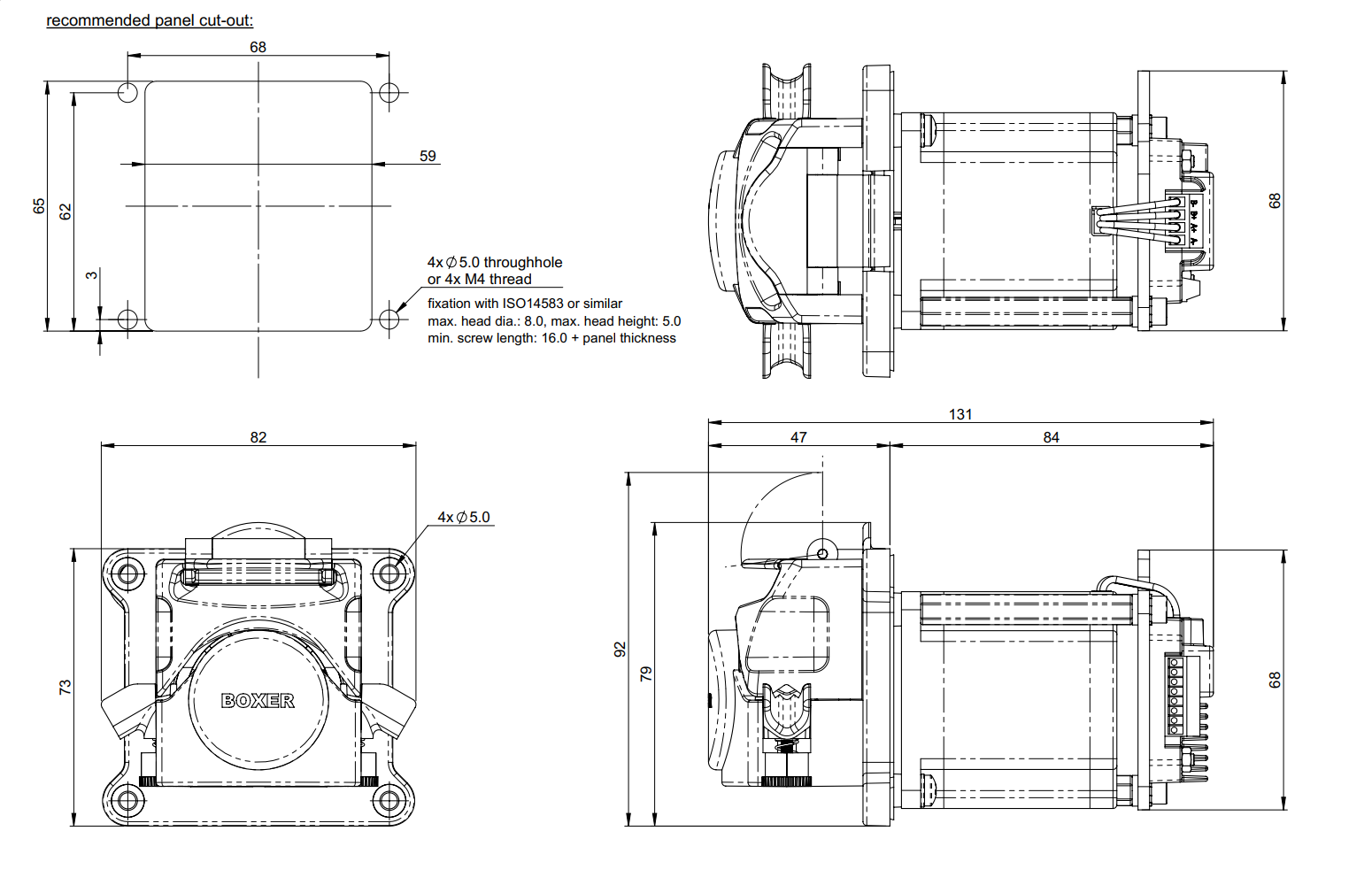

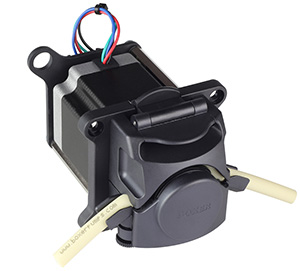

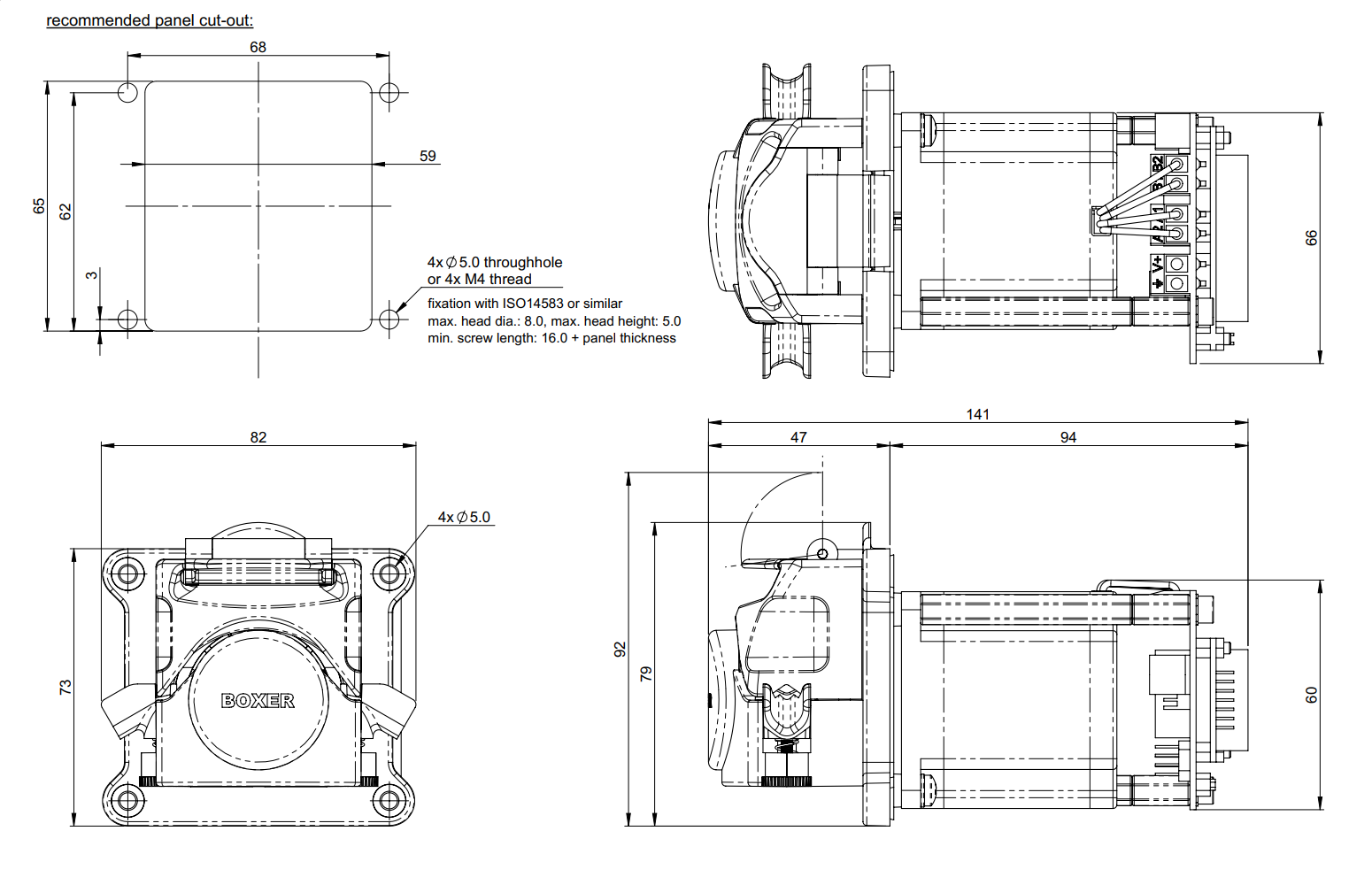

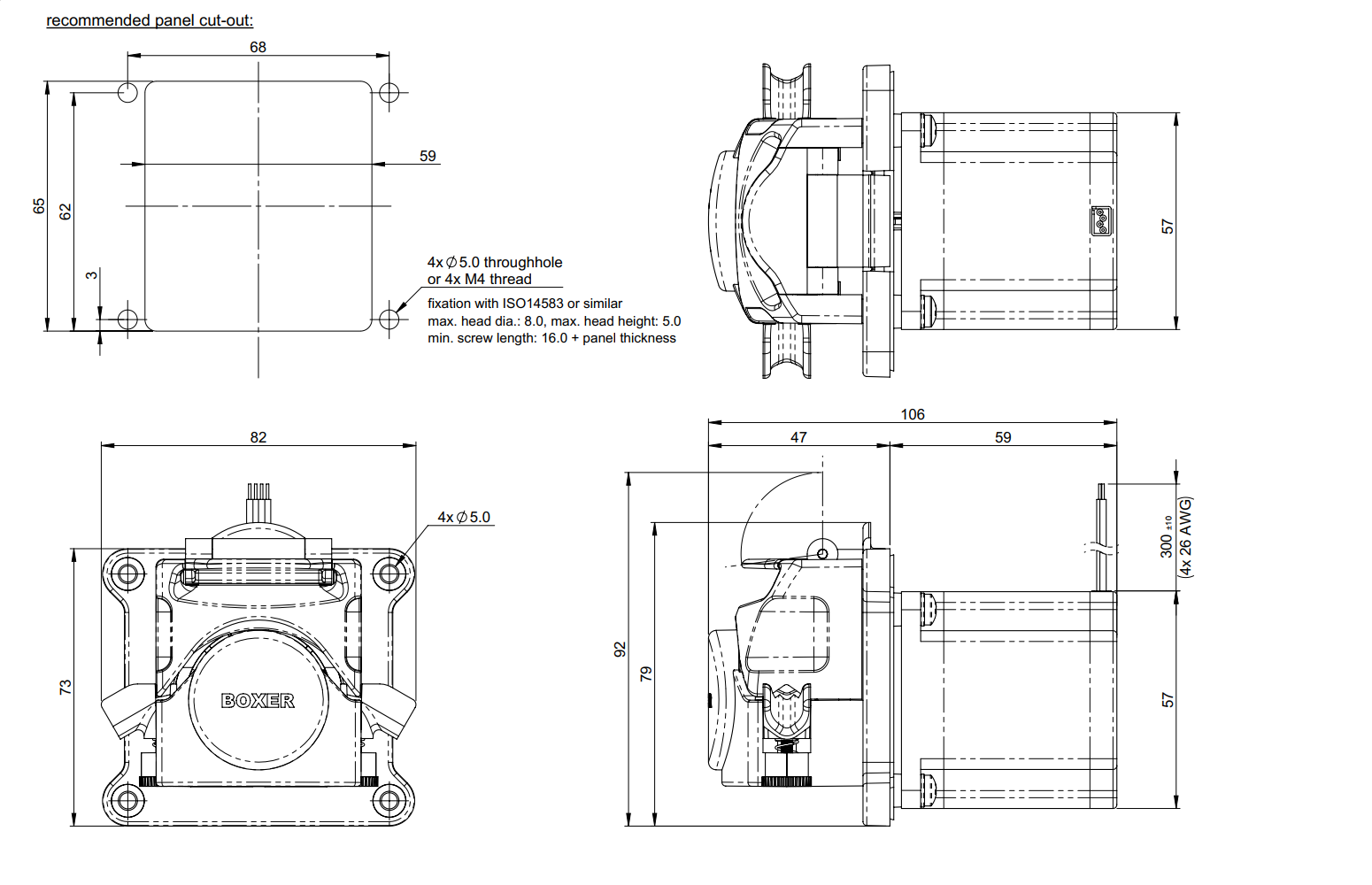

The 15KS is available with 2 different size 24 V stepper motors. The Nema 23 version offers enhanced speed control, higher acceleration, and higher max speed. Supplied with stepper motor only or with 3 driver options.
Tube Size (ID) mm
Flow per Revolution (µl) Flow at 100 rpm (ml/min)  Flow at 500 rpm (ml/min) Flow at 800 rpm (ml/min)
 (x 1.6 mm wall) Rollers: 3 / 4 / 6  Rollers: 3 / 4 / 6  Rollers: 3 / 4 / 6 Rollers: 3 / 4 / 6

∅ 1.6 mm tube 210 / 190 / 170 21 / 19 / 17 105 / 95 / 85 168 / 152 / 136
∅ 2.4 mm tube 435 / 390 / 320 43 / 39 / 32 215 / 195 / 160 148 / 312 / 256
∅ 3.2 mm tube 730 / 660 / 495 73 / 66 / 49 365 / 330 / 245 584 / 528 / 396
∅ 4.8 mm tube 1340 / 1250 / 830 134 / 125 / 83 670 / 625 / 415 1072 / 1000 / 664

Tube Materials   Innovaprene / Innovasil (Silicone) / Pharm-a-line / Lagoprene / ED-Plex


Driver Options

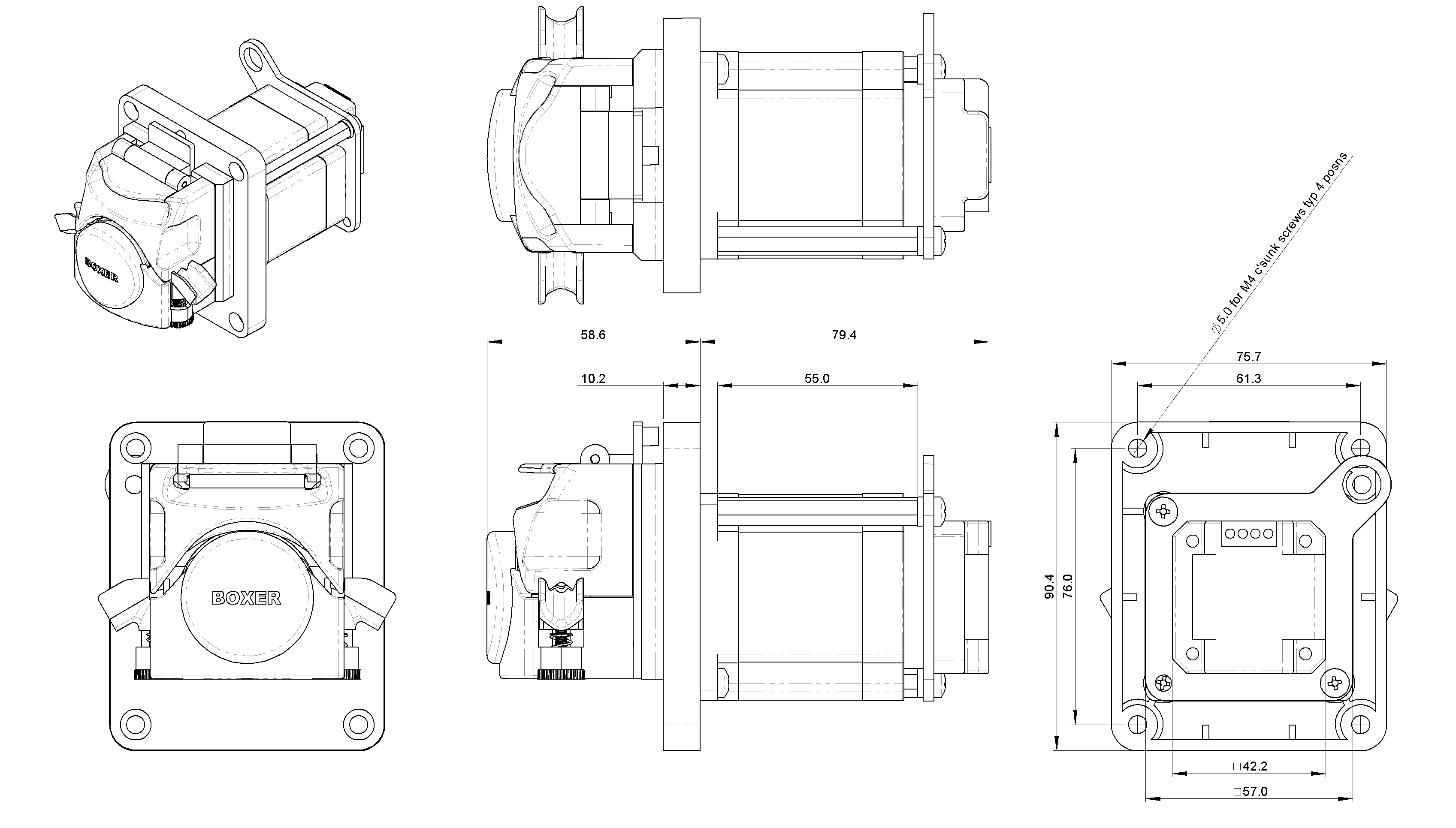

A4   Analogue driver: 0 to 5 V DC speed input, direction and enable inputs

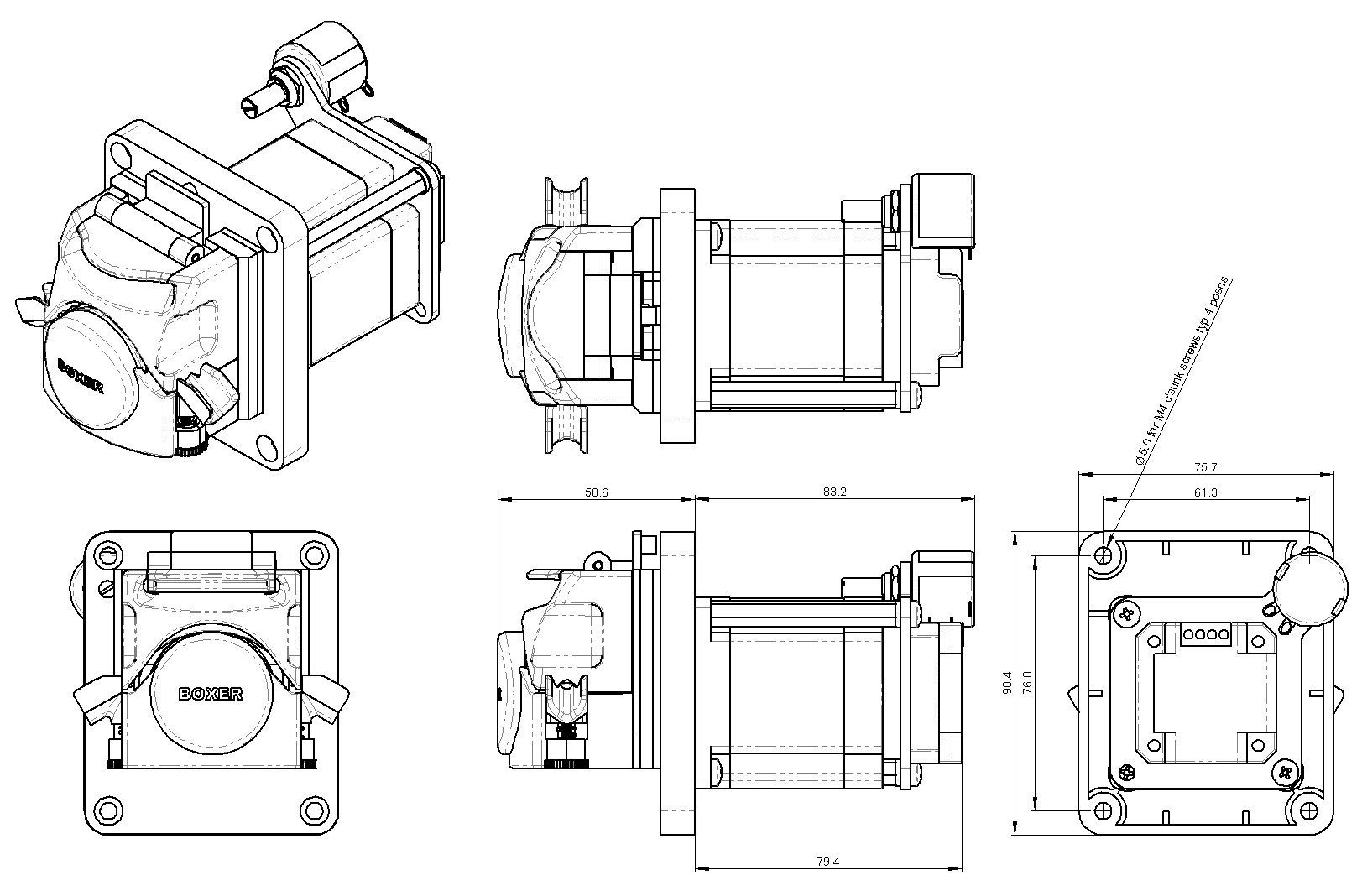

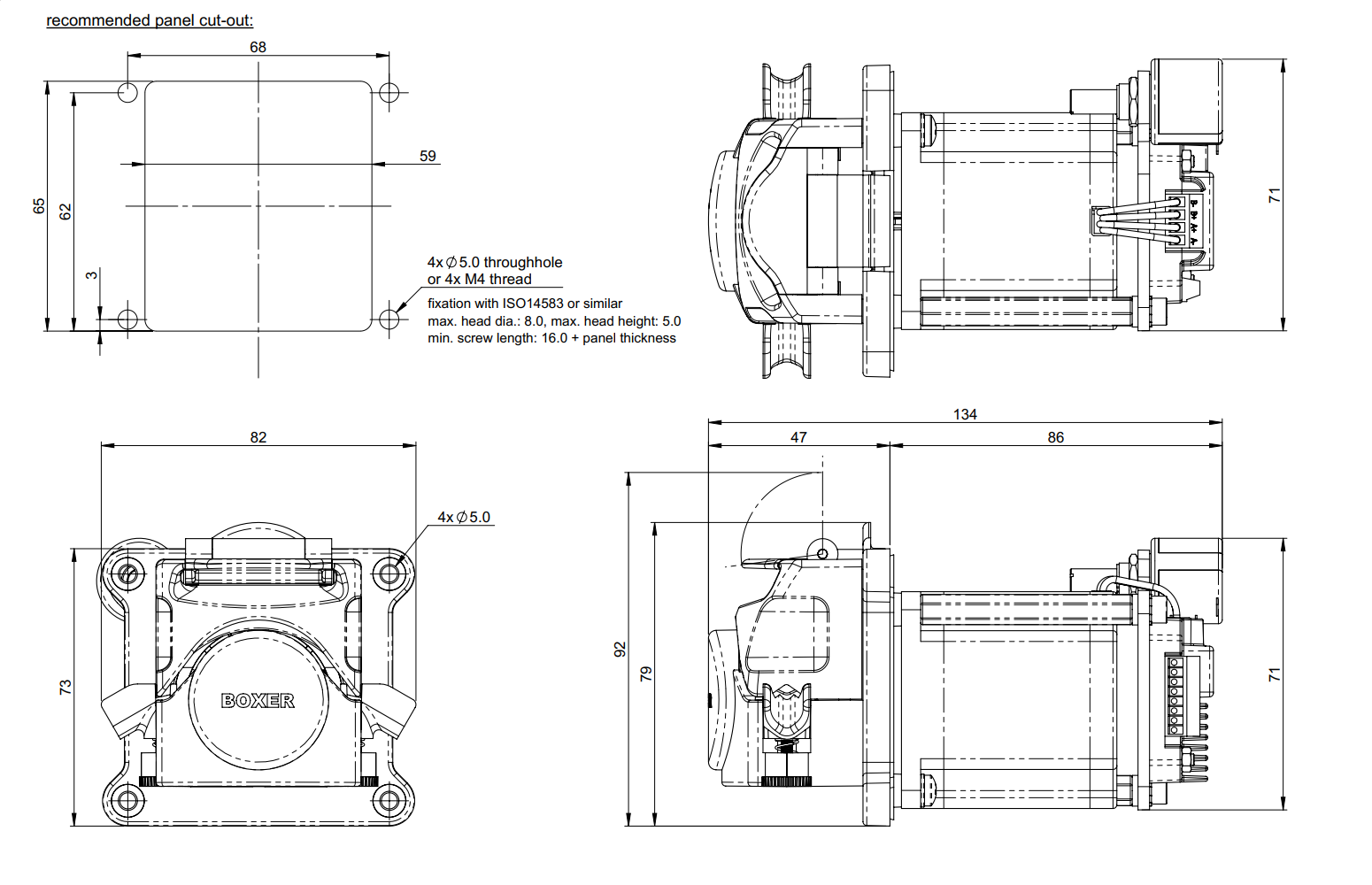

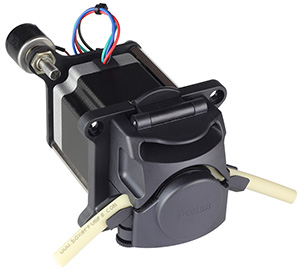

A4p   Analogue driver: speed regulation via mounted potentiometer, direction and enable inputs

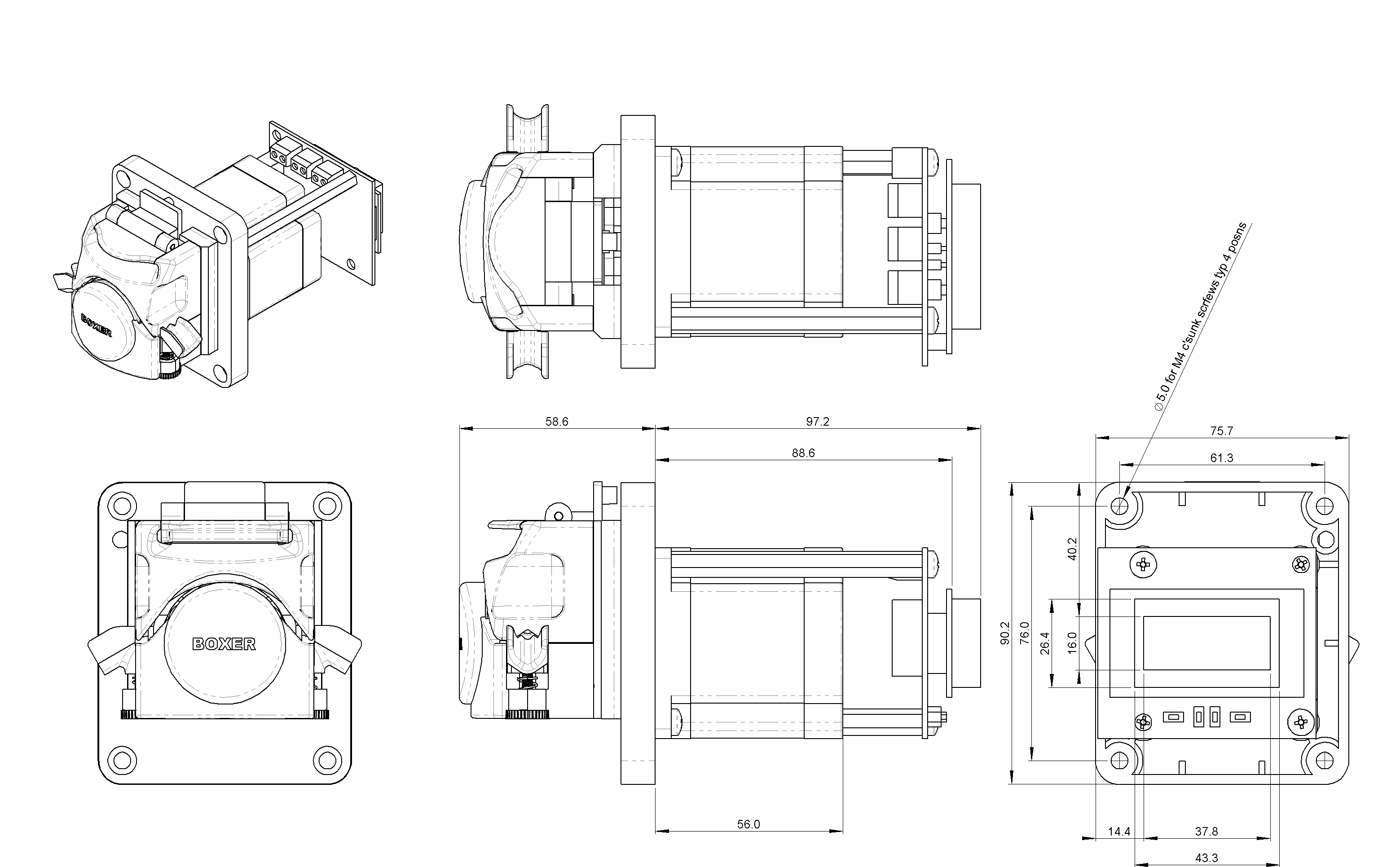

 iD    Digital driver with LCD display

Sensor Option
Speed Sensor   Micro reed switch, contacts close once per revolution

General Data
Max Pressure       2.0 bar
Max Suctuion Height       9.0 m H20
Power Consumption       Approx. 18.0 to 20.5 W
Weight       850 g (without driver / encoder)

      Full data available in PDF datasheet



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15901.100
Driver Options: no | Number of Rollers : 3 | Speed Sensor Option: no
175,92 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15901.110
Driver Options: no | Number of Rollers : 3 | Speed Sensor Option: yes
210,79 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15902.100
Driver Options: no | Number of Rollers : 4 | Speed Sensor Option: no
177,66 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15902.110
Driver Options: no | Number of Rollers : 4 | Speed Sensor Option: yes
212,53 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15903.100
Driver Options: no | Number of Rollers : 6 | Speed Sensor Option: no
181,14 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15903.110
Driver Options: no | Number of Rollers : 6 | Speed Sensor Option: yes
216,01 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 15000.216
Size: 1.6 x 1.6 mm (ID x wall)
2,82 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.217
Size: 2.4 x 1.6 mm (ID x wall)
3,13 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.218
Size: 3.2 x 1.6 mm (ID x wall)
3,31 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.219
Size: 4.8 x 1.6 mm (ID x wall)
3,49 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.230
Size: 1.6 x 1.6 mm (ID x wall)
1,73 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.231
Size: 2.4 x 1.6 mm (ID x wall)
1,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.232
Size: 3.2 x 1.6 mm (ID x wall)
2,09 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.233
Size: 4.8 x 1.6 mm (ID x wall)
2,21 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15901.101
Driver Options: A4 | Number of Rollers : 3 | Speed Sensor Option: no
319,43 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15901.111
Driver Options: A4 | Number of Rollers : 3 | Speed Sensor Option: yes
354,30 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15902.101
Driver Options: A4 | Number of Rollers : 4 | Speed Sensor Option: no
321,17 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15902.111
Driver Options: A4 | Number of Rollers : 4 | Speed Sensor Option: yes
356,04 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15903.101
Driver Options: A4 | Number of Rollers : 6 | Speed Sensor Option: no
324,65 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15903.111
Driver Options: A4 | Number of Rollers : 6 | Speed Sensor Option: yes
359,52 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 15000.216
Size: 1.6 x 1.6 mm (ID x wall)
2,82 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.217
Size: 2.4 x 1.6 mm (ID x wall)
3,13 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.218
Size: 3.2 x 1.6 mm (ID x wall)
3,31 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.219
Size: 4.8 x 1.6 mm (ID x wall)
3,49 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.230
Size: 1.6 x 1.6 mm (ID x wall)
1,73 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.231
Size: 2.4 x 1.6 mm (ID x wall)
1,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.232
Size: 3.2 x 1.6 mm (ID x wall)
2,09 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.233
Size: 4.8 x 1.6 mm (ID x wall)
2,21 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15951.101
Driver Options: A4p | Number of Rollers : 3 | Speed Sensor Option: no
346,31 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15951.111
Driver Options: A4p | Number of Rollers : 3 | Speed Sensor Option: yes
381,18 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15952.101
Driver Options: A4p | Number of Rollers : 4 | Speed Sensor Option: no
348,05 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15952.111
Driver Options: A4p | Number of Rollers : 4 | Speed Sensor Option: yes
382,92 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15953.101
Driver Options: A4p | Number of Rollers : 6 | Speed Sensor Option: no
351,53 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15953.111
Driver Options: A4p | Number of Rollers : 6 | Speed Sensor Option: yes
386,40 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 15000.216
Size: 1.6 x 1.6 mm (ID x wall)
2,82 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.217
Size: 2.4 x 1.6 mm (ID x wall)
3,13 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.218
Size: 3.2 x 1.6 mm (ID x wall)
3,31 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.219
Size: 4.8 x 1.6 mm (ID x wall)
3,49 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.230
Size: 1.6 x 1.6 mm (ID x wall)
1,73 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.231
Size: 2.4 x 1.6 mm (ID x wall)
1,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.232
Size: 3.2 x 1.6 mm (ID x wall)
2,09 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.233
Size: 4.8 x 1.6 mm (ID x wall)
2,21 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer: 15901.105
Driver Options: iD | Number of Rollers : 3 | Speed Sensor Option: no
391,13 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15901.115
Driver Options: iD | Number of Rollers : 3 | Speed Sensor Option: yes
426,00 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15902.105
Driver Options: iD | Number of Rollers : 4 | Speed Sensor Option: no
392,87 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15902.115
Driver Options: iD | Number of Rollers : 4 | Speed Sensor Option: yes
427,74 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15903.105
Driver Options: iD | Number of Rollers : 6 | Speed Sensor Option: no
396,35 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15903.115
Driver Options: iD | Number of Rollers : 6 | Speed Sensor Option: yes
431,22 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Zubehör

Teilenummer: 15000.216
Size: 1.6 x 1.6 mm (ID x wall)
2,82 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.217
Size: 2.4 x 1.6 mm (ID x wall)
3,13 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.218
Size: 3.2 x 1.6 mm (ID x wall)
3,31 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.219
Size: 4.8 x 1.6 mm (ID x wall)
3,49 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.230
Size: 1.6 x 1.6 mm (ID x wall)
1,73 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.231
Size: 2.4 x 1.6 mm (ID x wall)
1,89 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.232
Size: 3.2 x 1.6 mm (ID x wall)
2,09 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage

Teilenummer: 15000.233
Size: 4.8 x 1.6 mm (ID x wall)
2,21 €*

Sofort verfügbar, Versand innerhalb 1 - 2 Tage
