29QQ Series

The 29QQ Series is Boxer's most compact miniature peristaltic pump which covers the flow range of 10 µl to 50 ml/min in a body width of 31.2 mm. With an full range of options and tube sets, over 800 different configurations are available. Additionally, OEM customisation is offered.

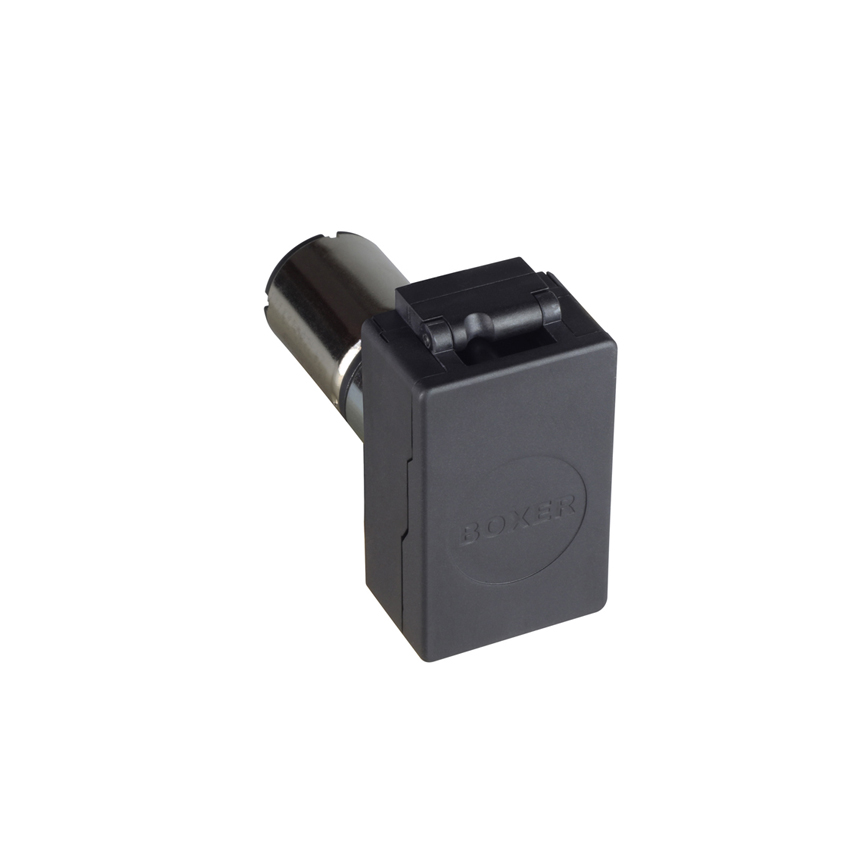

› DC motor (with planetry gear), 12 or 24 V DC each with 4 different speeds

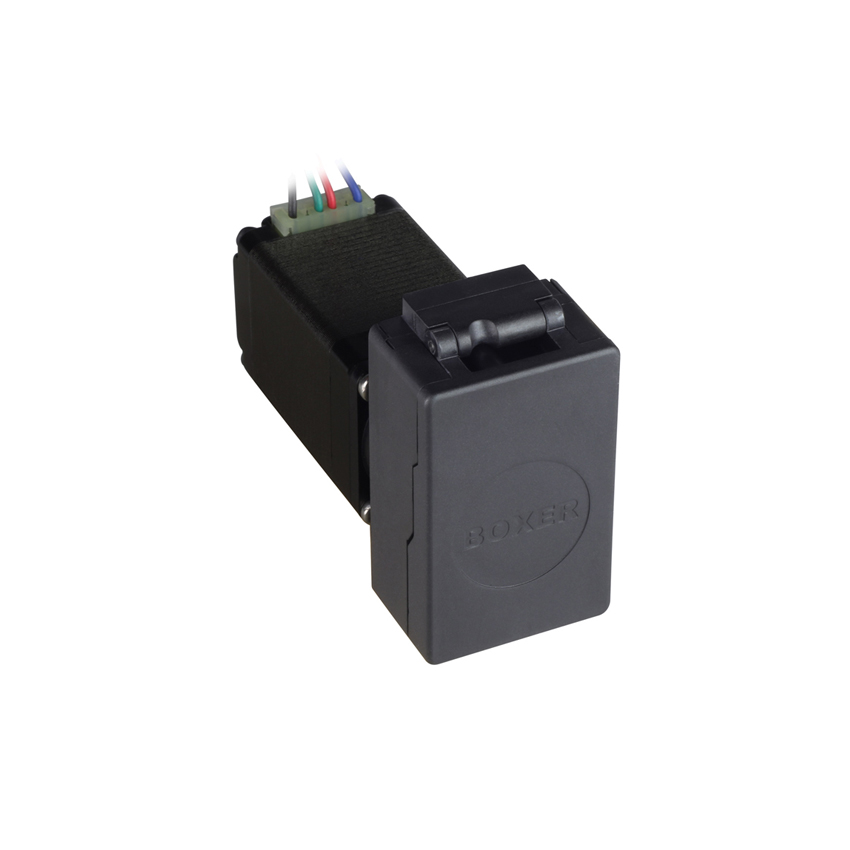

› Stepper motor with option of assembled Pico driver

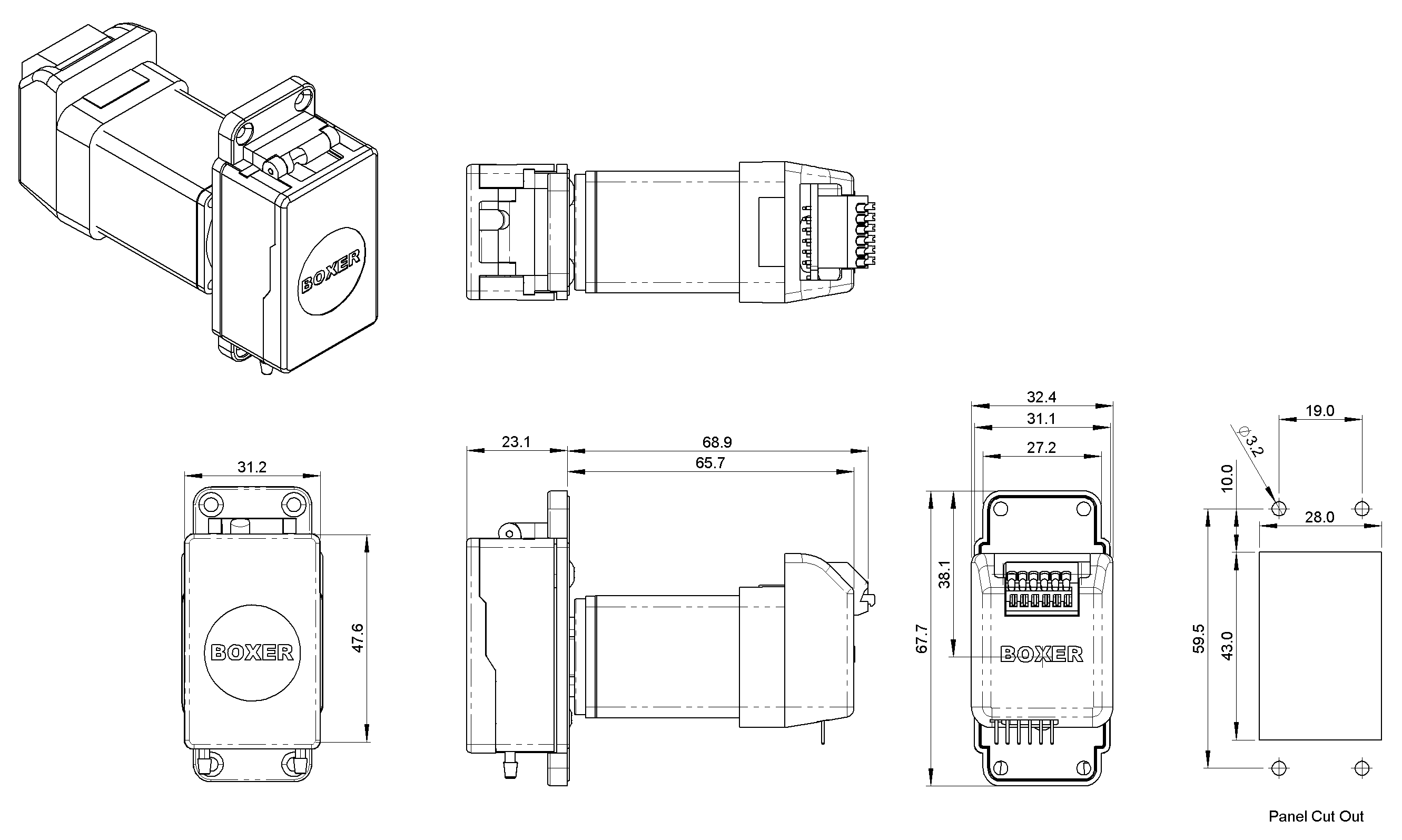

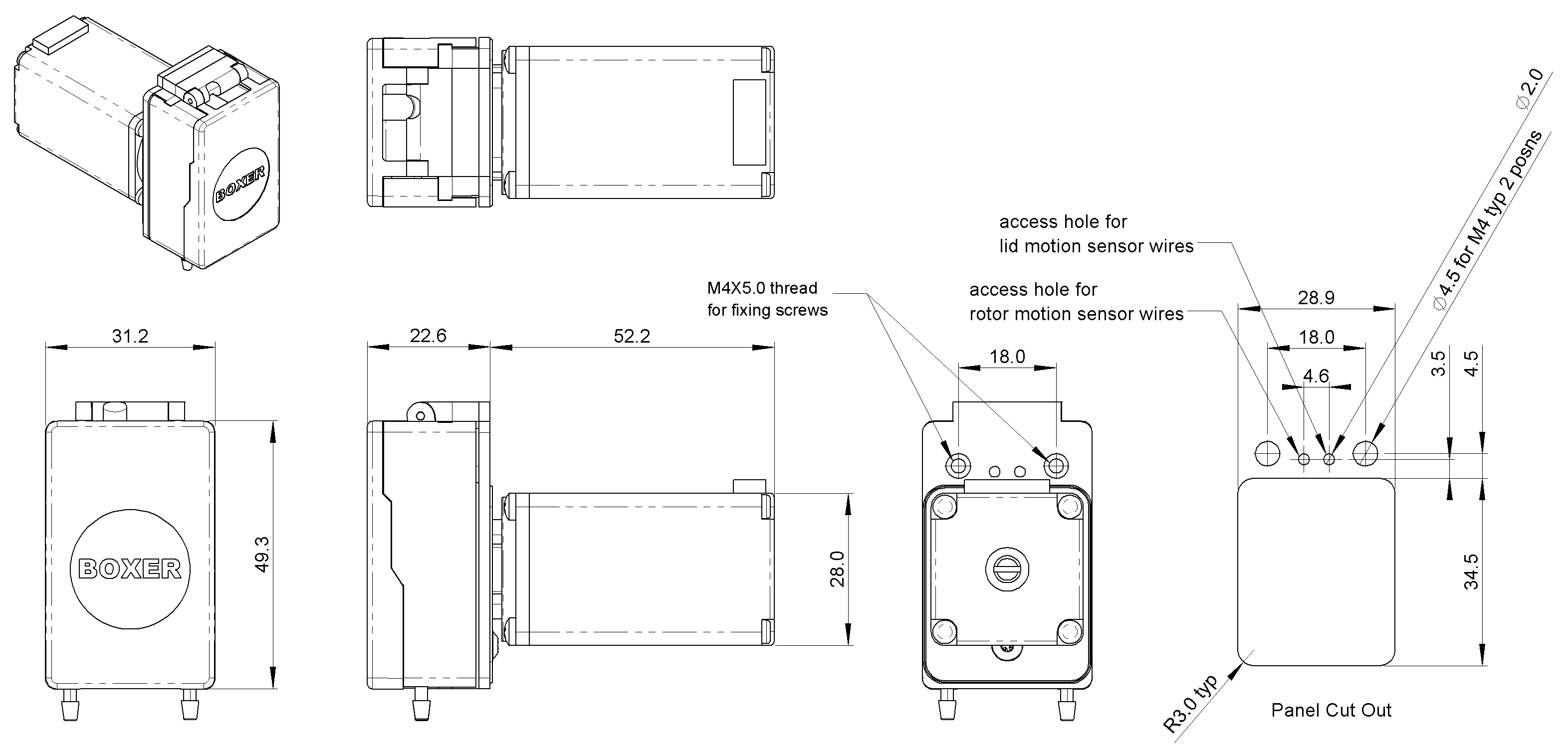

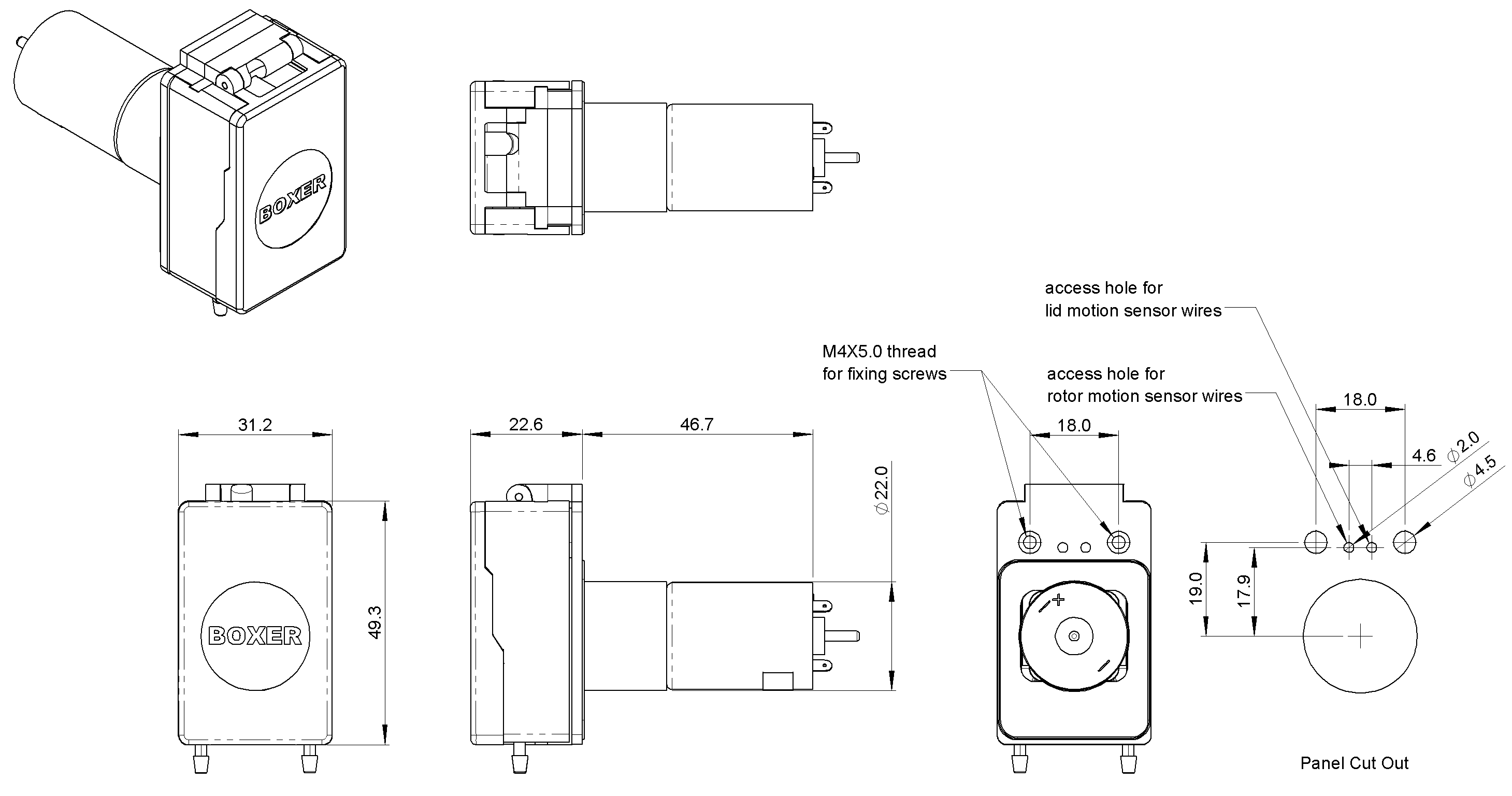

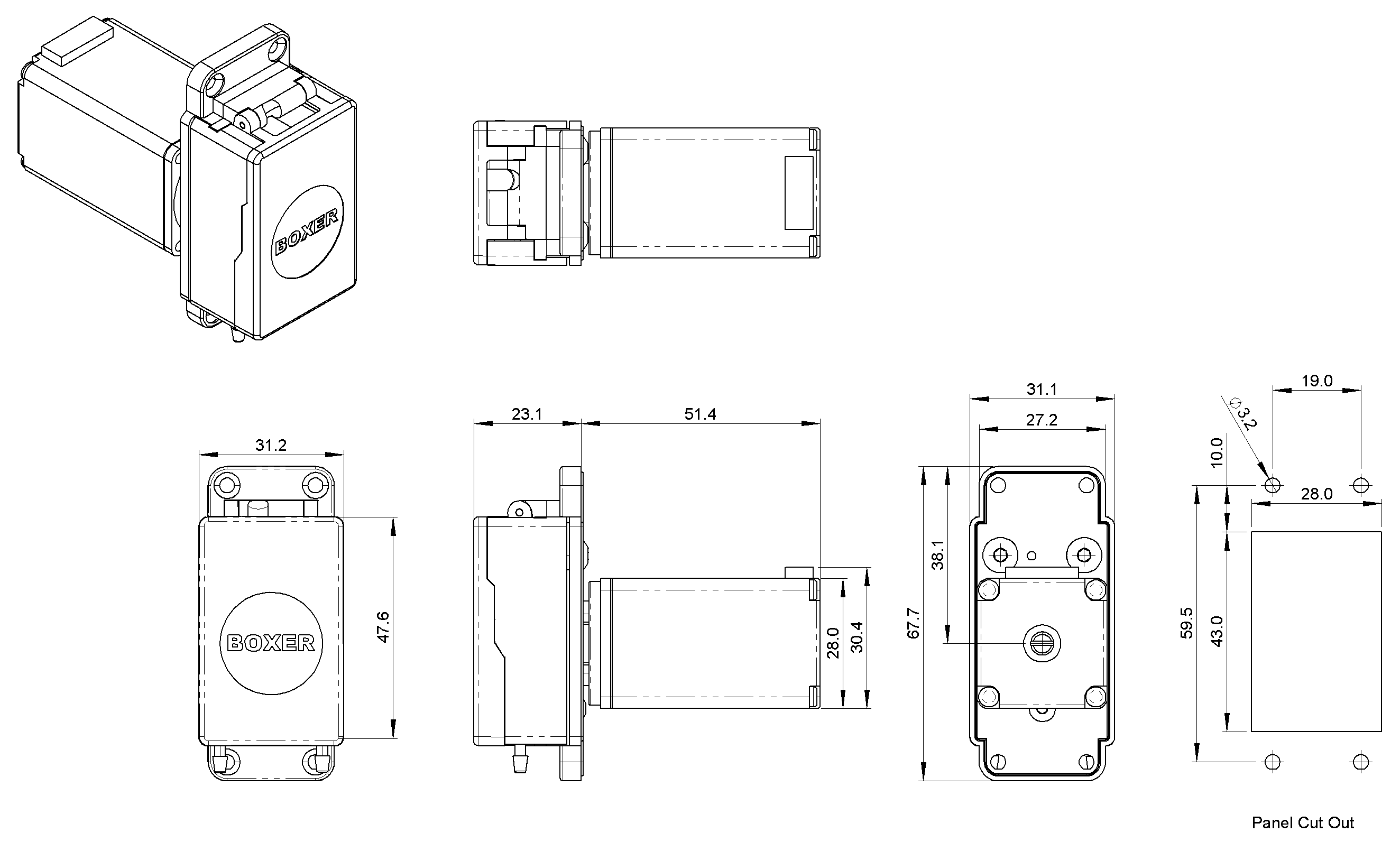

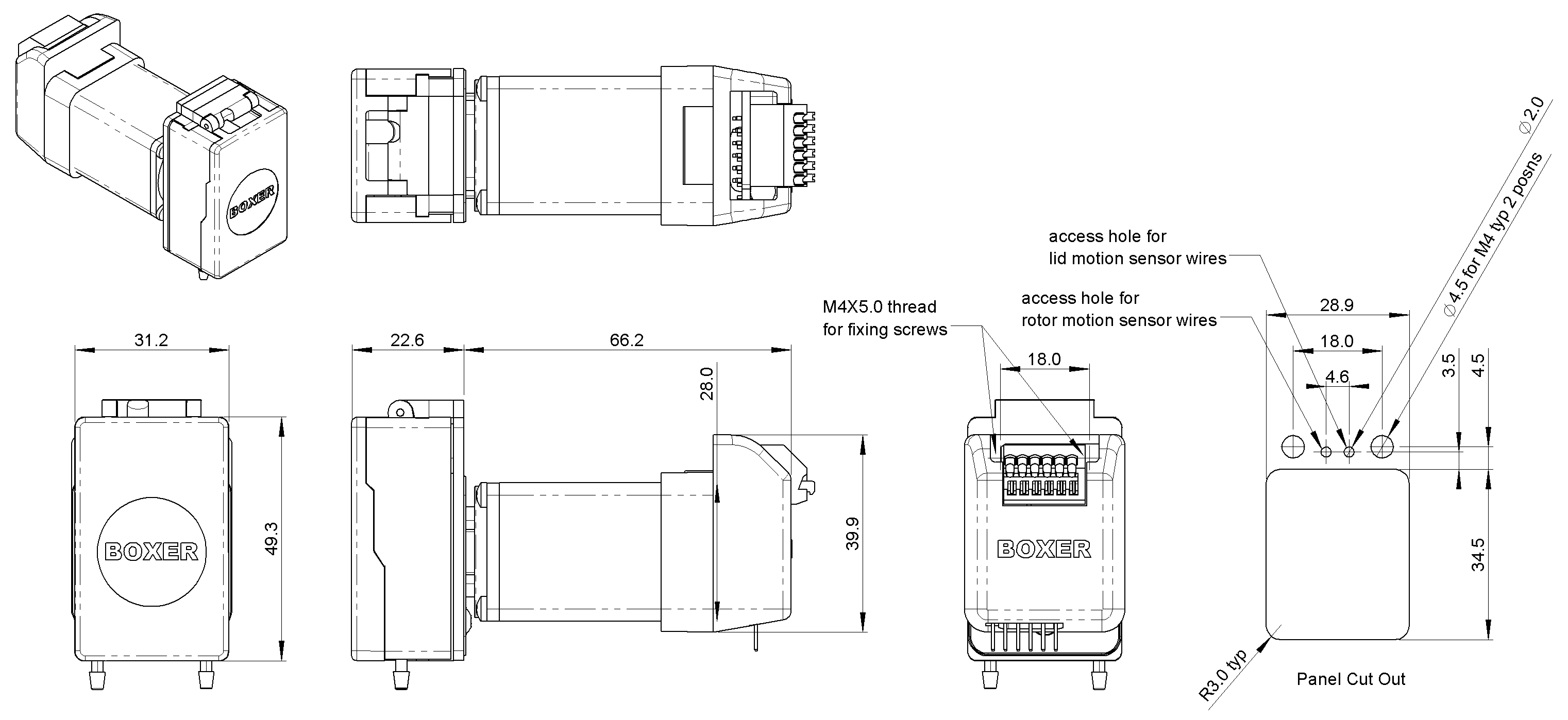

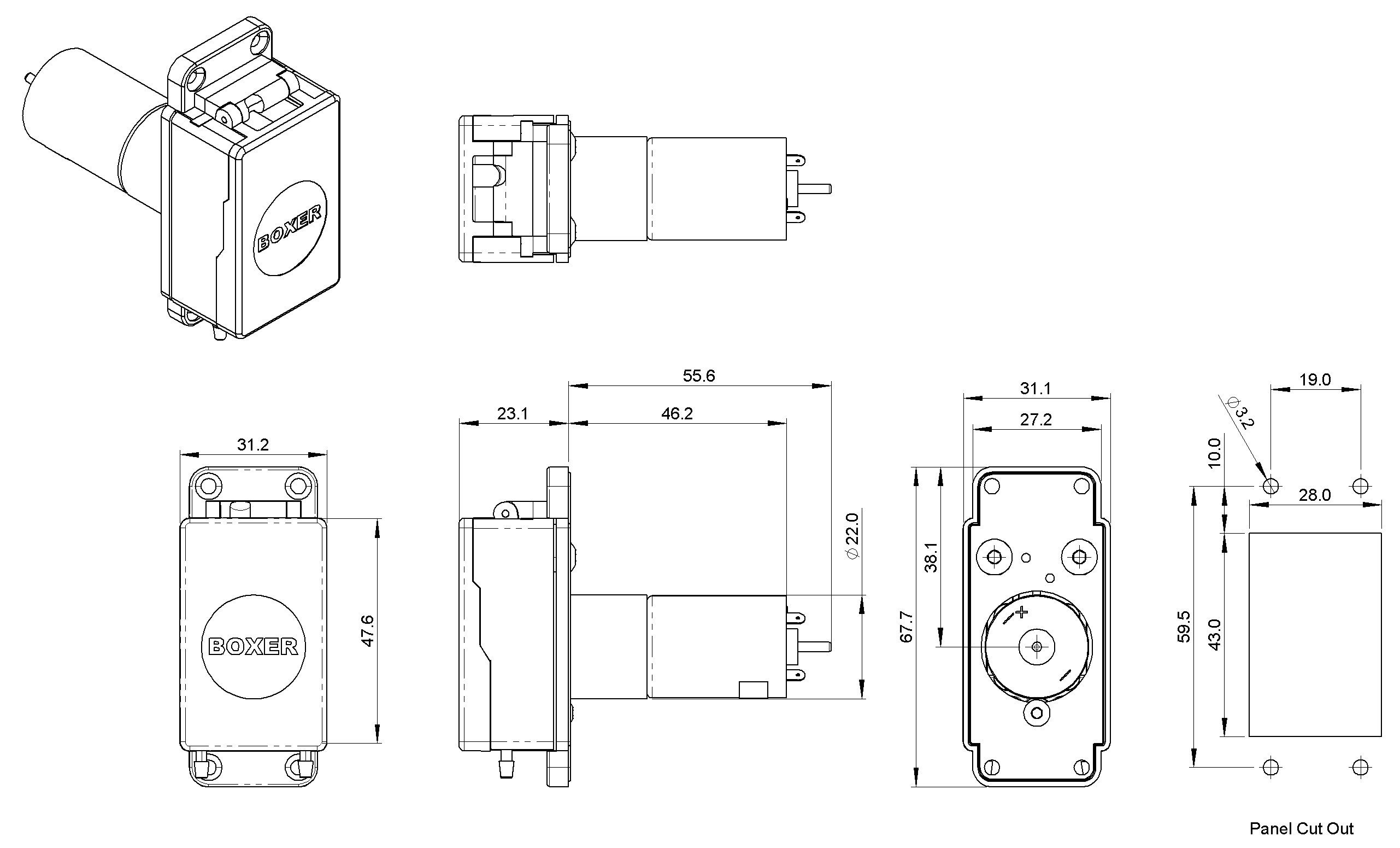

› Rear or front panel mount option, including mounting gasket
› Speed sensor / encoder
› Lid close sensor
› 4 tube materials in 0.5, 1.0 or 2.0 mm ID (supplied as tube sets)
› Floating saddle to increase tube life
› 4 rollers

Tube sets should be ordered separately.

Flow per Revolution
ID Ø 0.5 mm tube 13 µl per revolution
ID Ø 1.0 mm tube 34 µl per revolution
ID Ø 2.0 mm tube 100 µl per revolution

Flow at 15 / 33 / 116 / 315 / 520 RPM
ID Ø 0.5 mm tube 0.2 / 0.4 / 1.5 / 4.1 / 6.7 ml / min
ID Ø 1.0 mm tube 0.5 / 1.1 / 3.9 / 10.7 / 17.7 ml / min
ID Ø 2.0 mm tube 1.5 / 3.3 / 11.6 / 31.5 / 52.0 ml / min

General Data
Power consumption (with ID Ø 2.0 mm tube and 520 rpm motor) 3.8 W
Tube materials Pharm-a-line / Silicone / Lagoprene / ED-Plex
Max pressure 1.0 bar
Max suction height (dry) 9.0 m H20

  Full data available in PDF datasheet



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 29240.940
Voltage / Speed: DC / Gear 12 V, 15 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: no
€142.45*

Available, shipping in 1 - 2 days

Part Number: 29240.942
Voltage / Speed: DC / Gear 12 V, 15 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: no
€167.72*

Available, shipping in 1 - 2 days

Part Number: 29241.940
Voltage / Speed: DC / Gear 12 V, 15 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: yes
€173.12*

Available, shipping in 1 - 2 days

Part Number: 29241.942
Voltage / Speed: DC / Gear 12 V, 15 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: yes
€198.39*

Available, shipping in 1 - 2 days

Part Number: 29100.940
Voltage / Speed: DC / Gear 12 V, 116 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: no
€142.45*

Available, shipping in 1 - 2 days

Part Number: 29100.942
Voltage / Speed: DC / Gear 12 V, 116 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: no
€167.72*

Available, shipping in 1 - 2 days

Part Number: 29101.940
Voltage / Speed: DC / Gear 12 V, 116 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: yes
€173.12*

Available, shipping in 1 - 2 days

Part Number: 29101.942
Voltage / Speed: DC / Gear 12 V, 116 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: yes
€198.39*

Available, shipping in 1 - 2 days

Part Number: 29220.940
Voltage / Speed: DC / Gear 12 V, 315 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: no
€142.45*

Available, shipping in 1 - 2 days

Part Number: 29220.942
Voltage / Speed: DC / Gear 12 V, 315 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: no
€167.72*

Available, shipping in 1 - 2 days

Part Number: 29221.940
Voltage / Speed: DC / Gear 12 V, 315 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: yes
€173.12*

Available, shipping in 1 - 2 days

Part Number: 29221.942
Voltage / Speed: DC / Gear 12 V, 315 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: yes
€198.39*

Available, shipping in 1 - 2 days

Part Number: 29070.940
Voltage / Speed: DC / Gear 12 V, 520 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: no
€142.45*

Available, shipping in 1 - 2 days

Part Number: 29070.942
Voltage / Speed: DC / Gear 12 V, 520 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: no
€167.72*

Available, shipping in 1 - 2 days

Part Number: 29071.940
Voltage / Speed: DC / Gear 12 V, 520 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: yes
€173.12*

Available, shipping in 1 - 2 days

Part Number: 29071.942
Voltage / Speed: DC / Gear 12 V, 520 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: yes
€198.39*

Available, shipping in 1 - 2 days

Part Number: 29160.940
Voltage / Speed: DC / Gear 24 V, 33 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: no
€142.45*

Available, shipping in 1 - 2 days

Part Number: 29160.942
Voltage / Speed: DC / Gear 24 V, 33 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: no
€167.72*

Available, shipping in 1 - 2 days

Part Number: 29161.940
Voltage / Speed: DC / Gear 24 V, 33 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: yes
€173.12*

Available, shipping in 1 - 2 days

Part Number: 29161.942
Voltage / Speed: DC / Gear 24 V, 33 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: yes
€198.39*

Available, shipping in 1 - 2 days

Part Number: 29120.940
Voltage / Speed: DC / Gear 24 V, 107 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: no
€142.45*

Available, shipping in 1 - 2 days

Part Number: 29120.942
Voltage / Speed: DC / Gear 24 V, 107 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: no
€167.72*

Available, shipping in 1 - 2 days

Part Number: 29121.940
Voltage / Speed: DC / Gear 24 V, 107 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: yes
€173.12*

Available, shipping in 1 - 2 days

Part Number: 29121.942
Voltage / Speed: DC / Gear 24 V, 107 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: yes
€198.39*

Available, shipping in 1 - 2 days

Part Number: 29080.940
Voltage / Speed: DC / Gear 24 V, 315 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: no
€142.45*

Available, shipping in 1 - 2 days

Part Number: 29080.942
Voltage / Speed: DC / Gear 24 V, 315 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: no
€167.72*

Available, shipping in 1 - 2 days

Part Number: 29081.940
Voltage / Speed: DC / Gear 24 V, 315 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: yes
€173.12*

Available, shipping in 1 - 2 days

Part Number: 29081.942
Voltage / Speed: DC / Gear 24 V, 315 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: yes
€198.39*

Available, shipping in 1 - 2 days

Part Number: 29150.940
Voltage / Speed: DC / Gear 24 V, 520 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: no
€142.45*

Available, shipping in 1 - 2 days

Part Number: 29150.942
Voltage / Speed: DC / Gear 24 V, 520 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: no
€167.72*

Available, shipping in 1 - 2 days

Part Number: 29151.940
Voltage / Speed: DC / Gear 24 V, 520 RPM | Mount: Rear | Encoder Option: no | Lid Sensor Option: yes
€173.12*

Available, shipping in 1 - 2 days

Part Number: 29151.942
Voltage / Speed: DC / Gear 24 V, 520 RPM | Mount: Rear | Encoder Option: yes | Lid Sensor Option: yes
€198.39*

Available, shipping in 1 - 2 days

Accessories

Part Number: 29000.605
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€10.03*

Available, shipping in 1 - 2 days

Part Number: 29000.610
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€10.03*

Available, shipping in 1 - 2 days

Part Number: 29000.620
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€10.03*

Available, shipping in 1 - 2 days

Part Number: 29000.305
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€7.54*

Available, shipping in 1 - 2 days

Part Number: 29000.310
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€7.54*

Available, shipping in 1 - 2 days

Part Number: 29000.320
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€7.54*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 29240.941
Voltage / Speed: DC / Gear 12 V, 15 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: no
€149.06*

Available, shipping in 1 - 2 days

Part Number: 29240.943
Voltage / Speed: DC / Gear 12 V, 15 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: no
€174.32*

Available, shipping in 1 - 2 days

Part Number: 29241.941
Voltage / Speed: DC / Gear 12 V, 15 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: yes
€179.72*

Available, shipping in 1 - 2 days

Part Number: 29241.943
Voltage / Speed: DC / Gear 12 V, 15 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: yes
€204.99*

Available, shipping in 1 - 2 days

Part Number: 29100.941
Voltage / Speed: DC / Gear 12 V, 116 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: no
€149.06*

Available, shipping in 1 - 2 days

Part Number: 29100.943
Voltage / Speed: DC / Gear 12 V, 116 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: no
€174.32*

Available, shipping in 1 - 2 days

Part Number: 29101.941
Voltage / Speed: DC / Gear 12 V, 116 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: yes
€179.72*

Available, shipping in 1 - 2 days

Part Number: 29101.943
Voltage / Speed: DC / Gear 12 V, 116 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: yes
€204.99*

Available, shipping in 1 - 2 days

Part Number: 29220.941
Voltage / Speed: DC / Gear 12 V, 315 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: no
€149.06*

Available, shipping in 1 - 2 days

Part Number: 29220.943
Voltage / Speed: DC / Gear 12 V, 315 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: no
€174.32*

Available, shipping in 1 - 2 days

Part Number: 29221.941
Voltage / Speed: DC / Gear 12 V, 315 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: yes
€179.72*

Available, shipping in 1 - 2 days

Part Number: 29221.943
Voltage / Speed: DC / Gear 12 V, 315 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: yes
€204.99*

Available, shipping in 1 - 2 days

Part Number: 29070.941
Voltage / Speed: DC / Gear 12 V, 520 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: no
€149.06*

Available, shipping in 1 - 2 days

Part Number: 29070.943
Voltage / Speed: DC / Gear 12 V, 520 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: no
€174.32*

Available, shipping in 1 - 2 days

Part Number: 29071.941
Voltage / Speed: DC / Gear 12 V, 520 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: yes
€179.72*

Available, shipping in 1 - 2 days

Part Number: 29071.943
Voltage / Speed: DC / Gear 12 V, 520 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: yes
€204.99*

Available, shipping in 1 - 2 days

Part Number: 29160.941
Voltage / Speed: DC / Gear 24 V, 33 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: no
€149.06*

Available, shipping in 1 - 2 days

Part Number: 29160.943
Voltage / Speed: DC / Gear 24 V, 33 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: no
€174.32*

Available, shipping in 1 - 2 days

Part Number: 29161.941
Voltage / Speed: DC / Gear 24 V, 33 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: yes
€179.72*

Available, shipping in 1 - 2 days

Part Number: 29161.943
Voltage / Speed: DC / Gear 24 V, 33 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: yes
€204.99*

Available, shipping in 1 - 2 days

Part Number: 29120.941
Voltage / Speed: DC / Gear 24 V, 107 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: no
€149.06*

Available, shipping in 1 - 2 days

Part Number: 29120.943
Voltage / Speed: DC / Gear 24 V, 107 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: no
€174.32*

Available, shipping in 1 - 2 days

Part Number: 29121.941
Voltage / Speed: DC / Gear 24 V, 107 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: yes
€179.72*

Available, shipping in 1 - 2 days

Part Number: 29121.943
Voltage / Speed: DC / Gear 24 V, 107 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: yes
€204.99*

Available, shipping in 1 - 2 days

Part Number: 29080.941
Voltage / Speed: DC / Gear 24 V, 315 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: no
€149.06*

Available, shipping in 1 - 2 days

Part Number: 29080.943
Voltage / Speed: DC / Gear 24 V, 315 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: no
€174.32*

Available, shipping in 1 - 2 days

Part Number: 29081.941
Voltage / Speed: DC / Gear 24 V, 315 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: yes
€179.72*

Available, shipping in 1 - 2 days

Part Number: 29081.943
Voltage / Speed: DC / Gear 24 V, 315 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: yes
€204.99*

Available, shipping in 1 - 2 days

Part Number: 29150.941
Voltage / Speed: DC / Gear 24 V, 520 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: no
€149.06*

Available, shipping in 1 - 2 days

Part Number: 29150.943
Voltage / Speed: DC / Gear 24 V, 520 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: no
€174.32*

Available, shipping in 1 - 2 days

Part Number: 29151.941
Voltage / Speed: DC / Gear 24 V, 520 RPM | Mount: Front | Encoder Option: no | Lid Sensor Option: yes
€179.72*

Available, shipping in 1 - 2 days

Part Number: 29151.943
Voltage / Speed: DC / Gear 24 V, 520 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: yes
€204.99*

Available, shipping in 1 - 2 days

Accessories

Part Number: 29000.605
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€10.03*

Available, shipping in 1 - 2 days

Part Number: 29000.610
Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)
€10.03*

Available, shipping in 1 - 2 days

Part Number: 29000.620
Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)
€10.03*

Available, shipping in 1 - 2 days

Part Number: 29000.305
Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)
€7.54*

Available, shipping in 1 - 2 days
