29QQ Series

The 29QQ Series is Boxer's most compact miniature peristaltic pump which covers the flow range of 10 µl to 50 ml/min in a body width of 31.2 mm. With an full range of options and tube sets, over 800 different configurations are available. Additionally, OEM customisation is offered.

› DC motor (with planetry gear), 12 or 24 V DC each with 4 different speeds
› Stepper motor with option of assembled Pico driver
› Rear or front panel mount option, including mounting gasket
› Speed sensor / encoder
› Lid close sensor
› 4 tube materials in 0.5, 1.0 or 2.0 mm ID (supplied as tube sets)
› Floating saddle to increase tube life
› 4 rollers

Tube sets should be ordered separately.

Return to Peristaltic Pumps for Liquid range.

Technical Data

Flow per Revolution
ID Ø 0.5 mm tube 13 µl per revolution
ID Ø 1.0 mm tube 34 µl per revolution
ID Ø 2.0 mm tube 100 µl per revolution
Flow at 15 / 33 / 116 / 315 / 520 RPM
ID Ø 0.5 mm tube 0.2 / 0.4 / 1.5 / 4.1 / 6.7 ml / min
ID Ø 1.0 mm tube 0.5 / 1.1 / 3.9 / 10.7 / 17.7 ml / min
ID Ø 2.0 mm tube 1.5 / 3.3 / 11.6 / 31.5 / 52.0 ml / min
General Data
Power consumption (with ID Ø 2.0 mm tube and 520 rpm motor) 3.8 W
Tube materials Pharm-a-line / Silicone / Lagoprene / ED-Plex
Max pressure 1.0 bar
Max suction height (dry) 9.0 m H20
Full data available in PDF datasheet

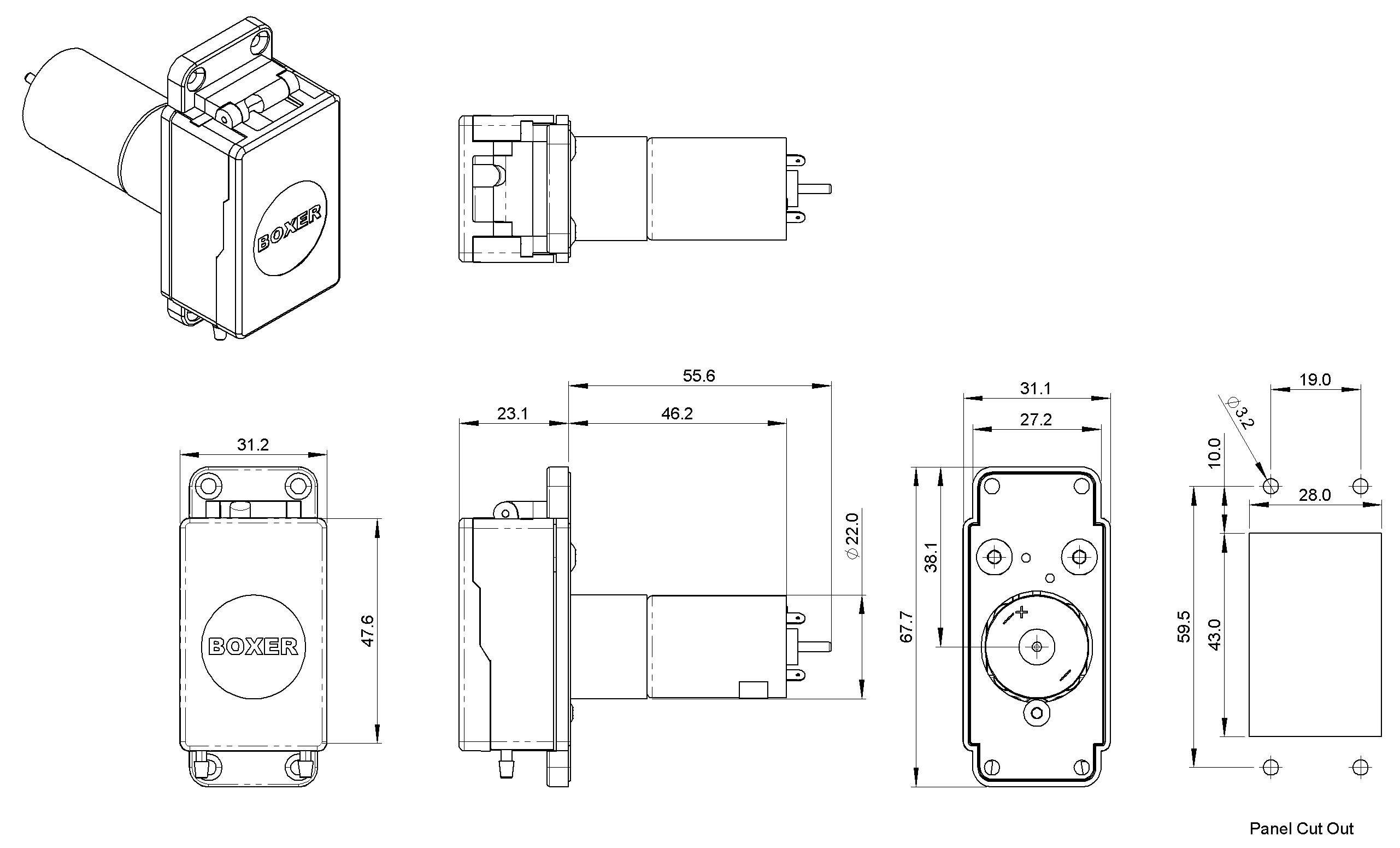

Order Information

12 V / 15 RPM:
29240.940     29QQ DC Gear
29240.942     29QQ DC Gear / Encoder
29241.940     29QQ DC Gear / Lid Sensor
29241.942     29QQ DC Gear / Encoder / Lid Sensor

12 V / 116 RPM:
29100.940     29QQ DC Gear
29100.942     29QQ DC Gear / Encoder
29101.940     29QQ DC Gear / Lid Sensor
29101.942     29QQ DC Gear / Encoder / Lid Sensor

12 V / 315 RPM:
29220.940     29QQ DC Gear
29220.942     29QQ DC Gear / Encoder
29221.940     29QQ DC Gear / Lid Sensor
29221.942     29QQ DC Gear / Encoder / Lid Sensor

12 V / 520 RPM:
29070.940     29QQ DC Gear
29070.942     29QQ DC Gear / Encoder
29071.940     29QQ DC Gear / Lid Sensor
29071.942     29QQ DC Gear / Encoder / Lid Sensor

Tube sets should be ordered separately.

Accessories:
⇒ Tube Sets

24 V / 33 RPM:
21640.940     29QQ DC Gear
21640.942     29QQ DC Gear / Encoder
21641.940     29QQ DC Gear / Lid Sensor
21641.942     29QQ DC Gear / Encoder / Lid Sensor

24 V / 107 RPM:
29120.940     29QQ DC Gear
29120.942     29QQ DC Gear / Encoder
29121.940     29QQ DC Gear / Lid Sensor
29121.942     29QQ DC Gear / Encoder / Lid Sensor

24 V / 315 RPM:
29080.940     29QQ DC Gear
29080.942     29QQ DC Gear / Encoder
29081.940     29QQ DC Gear / Lid Sensor
29081.942     29QQ DC Gear / Encoder / Lid Sensor

24 V / 520 RPM:
29150.940     29QQ DC Gear
29150.942     29QQ DC Gear / Encoder
29151.940     29QQ DC Gear / Lid Sensor
29151.942     29QQ DC Gear / Encoder / Lid Sensor

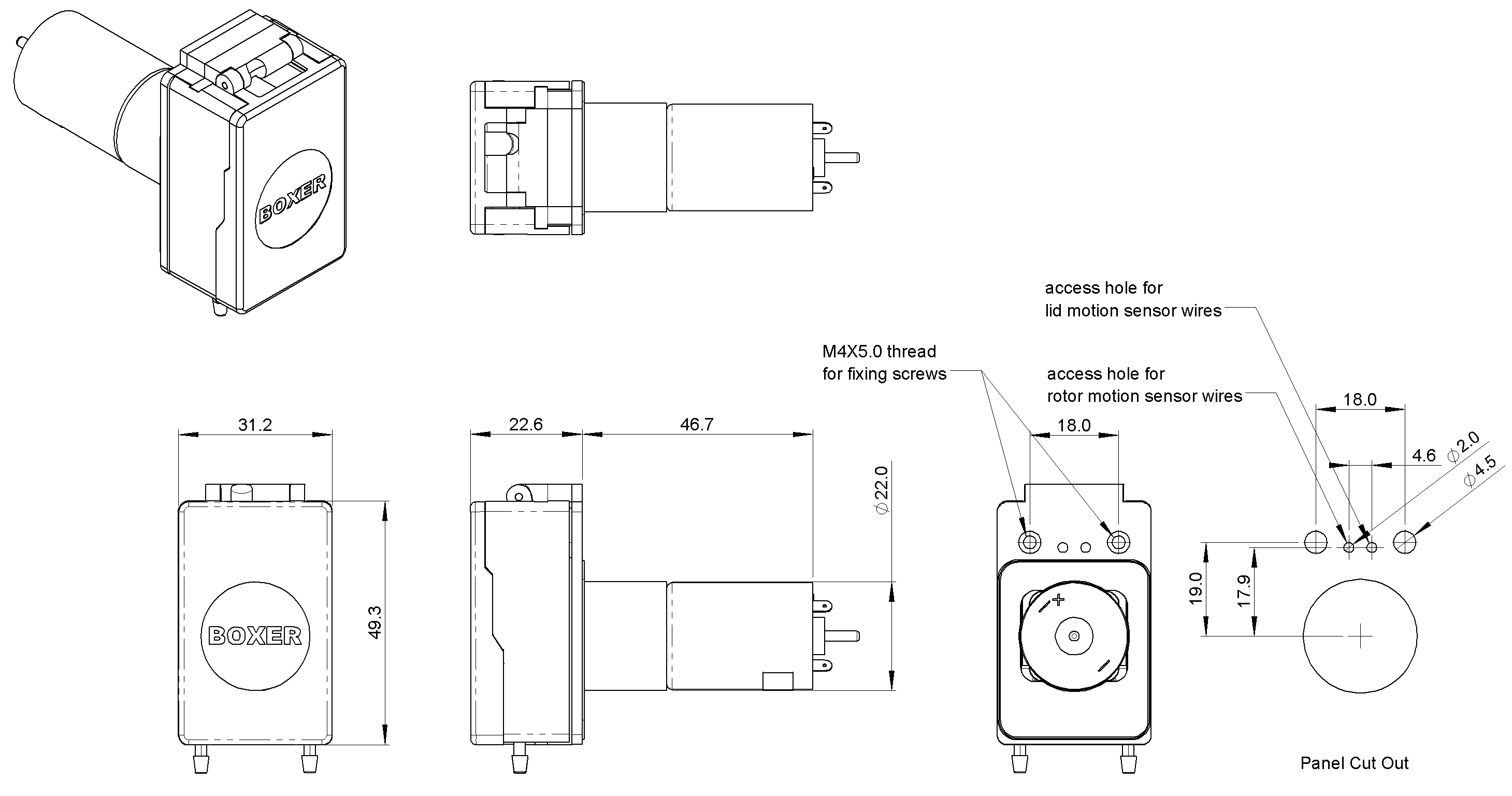

Order Information

12 V / 15 RPM:
29240.941     29QQ DC Gear
29240.943     29QQ DC Gear / Encoder
29241.941     29QQ DC Gear / Lid Sensor
29241.943     29QQ DC Geqar / Encoder / Lid Sensor

12 V / 116 RPM:
29100.941     29QQ DC Gear
29100.943     29QQ DC Gear / Encoder
29101.941     29QQ DC Gear / Lid Sensor
29101.943     29QQ DC Gear / Encoder / Lid Sensor

12 V / 315 RPM:
29220.941     29QQ DC Gear
29220.943     29QQ DC Gear / Encoder
29221.941     29QQ DC Gear / Lid Sensor
29221.943     29QQ DC Gear / Encoder / Lid Sensor

12 V / 520 RPM:
29070.941     29QQ DC Gear
29070.943     29QQ DC Gear / Encoder
29071.941     29QQ DC Gear / Lid Sensor
29071.943     29QQ DC Gear / Encoder / Lid Sensor

Tube sets should be ordered separately.

Accessories:
⇒ Tube Sets

24 V / 33 RPM:
21640.941     29QQ DC Gear
21640.943     29QQ DC Gear / Encoder
21641.941     29QQ DC Gear / Lid Sensor
21641.943     29QQ DC Gear / Encoder / Lid Sensor

24 V / 107 RPM:
29120.941     29QQ DC Gear
29120.943     29QQ DC Gear / Encoder
29121.941     29QQ DC Gear / Lid Sensor
29121.943     29QQ DC Gear / Encoder / Lid Sensor

24 V / 315 RPM:
29080.941     29QQ DC Gear
29080.943     29QQ DC Gear / Encoder
29081.941     29QQ DC Gear / Lid Sensor
29081.943     29QQ DC Gear / Encoder / Lid Sensor

24 V / 520 RPM:
29150.941     29QQ DC Gear
29150.943     29QQ DC Gear / Encoder
29151.941     29QQ DC Gear / Lid Sensor
29151.943     29QQ DC Gear / Encoder / Lid Sensor

Technical Data

Flow per Revolution
ID Ø 0.5 mm tube 13 µl per revolution
ID Ø 1.0 mm tube 34 µl per revolution
ID Ø 2.0 mm tube 100 µl per revolution
Flow at 100 / 300 / 500 RPM
ID Ø 0.5 mm tube 1.3 / 3.9 / 6.5 ml / min
ID Ø 1.0 mm tube 3.4 / 10.2 / 17.0 ml / min
ID Ø 2.0 mm tube 10.0 / 30.0 / 50.0 ml / min
General Data
Power consumption (with ID Ø 2.0 mm tube and Pico driver with 0.4 A limiter setting) 2.5 W
Tube materials Pharm-a-line / Silicone / Lagoprene / ED-Plex
Max pressure 1.0 bar
Max suction height (dry) 9.0 m H20
Full data available in PDF datasheet

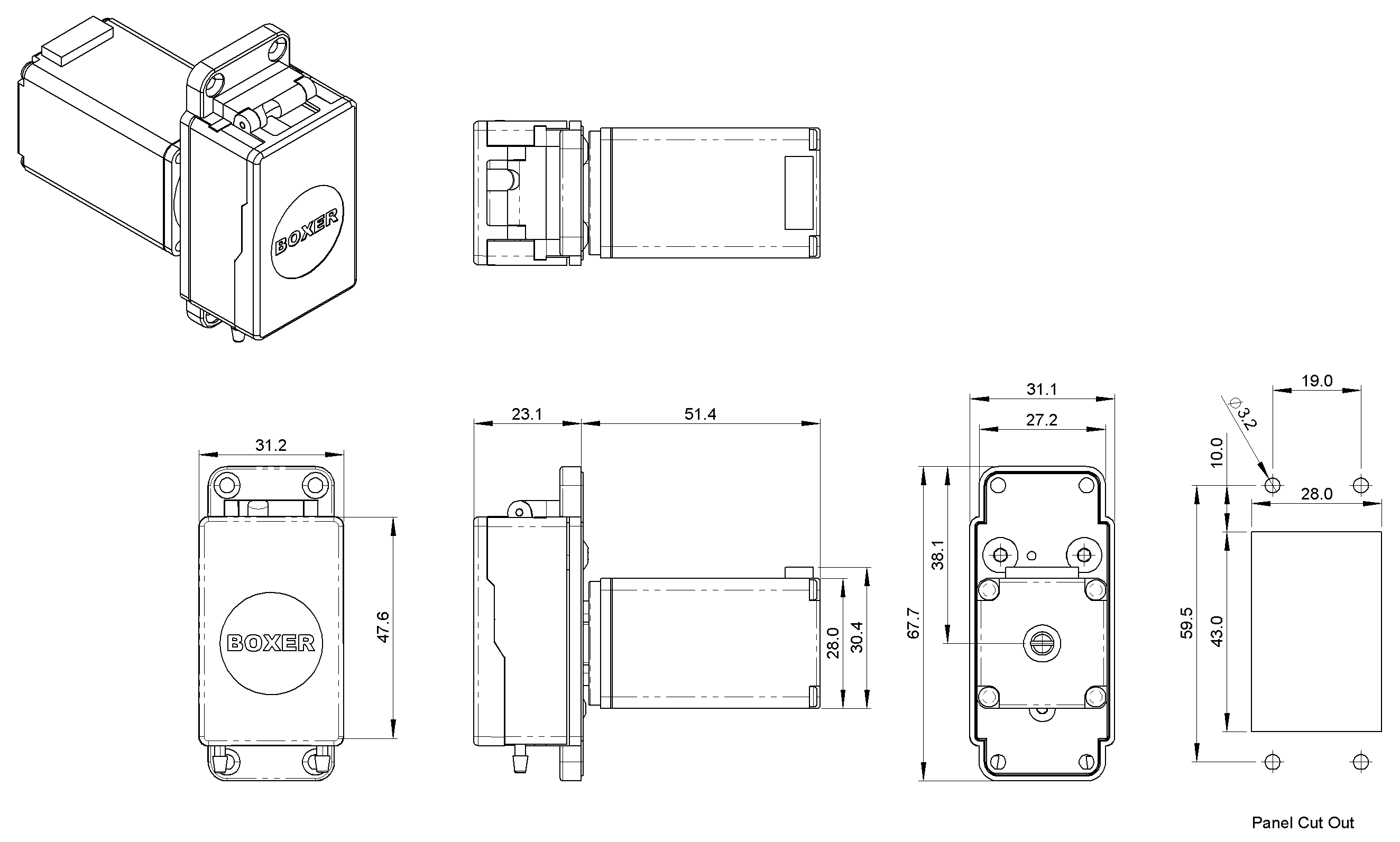

Order Information

29600.940     29QQ Stepper
29601.940     29QQ DC Gear / Speed Sensor
29603.940     29QQ DC Gear / Lid Sensor
29604.940     29QQ DC Gear / Speed Sensor / Lid Sensor

Tube sets should be ordered separately.

Accessories:
⇒ Tube Sets
⇒ Pico 1.4 Driver

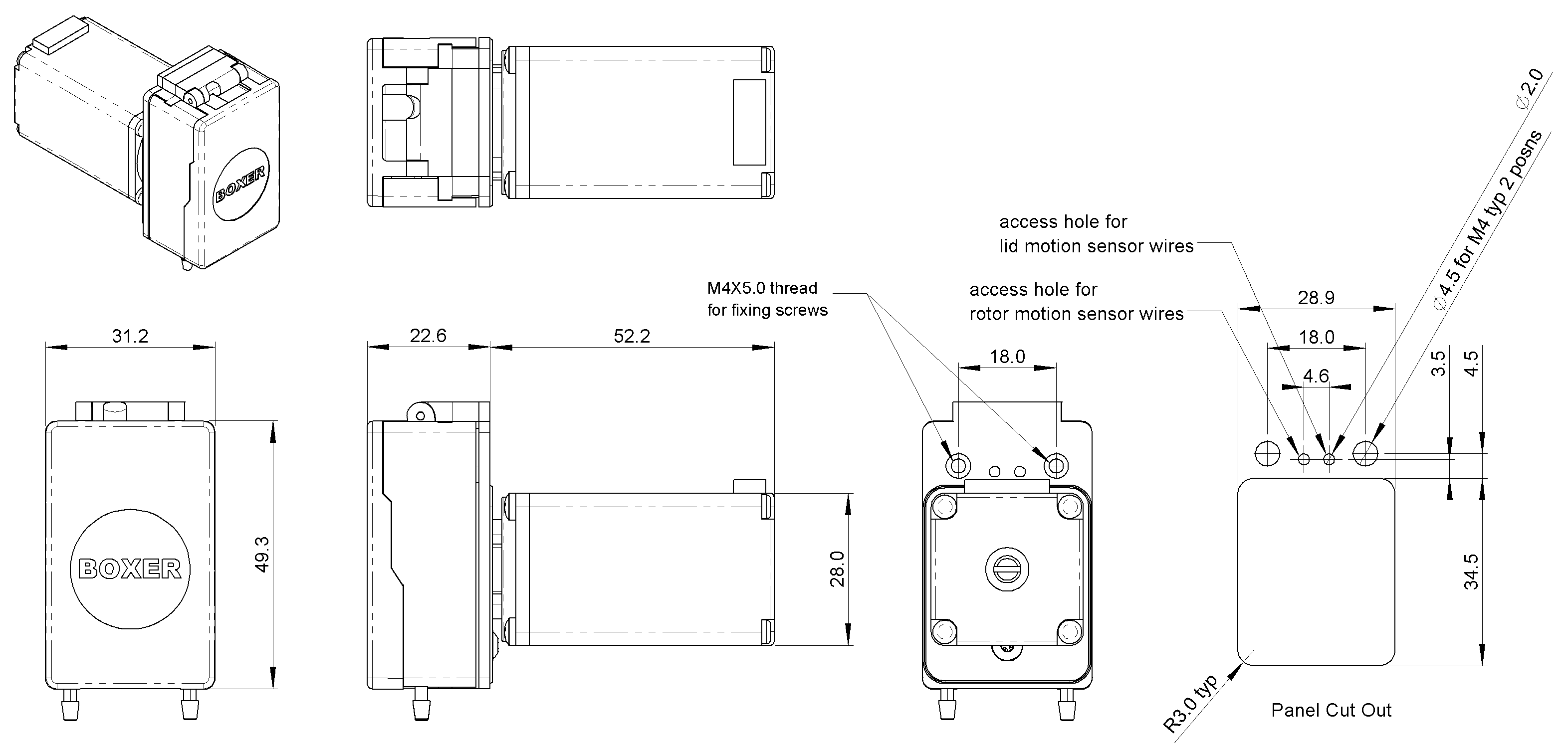

Order Information

29600.941     29QQ Stepper
29601.941     29QQ DC Gear / Speed Sensor
29603.941     29QQ DC Gear / Lid Sensor
29604.941     29QQ DC Gear / Speed Sensor / Lid Sensor

Tube sets should be ordered separately.

Accessories:
⇒ Tube Sets
⇒ Pico 1.4 Driver

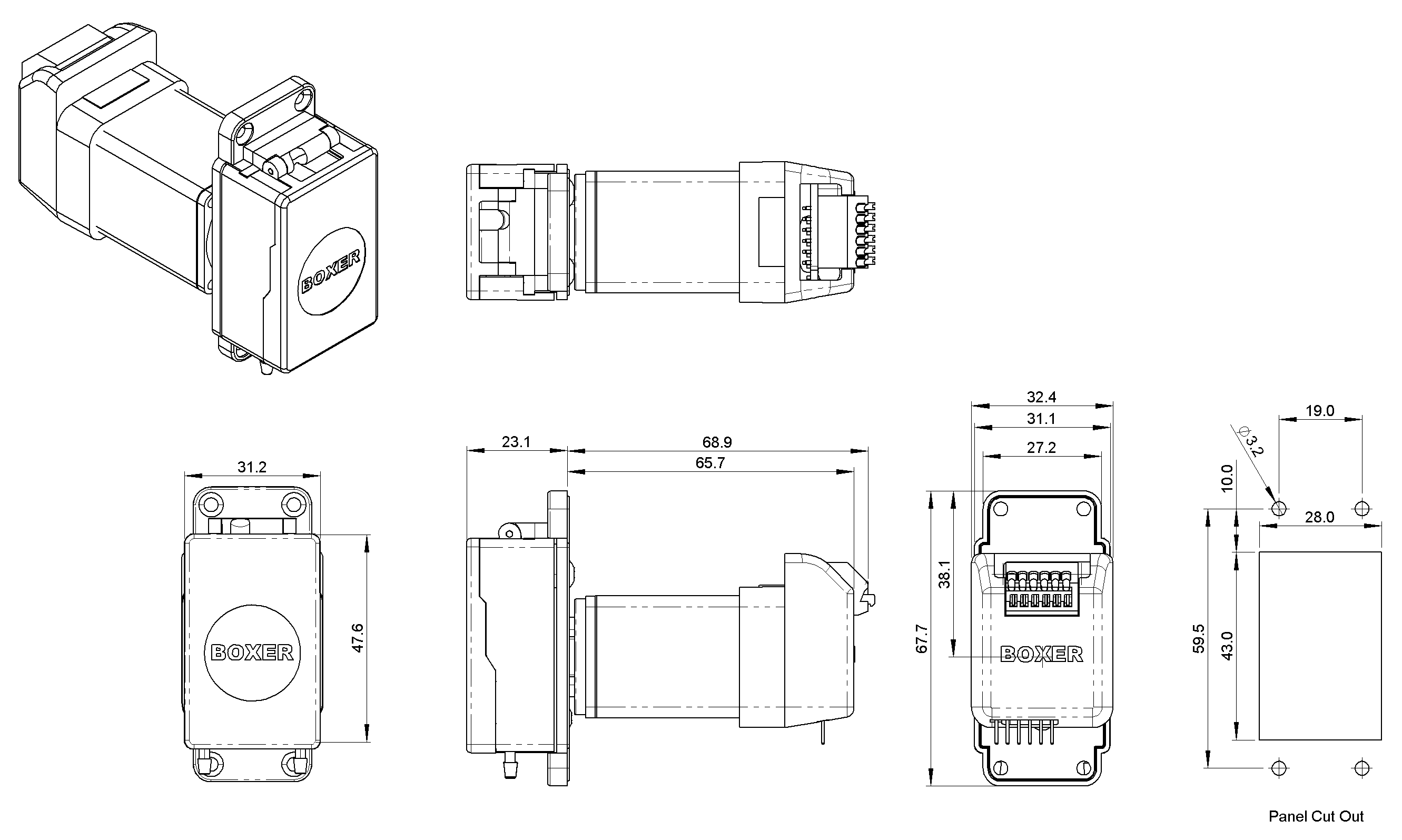

Order Information

29700.940     29QQ Stepper
29701.940     29QQ DC Gear / Speed Sensor
29703.940     29QQ DC Gear / Lid Sensor
29704.940     29QQ DC Geaar / Speed Sensor / Lid Sensor

Tube sets should be ordered separately.

Accessories:
⇒ Tube Sets
⇒ Pico 1.4 Driver

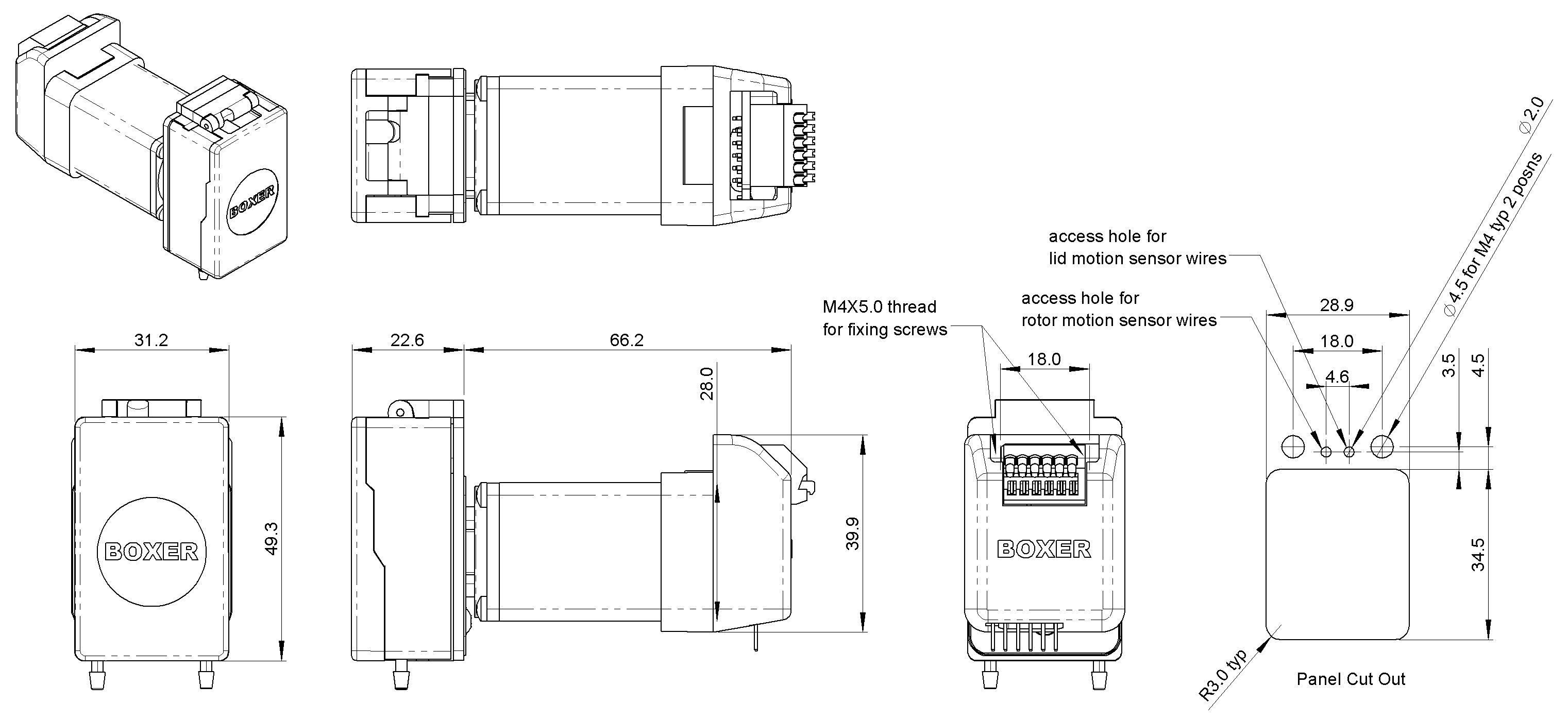

Order Information

29700.941     29QQ Stepper
29701.941     29QQ DC Gear / Speed Sensor
29703.941     29QQ DC Gear / Lid Sensor
29704.941     29QQ DC Gear / Speed Sensor / Lid Sensor

Tube sets should be ordered separately.

Accessories:
⇒ Tube Sets
⇒ Pico 1.4 Driver

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use. These products are not suitable for in-vivo applications.
