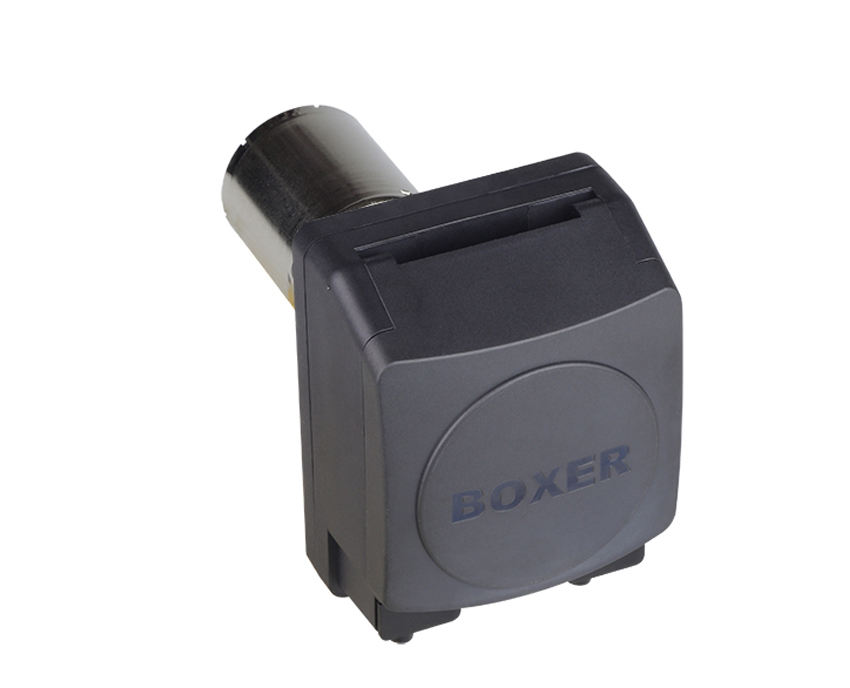

15KU Series

The 15KU series is a derivative of the popular 15KS series of peristaltic pumps. Unlike the 15KS, the 15KU uses tube sets rather than continuous tube. The series is designed accurate dispensing of liquids for wide ranging applications. It is suitable for 1.6, 2.4, 3.2 or 4.8 mm ID tubing, with an option of dual channel for 1.6 and 2.4 m tubing.

The series is available with DC / Gear motor (6 to 12 V DC or 12 to 24 V DC with gearing offering speeds ranging from 20 to 400 rpm) or 24 V Nema 23 stepper motor (with options for pre-assembled drivers). Both motor versions have options for encoders to enable precise control of flow via closed loop feedback control.

› Flow rates to 690 ml/min
› 1.6, 2.4, 3.2 and 4.8 mm ID tube sets
› Dual channel available for 1.6 and 2.4 mm tube sets
› 3, 4 or 6 roller configurations
› Choice of DC / Gear or Stepper motor drive
› DC / Gear motor available with high definition dual channel encoder (detecting both speed and direction)
› Stepper motor available with speed sensor and with 3 different pre-assembled drivers

Tube set must always be ordered separately.

The 15KU is available with as flip-top version under the series 15KS.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Flow per Revolution
ID Ø 1.6 - single 0.20 / 0.17 / 0.12 ml per revolution (3 / 4 / 6 roller)
ID Ø 1.6 - double 0.40 / 0.35 / 0.25 ml per revolution (3 / 4 / 6 roller)
ID Ø 2.4 - single 0.41 / 0.37 / 0.26 ml per revolution (3 / 4 / 6 roller)
ID Ø 2.4 - double 0.82 / 0.75 / 0.52 ml per revolution (3 / 4 / 6 roller)
ID Ø 3.2 mm - single 0.62 / 0.57 / 0.39 ml per revolution (3 / 4 / 6 roller)
ID Ø 4.8 mm - single 1.25 / 1.02 / 0.54 ml per revolution (3 / 4 / 6 roller)

Flow range per Motor / Gear
12 V 40 rpm 2.0 to 43.8 ml/min
12 V 312 rpm 16.0 to 331.0 ml/min
12 V 437 rpm 20.0 to 438 ml/min
24 V 80 rpm 4.2 to 93.8 ml/min
24 V 312 rpm 17.0 to 338.9 ml/min
24 V 420 rpm 23.0 to 488.0 ml/min

General Data
Power consumption 0.4 to 11.5 W
Motor Type Brushed DC motor with planetary gear
Max pressure 2.0 bar
Max suction height 9.0 m H20
Weight 455 / 430 g (40, 80 / 312, 420, 437 rpm)
Optional sensors Dual channel motor encoder for speed and direction information


  Full data available in PDF datasheet



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 15008.300
Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller | Encoder Option: no
€168.14*

Available, shipping in 1 - 2 days

Part Number: 15011.300
Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller | Encoder Option: no
€168.14*

Available, shipping in 1 - 2 days

Part Number: 15012.300
Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller | Encoder Option: no
€168.14*

Available, shipping in 1 - 2 days

Part Number: 15009.300
Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller | Encoder Option: no
€168.14*

Available, shipping in 1 - 2 days

Part Number: 15013.300
Motor / Voltage: DC / Gear Motor 24 V, 312 rpm, 4 Roller | Encoder Option: no
€168.14*

Available, shipping in 1 - 2 days

Part Number: 15014.300
Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller | Encoder Option: no
€168.14*

Available, shipping in 1 - 2 days

Accessories

Part Number: 15000.220
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.221
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days

Part Number: 15000.222
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.223
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days

Part Number: 15000.224
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.225
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.226
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.234
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.235
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€23.51*
Part Number: 15000.236
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.237
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€23.51*
Part Number: 15000.238
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.239
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
€11.75*
Part Number: 15000.240
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
€11.75*
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 15408.301
Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller | Encoder Option: yes
€249.00*

Available, shipping in 1 - 2 days

Part Number: 15411.301
Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller | Encoder Option: yes
€249.00*

Available, shipping in 1 - 2 days

Part Number: 15412.301
Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller | Encoder Option: yes
€249.00*

Available, shipping in 1 - 2 days

Part Number: 15409.301
Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller | Encoder Option: yes
€249.00*

Available, shipping in 1 - 2 days

Part Number: 15413.301
Motor / Voltage: DC / Gear Motor 24 V, 312 rpm, 4 Roller | Encoder Option: yes
€249.00*

Available, shipping in 1 - 2 days

Part Number: 15414.301
Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller | Encoder Option: yes
€249.00*

Available, shipping in 1 - 2 days

Accessories

Part Number: 15000.220
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.221
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days

Part Number: 15000.222
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.223
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days

Part Number: 15000.224
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.225
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.226
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.234
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.235
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€23.51*
Part Number: 15000.236
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.237
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€23.51*
Part Number: 15000.238
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.239
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
€11.75*
Part Number: 15000.240
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
€11.75*

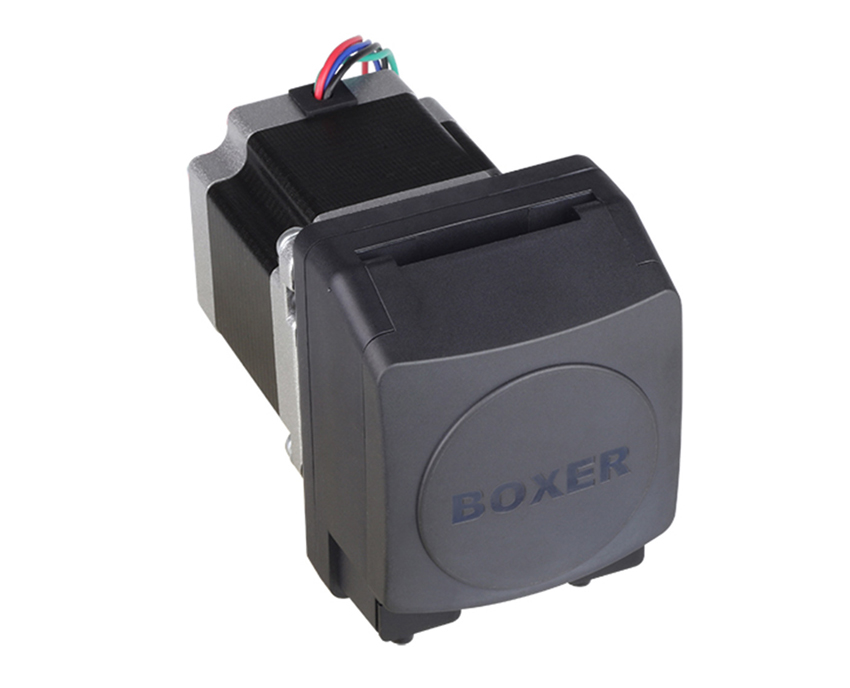

Flow per Revolution
ID Ø 1.6 - single 0.20 / 0.17 / 0.12 ml per revolution (3 / 4 / 6 roller)
ID Ø 1.6 - double 0.40 / 0.35 / 0.25 ml per revolution (3 / 4 / 6 roller)
ID Ø 2.4 - single 0.41 / 0.37 / 0.26 ml per revolution (3 / 4 / 6 roller)
ID Ø 2.4 - double 0.82 / 0.75 / 0.52 ml per revolution (3 / 4 / 6 roller)
ID Ø 3.2 mm - single 0.62 / 0.57 / 0.39 ml per revolution (3 / 4 / 6 roller)
ID Ø 4.8 mm - single 1.25 / 1.02 / 0.54 ml per revolution (3 / 4 / 6 roller)

Flow at 400 rpm
ID Ø 1.6 - single 80 / 70 / 50 ml/min (3 / 4 / 6 roller)
ID Ø 1.6 - double 160 / 140 / 100 ml/min (3 / 4 / 6 roller)
ID Ø 2.4 - single 165 / 150 / 105 ml/min (3 / 4 / 6 roller)
ID Ø 2.4 - double 330 / 300 / 210 ml/min (3 / 4 / 6 roller)
ID Ø 3.2 mm - single 250 / 230 / 155 ml/min (3 / 4 / 6 roller)
ID Ø 4.8 mm - single 500 / 410 / 215 ml/min (3 / 4 / 6 roller)

General Data
Power consumption (including A4 driver) 12 to 25 W
Recommended driver 4.0 A, limited to 2.8 A
Max pressure 2.0 bar
Max suction height 9.0 m H20
Weight (without driver) 855 g
Optional sensors Speed sensor
Optional drivers Analogue driver, analogue driver with speed potentiometer, digital / programmable driver

  Full data available in PDF datasheet



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 15701.300
Motor / Driver Options: Nema 23 | Number of Rollers : 3 | Speed Sensor Option: no
€154.67*

Available, shipping in 1 - 2 days

Part Number: 15702.300
Motor / Driver Options: Nema 23 | Number of Rollers : 4 | Speed Sensor Option: no
€156.36*

Available, shipping in 1 - 2 days

Part Number: 15703.300
Motor / Driver Options: Nema 23 | Number of Rollers : 6 | Speed Sensor Option: no
€159.74*

Available, shipping in 1 - 2 days

Part Number: 15701.310
Motor / Driver Options: Nema 23 | Number of Rollers : 3 | Speed Sensor Option: yes
€188.37*

Available, shipping in 1 - 2 days

Part Number: 15702.310
Motor / Driver Options: Nema 23 | Number of Rollers : 4 | Speed Sensor Option: yes
€190.05*

Available, shipping in 1 - 2 days

Part Number: 15703.310
Motor / Driver Options: Nema 23 | Number of Rollers : 6 | Speed Sensor Option: yes
€193.43*

Available, shipping in 1 - 2 days

Accessories

Part Number: 15000.220
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.221
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days

Part Number: 15000.222
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.223
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days

Part Number: 15000.224
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.225
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.226
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.234
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.235
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€23.51*
Part Number: 15000.236
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.237
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€23.51*
Part Number: 15000.238
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.239
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
€11.75*
Part Number: 15000.240
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
€11.75*
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 15701.301
Motor / Driver Options: Nema 23 + A4 Driver | Number of Rollers : 3 | Speed Sensor Option: no
€293.34*

Available, shipping in 1 - 2 days

Part Number: 15702.301
Motor / Driver Options: Nema 23 + A4 Driver | Number of Rollers : 4 | Speed Sensor Option: no
€295.03*

Available, shipping in 1 - 2 days

Part Number: 15703.301
Motor / Driver Options: Nema 23 + A4 Driver | Number of Rollers : 6 | Speed Sensor Option: no
€298.40*

Available, shipping in 1 - 2 days

Part Number: 15701.311
Motor / Driver Options: Nema 23 + A4 Driver | Number of Rollers : 3 | Speed Sensor Option: yes
€327.03*

Available, shipping in 1 - 2 days

Part Number: 15702.311
Motor / Driver Options: Nema 23 + A4 Driver | Number of Rollers : 4 | Speed Sensor Option: yes
€328.72*

Available, shipping in 1 - 2 days

Part Number: 15703.311
Motor / Driver Options: Nema 23 + A4 Driver | Number of Rollers : 6 | Speed Sensor Option: yes
€332.09*

Available, shipping in 1 - 2 days

Accessories

Part Number: 15000.220
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.221
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days

Part Number: 15000.222
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.223
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days

Part Number: 15000.224
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.225
Tube Set: 4.8 mm ID Tubing Single Straight (PP connectors for 4.0 to 5.0 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.226
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.234
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.235
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€23.51*
Part Number: 15000.236
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.237
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€23.51*
Part Number: 15000.238
Tube Set: 3.2 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€11.75*
Part Number: 15000.239
Tube Set: 4.8 mm ID Tubing Single Elbow (PP connectors for 4.0 to 5.0 mm ID customer side)
€11.75*
Part Number: 29240.943
Voltage / Speed: DC / Gear 12 V, 15 RPM | Mount: Front | Encoder Option: yes | Lid Sensor Option: no
€174.32*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 15751.301
Motor / Driver Options: Nema 23 + A4p Driver | Number of Rollers : 3 | Speed Sensor Option: no
€319.30*

Available, shipping in 1 - 2 days

Part Number: 15752.301
Motor / Driver Options: Nema 23 + A4p Driver | Number of Rollers : 4 | Speed Sensor Option: no
€320.99*

Available, shipping in 1 - 2 days

Part Number: 15753.301
Motor / Driver Options: Nema 23 + A4p Driver | Number of Rollers : 6 | Speed Sensor Option: no
€324.37*

Available, shipping in 1 - 2 days

Part Number: 15751.311
Motor / Driver Options: Nema 23 + A4p Driver | Number of Rollers : 3 | Speed Sensor Option: yes
€353.00*

Available, shipping in 1 - 2 days

Part Number: 15752.311
Motor / Driver Options: Nema 23 + A4p Driver | Number of Rollers : 4 | Speed Sensor Option: yes
€354.69*

Available, shipping in 1 - 2 days

Part Number: 15753.311
Motor / Driver Options: Nema 23 + A4p Driver | Number of Rollers : 6 | Speed Sensor Option: yes
€358.06*

Available, shipping in 1 - 2 days

Accessories

Part Number: 15000.220
Tube Set: 1.6 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.221
Tube Set: 1.6 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days

Part Number: 15000.222
Tube Set: 2.4 mm ID Tubing Single (PP connectors for 2.4 to 3.5 mm ID customer side)
€15.67*

Available, shipping in 1 - 2 days

Part Number: 15000.223
Tube Set: 2.4 mm ID Tubing Double (PP connectors for 2.4 to 3.5 mm ID customer side)
€31.34*

Available, shipping in 1 - 2 days
