9QQ Series

The 9QQ series is a unique, cost effective and extremely versatile miniature peristaltic pump range designed for accurate dispensing of liquids.

DC / Gear motor versions offer a range of 33 to 520 rpm with optional shaft encoder providing accurate feedback of rotor speed.

Stepper motor versions offer the versatility of finite speed control. 3 supporting driver options are vailable.

› Flow rates from 0.4 ml/min (or lower using stepper motor) to 200 ml/min
› Continuous tube or tube sets
› Easy tube change
› Unique floating saddle to enhance tube life and/or limit pressure
› 5 different tube sizes
› 4 different tube materials
› 2 channels available for 1 mm tubes
› 3 different roller configurations

Tubing / tube clips must always be ordered separately.

The 9QQ supersedes the 9K series.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Return to Peristaltic Pumps for Liquid range.


DC / Gear Motor

Economic and versatile. 5 different speeds available in 12 and 24 V.

Available to purchase online via BOX-it (see order information below).

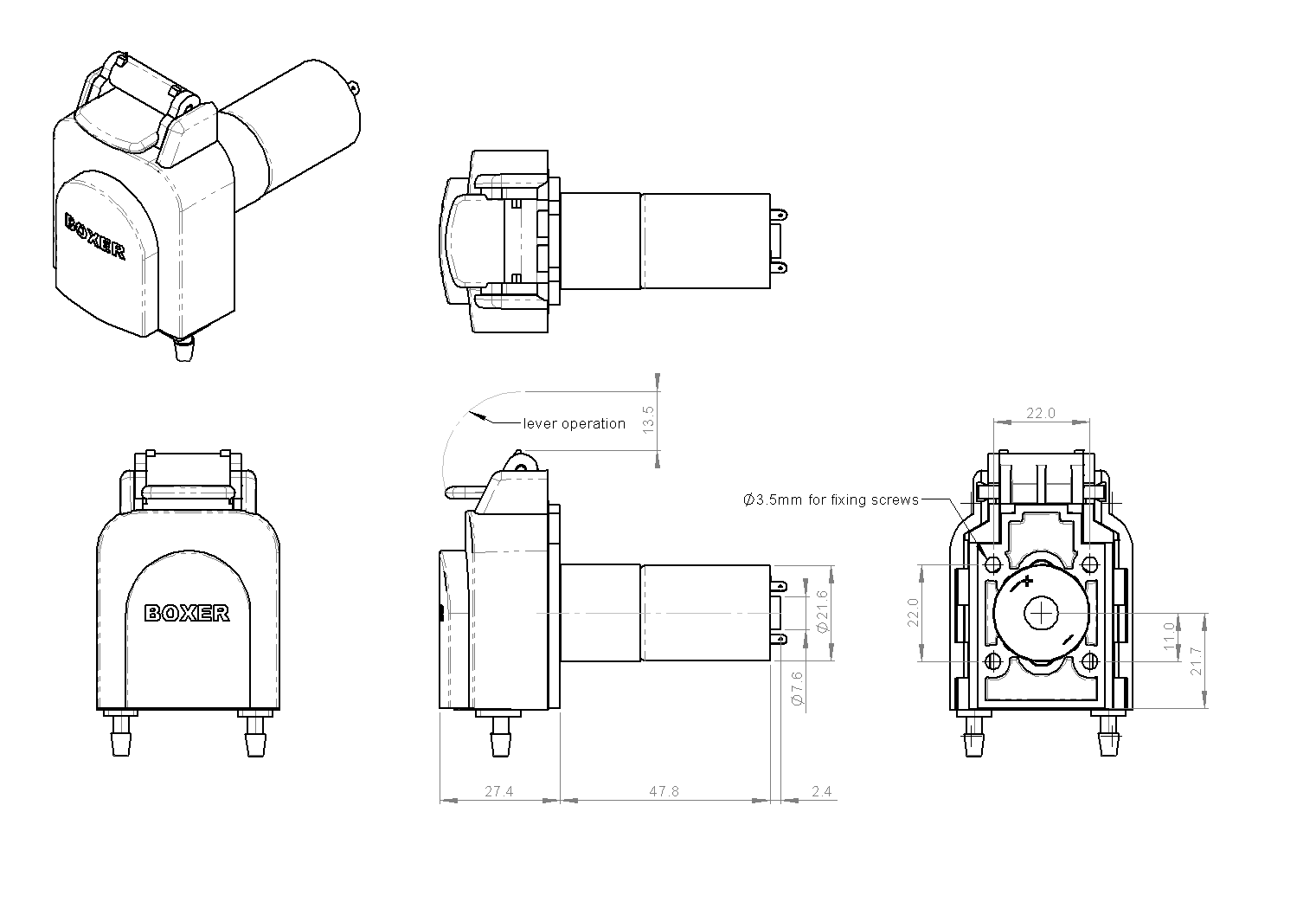

Boxer 9QQ miniature peristaltic pump

Technical Data

Flow Data
ID Ø 0.5 mm tube 16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller)
ID Ø 1.0 mm tube 55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube 190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube 340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube 400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller)
RPM (at nominal voltage)
12 V 116 / 315 / 520
24 V 33 / 107 / 315 / 520
Power Consumption 3.5 to 5.0 W
Tube Materials Pharm-a-line / Silicone / Lagoprene / ED-Plex
Tube Connectors
ID Ø 0.5 mm tube (internal) 0.5 to 1.0 mm* (external)
ID Ø 1.0 mm tube (internal) 1.5 to 2.0 mm* (external)
ID Ø 2.0 mm tube (internal) 2.0 to 2.5 mm* (external)
ID Ø 3.0 mm tube (internal) 3.0 to 3.5 mm* (external)
ID Ø 3.5 mm tube (internal) 3.0 to 3.5 mm* (external)
*depends on tube material being used
Further information ⇒ Accessories
Max pressure 1 bar
Max vacuum -950 mbar
DC motor life >2000 hour
Weight 130 g
Optional encoder 10 pulses per motor revolution (associated rotor speed depends in gear ratio)
All data measured with 'run-in' Pharm-a-line continuous tubing and H2O.







Order Information

Part Number:     9010.930     12 V DC     116 RPM     3 Rollers
Part Number:     9022.930     12 V DC     315 RPM     3 Rollers
Part Number:     9007.930     12 V DC     520 RPM     3 Rollers

Part Number:     9016.930     24 V DC       33 RPM     3 Rollers
Part Number:     9012.930     24 V DC     107 RPM     3 Rollers
Part Number:     9008.930     24 V DC     315 RPM     3 Rollers
Part Number:     9015.930     24 V DC     520 RPM     3 Rollers








Stepper Motor

Excellent dosing control available in 24 V.

Available to purchase online via BOX-it (see order information below).

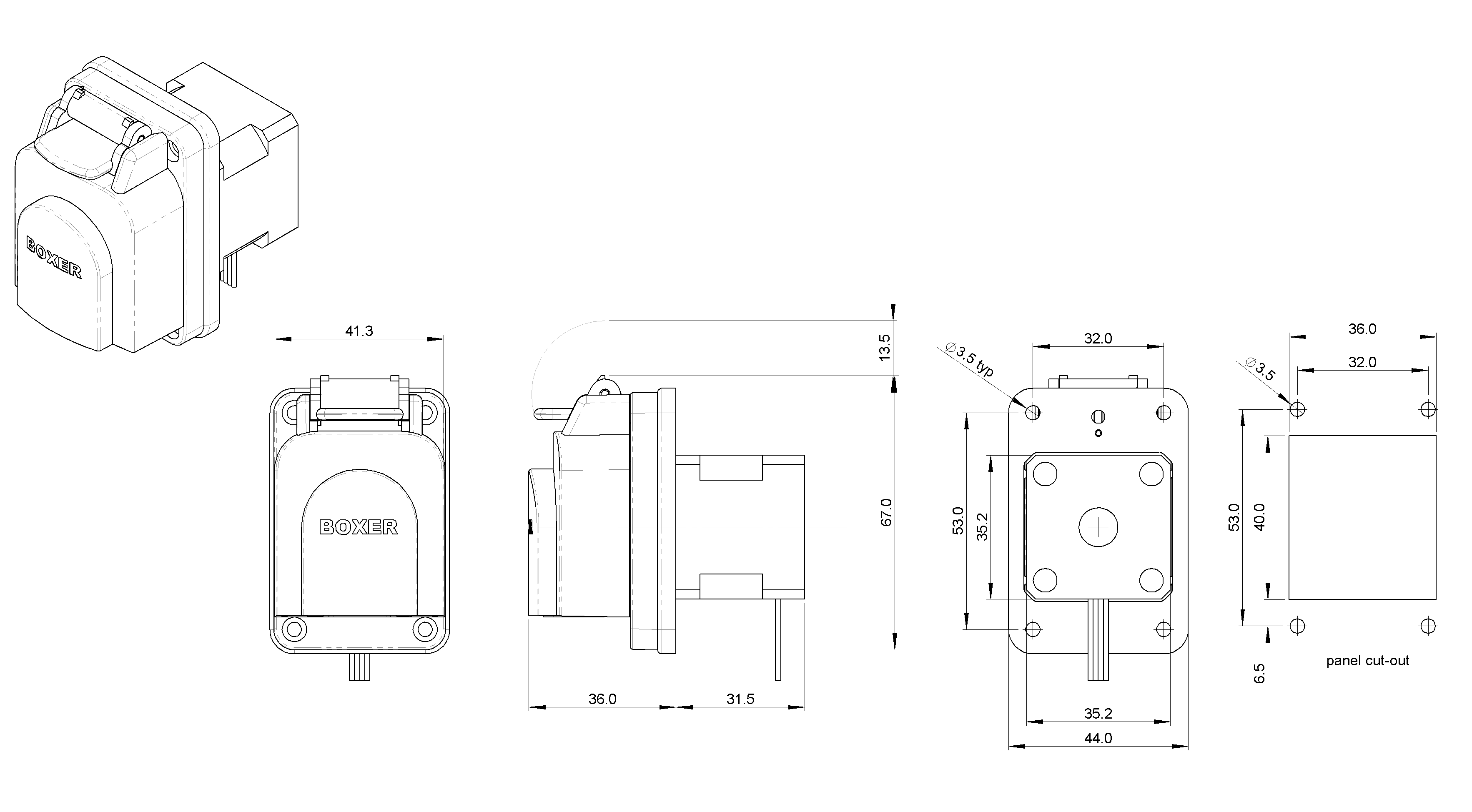

Boxer 9K micro peristaltic pump

Technical Data

Flow Data
ID Ø 0.5 mm tube 16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller)
ID Ø 1.0 mm tube 55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube 190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube 340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube 400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller)
RPM 0 to 500 rpm
(higher speeds possible depending upon tube material, tube ID, number of rollers and driving method)
Tube Materials Pharm-a-line / Silicone / Lagoprene / ED-Plex
Tube Connectors
ID Ø 5.0 mm tube (internal) 0.5 to 1.0 mm* (external)
ID Ø 1.0 mm tube (internal) 1.5 to 2.0 mm* (external)
ID Ø 2.0 mm tube (internal) 2.0 to 2.5 mm* (external)
ID Ø 3.0 mm tube (internal) 3.0 to 3.5 mm* (external)
ID Ø 3.5 mm tube (internal) 3.0 to 3.5 mm* (external)
*depends on tube material being used
Further information ⇒ Accessories
Max pressure 1 bar
Max vacuum -950 mbar
Motor life >10000 hour
Weight 235 g
All data measured with 'run-in' Pharm-a-line continuous tubing and H2O.

Stepper Motor

Supplied without driver

Order Information

Part Number:     9600.930     24 V Stepper     3 Rollers
Part Number:     9600.940     24 V Stepper     4 Rollers
Part Number:     9600.960     24 V Stepper     6 Rollers

Part Number:     9601.930     24 V Stepper     3 Rollers     Encoder
Part Number:     9601.940     24 V Stepper     4 Rollers     Encoder
Part Number:     9601.960     24 V Stepper     6 Rollers     Encoder

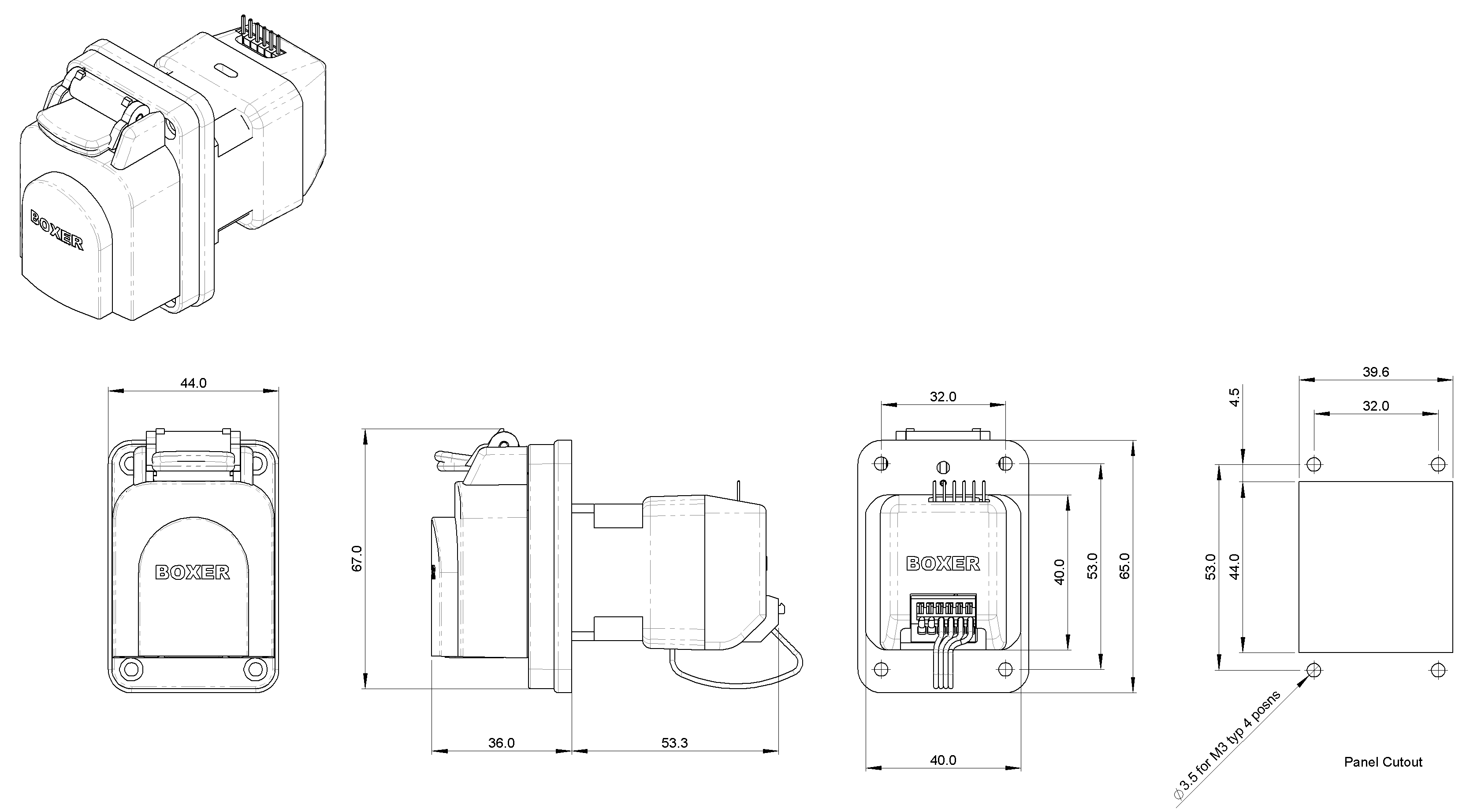

Stepper Motor with Driver

Supplied with Pico 1.4 driver assembled to motor.

Order Information

Part Number:     9660.930     24 V Stepper     3 Rollers     Pico 1.4 Driver
Part Number:     9660.940     24 V Stepper     4 Rollers     Pico 1.4 Driver
Part Number:     9660.960     24 V Stepper     6 Rollers     Pico 1.4 Driver

Part Number:     9661.930     24 V Stepper     3 Rollers     Encoder     Pico 1.4 Driver
Part Number:     9661.940     24 V Stepper     4 Rollers     Encoder     Pico 1.4 Driver
Part Number:     9661.960     24 V Stepper     6 Rollers     Encoder     Pico 1.4 Driver





All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use. These products are not suitable for in-vivo applications.
