- BOXER 5KD Diaphragm Pump Series
5KD Series
The 5KD series is now a second generation double headed diaphragm pump with unique design and, at 8.5 l/m free flow, offers an extremely high flow performance to size ratio. It is ideally suited to high flow / low pressure applications. Integrated pulsation chambers combined with 2 heads reduces pulsation to an absolute minimum.
Like all other pumps in the Boxer range, this series can be customised to specific requirements. The components are produced in a variety of materials providing compatibility with a wide range of applications.
Motor options include iron core, coreless and brushless DC with integrated driver.
› Flow rate to 8.5 l/min
› High flow to size ratio
› Integrated pulsation dampers
› Complete with mounting clips
Flow control is available in combination with PWM Flow Controller or directly via the 0 to 5 V speed input of for the brushless motor version.
Return to Miniature Diaphragm Pumps for Air and Gas range.

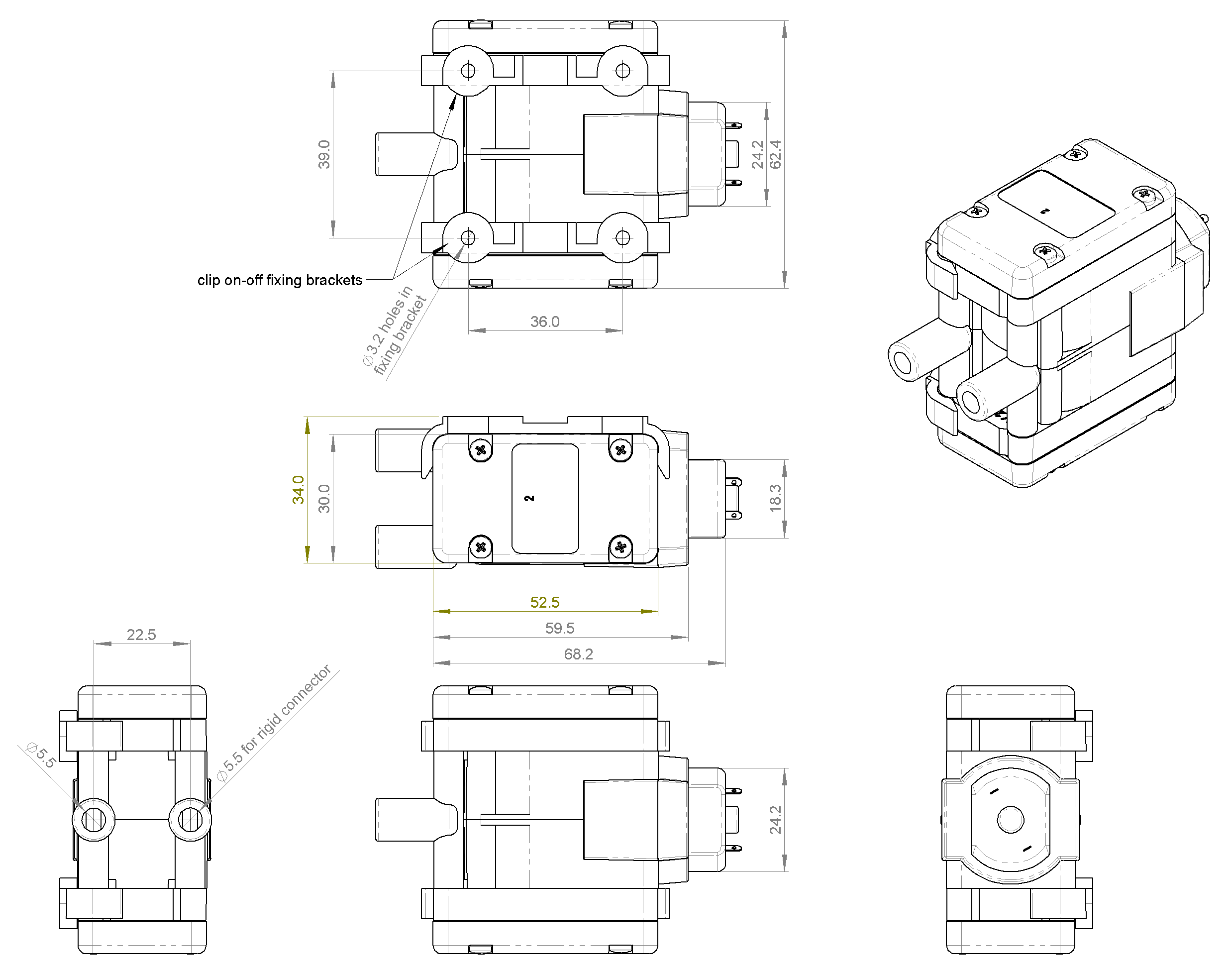

Economic iron core motor option available in 12.0 V.
Technical Data
| Free Flow | 7.2 l/min |
| Max Pressure | +250 mbar |
| Max Vacuum | -250 mbar |
| Voltage Options | 12 V DC |
| Power Consumption | 2.2 to 5.5 W |
| Elastomers Options | EPDM / Silicone |
| Other Wetted Parts | PPS (polyphenylene sulphide) |
| Weight | 145g |
| Full data available in PDF datasheet |
All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.

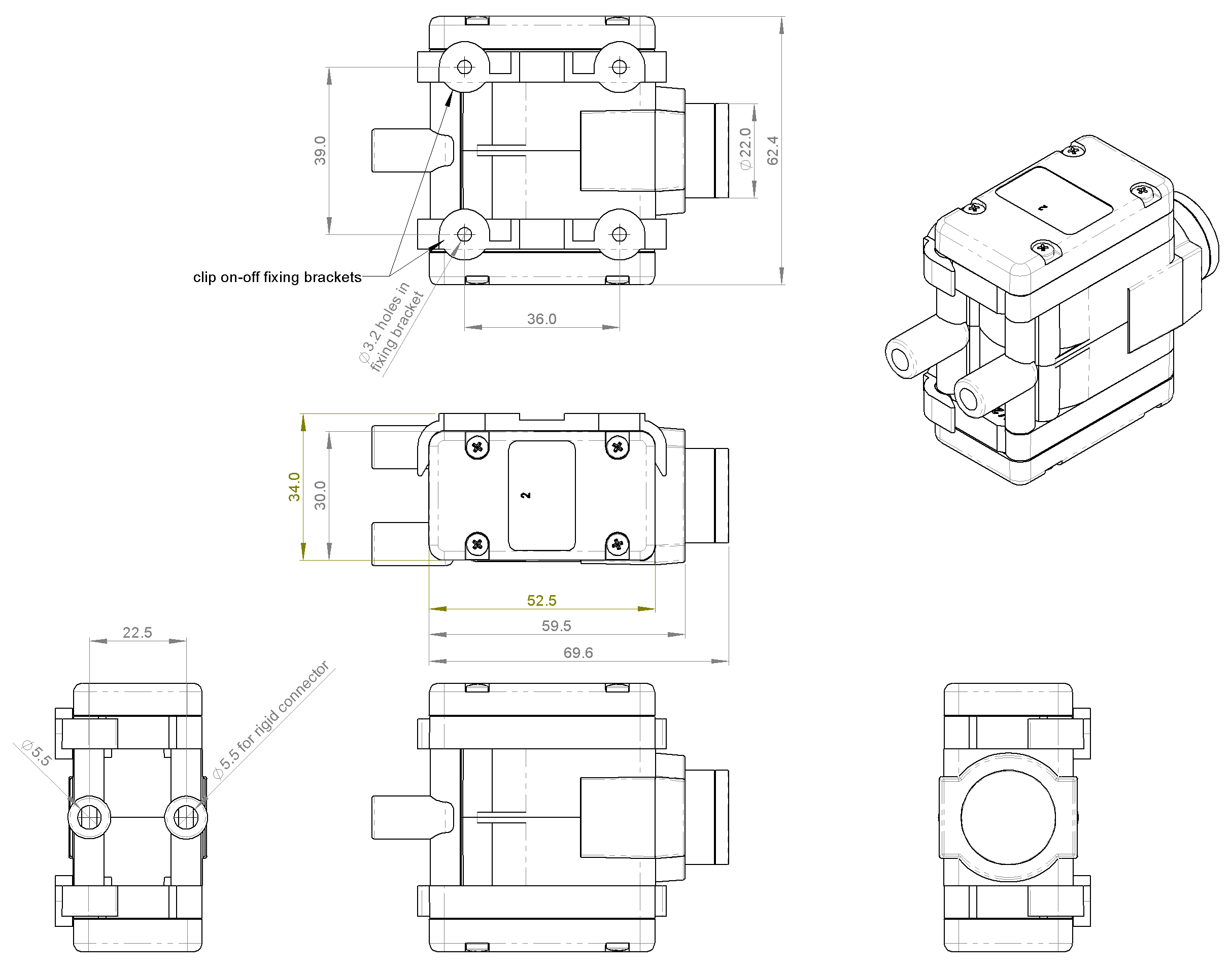

Economic iron core motor option available in 12.0 V.
Technical Data
| Free Flow | 7.5 l/min |
| Max Pressure | +400 mbar |
| Max Vacuum | -350 mbar |
| Voltage Options | 6 V DC |
| Power Consumption | 1.5 to 3.2 W |
| Elastomers Options | EPDM / Silicone |
| Other Wetted Parts | PPS (polyphenylene sulphide) |
| Weight | 165g |
| Full data available in PDF datasheet |

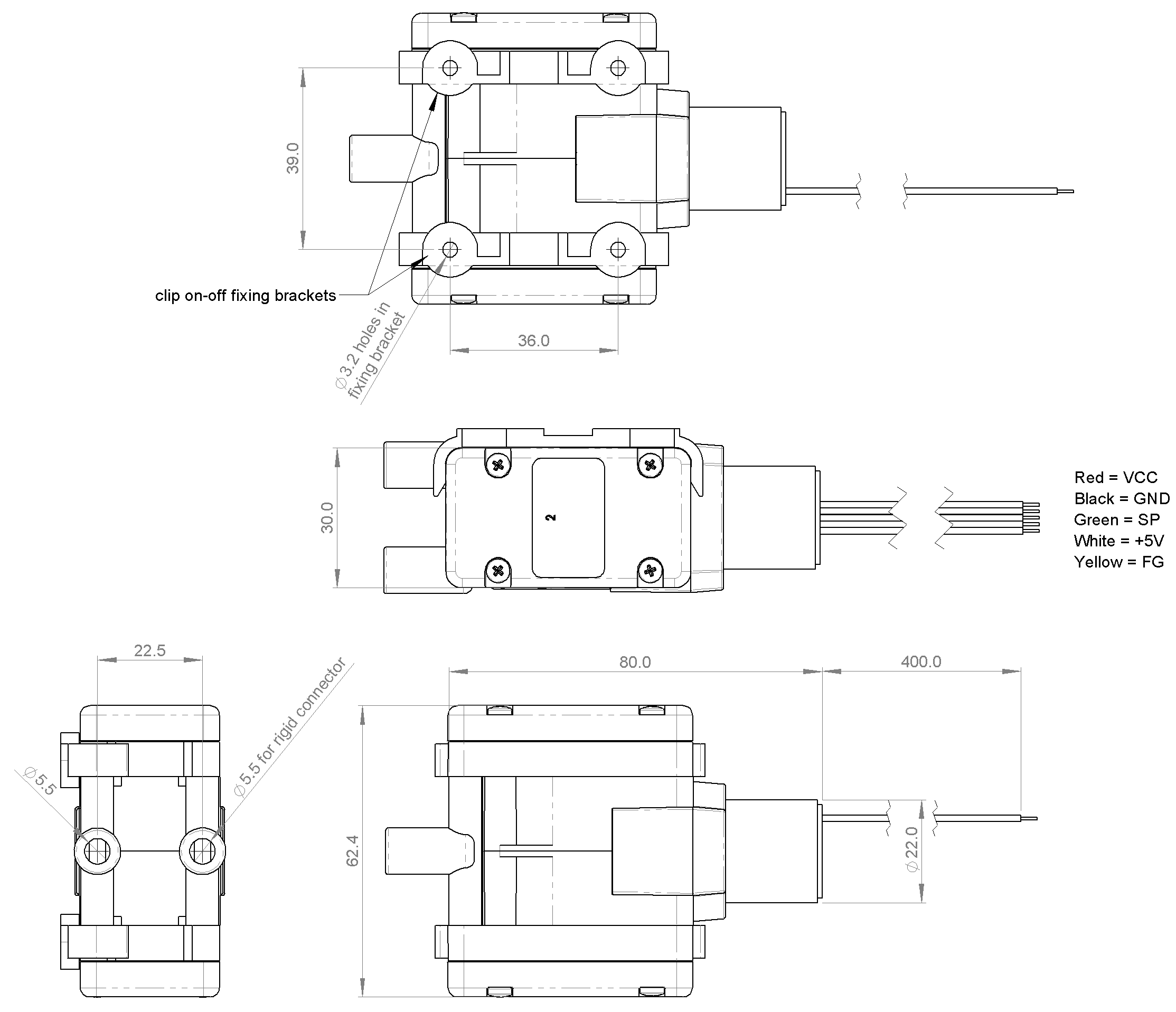

Brushless DC motor in 24 V DC with integrated driver.
Long life combined with elegant speed (flow) control via a 0 to 5V DC input, rpm feedback
output and a 5 V DC output is for convenient speed control via external potentiometer.
Technical Data
| Free Flow | 8.5 l/min |
| Max Pressure | +500 mbar |
| Max Vacuum | -400 mbar |
| Voltage Options | 24 V DC |
| Power Consumption | 4.0 to 10.5 W |
| Elastomers Options | EPDM / Silicone |
| Other Wetted Parts | PPS (polyphenylene sulphide) |
| Weight | 165g |
| Full data available in PDF datasheet |
All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
