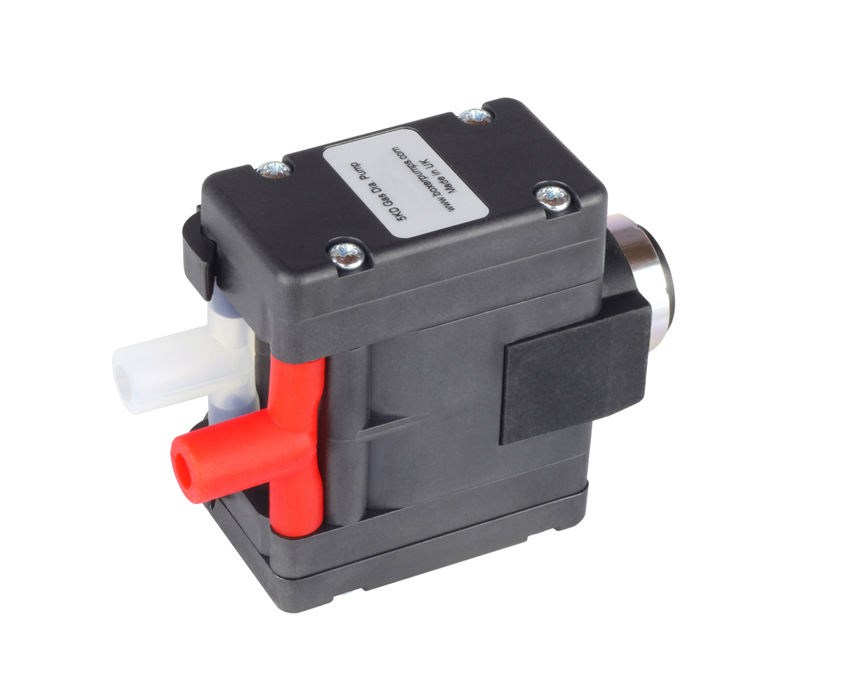

5KD Series

The 5KD series is now a second generation double headed diaphragm pump with unique design and, at 8.5 l/m free flow, offers an extremely high flow performance to size ratio. It is ideally suited to high flow / low pressure applications. Integrated pulsation chambers combined with 2 heads reduces pulsation to an absolute minimum.

Like all other pumps in the Boxer range, this series can be customised to specific requirements. The components are produced in a variety of materials providing compatibility with a wide range of applications.

Motor options include iron core, coreless and brushless DC with integrated driver.

› Flow rate to 8.5 l/min
› High flow to size ratio
› Integrated pulsation dampers
› Complete with mounting clips

Flow control is available in combination with PWM Flow Controller or directly via the 0 to 5 V speed input of for the brushless motor version.

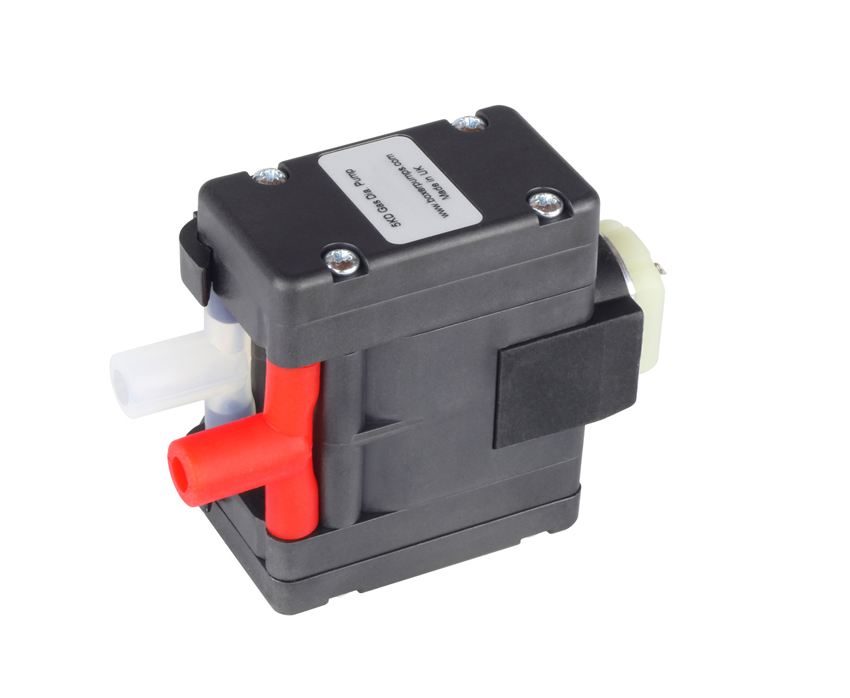

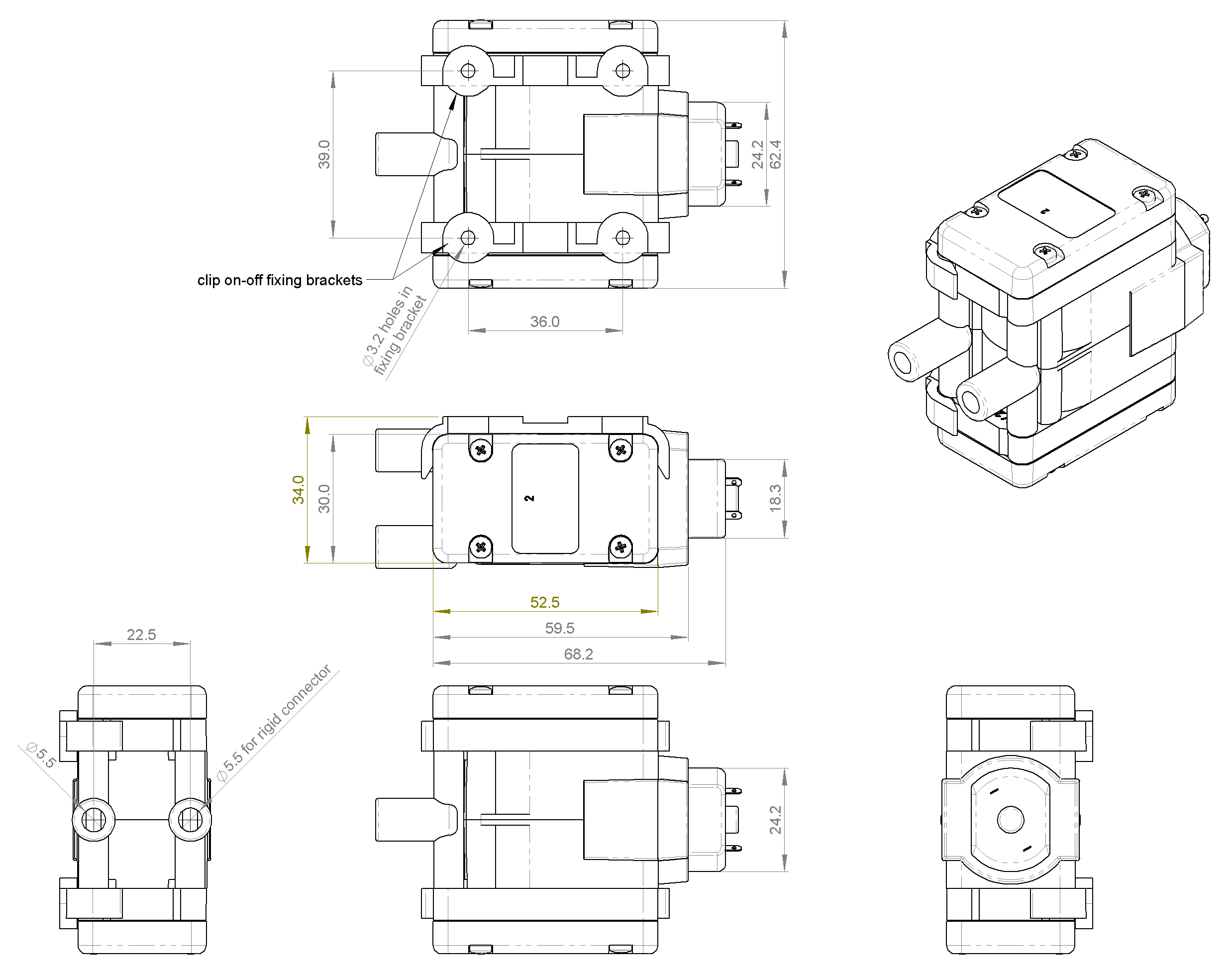

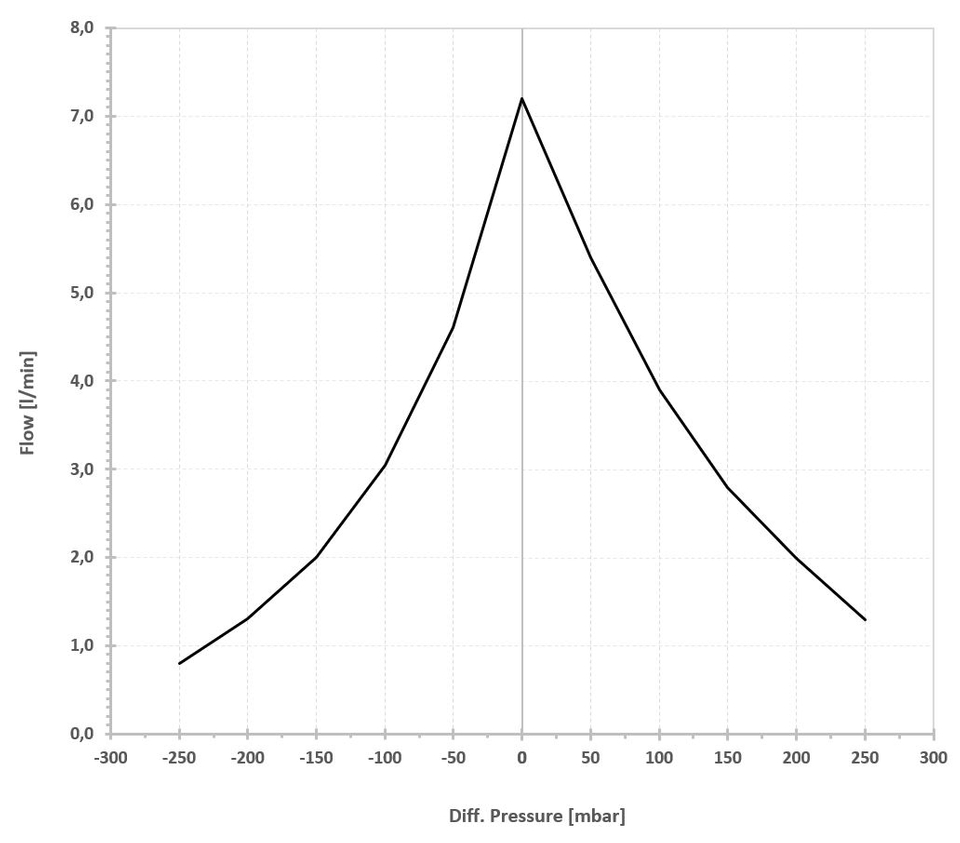

Economic iron core motor option available in 12.0 V.
Free Flow 7.2 l/min
Max Pressure +250 mbar
Max Vacuum -250 mbar

Voltage Options 12 V DC
Power Consumption 2.2 to 5.5 W

Elastomers Options EPDM / Silicone
Other Wetted Parts PPS (polyphenylene sulphide)
Weight 145g

  Full data available in PDF datasheet
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 5322.001
Motor / Voltage: Iron Core -e Motor 12 V
€88.82*

Available, shipping in 1 - 2 days

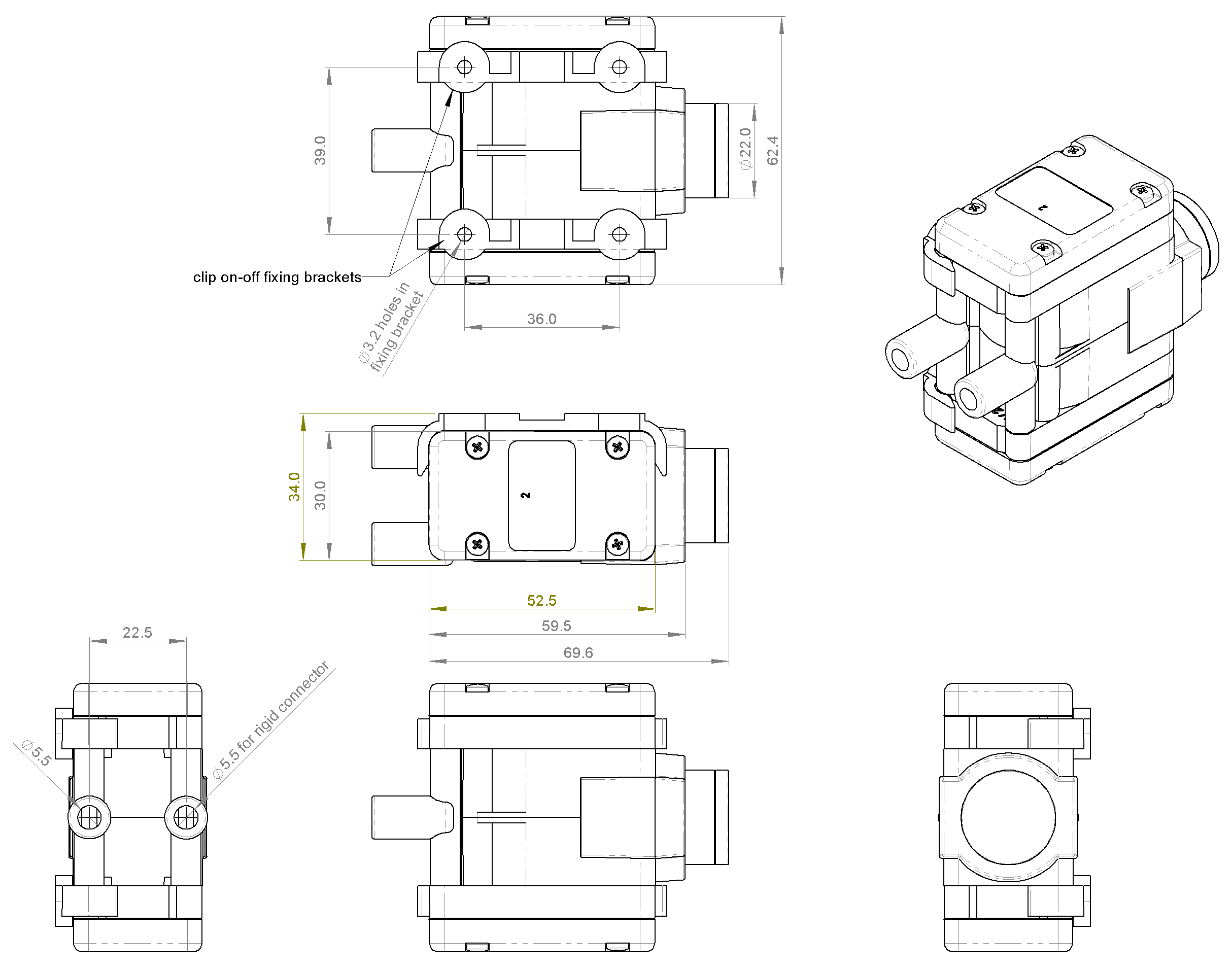

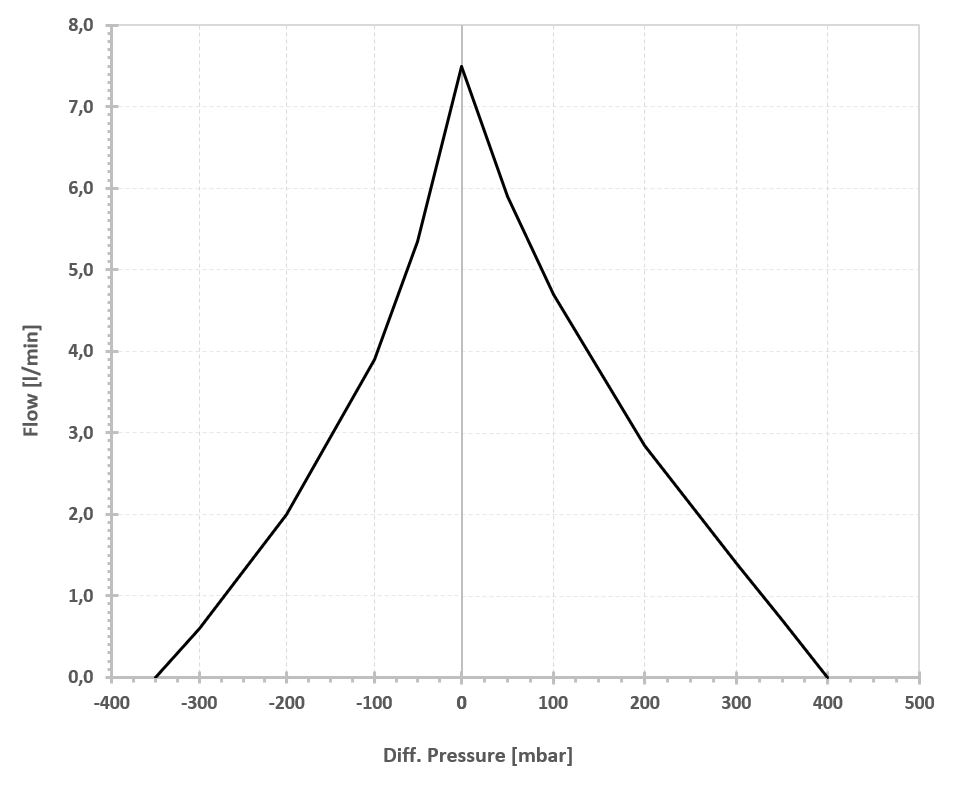

Coreless motor option available in 6.0 V.
Free Flow 7.5 l/min
Max Pressure +400 mbar
Max Vacuum -350 mbar

Voltage Options 6 V DC
Power Consumption 1.5 to 3.2 W

Elastomers Options EPDM / Silicone
Other Wetted Parts PPS (polyphenylene sulphide)
Weight 165g

  Full data available in PDF datasheet
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 5312.003
Motor / Voltage: Coreless Motor 6 V
€188.81*

Available, shipping in 1 - 2 days

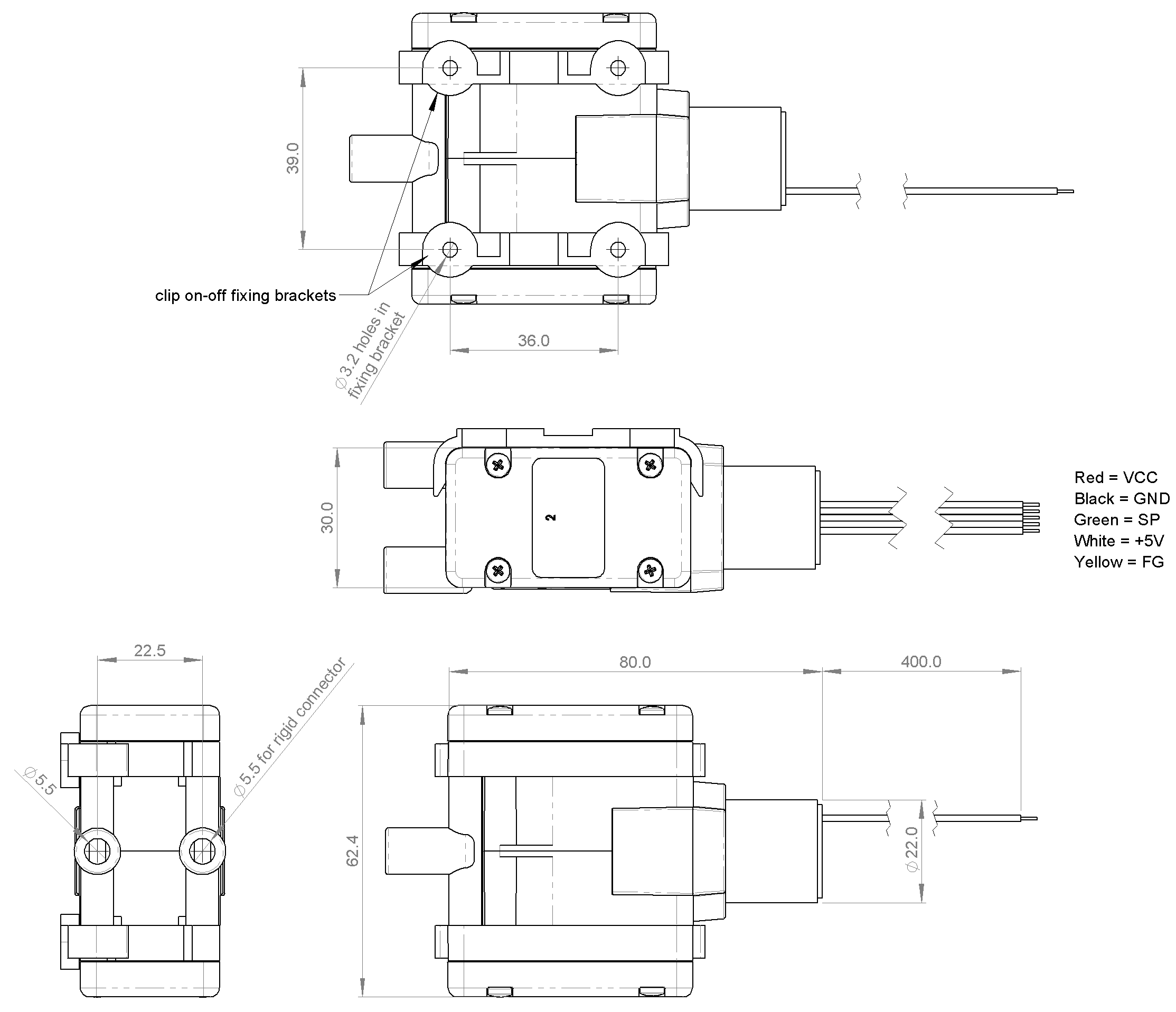

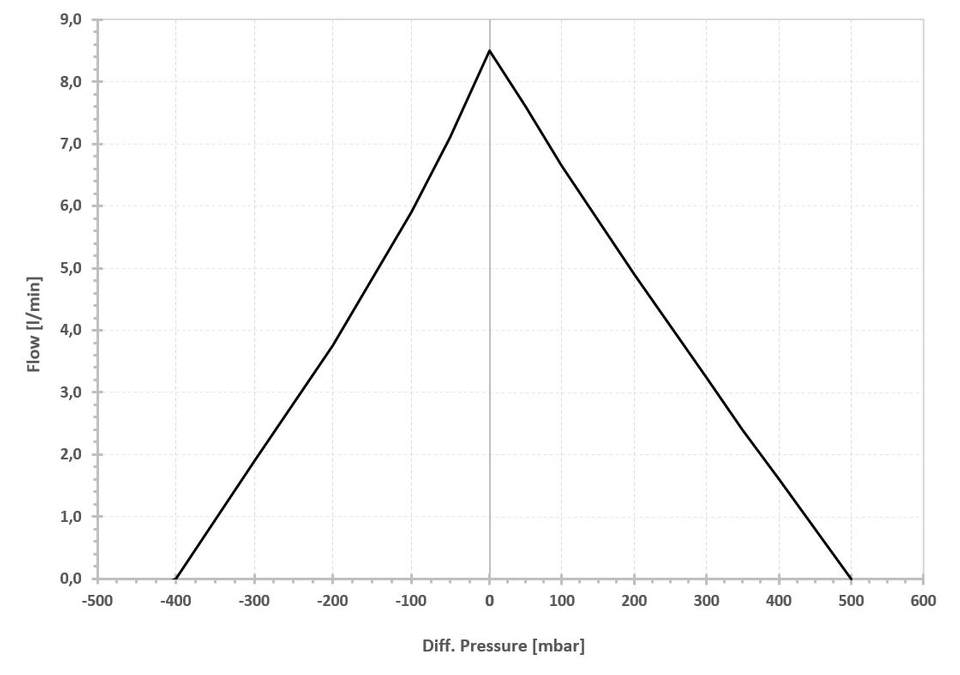

Brushless DC motor in 24 V DC with integrated driver. Long life combined with elegant speed (flow) control via a 0 to 5V DC input, rpm feedback output and a 5 V DC output is for convenient speed control via external potentiometer.
Free Flow 8.5 l/min
Max Pressure +500 mbar
Max Vacuum -400 mbar

Voltage Options 24 V DC
Power Consumption 4.0 to 10.5 W

Elastomers Options EPDM / Silicone
Other Wetted Parts PPS (polyphenylene sulphide)
Weight 165g

  Full data available in PDF datasheet
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 5312.610
Motor / Voltage: Brushless Motor 24 V
€208.88*

Available, shipping in 1 - 2 days
