9QX Series

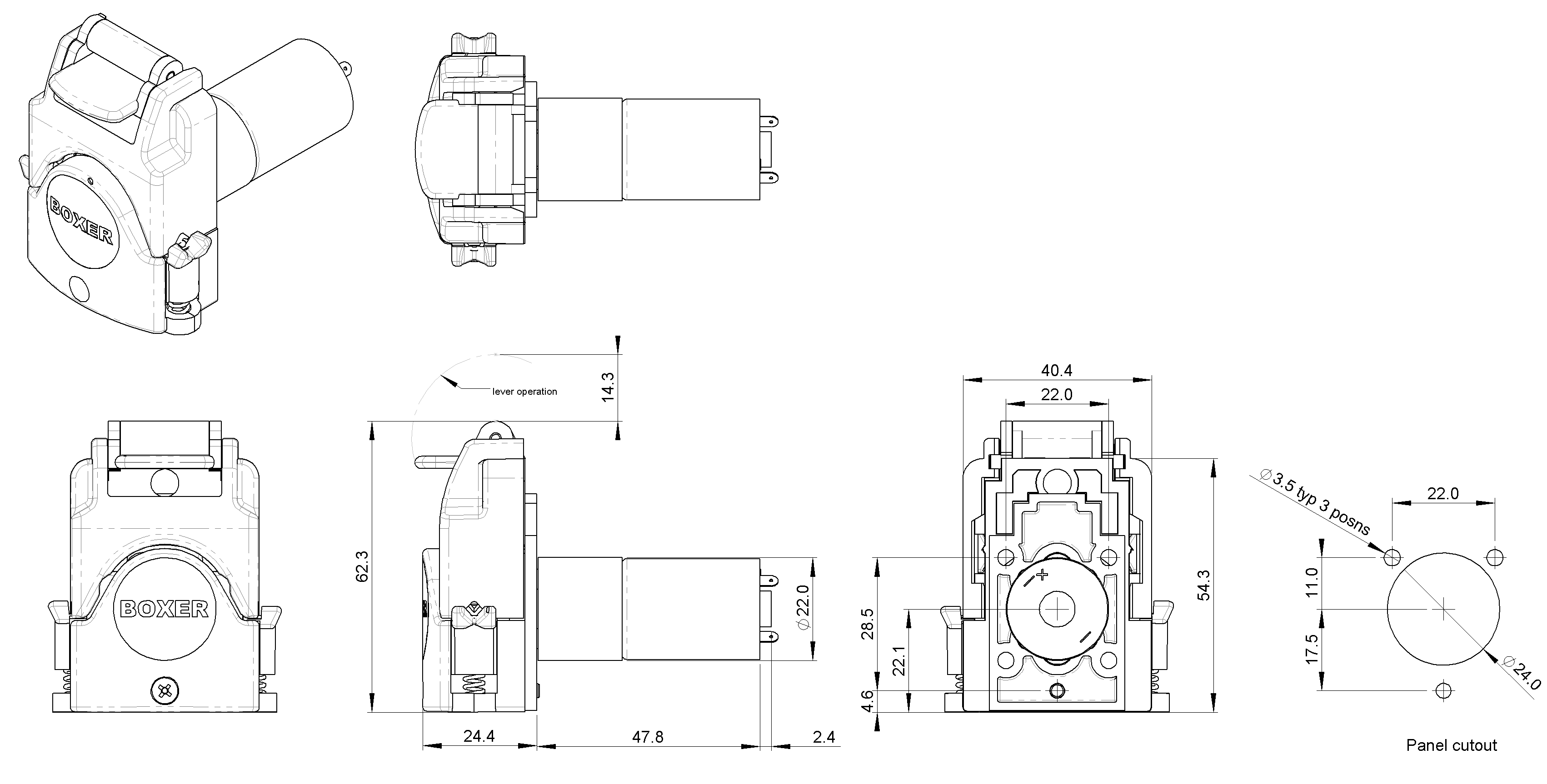

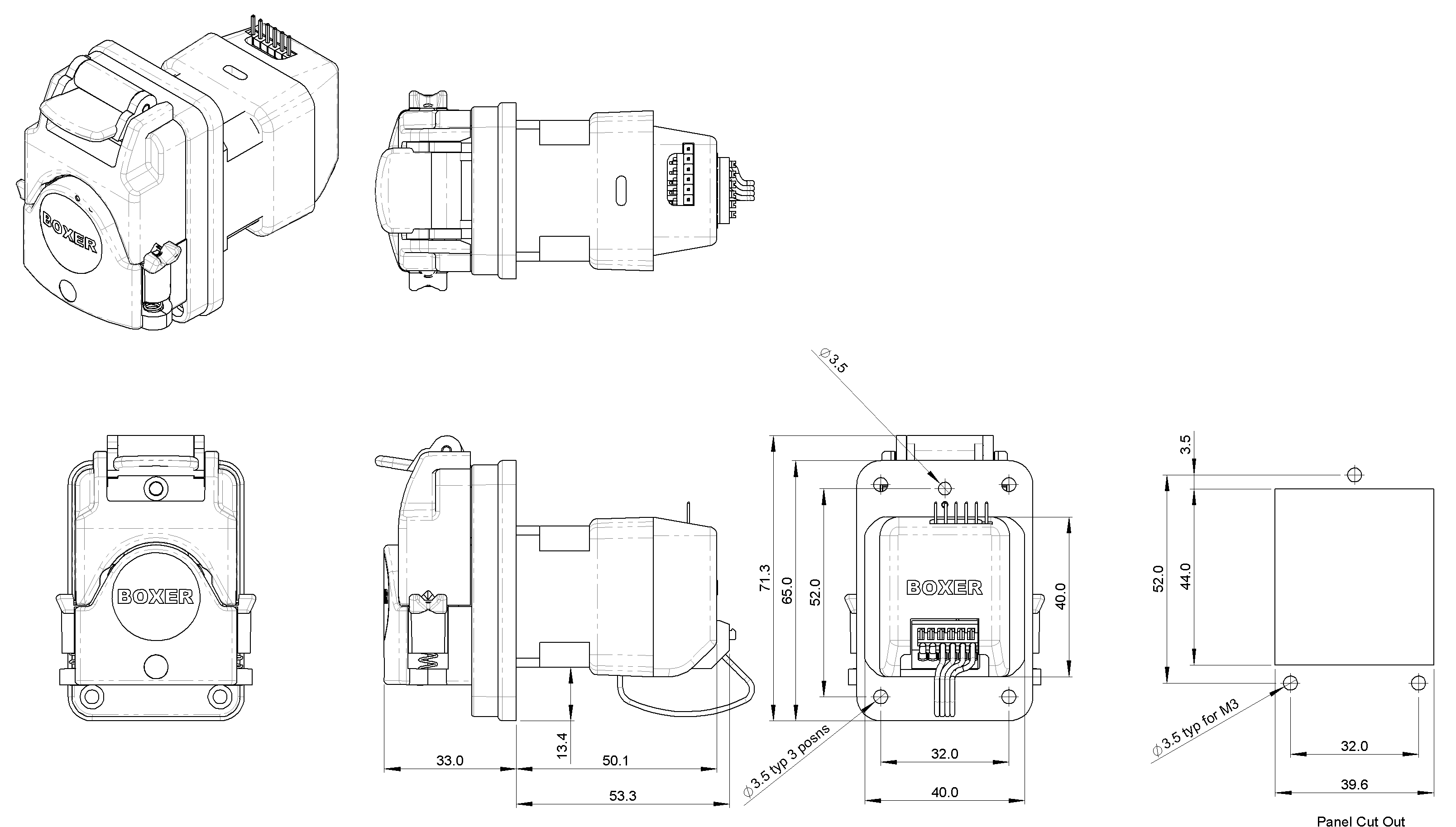

The 9QX is the smallest flip-top peristaltic pump available. With an elegant body design of just 40 x 62 mm (width x height) it stands just 21.5mm (depth) off a panel mount. The flip-top design allows tube loading and unloading with ultimate ease.
This series is the 3rd generation of the highly successful 9K miniature peristaltic pump from Boxer and is designed for accurate dispensing of liquids.

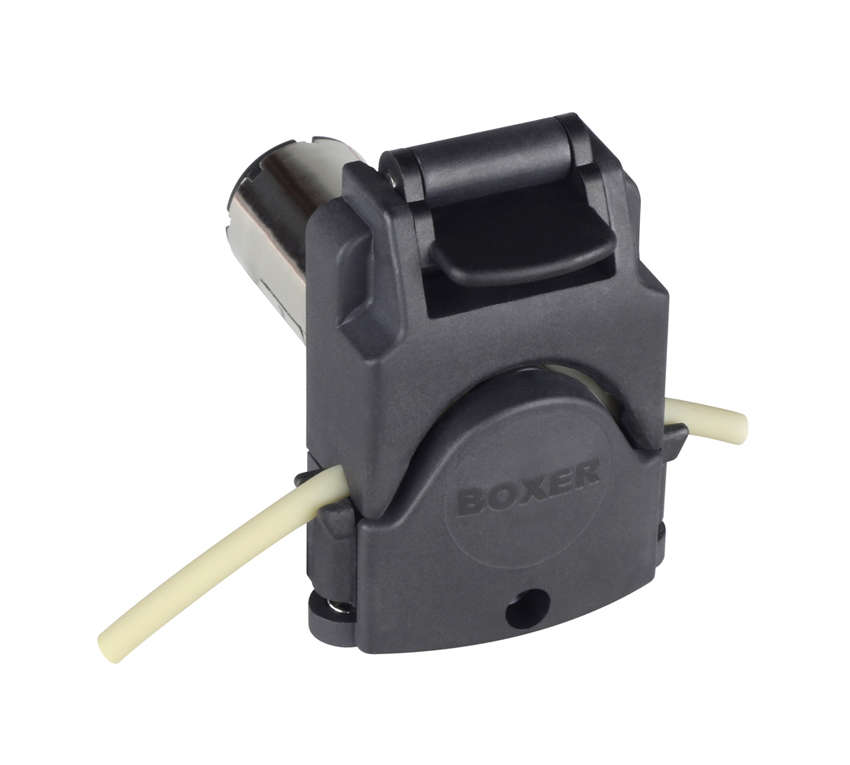

DC / Gear motor versions offer a range of 33 to 520 rpm with optional shaft encoder providing accurate feedback of rotor speed.

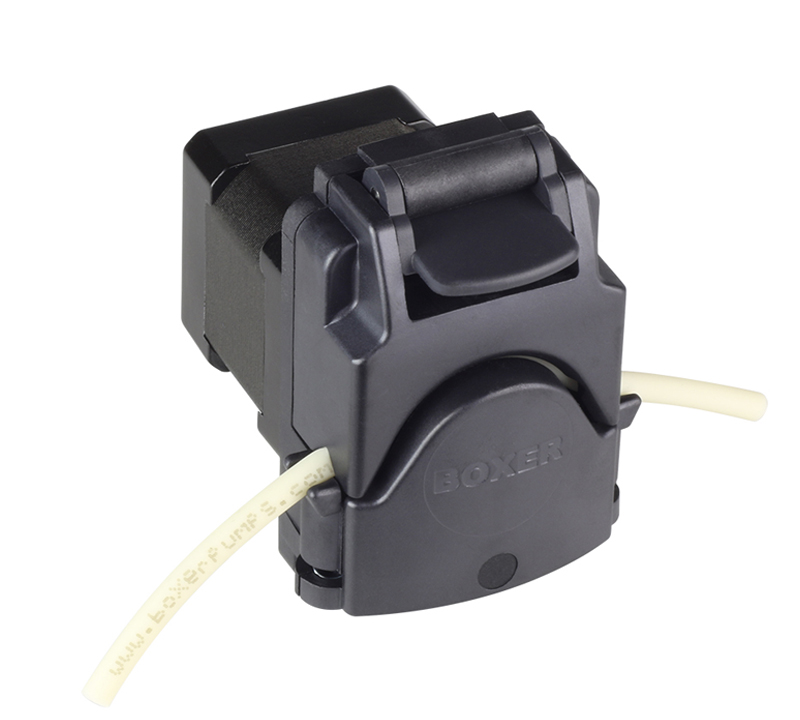

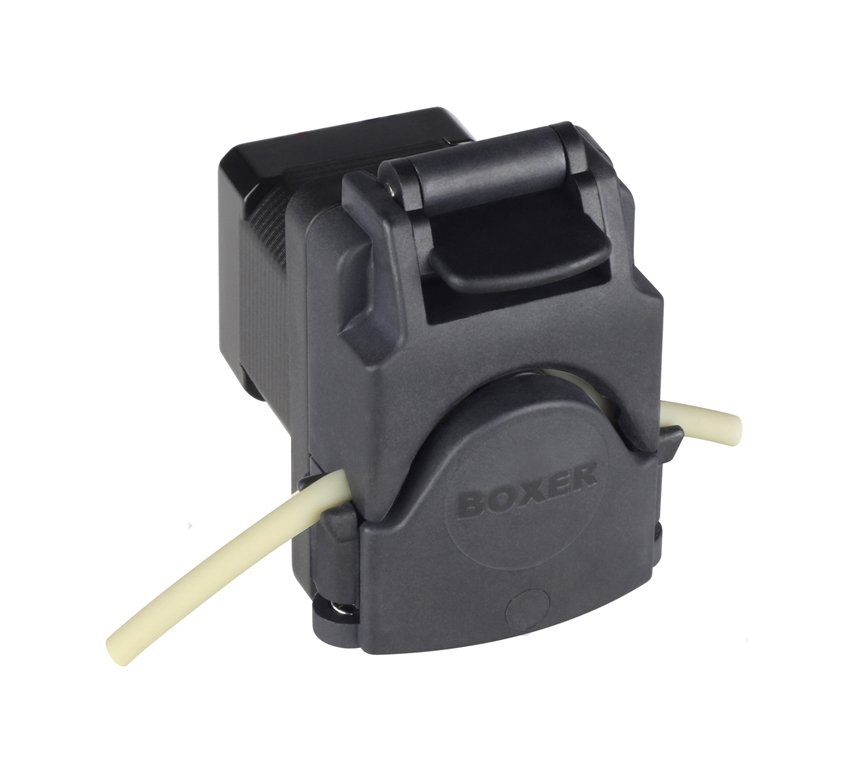

Stepper motors versions offer the versatility of finite speed / flow control with supporting drivers and optional rotor encoder.
› Flow rates from 10 μl to 200 ml/min
› Flip-top design for continuous tube
› Floating saddle for tube life > 2000 hours
› Repeatability to 1% over tube life
› 5 different tube sizes
› 3 , 4 or 6 roller configuration
› Encoder options for feedback of rpm (for DC and Stepper motor versions)

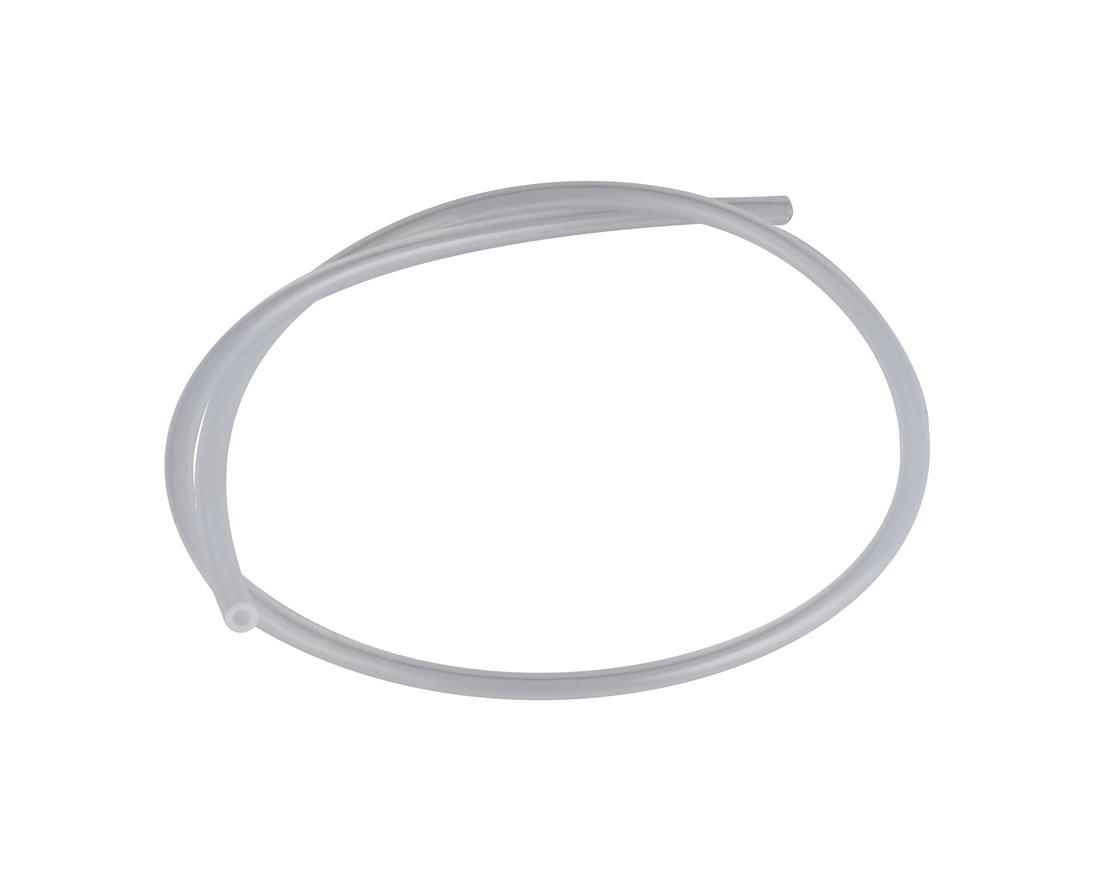

Tubing must always be ordered separately.
Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.
Flow Data | |
ID Ø 0.5 mm tube | 16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller) |
ID Ø 1.0 mm tube | 55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller) |
ID Ø 2.0 mm tube | 190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller) |
ID Ø 3.0 mm tube | 340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller) |
ID Ø 3.5 mm tube | 400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller) |
Available RPMs | |
12 V | 116 / 315 / 520 rpm |
24 V | 33 / 107 / 315 / 520 rpm |
Flow range (per tube ID and number of rollers) | |

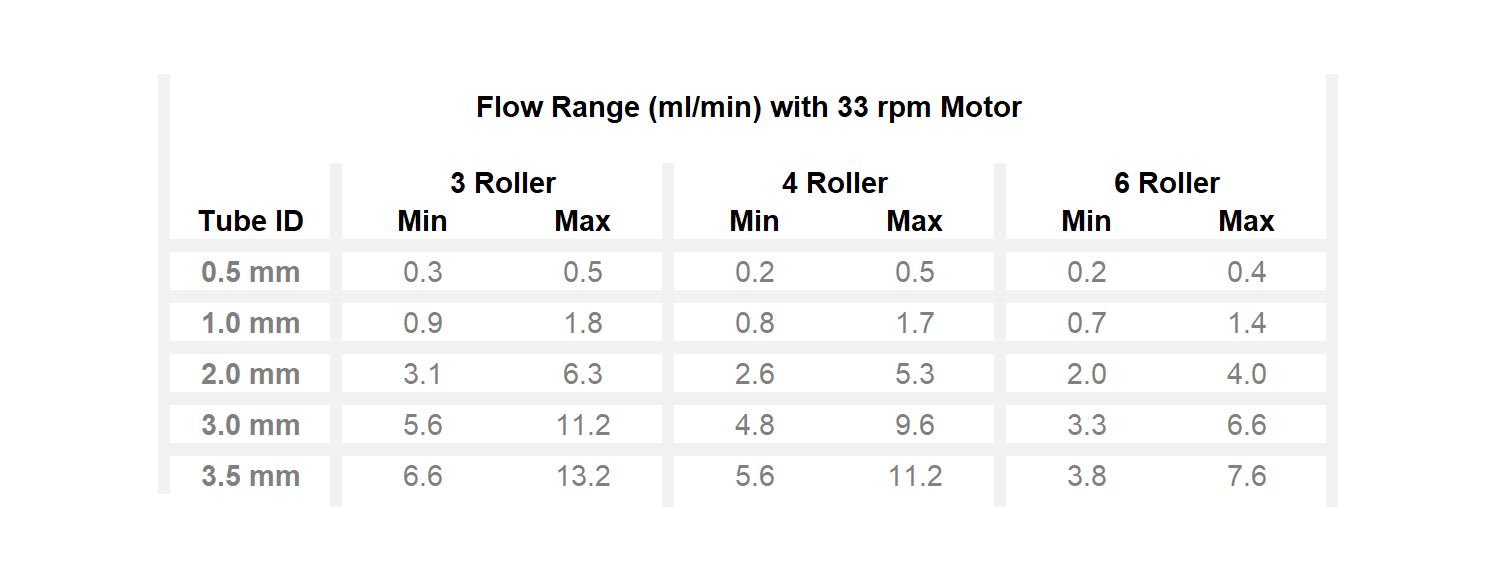

33 rpm | ⇒ 33 rpm flow table |

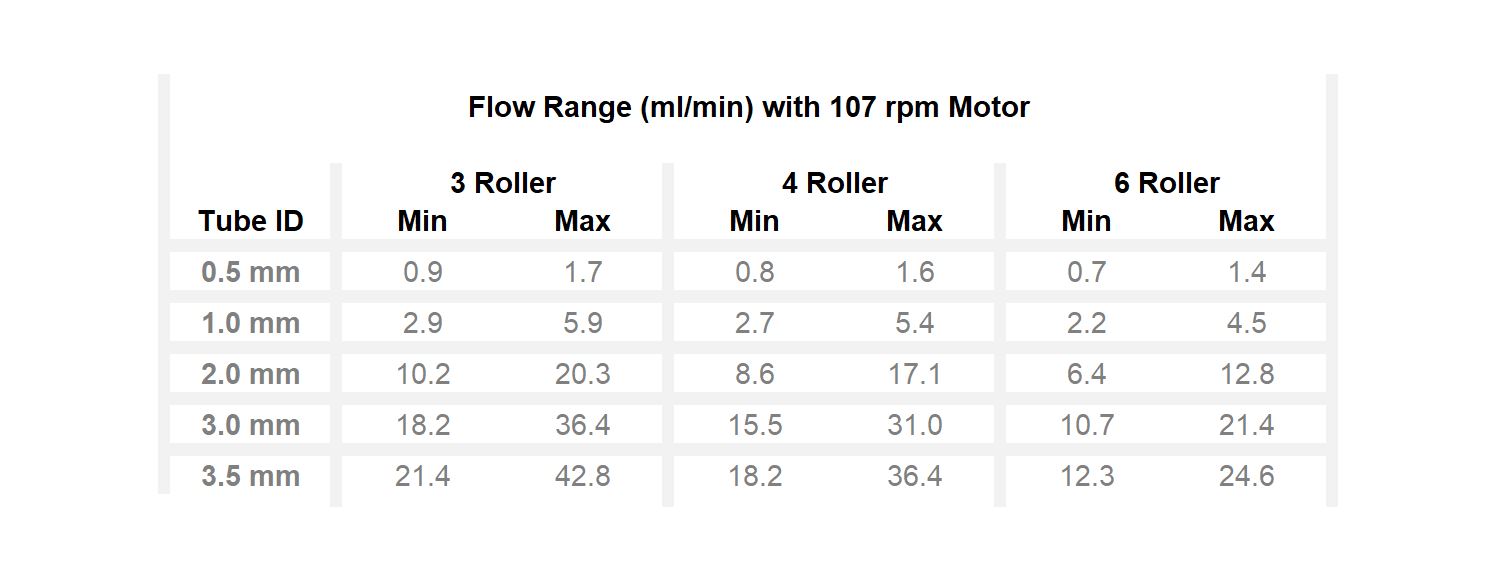

107 rpm | ⇒ 107 rpm flow table |

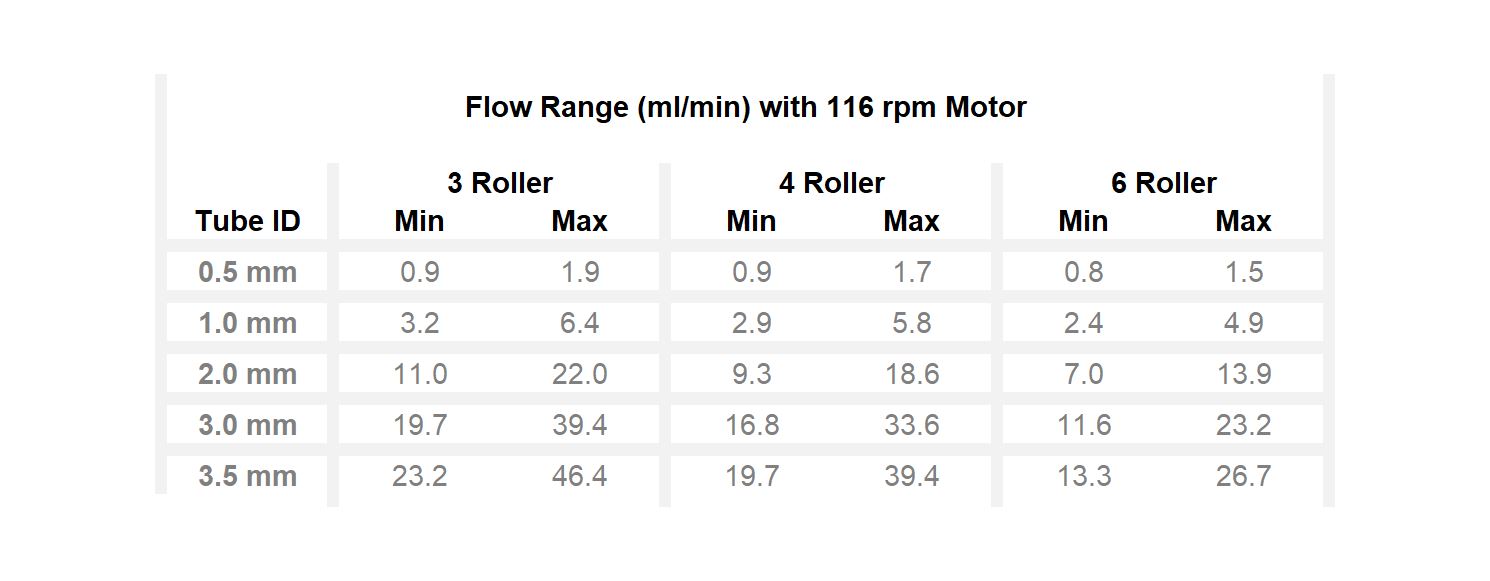

116 rpm | ⇒ 116 rpm flow table |

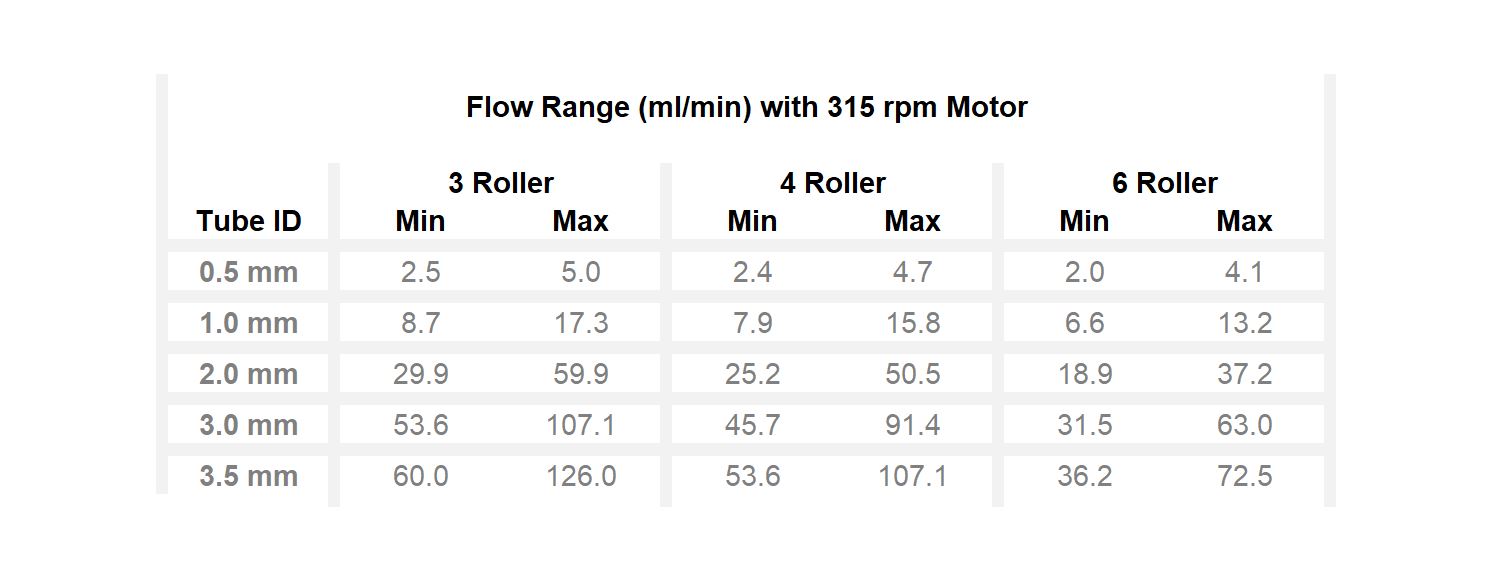

315 rpm | ⇒ 315 rpm flow table |

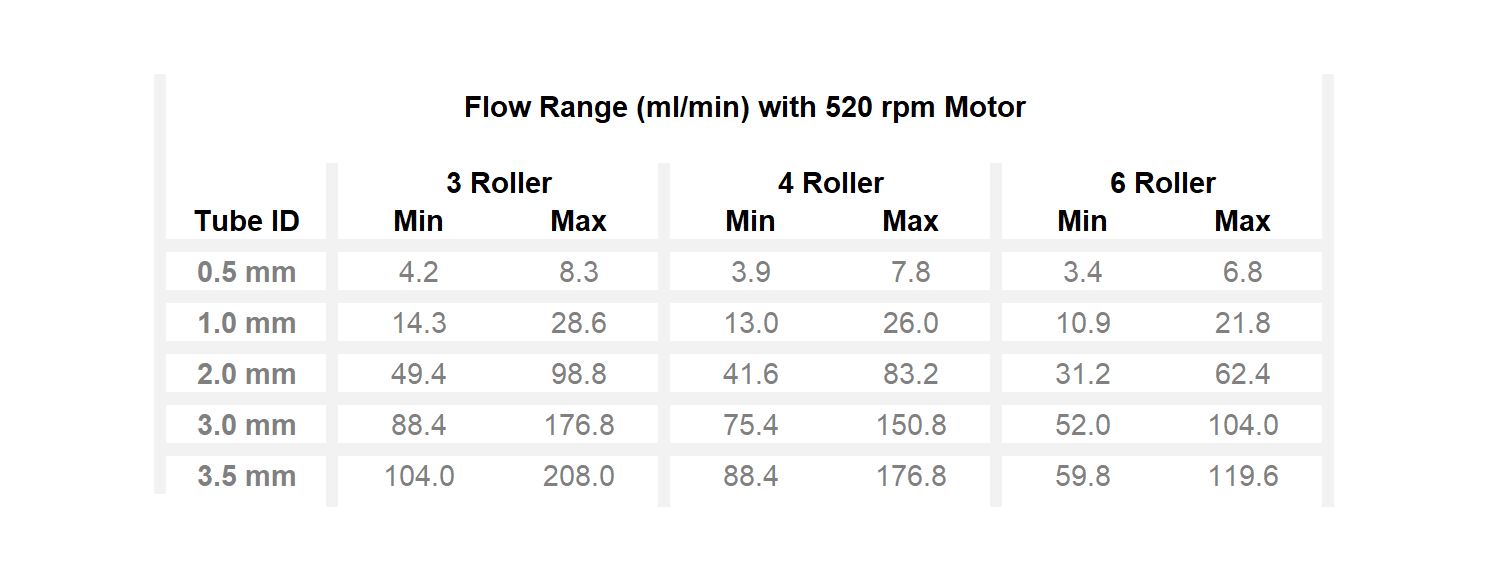

520 rpm | ⇒ 520 rpm flow table |
Min. values are at 50% of nominal voltage | |
Power Consumption | 3.5 to 5.0 W |
Tube Materials | Pharm-a-line / Silicone / Lagoprene / ED-Plex |
Max pressure | 1 bar |
Max vacuum | -950 mbar |
DC motor life | >2000 hour |
Weight | 135 g |
Optional encoder | Hall sensor, 10 pulses per motor revolution |
Corresponding rotor speed depends on gear ratio | |
All data measured with 'run-in' Pharm-a-line tubing and H2O. |


Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Accessories
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days


Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Accessories
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Available, shipping in 1 - 2 days
Flow Data | |
ID Ø 0.5 mm tube | 16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller) |
ID Ø 1.0 mm tube | 55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller) |
ID Ø 2.0 mm tube | 190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller) |
ID Ø 3.0 mm tube | 340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller) |
ID Ø 3.5 mm tube | 400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller) |
RPM | 0 to 500 rpm |
Higher speeds are possible depending upon tube material, tube ID, number of rollers and driving method | |

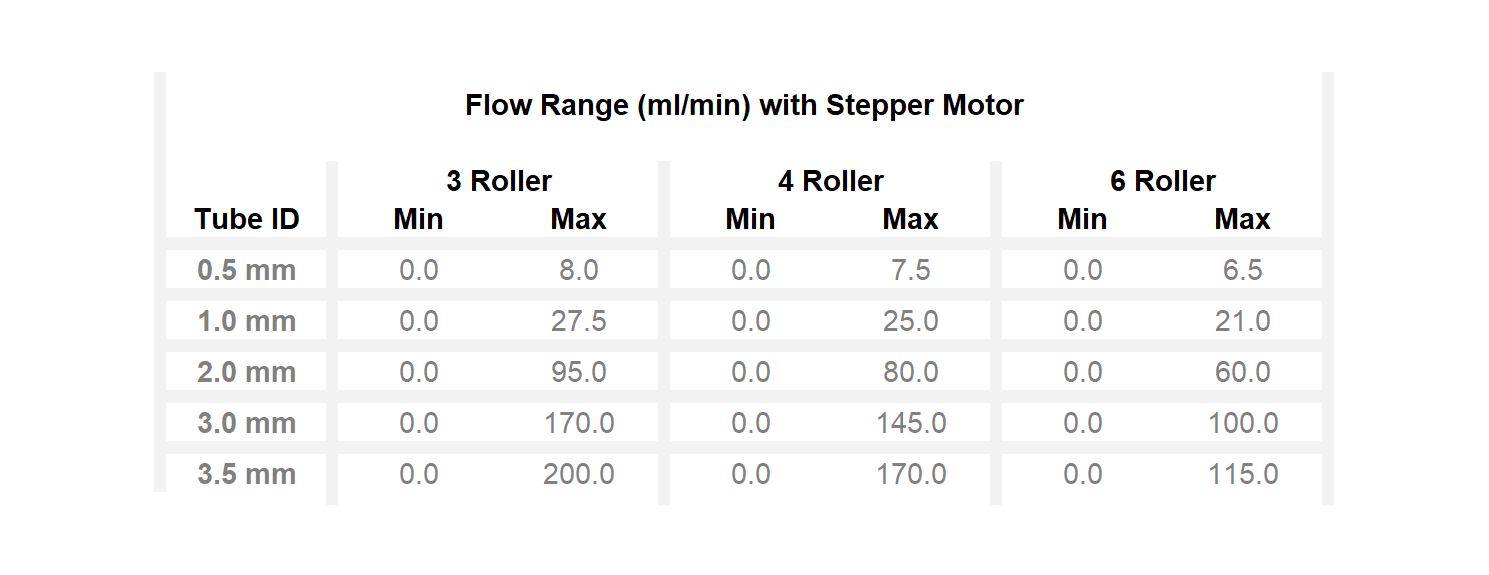

Flow range (per tube ID and number of rollers) | ⇒ 500 rpm flow table |
Power Consumption | ca. 8.0 W |
2 amp driver recommended, current limiter should be used for low speed operation | |
Tube Materials | Pharm-a-line / Silicone / Lagoprene / ED-Plex |
Max pressure | 1 bar |
Max vacuum | -950 mbar |
Motor life | >10000 hour |
Weight | 245 g |
Optional encoder | Reed sensor, contacts close once per rotor revolution |
All data measured with 'run-in' Pharm-a-line tubing and H2O. |
