9QX Series

The 9QX is the smallest flip-top peristaltic pump available. With an elegant body design of just 40 x 62 mm (width x height) it stands just 21.5mm (depth) off a panel mount. The flip-top design allows tube loading and unloading with ultimate ease.

This series is the 3rd generation of the highly successful 9K miniature peristaltic pump from Boxer and is designed for accurate dispensing of liquids.

DC / Gear motor versions offer a range of 33 to 520 rpm with optional shaft encoder providing accurate feedback of rotor speed.

Stepper motors versions offer the versatility of finite speed / flow control with supporting drivers and optional rotor encoder.

› Flow rates from 10 μl to 200 ml/min
› Flip-top design for continuous tube
› Floating saddle for tube life > 2000 hours
› Repeatability to 1% over tube life
› 5 different tube sizes
› 3 , 4 or 6 roller configuration
› Encoder options for feedback of rpm (for DC and Stepper motor versions)


Tubing must always be ordered separately. Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Return to Peristaltic Pumps for Liquid range.

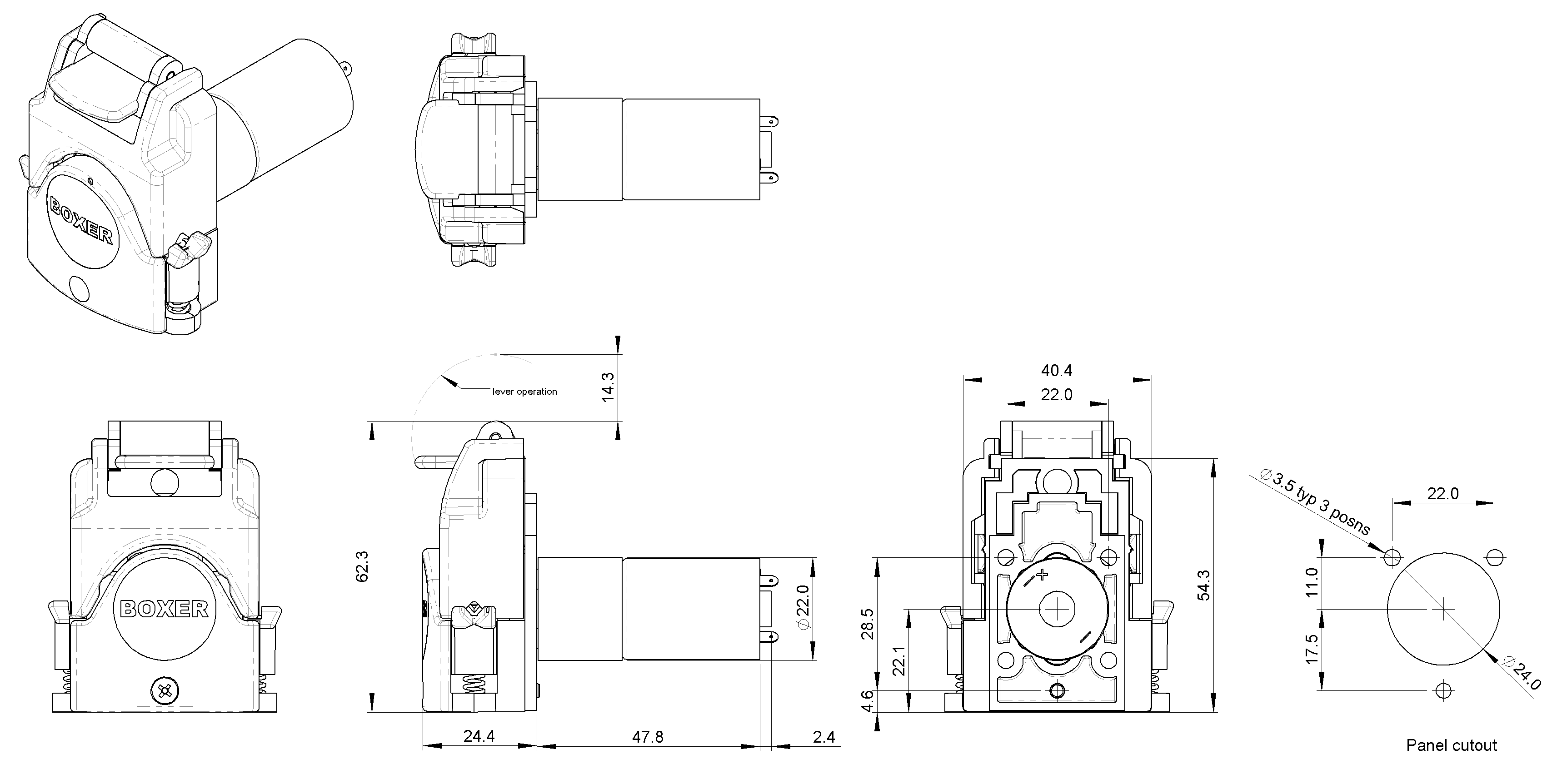

DC / Gear Motor

Economic and versatile. 5 different speeds available in 12 and 24 V.

Available to purchase online via BOX-it (see order information below).

Technical Data

Flow Data
ID Ø 0.5 mm tube 16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller)
ID Ø 1.0 mm tube 55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube 190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube 340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube 400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller)
Available RPMs
12 V 116 / 315 / 520 rpm
24 V 33 / 107 / 315 / 520 rpm
Flow range (per tube ID and number of rollers)
33 rpm ⇒ 33 rpm flow table
107 rpm ⇒ 107 rpm flow table
116 rpm ⇒ 116 rpm flow table
315 rpm ⇒ 315 rpm flow table
520 rpm ⇒ 520 rpm flow table
Min. values are at 50% of nominal voltage
Power Consumption 3.5 to 5.0 W
Tube Materials Pharm-a-line / Silicone / Lagoprene / ED-Plex
Max pressure 1 bar
Max vacuum -950 mbar
DC motor life >2000 hour
Weight 135 g
Optional encoder Hall sensor, 10 pulses per motor revolution
Corresponding rotor speed depends on gear ratio
All data measured with 'run-in' Pharm-a-line tubing and H2O.

Order Information

Part Number:     9010.730     12 V DC     116 RPM     3 Rollers
Part Number:     9022.730     12 V DC     315 RPM     3 Rollers
Part Number:     9007.730     12 V DC     520 RPM     3 Rollers

Part Number:     9016.730     24 V DC       33 RPM     3 Rollers
Part Number:     9012.730     24 V DC     107 RPM     3 Rollers
Part Number:     9008.730     24 V DC     315 RPM     3 Rollers
Part Number:     9015.730     24 V DC     520 RPM     3 Rollers








Stepper Motor

Excellent flow / dosing control. Available in 24 V.

Available to purchase online via BOX-it (see order information below).

Technical Data

Flow Data
ID Ø 0.5 mm tube 16 / 15 / 13 µl per revolution (3 / 4 / 6 Roller)
ID Ø 1.0 mm tube 55 / 50 / 42 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube 190 / 160 / 120 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube 340 / 290 / 200 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube 400 / 340 / 230 µl per revolution (3 / 4 / 6 Roller)
RPM 0 to 500 rpm
Higher speeds are possible depending upon tube material, tube ID, number of rollers and driving method
Flow range (per tube ID and number of rollers) ⇒ 500 rpm flow table
Power Consumption ca. 8.0 W
2 amp driver recommended, current limiter should be used for low speed operation
Tube Materials Pharm-a-line / Silicone / Lagoprene / ED-Plex
Max pressure 1 bar
Max vacuum -950 mbar
Motor life >10000 hour
Weight 245 g
Optional encoder Reed sensor, contacts close once per rotor revolution
All data measured with 'run-in' Pharm-a-line tubing and H2O.

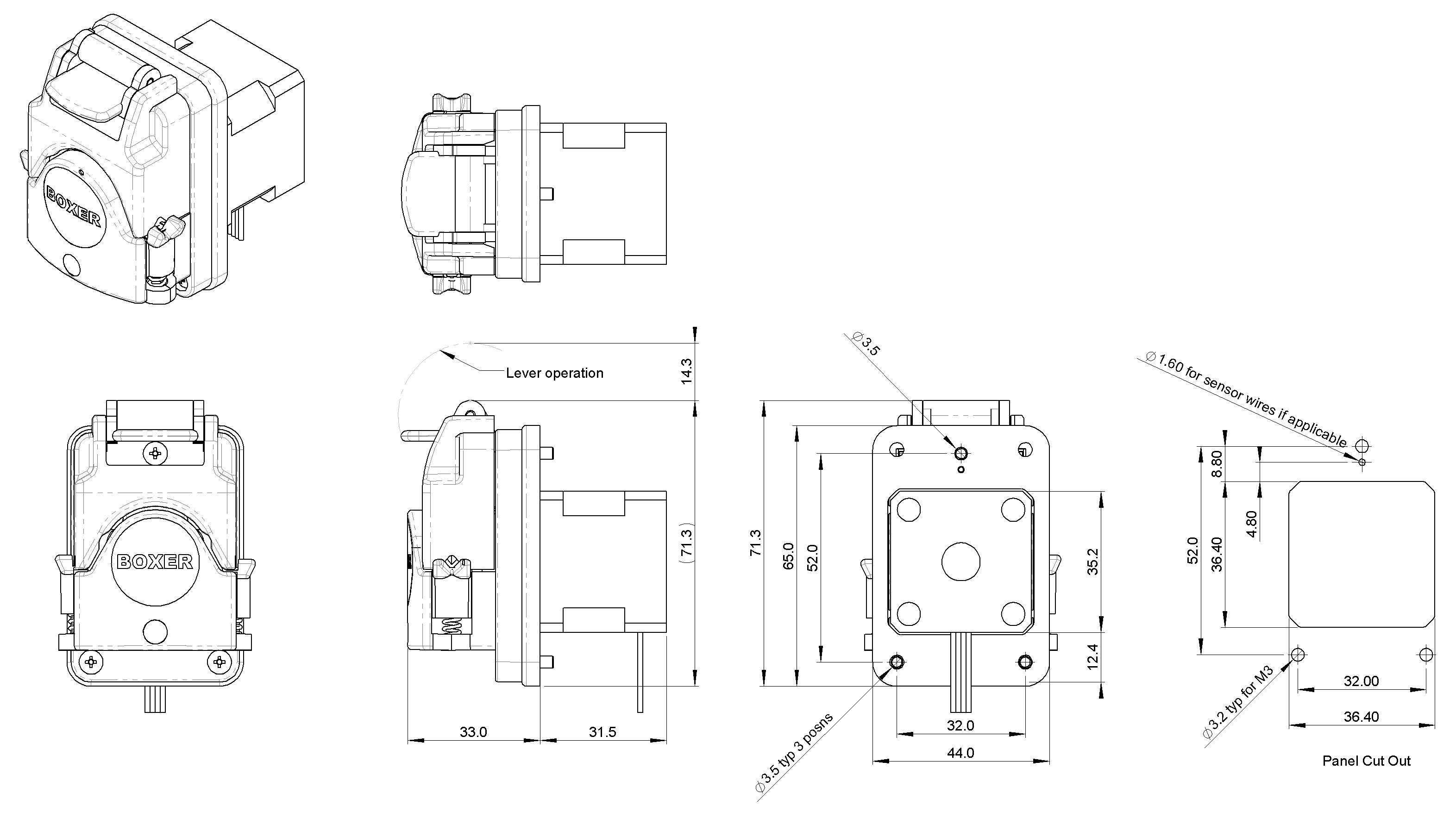

Stepper Motor

Supplied without driver

Order Information

Part Number:     9600.730     24 V Stepper     3 Rollers
Part Number:     9600.740     24 V Stepper     4 Rollers
Part Number:     9600.760     24 V Stepper     6 Rollers

Part Number:     9601.730     24 V Stepper     3 Rollers     Encoder
Part Number:     9601.740     24 V Stepper     4 Rollers     Encoder
Part Number:     9601.760     24 V Stepper     6 Rollers     Encoder

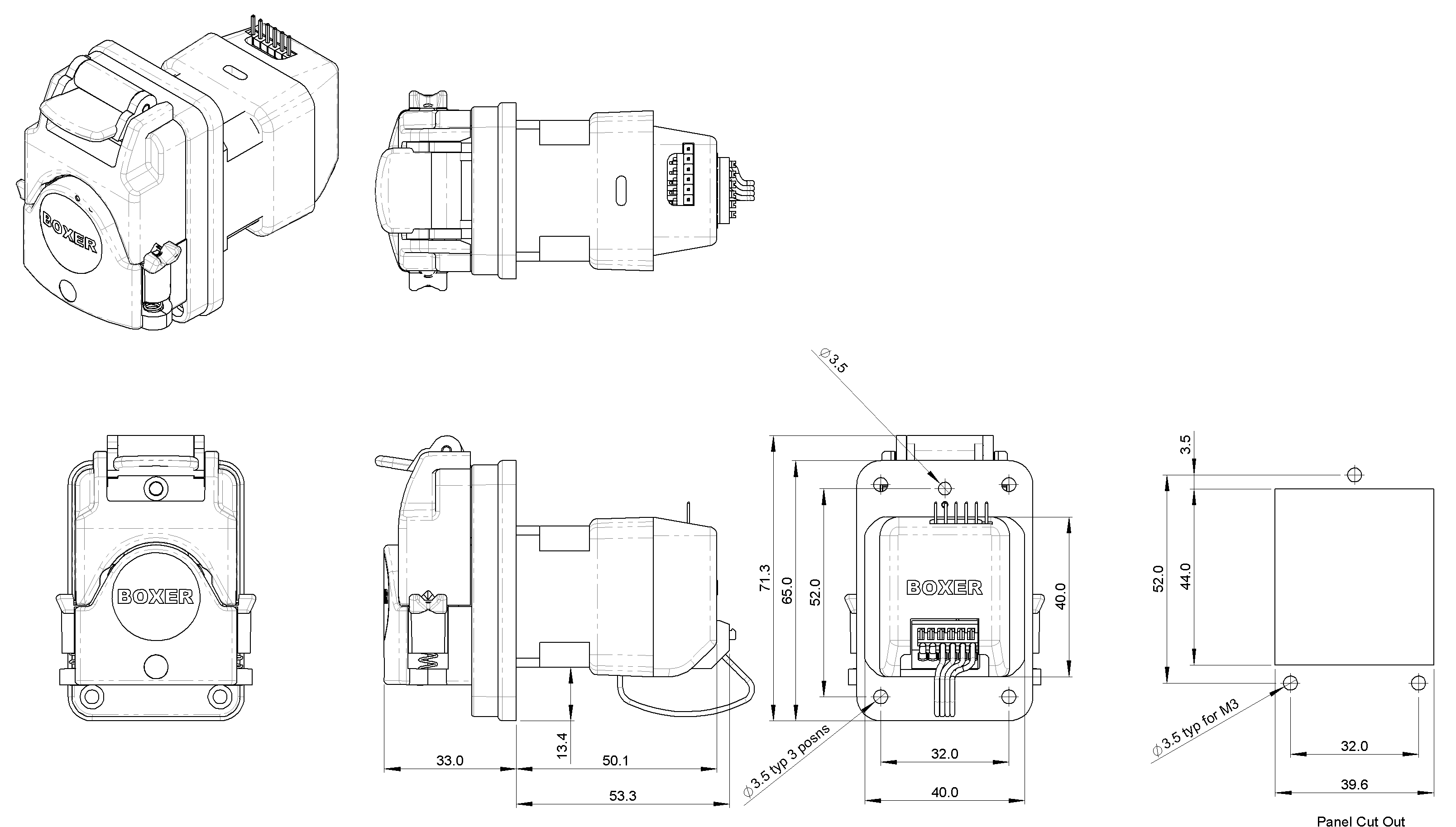

Stepper Motor with Driver

Supplied with Pico 1.4 driver assembled to motor.

Order Information

Part Number:     9660.730     24 V Stepper     3 Rollers     Pico 1.4 Driver
Part Number:     9660.740     24 V Stepper     4 Rollers     Pico 1.4 Driver
Part Number:     9660.760     24 V Stepper     6 Rollers     Pico 1.4 Driver

Part Number:     9661.730     24 V Stepper     3 Rollers     Encoder     Pico 1.4 Driver
Part Number:     9661.740     24 V Stepper     4 Rollers     Encoder     Pico 1.4 Driver
Part Number:     9661.760     24 V Stepper     6 Rollers     Encoder     Pico 1.4 Driver

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use. These products are not suitable for in-vivo applications.
