9K / 9QQ Accessories
Available to purchase online via BOX-it (see order information below).
[Translate to Chinese:]
Tubing
The 9K and 9QQ series are designed to accept either tube sets (shown left) or continuous tube (shown right):

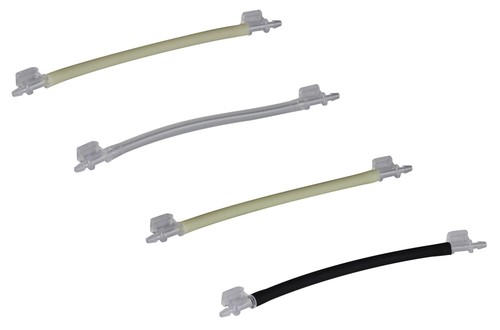

[Translate to Chinese:] Tube sets consists of tube length, tube connectors and tube clips. The set is inserted directly in the cover.
Continuous tube consists of 1m (or multiple of) length of tube and tube clips, which must be ordered separately. Tube clips are inserted in the cover, then the length of tube is pushed into the clips with the loop touching the saddle as shown above.
[Translate to Chinese:]
Material Options
[Translate to Chinese:]

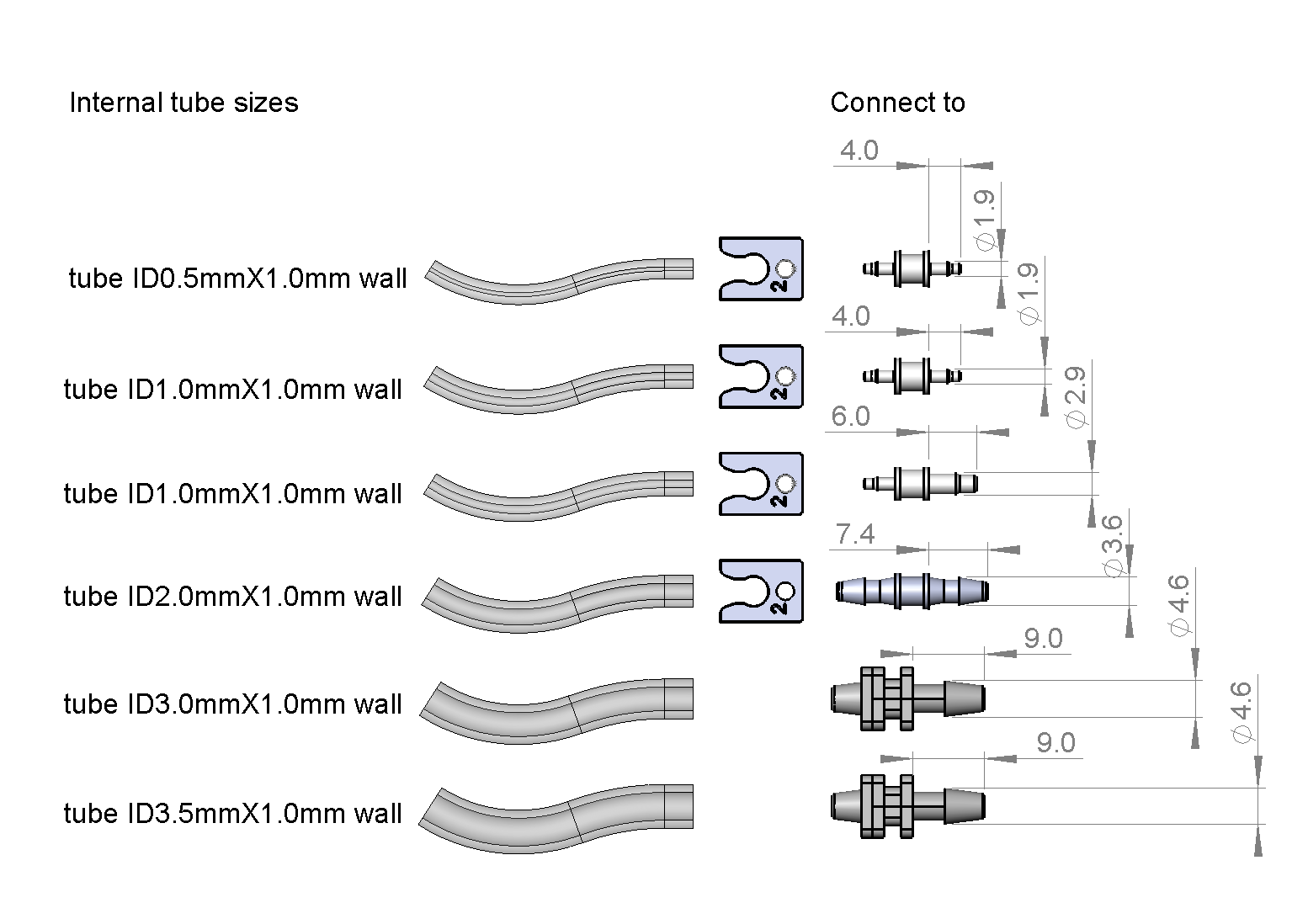

Tube Connectors
The size of the tube connectors vary depending upon the size of the internal tube in the pump.
[Translate to Chinese:] ⇒ Drawing (.png)
[Translate to Chinese:]
Order Information

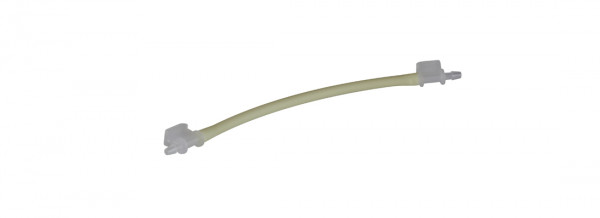

Pharm-a-line
Tube sets:
Part Number: 9000.567 PHI ID Ø 0.5 mm with PP connectors for 0.5 to 1.0mm tubing* ⇒ BOX-it
Part Number: 9000.620 PHI ID Ø 1.0 mm with PP connectors for 0.5 to 1.0 mm tubing*
Part Number: 9000.531 PHI ID Ø 1.0 mm with PP connectors for 1.5 to 2.0 mm tubing* ⇒ BOX-it
Part Number: 9000.532 PHI ID Ø 2.0 mm with PP connectors for 2.0 to 2.5 mm tubing* ⇒ BOX-it
Part Number: 9000.565 PHI ID Ø 3.0 mm with nylon connectors for 3.0 to 3.5 mm tubing* ⇒ BOX-it
Part Number: 9000.544 PHI ID Ø 3.5 mm with nylon connectors for 3.0 to 3.5 mm tubing*
* depends on tube material being used.
0.5mm tubing is suitable for 9QQ only!
Continuous tube:
Part Number: 9000.566 PHI ID Ø 0.5 mm x 1 m (tube clips required, see below) ⇒ BOX-it
Part Number: 9000.535 PHI ID Ø 1.0 mm x 1 m (tube clips required, see below) ⇒ BOX-it
Part Number: 9000.536 PHI ID Ø 2.0 mm x 1 m (tube clips required, see below) ⇒ BOX-it
Part Number: 9000.537 PHI ID Ø 3.0 mm x 1 m (tube clips required, see below) ⇒ BOX-it
Part Number: 9000.547 PHI ID Ø 3.5 mm x 1 m (tube clips required, see below) ⇒ BOX-it
0.5mm tubing is suitable for 9QQ only!
For 15m coils ⇒ Pharm-a-line Tubing

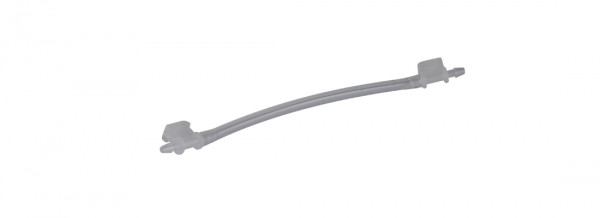

Silicone
Tube sets:
Part Number: 9000.618 Silicone ID Ø 1.0 mm with PP connectors for 0.5 to 1.0 mm tubing*
Part Number: 9000.504 Silicone ID Ø 1.0 mm with PP connectors for 1.5 to 2.0 mm tubing*
Part Number: 9000.505 Silicone ID Ø 2.0 mm with PP connectors for 2.0 to 2.5 mm tubing*
Part Number: 9000.510 Silicone ID Ø 3.0 mm with nylon connectors for 3.0 to 3.5 mm tubing*
* depends on tube material being used
Continuous tube:
Part Number: 9000.507 Silicone ID Ø 1.0 mm x 1 m (tube clips required, see below)
Part Number: 9000.509 Silicone ID Ø 2.0 mm x 1 m (tube clips required, see below)
Part Number: 9000.508 Silicone ID Ø 3.0 mm x 1 m (tube clips required, see below)
All silicone tubing is peroxide or platinum cured.

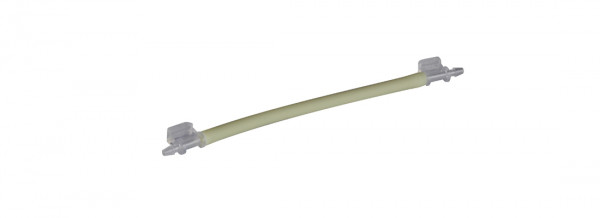

Lagoprene
Tube Sets:
Part Number: 9000.621 Lagoprene ID Ø 1.0 mm with PP connectors for 0.5 to 1.0 mm tubing*
Part Number: 9000.512 Lagoprene ID Ø 1.0 mm with PP connectors for 1.5 to 2.0 mm tubing*
Part Number: 9000.513 Lagoprene ID Ø 2.0 mm with PP connectors for 2.0 to 2.5 mm tubing*
Part Number: 9000.558 Lagoprene ID Ø 3.0 mm with nylon connectors for 3.0 to 3.5 mm tubing*
* depends on tube material being used
Continuous tube:
Part Number: 9000.521 Lagoprene ID Ø 1.0 mm x 1 m (tube clips required, see below)
Part Number: 9000.506 Lagoprene ID Ø 2.0 mm x 1 m (tube clips required, see below)
Part Number: 9000.564 Lagoprene ID Ø 3.0 mm x 1 m (tube clips required, see below)

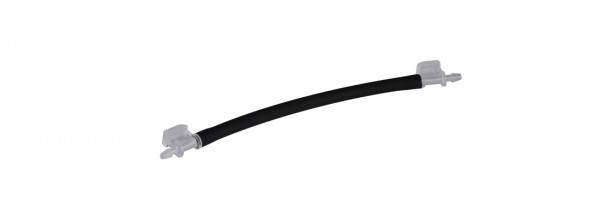

ED-Plex
Tube sets:
Part Number: 9000.619 ED-Plex ID Ø 1.0 mm with PP connectors for 0.5 to 1.0 mm tubing*
Part Number: 9000.525 ED-Plex ID Ø 1.0 mm with PP connectors for 1.5 to 2.0 mm tubing*
Part Number: 9000.526 ED-Plex ID Ø 2.0 mm with PP connectors for 2.0 to 2.5 mm tubing*
Part Number: 9000.520 ED-Plex ID Ø 3.0 mm with nylon connectors for 3.0 to 3.5 mm tubing*
* depends on tube material being used
Continuous tube:
Part Number: 9000.522 ED-Plex ID Ø 1.0 mm x 1 m (tube clips required, see below)
Part Number: 9000.523 ED-Plex ID Ø 2.0 mm x 1 m (tube clips required, see below)
Part Number: 9000.524 ED-Plex ID Ø 3.0 mm x 1 m (tube clips required, see below)
[Translate to Chinese:]
Tube Clips
Tube clips are required for the continuous tube configuration.
[Translate to Chinese:]
Order Information
Part Number: 9000.601 Tube clip for 0.5 and 1mm continuous tube, set of 2 ⇒ BOX-it
Part Number: 9000.616 Double tube clip for 1mm continuous tube, set of 2 ⇒ BOX-it
Part Number: 9000.602 Tube clip for 2mm continuous tube, set of 2 ⇒ BOX-it
Part Number: 9000.603 Tube clip for 3 and 3.5 mm continuous tube, set of 2 ⇒ BOX-it
[Translate to Chinese:]
Encoders
The DC / Gear motor versions are available with a back shaft encoder.
[Translate to Chinese:] The output is 10 pulses per motor revolution. Number of pulses per pump revolution will depend upon the gear ratio of the motor.
The time delayed secound output (HA and HB) allows rotation direction detection.
[Translate to Chinese:] The 10 cm of ribbon cable is terminated by a PHR-6 2.0mm pitch JST conector.
Pin 1 = Motor GND
Pin 2 = Motor +V (red)
Pin 3 = Vcc
Pin 4 = GND
Pin 5 = Output HA
Pin 6 = Output HB
[Translate to Chinese:]
Order Information
All encoders are supplied mounted on the rear end of the motor. Please enquire for part numbers of pumps including encoder.
[Translate to Chinese:]
Mounting Bracket
Optional mounting bracket (for DC / Gear version only)
[Translate to Chinese:] ⇒ drawing pdf
[Translate to Chinese:]
Order Information
Part Number: 9000.613
