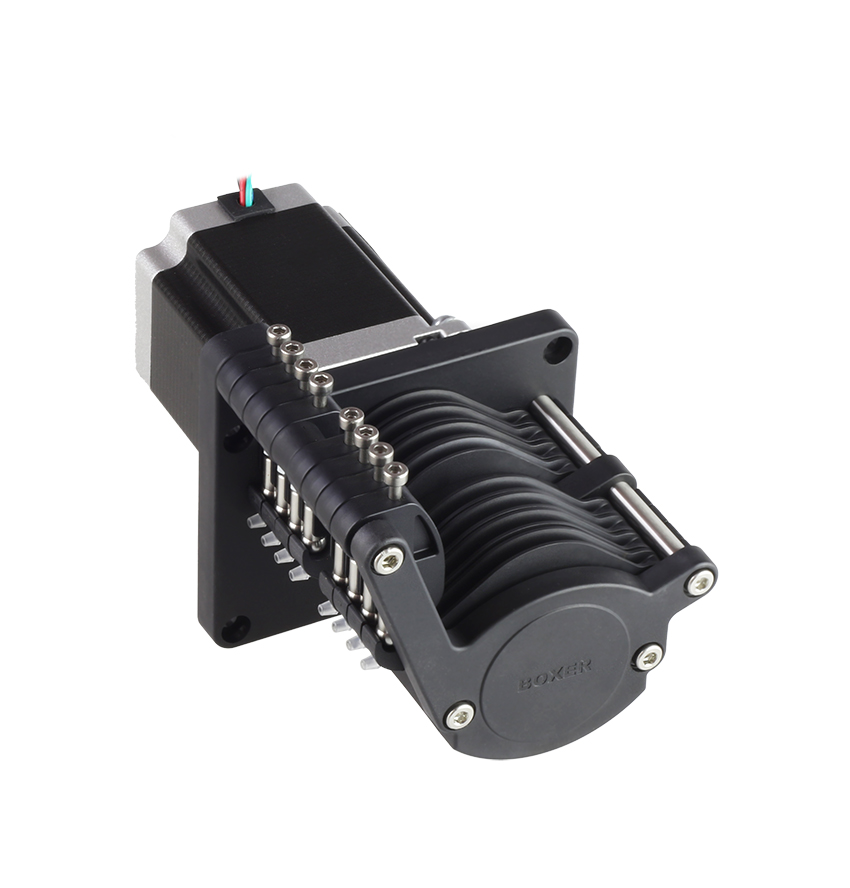

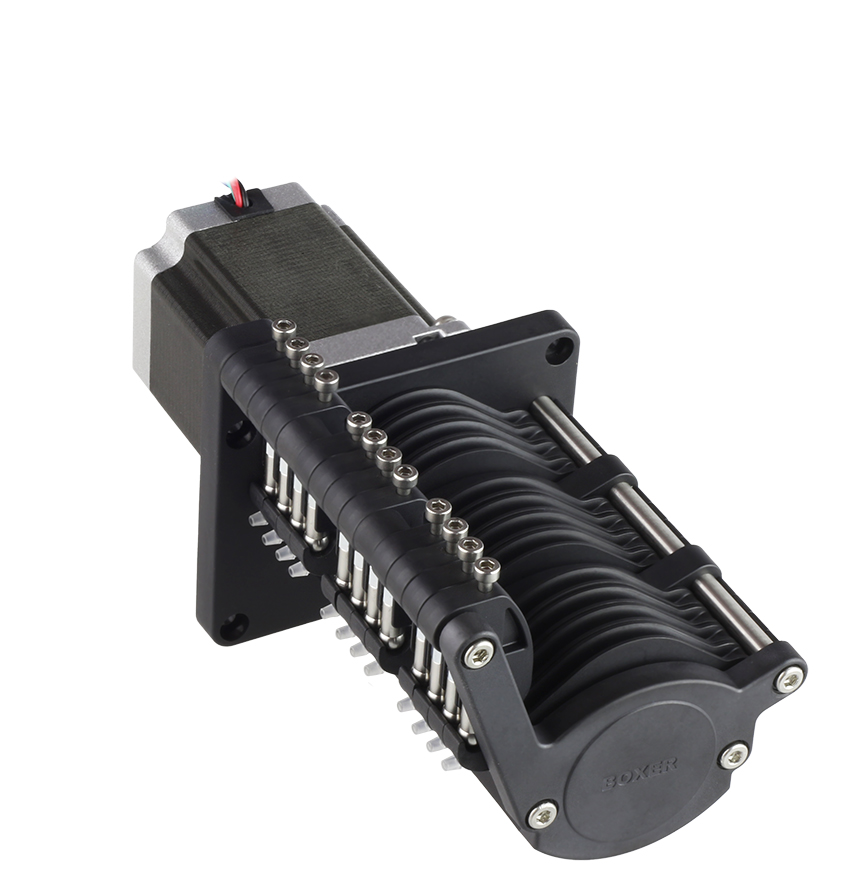

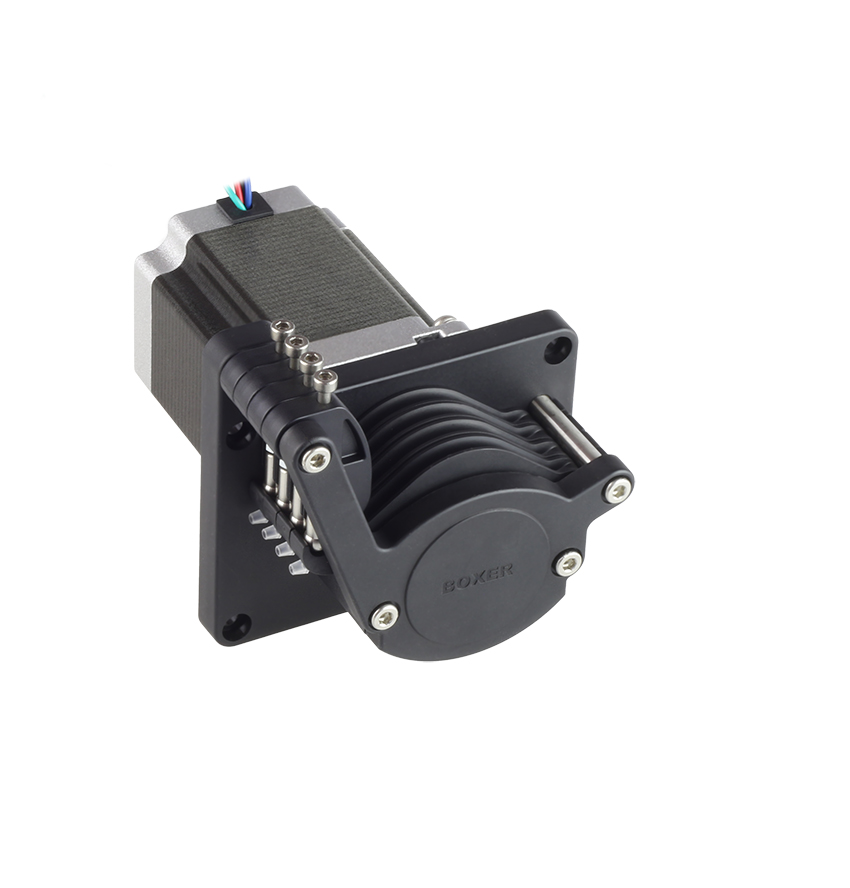

6K-600 Series

The 6K-600 is the new multichannel peristaltic pump series from Boxer. It offers 1 to 12 channel configurations, high accuracy between channels and flow to 46.5 ml/min per channel. Quality components are used throughout the design including each roller supported by miniature ball bearings and robust glass reinforced PPS injection moulded parts to ensure long and reliable operation. The pump is driven by a high torque 24 V stepper motor providing exceptional flow control with options for fully assembled drivers.

Features:
› Flow to 46.5 ml/min per channel
› High accuracy channel to channel
› 1 to 12 channels
› 4 or 8 roller configurations
› Suitable for 1.0 mm wall tubing with an ID of 0.5, 1.0 or 2.0 mm
› Occlusion adjustment per channel
› Speed sensor option
› Tube sets available in 4 materials

The pumps are supplied complete with saddles, however tube sets should be ordered separately. Blanking clamps can be purchased if an individual channel is not required. Spare saddles are also available. Full order information is also shown in section 6 of the PDF datasheets.

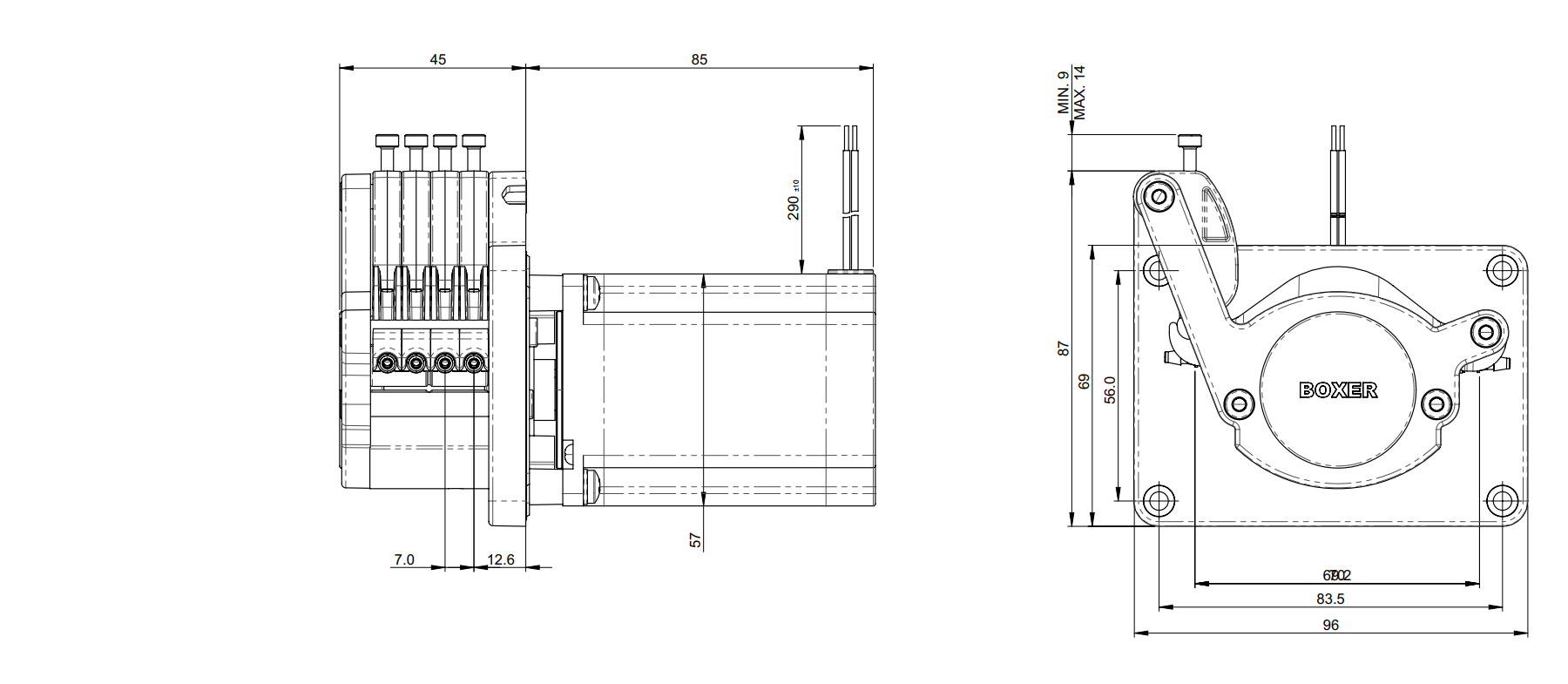

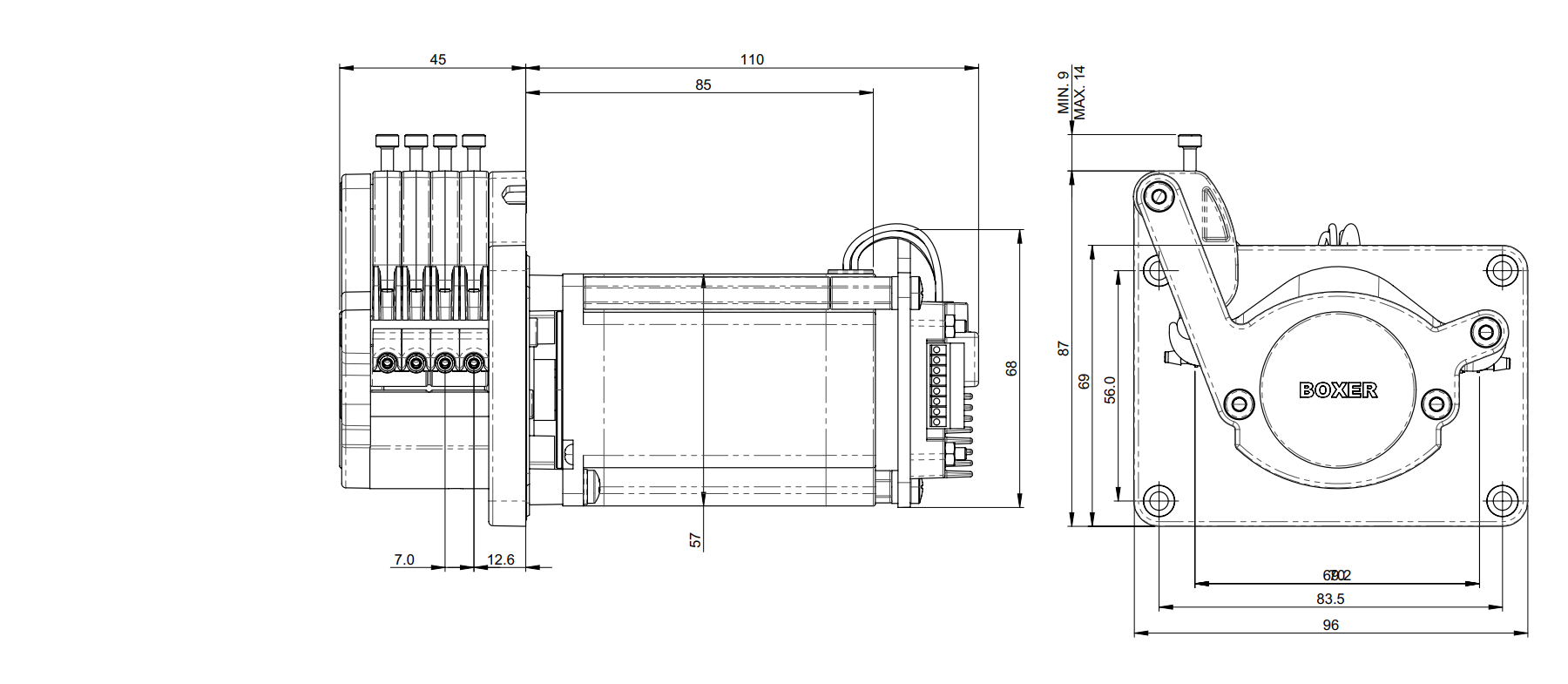

4 Channel with 24 V Stepper Motor

Tube Size (ID) mm	Flow per Revolution (µl)	Flow at 100 rpm (ml / min)	Flow at 200 rpm (ml / min)
	Rollers: 4 / 8	Rollers: 4 / 8	Rollers: 4 / 8

∅ 0.5 mm tube	18 / 14	1.8 / 1.4	3.7 / 2.9
∅ 1.0 mm tube	64 / 44	6.4 / 4.4	12.9 / 8.9
∅ 2.0 mm tube	232 / 143	23.2 / 14.3	46.5 / 28.6

Tube Materials		Innovaprene / Innovasil (Silicone) / Lagoprene / ED-Plex


Driver Options
A4		Analogue / PWM / Direction / Mounted directly on motor

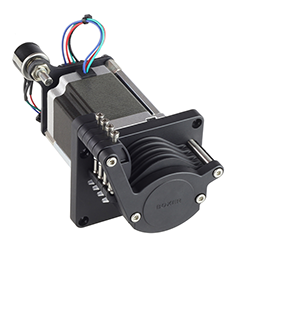

A4p		As A4 with additional 10 turn speed potentiometer
iDs		Digital driver / LCD display / Mounted directly on Motor

Sensor Options
Speed Sensor		Micro reed switch, contacts close once per revolution

General Data
Max Pressure			1.0 bar
Max Suctuion Height			9.0 m H20
Power Consumption			7.0 to 30 W
Weight			1.3 kg (without driver / encoder)

			Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6614.100

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: no | Speed Sensor Option: no

€336.22*

Available, shipping in 1 - 2 days

Part Number: 6618.100

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: no | Speed Sensor Option: no

€398.49*

Available, shipping in 1 - 2 days

Part Number: 6614.110

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: no | Speed Sensor Option: yes

€372.07*

Available, shipping in 1 - 2 days

Part Number: 6618.110

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: no | Speed Sensor Option: yes

€434.34*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6614.101

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: A4 | Speed Sensor Option: no

€483.74*

Available, shipping in 1 - 2 days

Part Number: 6618.101

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: A4 | Speed Sensor Option: no

€546.01*

Available, shipping in 1 - 2 days

Part Number: 6614.111

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: A4 | Speed Sensor Option: yes

€519.59*

Available, shipping in 1 - 2 days

Part Number: 6618.111

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: A4 | Speed Sensor Option: yes

€581.86*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6614.102

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: A4p | Speed Sensor Option: no

€511.38*

Available, shipping in 1 - 2 days

Part Number: 6618.102

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: A4p | Speed Sensor Option: no

€573.65*

Available, shipping in 1 - 2 days

Part Number: 6614.112

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: A4p | Speed Sensor Option: yes

€547.23*

Available, shipping in 1 - 2 days

Part Number: 6618.112

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: A4p | Speed Sensor Option: yes

€609.50*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6614.103

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: iD | Speed Sensor Option: no

€557.46*

Available, shipping in 1 - 2 days

Part Number: 6618.103

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: iD | Speed Sensor Option: no

€619.73*

Available, shipping in 1 - 2 days

Part Number: 6614.113

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: iD | Speed Sensor Option: yes

€593.31*

Available, shipping in 1 - 2 days

Part Number: 6618.113

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: iD | Speed Sensor Option: yes

€655.58*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

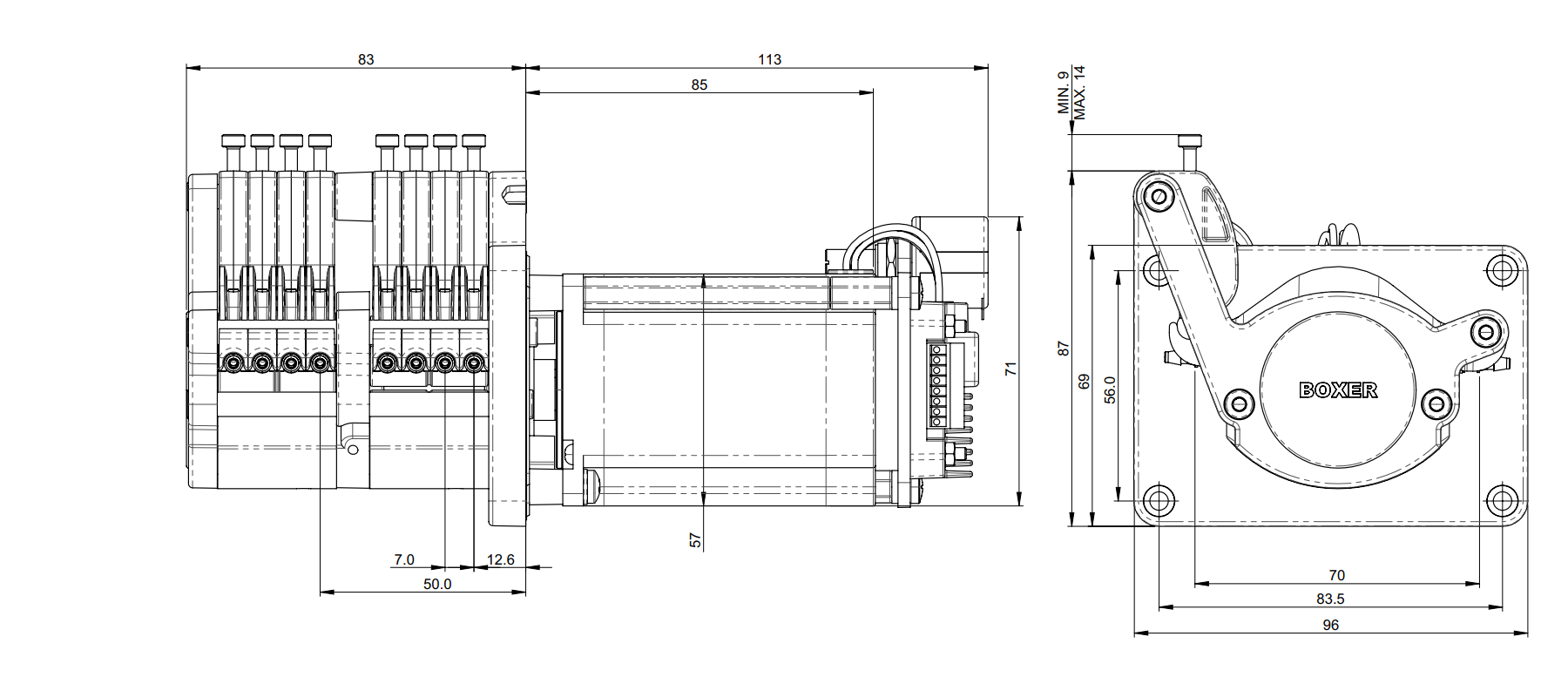

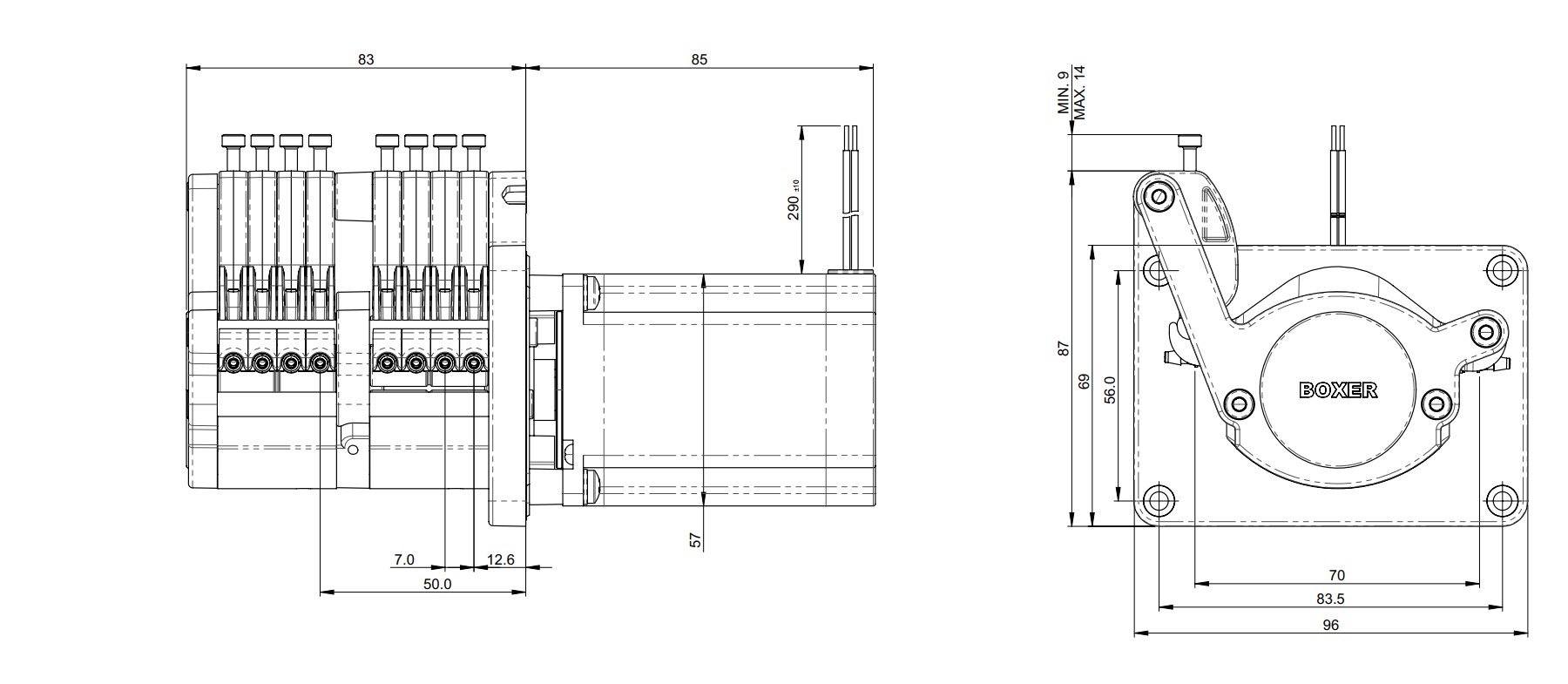

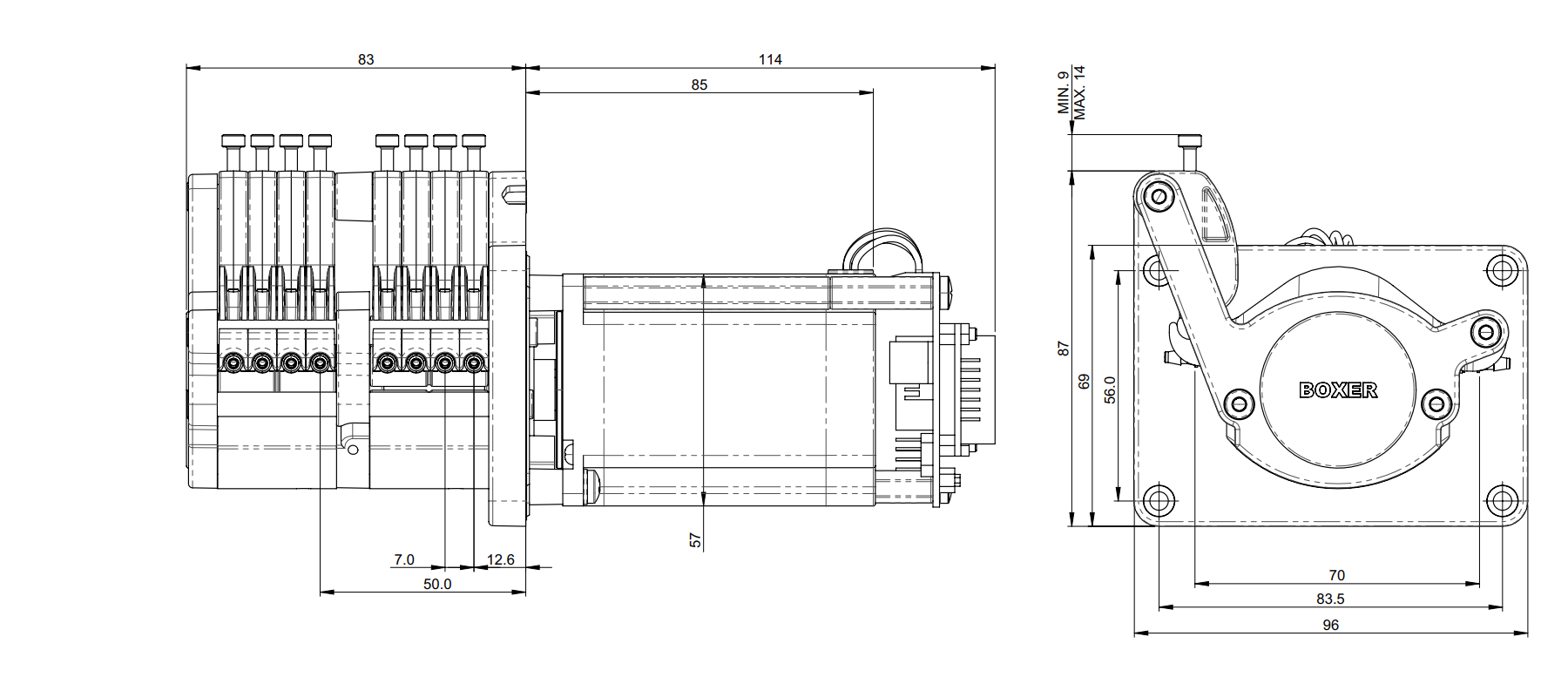

8 Channel with 24 V Stepper Motor

Tube Size (ID) mm	Flow per Revolution (µl)	Flow at 100 rpm (ml / min)	Flow at 200 rpm (ml / min)
	Rollers: 4 / 8	Rollers: 4 / 8	Rollers: 4 / 8

∅ 0.5 mm tube	18 / 14	1.8 / 1.4	3.7 / 2.9
∅ 1.0 mm tube	64 / 44	6.4 / 4.4	12.9 / 8.9
∅ 2.0 mm tube	232 / 143	23.2 / 14.3	46.5 / 28.6

Tube Materials		Innovaprene / Innovasil (Silicone) / Lagoprene / ED-Plex


Driver Options
A4		Analogue / PWM / Direction / Mounted directly on motor
A4p		As A4 with additional 10 turn speed potentiometer
iDs		Digital driver / LCD display / Mounted directly on Motor

Sensor Options
Speed Sensor		Micro reed switch, contacts close once per revolution

General Data
Max Pressure			1.0 bar
Max Suctuion Height			9.0 m H20
Power Consumption			7.0 to 30 W
Weight			1.4 kg (without driver / encoder)

			Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6624.100

Number of Channels: 8 | Number of Rollers : 4 | Driver Options: no | Speed Sensor Option: no

€471.42*

Available, shipping in 1 - 2 days

Part Number: 6628.100

Number of Channels: 8 | Number of Rollers : 8 | Driver Options: no | Speed Sensor Option: no

€593.73*

Available, shipping in 1 - 2 days

Part Number: 6624.110

Number of Channels: 8 | Number of Rollers : 4 | Driver Options: no | Speed Sensor Option: yes

€507.27*

Available, shipping in 1 - 2 days

Part Number: 6628.110

Number of Channels: 8 | Number of Rollers : 8 | Driver Options: no | Speed Sensor Option: yes

€629.58*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6624.101

Number of Channels: 8 | Number of Rollers : 4 | Driver Options: A4 | Speed Sensor Option: no

€618.94*

Available, shipping in 1 - 2 days

Part Number: 6628.101

Number of Channels: 8 | Number of Rollers : 8 | Driver Options: A4 | Speed Sensor Option: no

€741.25*

Available, shipping in 1 - 2 days

Part Number: 6624.111

Number of Channels: 8 | Number of Rollers : 4 | Driver Options: A4 | Speed Sensor Option: yes

€654.79*

Available, shipping in 1 - 2 days

Part Number: 6628.111

Number of Channels: 8 | Number of Rollers : 8 | Driver Options: A4 | Speed Sensor Option: yes

€777.10*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6624.102

Number of Channels: 8 | Number of Rollers : 4 | Driver Options: A4p | Speed Sensor Option: no

€646.58*

Available, shipping in 1 - 2 days

Part Number: 6628.102

Number of Channels: 8 | Number of Rollers : 8 | Driver Options: A4p | Speed Sensor Option: no

€768.89*

Available, shipping in 1 - 2 days

Part Number: 6624.112

Number of Channels: 8 | Number of Rollers : 4 | Driver Options: A4p | Speed Sensor Option: yes

€682.43*

Available, shipping in 1 - 2 days

Part Number: 6628.112

Number of Channels: 8 | Number of Rollers : 8 | Driver Options: A4p | Speed Sensor Option: yes

€804.74*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6624.103

Number of Channels: 8 | Number of Rollers : 4 | Driver Options: iD | Speed Sensor Option: no

€692.66*

Available, shipping in 1 - 2 days

Part Number: 6628.103

Number of Channels: 8 | Number of Rollers : 8 | Driver Options: iD | Speed Sensor Option: no

€814.97*

Available, shipping in 1 - 2 days

Part Number: 6624.113

Number of Channels: 8 | Number of Rollers : 4 | Driver Options: iD | Speed Sensor Option: yes

€728.51*

Available, shipping in 1 - 2 days

Part Number: 6628.113

Number of Channels: 8 | Number of Rollers : 8 | Driver Options: iD | Speed Sensor Option: yes

€850.82*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

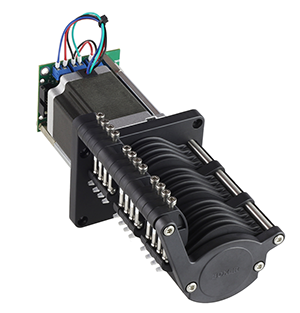

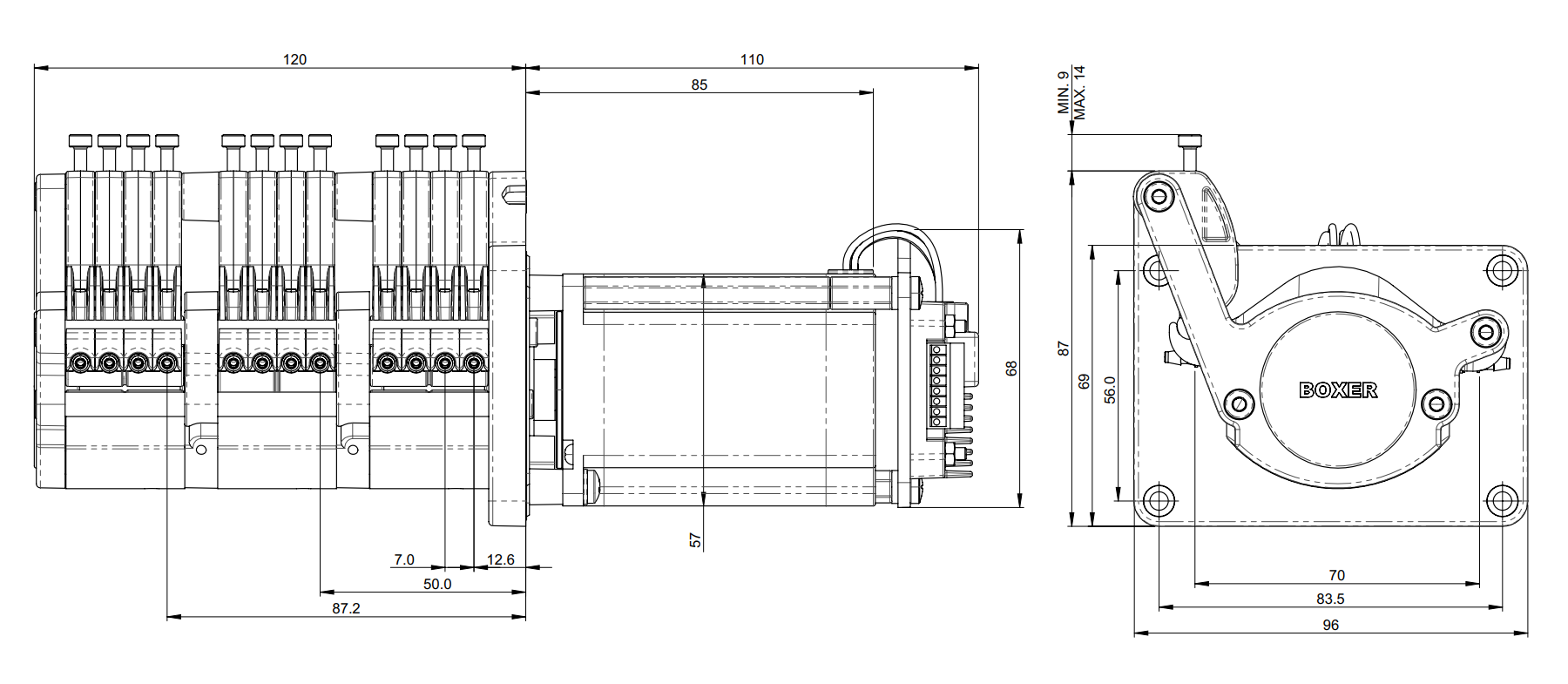

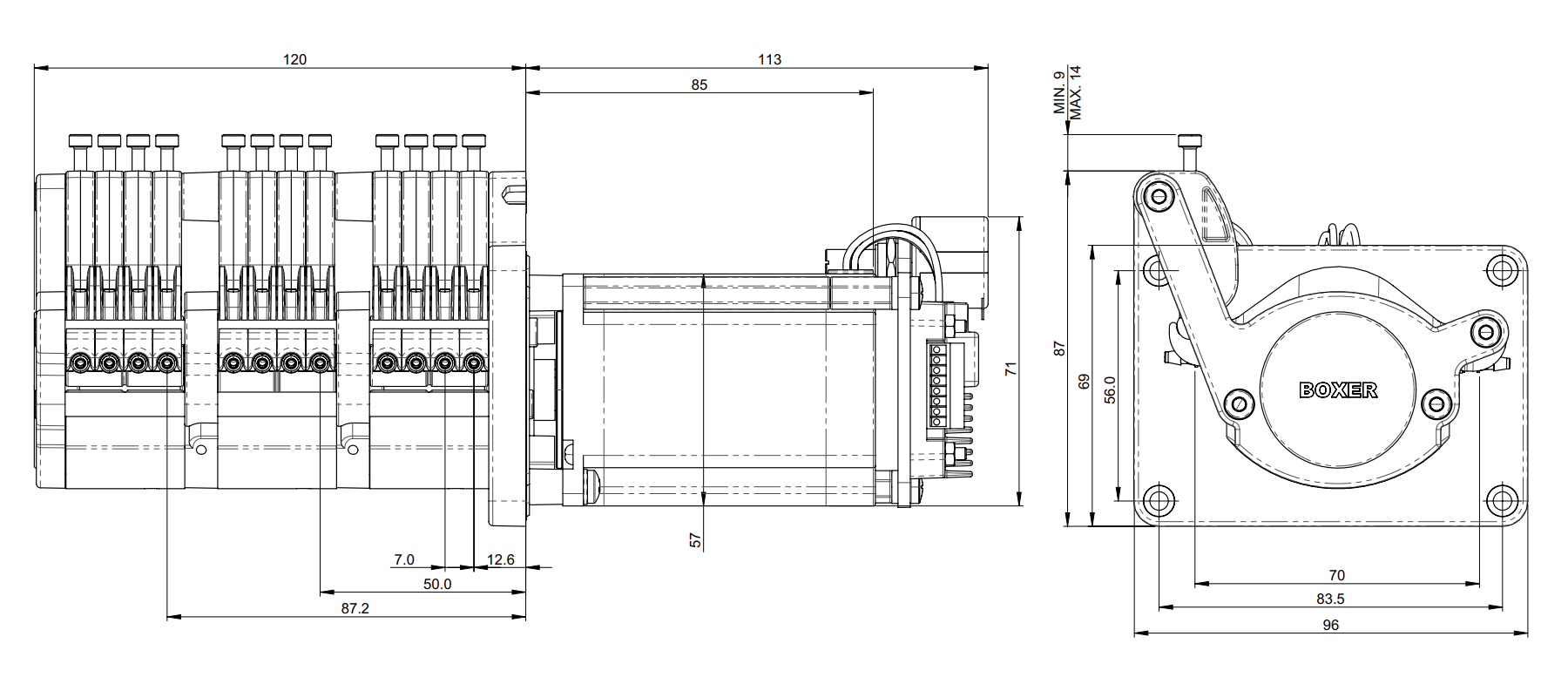

12 Channel with 24 V Stepper Motor

Tube Size (ID) mm	Flow per Revolution (µl)	Flow at 100 rpm (ml / min)	Flow at 200 rpm (ml / min)
	Rollers: 4 / 8	Rollers: 4 / 8	Rollers: 4 / 8

∅ 0.5 mm tube	18 / 14	1.8 / 1.4	3.7 / 2.9
∅ 1.0 mm tube	64 / 44	6.4 / 4.4	12.9 / 8.9
∅ 2.0 mm tube	232 / 143	23.2 / 14.3	46.5 / 28.6

Tube Materials		Innovaprene / Innovasil (Silicone) / Lagoprene / ED-Plex


Driver Options
A4		Analogue / PWM / Direction / Mounted directly on motor
A4p		As A4 with additional 10 turn speed potentiometer
iDs		Digital driver / LCD display / Mounted directly on Motor

Sensor Options
Speed Sensor		Micro reed switch, contacts close once per revolution

General Data
Max Pressure			1.0 bar
Max Suctuion Height			9.0 m H20
Power Consumption			7.0 to 30 W
Weight			1.5 kg (without driver / encoder)

			Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6634.100

Number of Channels: 12 | Number of Rollers : 4 | Driver Options: no | Speed Sensor Option: no

€605.38*

Available, shipping in 1 - 2 days

Part Number: 6638.100

Number of Channels: 12 | Number of Rollers : 8 | Driver Options: no | Speed Sensor Option: no

€792.13*

Available, shipping in 1 - 2 days

Part Number: 6634.110

Number of Channels: 12 | Number of Rollers : 4 | Driver Options: no | Speed Sensor Option: yes

€641.23*

Available, shipping in 1 - 2 days

Part Number: 6638.110

Number of Channels: 12 | Number of Rollers : 8 | Driver Options: no | Speed Sensor Option: yes

€827.98*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6634.101

Number of Channels: 12 | Number of Rollers : 4 | Driver Options: A4 | Speed Sensor Option: no

€752.90*

Available, shipping in 1 - 2 days

Part Number: 6638.101

Number of Channels: 12 | Number of Rollers : 8 | Driver Options: A4 | Speed Sensor Option: no

€939.65*

Available, shipping in 1 - 2 days

Part Number: 6634.111

Number of Channels: 12 | Number of Rollers : 4 | Driver Options: A4 | Speed Sensor Option: yes

€788.75*

Available, shipping in 1 - 2 days

Part Number: 6638.111

Number of Channels: 12 | Number of Rollers : 8 | Driver Options: A4 | Speed Sensor Option: yes

€975.50*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6634.102

Number of Channels: 12 | Number of Rollers : 4 | Driver Options: A4p | Speed Sensor Option: no

€780.54*

Available, shipping in 1 - 2 days

Part Number: 6638.102

Number of Channels: 12 | Number of Rollers : 8 | Driver Options: A4p | Speed Sensor Option: no

€967.29*

Available, shipping in 1 - 2 days

Part Number: 6634.112

Number of Channels: 12 | Number of Rollers : 4 | Driver Options: A4p | Speed Sensor Option: yes

€816.39*

Available, shipping in 1 - 2 days

Part Number: 6638.112

Number of Channels: 12 | Number of Rollers : 8 | Driver Options: A4p | Speed Sensor Option: yes

€1,003.18*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6634.103

Number of Channels: 12 | Number of Rollers : 4 | Driver Options: iD | Speed Sensor Option: no

€826.62*

Available, shipping in 1 - 2 days

Part Number: 6638.103

Number of Channels: 12 | Number of Rollers : 8 | Driver Options: iD | Speed Sensor Option: no

€1,013.37*

Available, shipping in 1 - 2 days

Part Number: 6634.110

Number of Channels: 12 | Number of Rollers : 4 | Driver Options: no | Speed Sensor Option: yes

€641.23*

Available, shipping in 1 - 2 days

Part Number: 6638.113

Number of Channels: 12 | Number of Rollers : 8 | Driver Options: iD | Speed Sensor Option: yes

€1,049.22*

Available, shipping in 1 - 2 days

Accessories

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.605

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.610

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovaprene with PP connectors, set of 4

Part Number: 6600.620

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€42.72*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.305

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.310

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

6K-600 Tube set: Innovasil with PP connectors, set of 4

Part Number: 6600.320

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€32.04*

Available, shipping in 1 - 2 days

Additional Accessories

Innovasil (1.0 mm wall)

€3.84*

Details

Innovaprene (1.0mm wall)

€4.58*

Details

Tube Fittings

€0.56*

Details

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
