DM10S

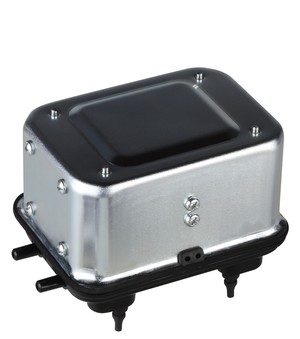

The DM10S is the 14 l/min miniature linear diaphragm pump from the Airmac DBS Series. With an OEM component deisgn these pumps are ideally suited to applications requiring long life and low pressure differentials. This series has a metal housing for exceptional low sound levels. Examples applications are air / gas monitoring, medical massage systems and fragrance generation. They are supplied with inlet and outlet porting, integrated 'pull-through' vibration mounts and connection leads. Available voltages: 230 V / 50 Hz.

› Flow rate to 14 l/mim
› OEM component with inlet and outlet ports
› Exceptionally Low sound level
› Low power consumption
› Lightweight / compact
› Integrated 'pull-through' vibration mounts
› Long life linear drive

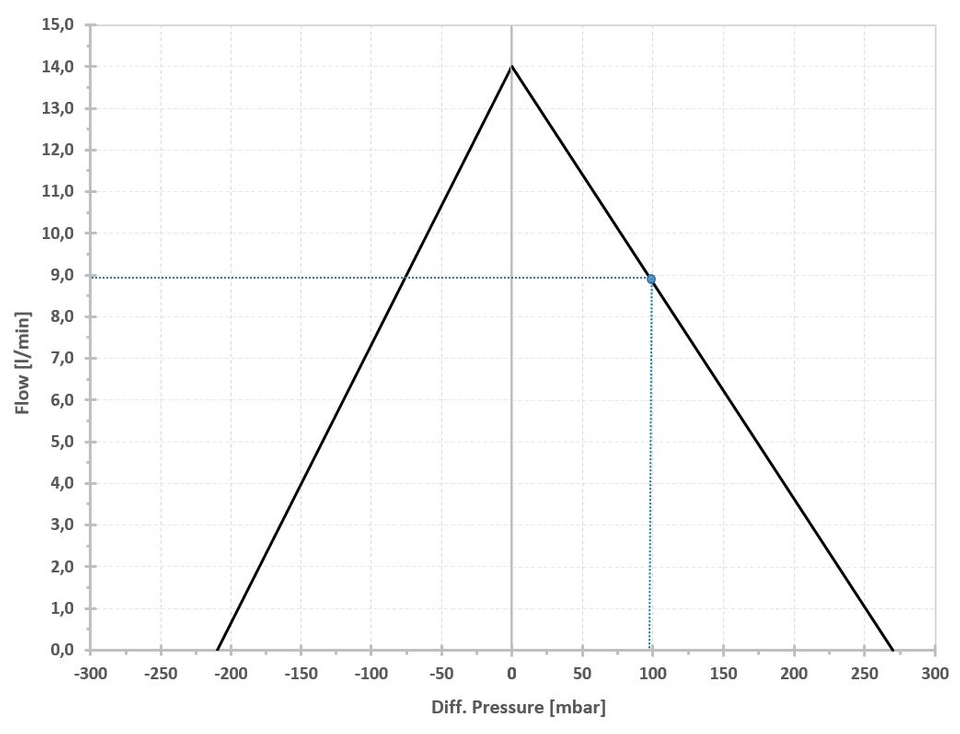

Operating Flow Range 0 to 14 l/min
Operating Pressure Range -210 to +270 mbar
Flow (at 100 mbar) 9.0 l/min

Power Consumption (at 100 mbar) 9 W

Current Consumption (at 100 mbar)
230 V / 50 Hz 0.05 A

Cable Length 370 mm
Cable Termination 10 mm stripped / soldered

Approval CE (according to EN60335, electrical household appliances), RoHS

Operating Temperature Range -10 to +40 °C
Operating Humidity Range 20 to 80% RH

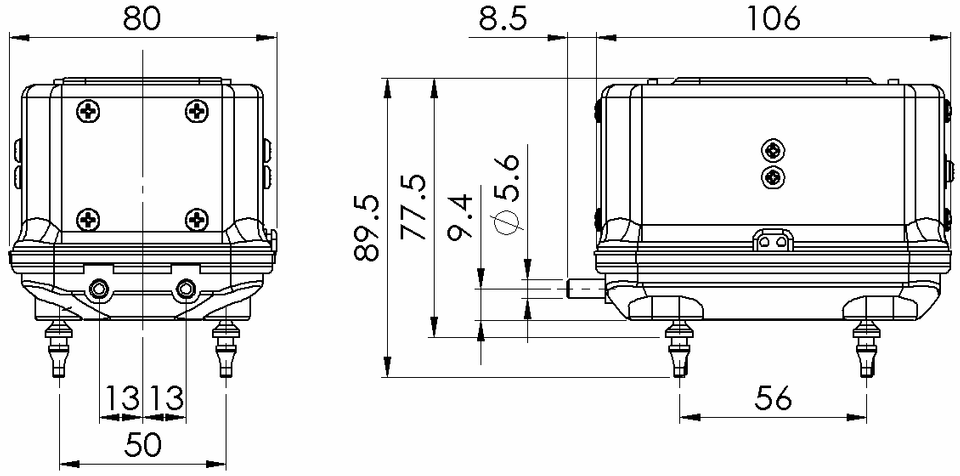

Inlet 5.6 mm OD straight port
Outlet 5.6 mm OD straight port

Weight 0.9 kg

Order Information

Part Number:     1200010.230     DB5S 230 V / 50 Hz
