DBMX80 Series

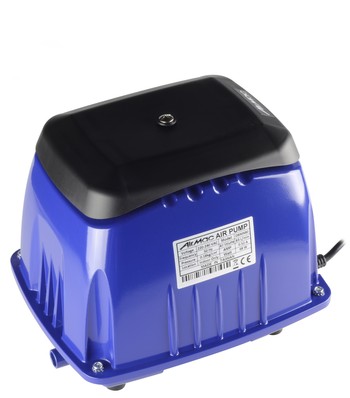

The DBMX80 is the 80 l/min linear diaphragm pump from the Airmac DBMX Series. It offers low noise with stable performance over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug.

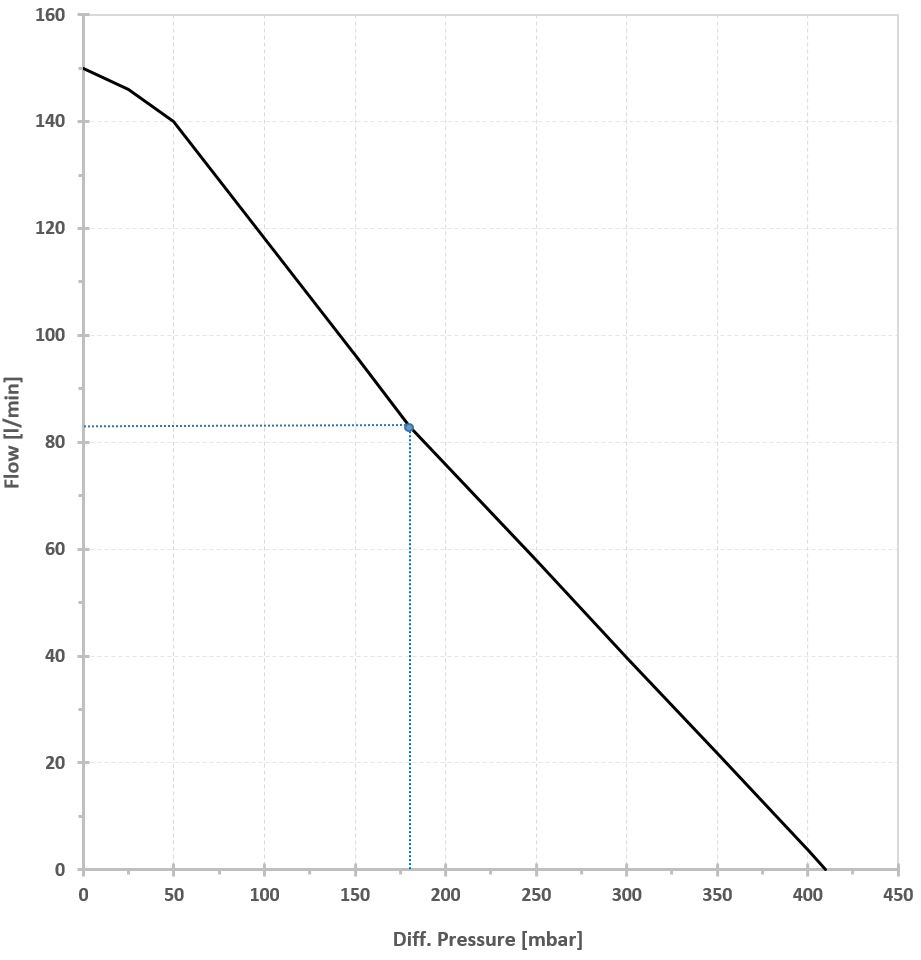

› Flow rate of 83 l/mim against 180 mbar
› Low power consumption (68 W)
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)
| Flow (at 180 mbar) | 83 l/min |
| Operating Pressure Range | 100 to 250 mbar |
| Operating Flow Range | 115 to 55 l/min |
| Current Consumption (at 180 mbar)) | 0.52 A |
| Power Consumption (at 180 mbar) | 68 W |
| Cable Length | 1.8 m |
| Cable Termination | EU Plug |
| Approval | CE (according to EN60335, electrical household appliances), RoHS |
| Operating Temperature Range | -10 to +40 °C |
| Operating Humidity Range | 20 to 80% RH |
| Inlet | Via Integrated filter (under housing cover as replaceable item) |

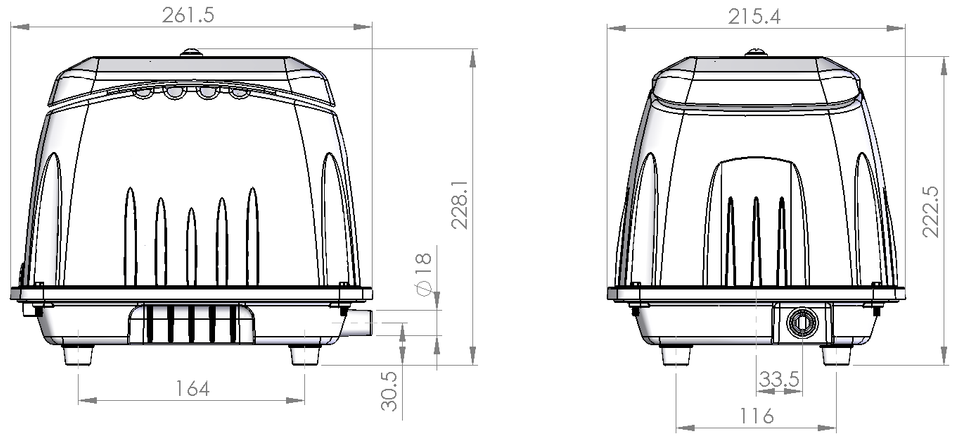

| Outlet | 18 mm OD port |
| Weight | 8.8 kg |
Order Information
Part Number: 190080.230 DBMX80 230 V / 50 Hz
All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
