6K Series

Tube set and saddles for 1.0 mm wall and 1.6 mm wall tubing. Both tube sets and saddles should be ordered seperately from the pump.

Innovaprene	Economic premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
	Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
	⇒ Technical, regulatory and compatibility data

Innovasil	Premium silicone tube for food and biomedical applications. Suitable for sterilization via autoclave or dry heat. FDA registered.
	⇒ Technical, regulatory and compatibility data

Pharm-a-line	Premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
	Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
	⇒ Technical, regulatory and compatibility data

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Innovaprene Tubing

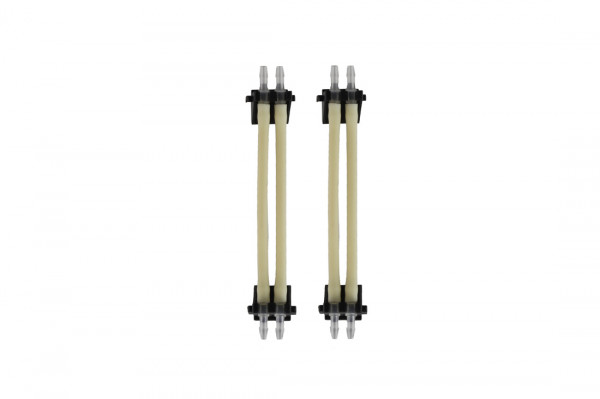

Tube set consists of 2 x double tubes
1 tube set required for 4 channel pump
2 tube sets required for 8 channel pump
3 tube sets required for 12 channel pump

Part Number: 6000.610

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.611

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.612

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.613

Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€40.15*

Available, shipping in 1 - 2 days

Part Number: 6000.614

Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)

€40.15*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Innovasil Tubing

Tube set consists of 2 x double tubes
1 tube set required for 4 channel pump
2 tube sets required for 8 channel pump
3 tube sets required for 12 channel pump

Part Number: 6000.620

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€30.12*

Available, shipping in 1 - 2 days

Part Number: 6000.621

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€30.12*

Available, shipping in 1 - 2 days

Part Number: 6000.622

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€30.12*

Available, shipping in 1 - 2 days

Part Number: 6000.623

Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€30.12*

Available, shipping in 1 - 2 days

Part Number: 6000.624

Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)

€30.12*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Pharmaline Tubing

Tube set consists of 2 x double tubes
1 tube set required for 4 channel pump
2 tube sets required for 8 channel pump
3 tube sets required for 12 channel pump

Part Number: 6000.547

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€56.47*

Available, shipping in 1 - 2 days

Part Number: 6000.540

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€56.47*

Available, shipping in 1 - 2 days

Part Number: 6000.546

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€56.47*

Available, shipping in 1 - 2 days

Part Number: 6000.548

Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€56.47*

Available, shipping in 1 - 2 days

Part Number: 6000.549

Tube Set: 3.5 mm ID Tubing (PP connector for 3 mm ID customer side)

€56.47*

Available, shipping in 1 - 2 days

Innovaprene	Economic premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
	Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
	⇒ Technical, regulatory and compatibility data

Innovasil	Premium silicone tube for food and biomedical applications. Suitable for sterilization via autoclave or dry heat. FDA registered.
	⇒ Technical, regulatory and compatibility data

Pharm-a-line	Premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
	Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
	⇒ Technical, regulatory and compatibility data

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Innovaprene Tubing

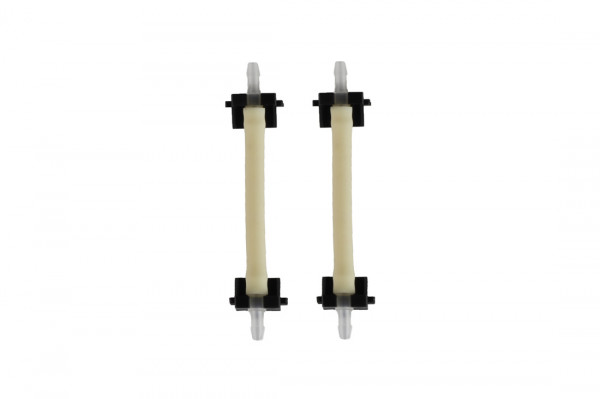

Tube set consists of 2 x tubes
1 tube set required for 2 channel pump
2 tube sets required for 4 channel pump
3 tube sets required for 8 channel pump

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Innovasil Tubing

Tube set consists of 2 x tubes
1 tube set required for 2 channel pump
2 tube sets required for 4 channel pump
3 tube sets required for 8 channel pump

Part Number: 6000.625

Tube Set: 1.6 x 1.6 mm (ID x wall)

€20.96*

Part Number: 6000.626

Tube Set: 2.4 x 1.6 mm (ID x wall)

€20.96*

Part Number: 6000.627

Tube Set: 3.2 x 1.6 mm (ID x wall)

€20.96*

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Pharmaline Tubing

Tube set consists of 2 x tubes
1 tube set required for 2 channel pump
2 tube sets required for 4 channel pump
3 tube sets required for 8 channel pump

Part Number: 6000.532

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

€39.32*

Available, shipping in 1 - 2 days

Part Number: 6000.561

Tube Set: 2.4 x 1.6 mm (ID x wall)

€39.32*

Available, shipping in 1 - 2 days

Part Number: 6000.535

Tube Set: 3.2 x 1.6 mm (ID x wall)

€39.32*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

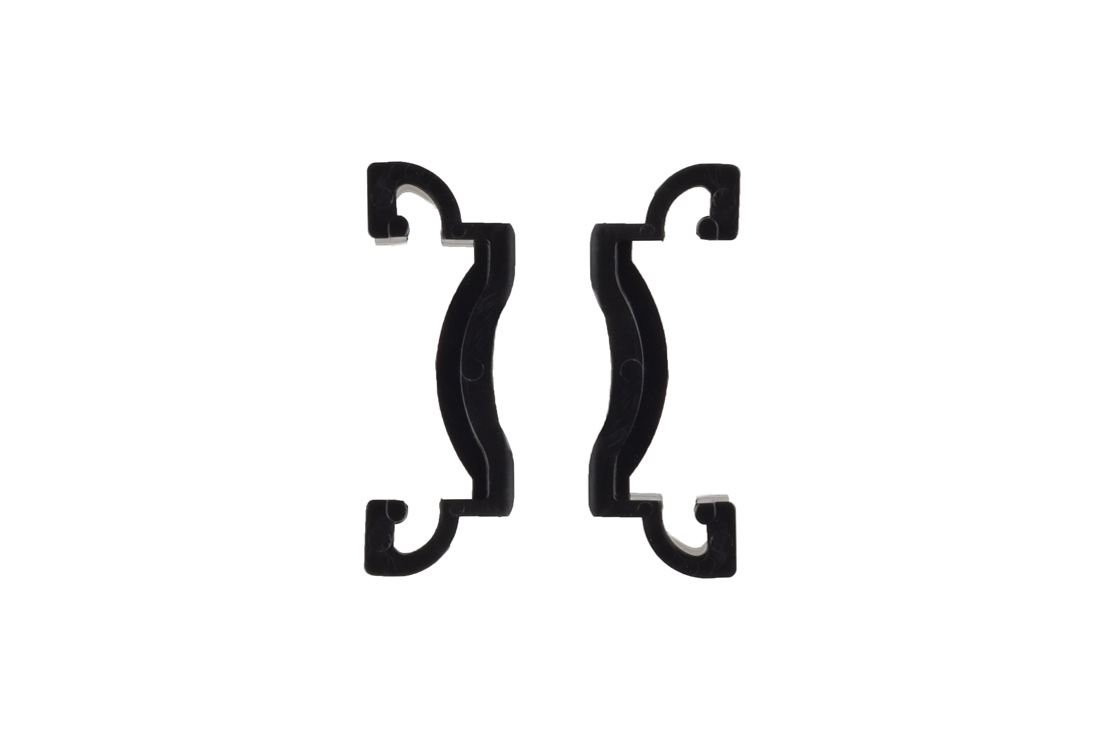

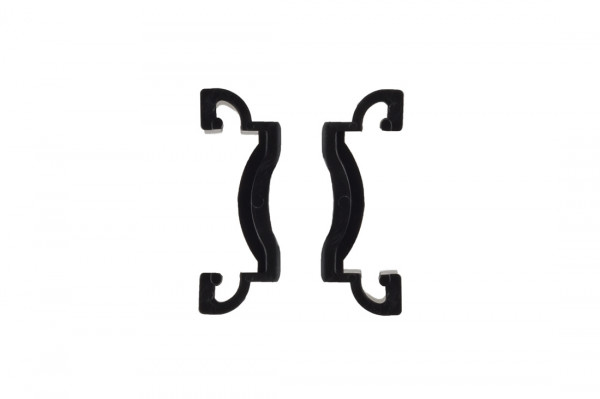

Saddle kit consists of 2 x saddles
1 saddle kit required for 4 channel pump
2 saddles kits required for 8 channel pump
3 saddle kits required for 12 channel pump

Part Number: 6000.104

6K Saddle Kit for 1.0 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.108

6K Saddle Kit for 1.0 mm wall tubing: for pumps with 8 rollers

€5.01*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Saddle kit consists of 2 x saddles
1 saddle kit required for 2 channel pump
2 saddles kits required for 4 channel pump
3 saddle kits required for 8 channel pump

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

Additional Accessories

6K saddle kit for 1.0 mm wall tubing

€5.01*

Details

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
