DB5 and DB5S Series

The DB5 / DB5S is the 10 l/min miniature linear diaphragm pump from the Airmac DBS Series. With an OEM component deisgn these pumps are ideally suited to applications requiring long life, low pressure differentials and low sound. Examples are air / gas monitoring, medical massage systems and fragrance generation. They are supplied with inlet and outlet porting, integrated 'pull-through' vibration mounts and connection leads. Available voltages: 12 V / 50 Hz, 24 V / 50 Hz, 230 V / 50 Hz.

› Flow rate to 10 l/mim
› OEM component with inlet and outlet ports
› Low sound level
› Low power consumption
› Lightweight / compact
› Integrated 'pull-through' vibration mounts
› Long life linear drive

DB5 is pressure only (with outlet port only).

DB5S is for vacuum and pressure (with inlet and outlet ports).

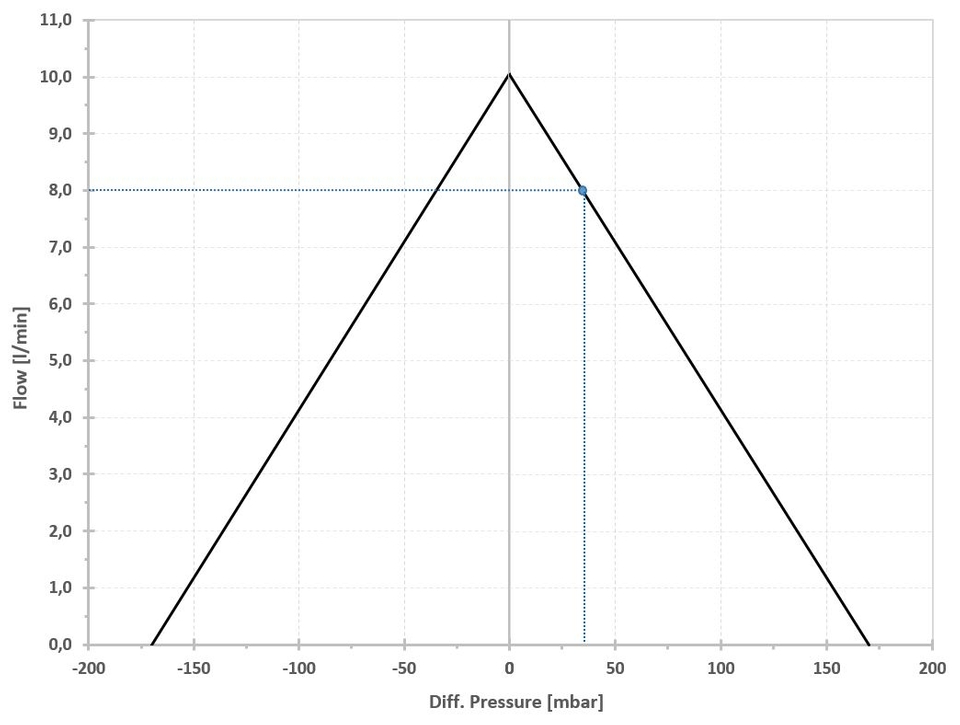

Operating Flow Range 0 to 10 l/min
Operating Pressure Range - DB5 0 to +170 mbar
Operating Pressure Range - DB5S -170 to +170 mbar
Flow (at 40 mbar) 8.0 l/min

Power Consumption (at 40 mbar) 9 W

Current Consumption (at 40 mbar)
230 V / 50 Hz 0.06 A
24 V / 50 Hz 0.60 A
12 V / 50 Hz 1.05 A

Cable Length 370 mm
Cable Termination 10 mm stripped / soldered

Approval CE (according to EN60335, electrical household appliances), RoHS

Operating Temperature Range -10 to +40 °C
Operating Humidity Range 20 to 80% RH

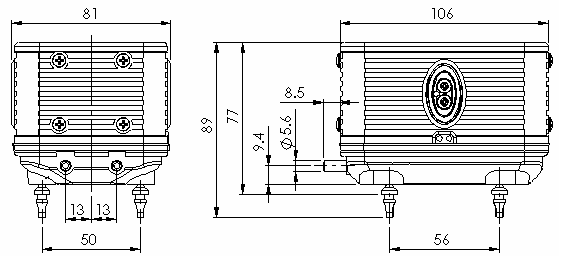

Inlet 5.6 mm OD straight port
Outlet 5.6 mm OD straight port

Weight 0.6 kg



To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 110005.012
Voltage: 12 V DC | Model: DB5S (inlet and outlet ports)
€97.38*

Available, shipping in 1 - 2 days

Part Number: 110005.024
Voltage: 24 V DC | Model: DB5S (inlet and outlet ports)
€97.38*

Available, shipping in 1 - 2 days

Part Number: 110005.230
Voltage: 230 V 50 Hz | Model: DB5S (inlet and outlet ports)
€65.11*

Available, shipping in 1 - 2 days

Part Number: 111005.230
Voltage: 230 V 50 Hz | Model: DB5 (outlet port only)
€62.19*

Available, shipping in 1 - 2 days
