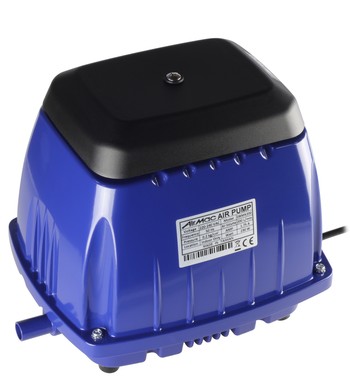

The DBMX200 is the 200 l/min linear diaphragm pump from the Airmac DBMX Series. It offers low noise with stable performance over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug. To accomodate the increased performance when compared to the 80, 100 and 120 l/min DBMX pumps, the height of the housing is increased by 25mm.
› Flow rate of 200 l/mim against 200 mbar
› Low power consumption (230 W)
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)
Return to Linear Diaphragm Pump range.
Available to purchase online via BOX-it (see order information below).
|Flow (at 200 mbar)||200 l/min|
|Operating Pressure Range||100 to 250 mbar|
|Operating Flow Range||235 to 160 l/min|
|Current Consumption (at 200 mbar))||1.7 A|
|Power Consumption (at 200 mbar)||230 W|
|Cable Length||1.8 m|
|Cable Termination||EU Plug|
|Approval||CE (according to EN60335, electrical household appliances), RoHS|
|Operating Temperature Range||-10 to +40 °C|
|Operating Humidity Range||20 to 80% RH|
|Inlet||Via Integrated filter (under housing cover as replaceable item)|
|Outlet||18 mm OD port|
All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
