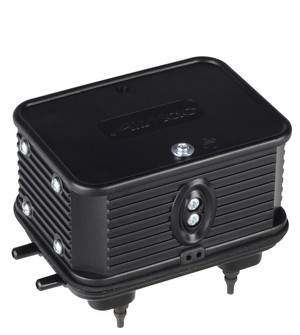

DB5 and DB5S
The DB5 / DB5S is the 10 l/min miniature linear diaphragm pump from the Airmac DBS Series. With an OEM component deisgn these pumps are ideally suited to applications requiring long life, low pressure differentials and low sound. Examples are air / gas monitoring, medical massage systems and fragrance generation. They are supplied with inlet and outlet porting, integrated 'pull-through' vibration mounts and connection leads. Available voltages: 12 V / 50 Hz, 24 V / 50 Hz, 230 V / 50 Hz.
› Flow rate to 10 l/mim
› OEM component with inlet and outlet ports
› Low sound level
› Low power consumption
› Lightweight / compact
› Integrated 'pull-through' vibration mounts
› Long life linear drive
DB5 is pressure only (with outlet port only).
DB5S is for vacuum and pressure (with inlet and outlet ports).
Return to Linear Diaphragm Pump range.
Available to purchase online via BOX-it (see order information below).
|Operating Flow Range||0 to 10 l/min|
|Operating Pressure Range - DB5||0 to +170 mbar|
|Operating Pressure Range - DB5S||-170 to +170 mbar|
|Flow (at 40 mbar)||8.0 l/min|
|Power Consumption (at 40 mbar)||9 W|
|Current Consumption (at 40 mbar)|
|230 V / 50 Hz||0.06 A|
|24 V / 50 Hz||0.60 A|
|12 V / 50 Hz||1.05 A|
|Cable Length||370 mm|
|Cable Termination||10 mm stripped / soldered|
|Approval||CE (according to EN60335, electrical household appliances), RoHS|
|Operating Temperature Range||-10 to +40 °C|
|Operating Humidity Range||20 to 80% RH|
|Inlet||5.6 mm OD straight port|
|Outlet||5.6 mm OD straight port|
All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
