29QQ Accessories

Available to purchase online via BOX-it (see order information below).

Tube Sets

The 29QQ series is designed to accept tube sets which are available in 4 different materials and 3 different sizes.

Loading and unloading instructions are provide in the 29QQ PDF datasheets.

Material Options

Innovaprene Economic premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
⇒ Technical, regulatory and compatibility data
Pharm-a-line Premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
⇒ Technical, regulatory and compatibility data
Silicone Premium silicone tube for food and biomedical applications. Suitable for sterilization via autoclave or dry heat. FDA registered.
Lagoprene Food grade thermoplastic elastomer for food and beverage applications. Complies with NSF 51 (food equipment materials)
and NSF / ANSI Standard 61 (drinking water system components).
ED-Plex Premium industrial grade thermoplastic elastomer for aqueous fluids, acids, bases and some oils / hydrocarbons.

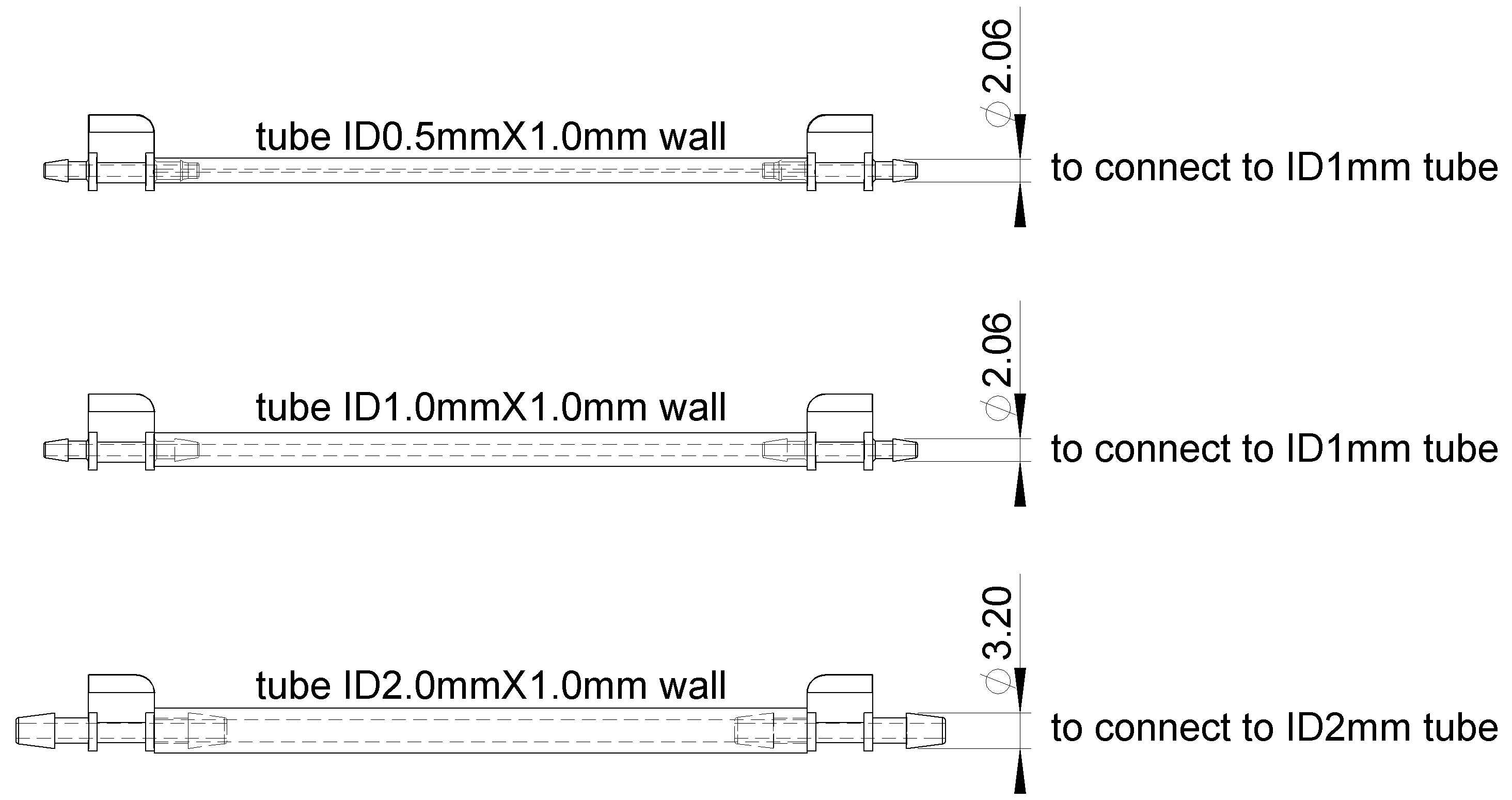

Tube Connectors (for Tube Sets)

The size of the tube connectors vary depending upon the size of the internal tube in the pump.

Order Information

Innovaprene

Part Number:     29000.605     Innovaprene ID ∅ 0.5 mm with PP connectors
Part Number:     29000.610     Innovaprene ID ∅ 1.0 mm with PP connectors
Part Number:     29000.620     Innovaprene ID ∅ 2.0 mm with PP connectors

Innovasil

Part Number:     29000.305     Innovasil ID ∅ 0.5 mm with PP connectors
Part Number:     29000.310     Innovasil ID ∅ 1.0 mm with PP connectors
Part Number:     29000.320     Innovasil ID ∅ 2.0 mm with PP connectors

Pharm-a-line (PHI)

Part Number:     29000.105     Pharmaline ID ∅ 0.5 mm with PP connectors
Part Number:     29000.110     Pharmaline ID ∅ 1.0 mm with PP connectors
Part Number:     29000.120     Pharmaline ID ∅ 2.0 mm with PP connectors

Lagoprene

Part Number:     29000.410     Lagoprene ID ∅ 1.0 mm with PP connectors
Part Number:     29000.420     Lagoprene ID ∅ 2.0 mm with PP connectors

ED-Plex

Part Number:     29000.510     ED-Plex ID ∅ 1.0 mm with PP connectors
Part Number:     29000.520     ED-Plex ID ∅ 2.0 mm with PP connectors
