3K Series

The 3K series is a robust and versatile single headed liquid diaphragm pump. Highest quality con-rod and motor bearings ensure lowest power consumption and, combined with slow speed, maximum operational life.

The 3K series is offered with 2 different motors: brushed DC and brushless DC (BLDC).

› Flow rate to 1.5 l/min
› Robust / long life
› Slow running
› BLDC with speed control input and frequency (RPM) output
› Dual and Quad versions available

Double and Quad versions are available in the 3MD and 3MQ series as well as gas versions with 3K3KD and 3KQ.

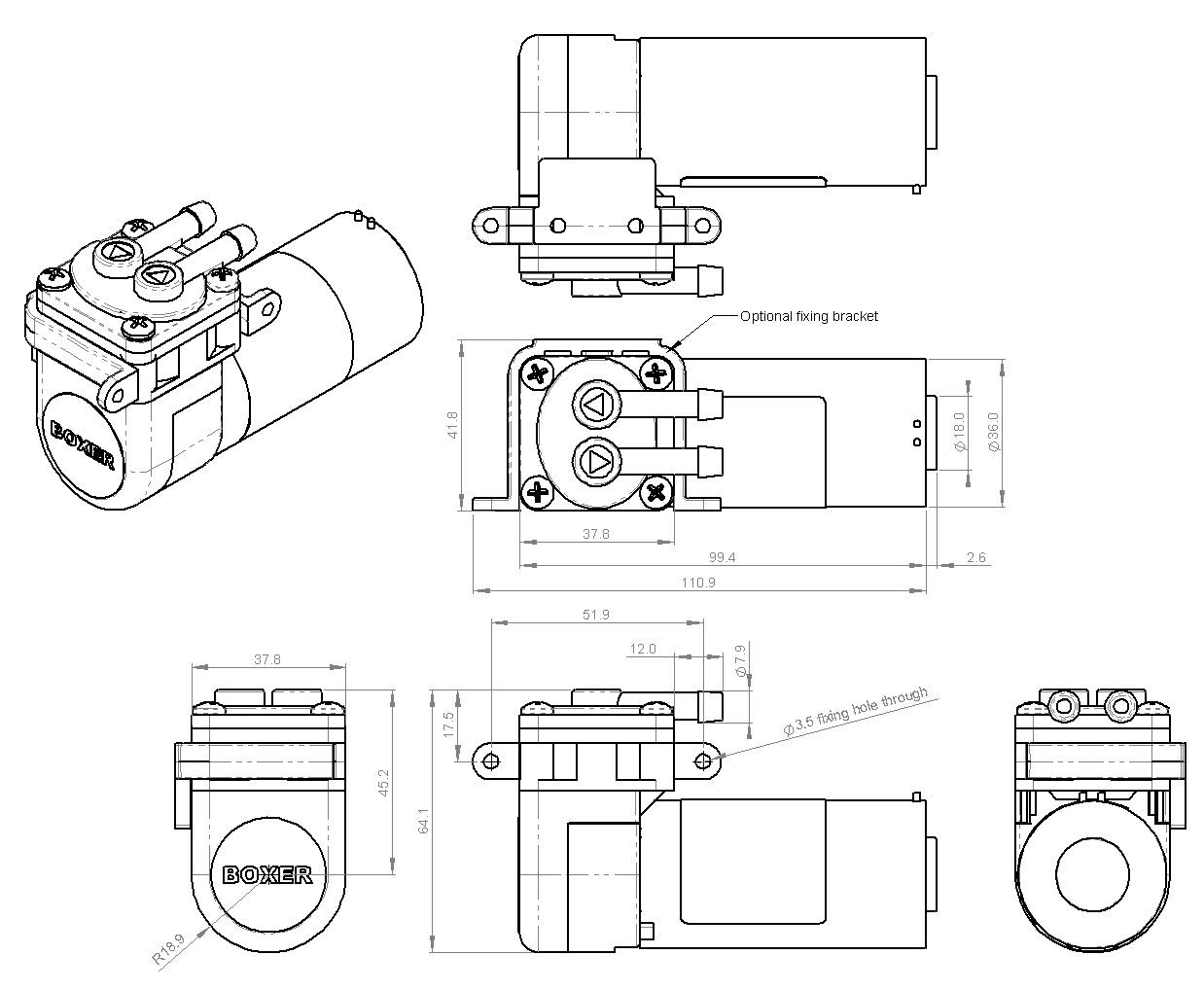

A fixing bracket is included as standard.

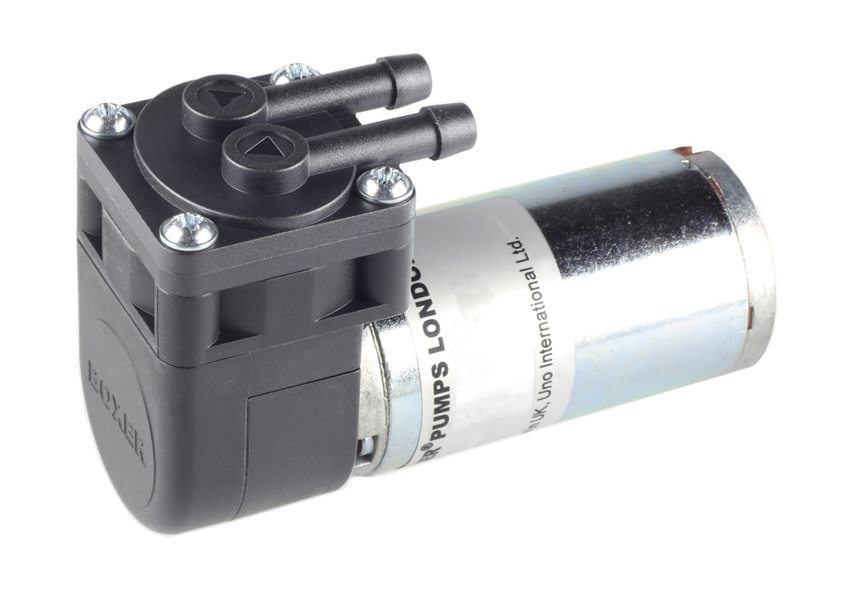

Brushed motor available in 12 and 24 V.
Free Flow 1.5 l/min
Max Pressure 2.0 bar
Max Vacuum -800 mbar

Free Flow (gas / dry) 1.9 l/m
Max suction Height (dry) 4 m H2O

Voltage Options 12 / 24 V DC

Power Consumption 3.3 to 14.0 W

Max Ambient Operating Temperature 50 °C
Max Media Temperature 100 °C

Elastomers Options EPDM, Silicon
Other Wetted Parts PPS (polyphenylene sulphide)
Weight 385g
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 3211.129
Motor / Voltage: Brushed Motor 12 V | Diaphragm: EPDM
€155.85*

Available, shipping in 1 - 2 days

Part Number: 3211.130
Motor / Voltage: Brushed Motor 12 V | Diaphragm: Viton (FKM)
€162.08*

Available, shipping in 1 - 2 days

Part Number: 3211.252
Motor / Voltage: Brushed Motor 24 V | Diaphragm: EPDM
€155.85*

Available, shipping in 1 - 2 days

Part Number: 3211.242
Motor / Voltage: Brushed Motor 24 V | Diaphragm: Viton (FKM)
€162.08*

Available, shipping in 1 - 2 days

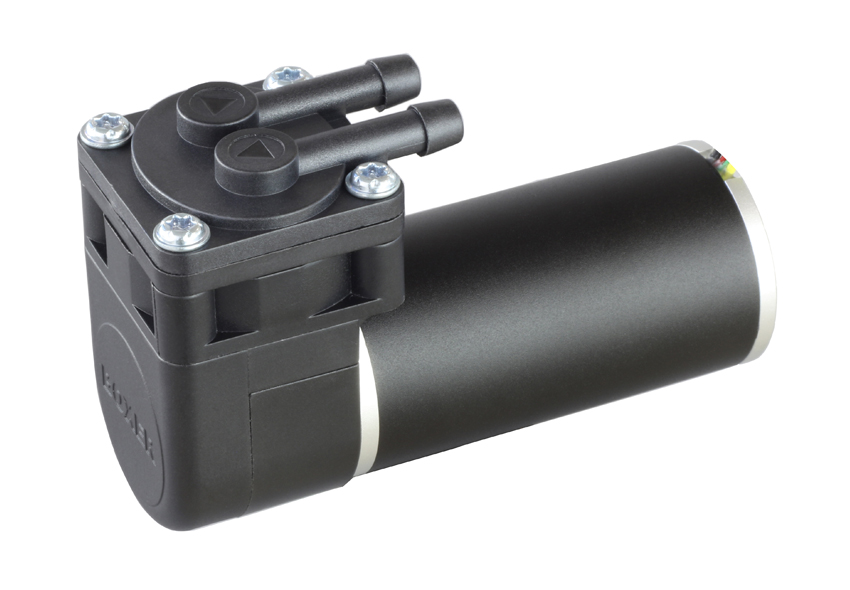

Brushless (BLDC) motor available in 24 V.
Free Flow 1.5 l/min
Max Pressure 2.0 bar
Max Vacuum -60%

Max Suction Height (dry) 5 m H2O

Voltage 24 V DC

Power Consumption 4.0 to 11.0 W

Speed Input 0.5* to 4.5 V (167* to 1500 rpm)
  *not recommended to run below 400 rpm (1.2 V)

Frequency (RPM) Output 1 pulse per revolution

Lead Length 40 cm

Max Ambient Operating Temperature 50 °C
Max Media Temperature 100 °C

Elastomers Options EPDM / FKM/ Nitrile / Silicone
Other Wetted Parts PPS (polyphenylene sulphide)
Weight 385 g
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 3211.650
Motor / Voltage: Brushless Motor 12 V | Diaphragm: EPDM
€155.85*

Available, shipping in 1 - 2 days

Part Number: 3211.655
Motor / Voltage: Brushless Motor 12 V | Diaphragm: Viton (FKM)
€162.08*

Available, shipping in 1 - 2 days

Part Number: 3211.660
Motor / Voltage: Brushless Motor 24 V | Diaphragm: EPDM
€155.85*

Available, shipping in 1 - 2 days

Part Number: 3211.665
Motor / Voltage: Brushless Motor 24 V | Diaphragm: Viton (FKM)
€162.08*

Available, shipping in 1 - 2 days
