DBMX80

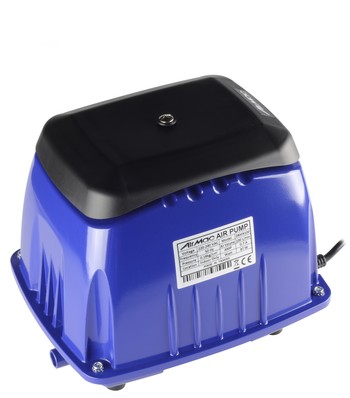

The DBMX80 is the 80 l/min linear diaphragm pump from the Airmac DBMX Series. It offers low noise with stable performance over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug.

› Flow rate of 83 l/mim against 180 mbar
› Low power consumption (68 W)
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)

Return to Linear Diaphragm Pump range.

Technical Data

Flow (at 180 mbar)	83 l/min
Operating Pressure Range	100 to 250 mbar
Operating Flow Range	115 to 55 l/min

Current Consumption (at 180 mbar))	0.52 A
Power Consumption (at 180 mbar)	68 W

Cable Length	1.8 m
Cable Termination	EU Plug

Approval	CE (according to EN60335, electrical household appliances), RoHS

Operating Temperature Range	-10 to +40 °C
Operating Humidity Range	20 to 80% RH

Inlet	Via Integrated filter (under housing cover as replaceable item)
Outlet	18 mm OD port

Weight	8.8 kg
