15QQ Series

The 15QQ series is a unique and versatile peristaltic pump range designed for accurate dispensing of liquids.

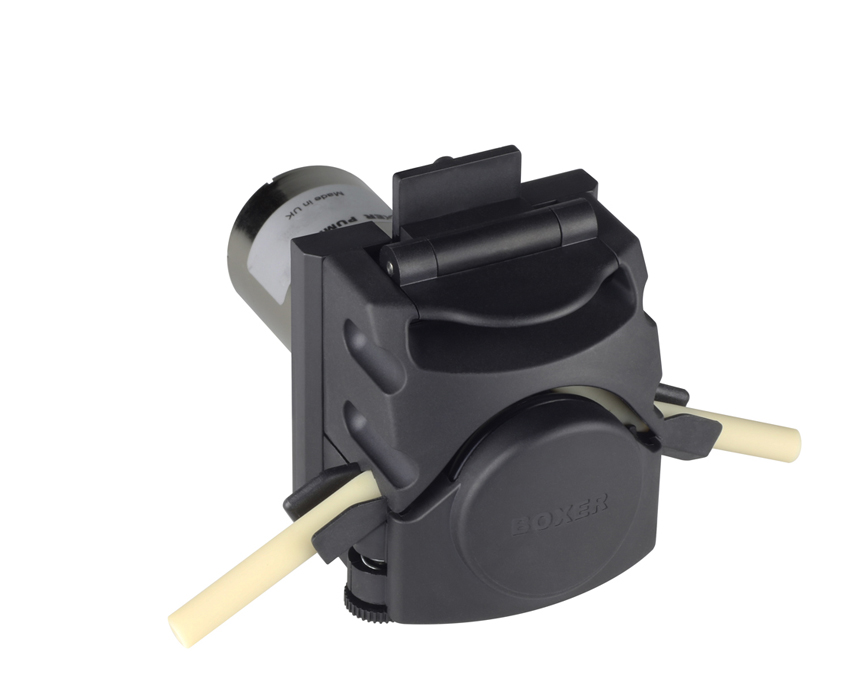

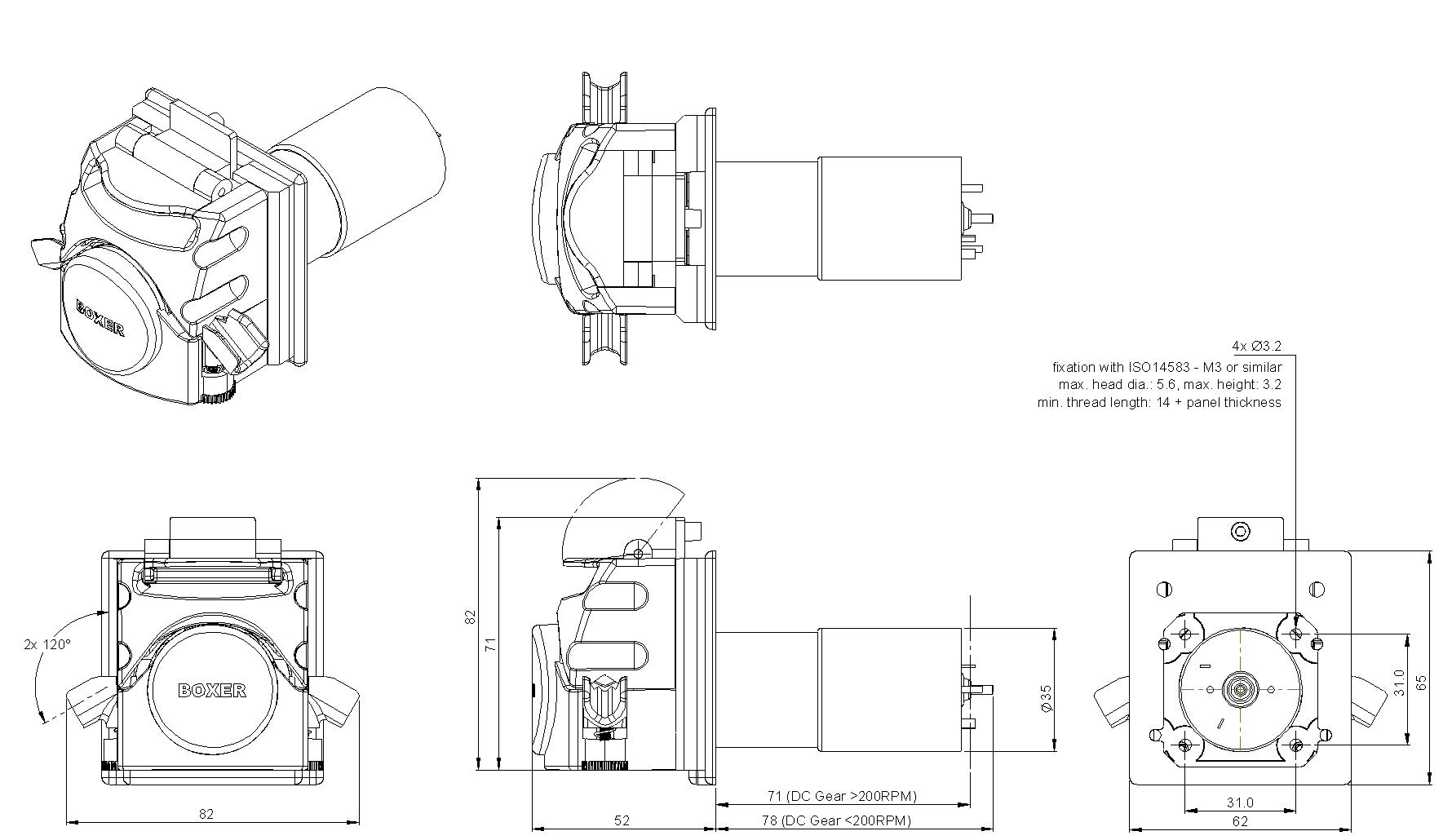

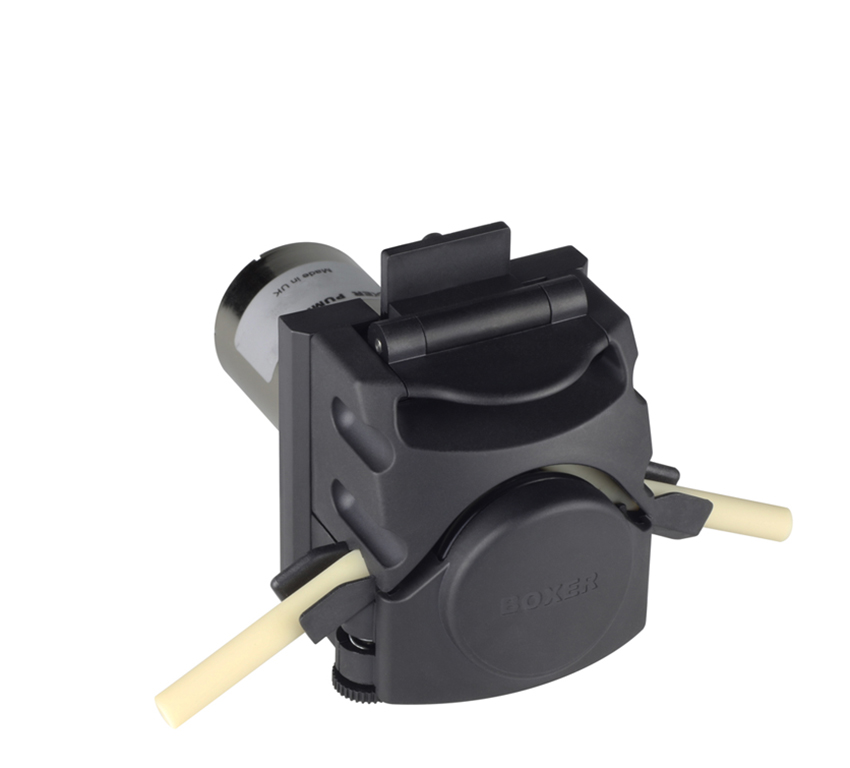

DC / Gear motor versions offer a range of 30 to 420 rpm with optional back shaft encoder providing accurate feedback of rotor speed.

Stepper motor versions offer the versatility of 2 different size motors and supporting driver options and speed sensor.

› Flow rates from 1.4 ml/min (or lower using stepper motor) to 1000 ml/min
› Continuous tube
› Flip-top easy tube exchange
› Unique floating saddle to enhance tube life and/or limit pressure
› Clip-on head
› 4 different tube sizes
› 4 different tube materials
› 2 roller configurations

Tubing must always be ordered separately.

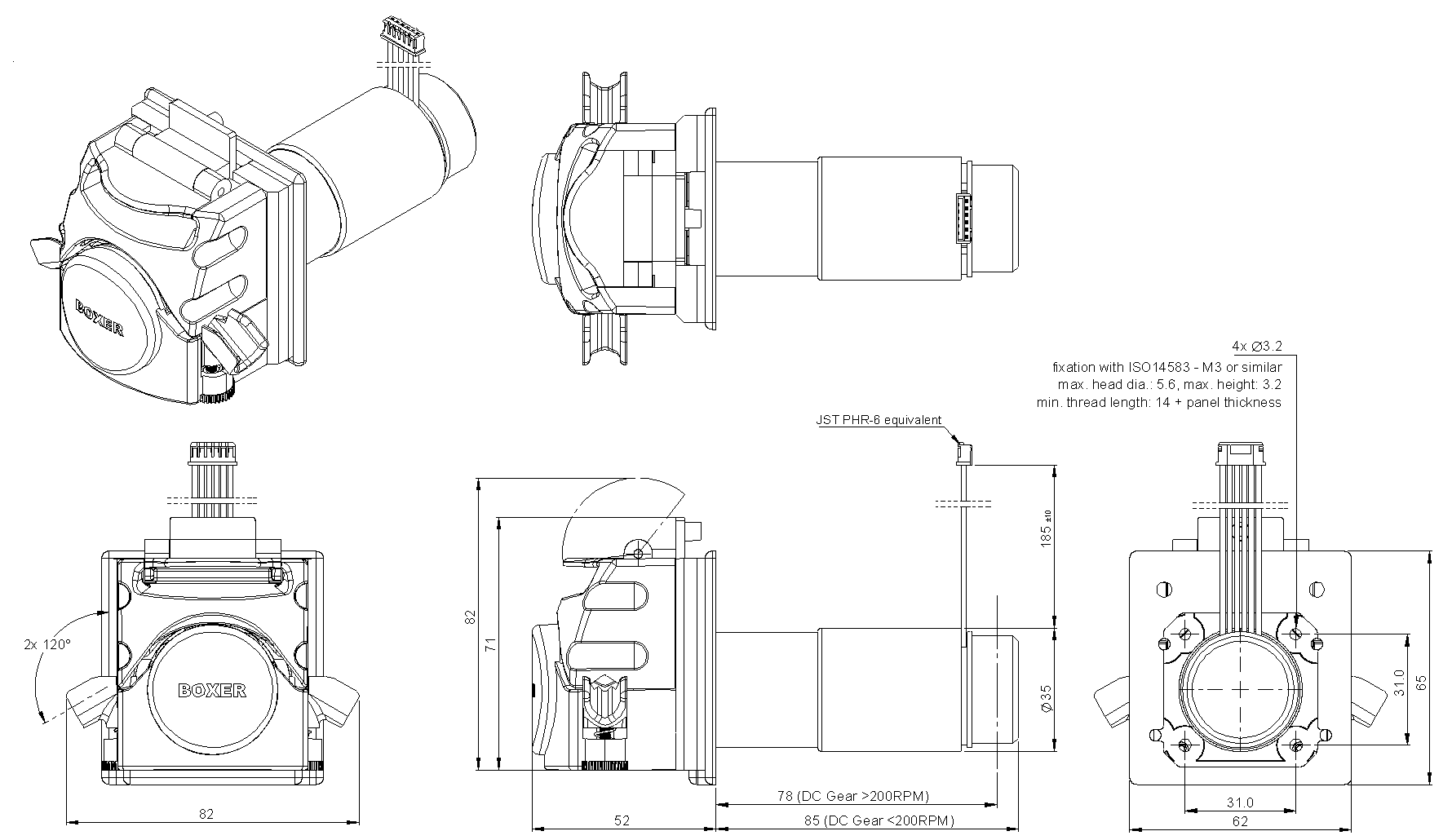

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Economic and versatile available in 12 and 24 V.

Flow Data
ID Ø 1.6 mm tube	190 / 170 µl per revolution (4 / 6 Roller)
ID Ø 2.4 mm tube	390 / 320 µl per revolution (4 / 6 Roller)
ID Ø 3.2 mm tube	660 / 495 µl per revolution (4 / 6 Roller)
ID Ø 4.8 mm tube	1250 / 830 µl per revolution (4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM (at nominal voltage)
12 V	30 / 312 / 437
24 V	60 / 298 / 420

Power Comsumption	6.5 to 10.5 W

Tube Materials	Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure	2 bar
DC motor life	>1000 hour
Weight	405 g
Optional encoder	10 pulses per motor revolution (associated rotor speed depends in gear ratio)

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15008.900

Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller | Encoder Option: no

€208.67*

Available, shipping in 1 - 2 days

Part Number: 15011.900

Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller | Encoder Option: no

€196.54*

Available in 1 day, delivery time shipping in 1 - 2 days

Part Number: 15012.900

Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller | Encoder Option: no

€196.54*

Available, shipping in 1 - 2 days

Part Number: 15009.900

Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller | Encoder Option: no

€208.67*

Available, shipping in 1 - 2 days

Part Number: 15013.900

Motor / Voltage: DC / Gear Motor 24 V, 298 rpm, 4 Roller | Encoder Option: no

€196.54*

Available, shipping in 1 - 2 days

Part Number: 15014.900

Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller | Encoder Option: no

€196.54*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15408.900

Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller | Encoder Option: yes

€292.37*

Available, shipping in 1 - 2 days

Part Number: 15411.900

Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller | Encoder Option: yes

€280.23*

Available in 1 day, delivery time shipping in 1 - 2 days

Part Number: 15412.900

Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller | Encoder Option: yes

€280.23*

Available, shipping in 1 - 2 days

Part Number: 15409.900

Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller | Encoder Option: yes

€292.37*

Available, shipping in 1 - 2 days

Part Number: 15413.900

Motor / Voltage: DC / Gear Motor 24 V, 298 rpm, 4 Roller | Encoder Option: yes

€280.23*

Available, shipping in 1 - 2 days

Part Number: 15414.900

Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller | Encoder Option: yes

€280.23*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Pharmaline tube length (x 150 mm)

Part Number: 15000.021

Size: 3.2 x 1.6 mm (ID x wall)

€5.23*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

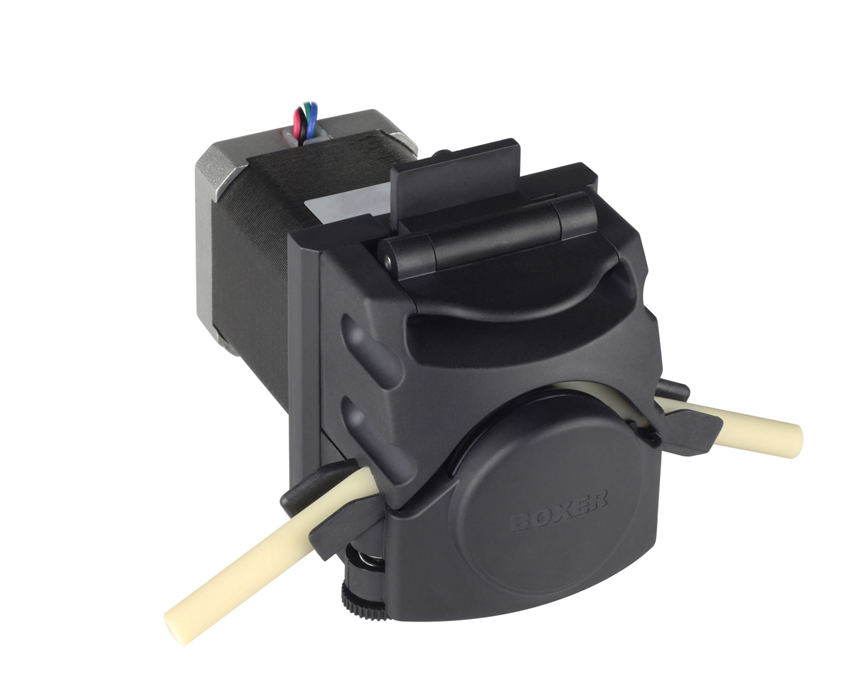

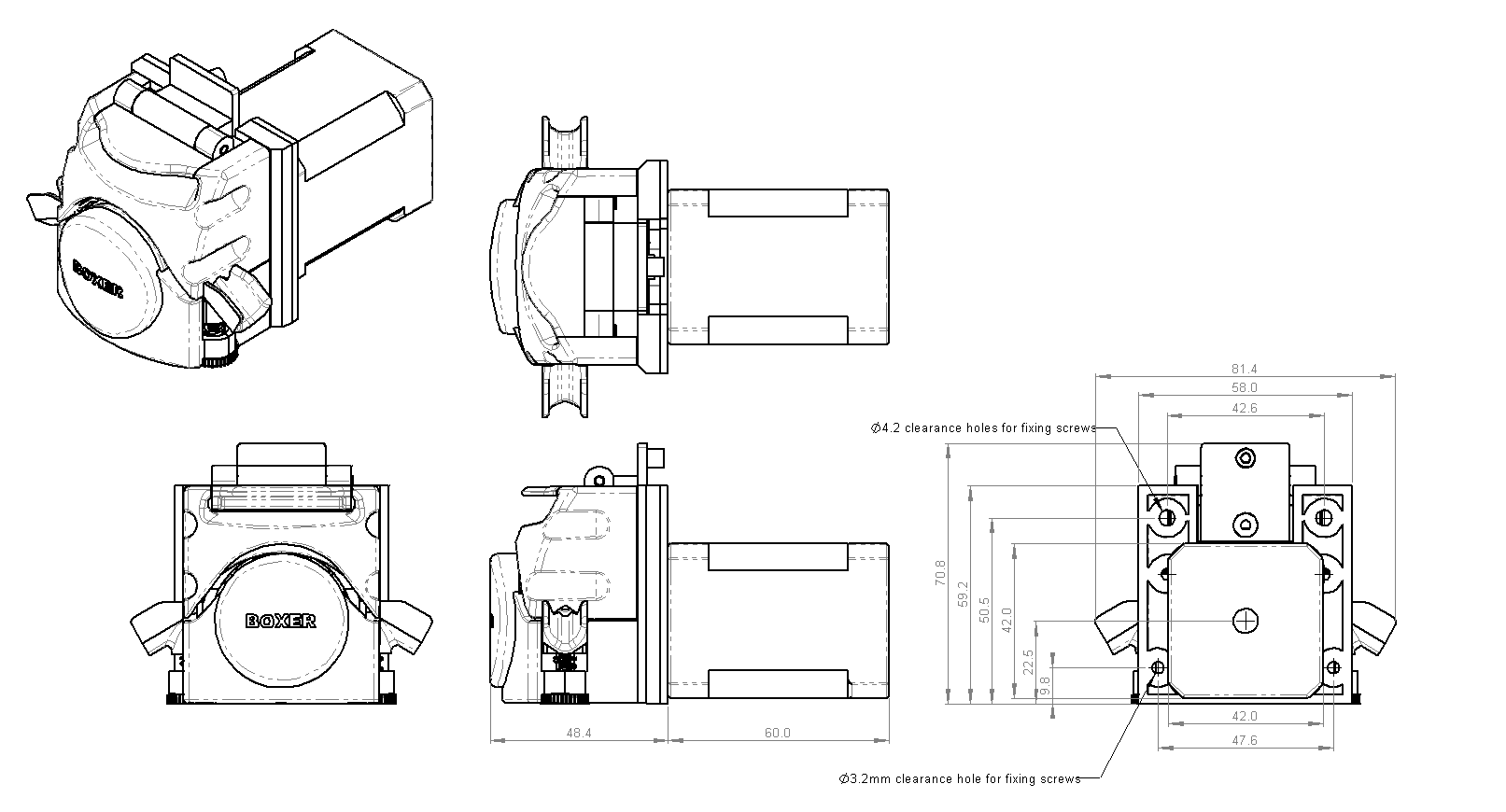

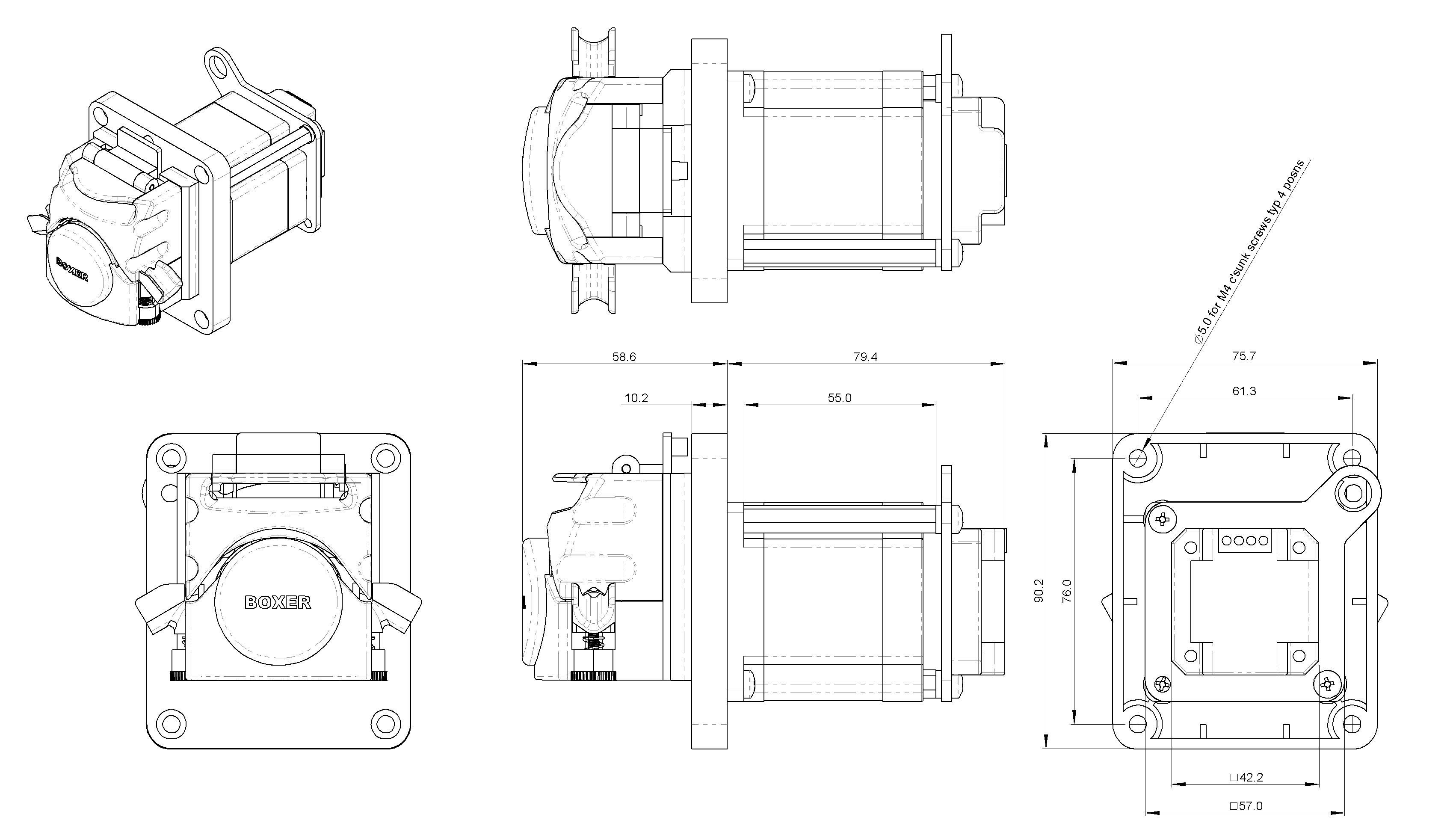

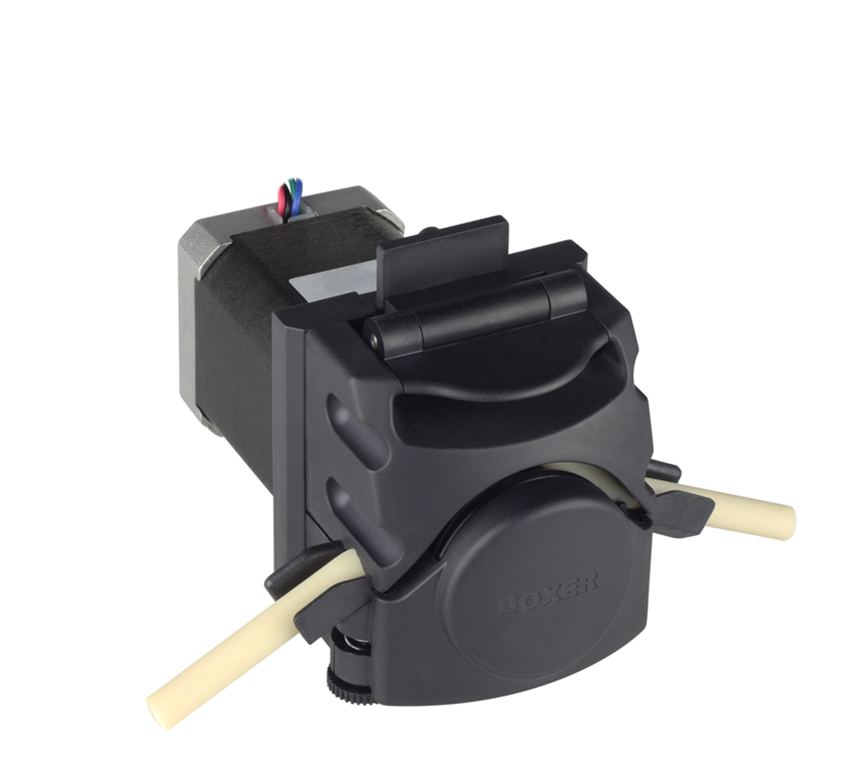

The 15QQ is available with 2 different size 24 V stepper motors. The Nema 17 offers: › Compact › Light weight › Low power consumption Supplied with stepper motor only or complete with assembled driver.

Flow Data
ID Ø 1.6 mm tube	190 / 170 µl per revolution (4 / 6 Roller)
ID Ø 2.4 mm tube	390 / 320 µl per revolution (4 / 6 Roller)
ID Ø 3.2 mm tube	660 / 495 µl per revolution (4 / 6 Roller)
ID Ø 4.8 mm tube	1250 / 830 µl per revolution (4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM	0 to 500 RPM

Power Comsumption	7.0 to 12.0 W

Tube Materials	Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure	2 bar
Motor life	>10000 hour
Weight	655 g

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15602.900

Motor / Driver Options: Nema 17 | Number of Rollers : 4

€180.44*

Available, shipping in 1 - 2 days

Part Number: 15603.900

Motor / Driver Options: Nema 17 | Number of Rollers : 6

€183.93*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15652.901

Motor / Driver Options: Nema 17 + A2 Driver | Number of Rollers : 4

€254.38*

Available, shipping in 1 - 2 days

Part Number: 15653.901

Motor / Driver Options: Nema 17 + A2 Driver | Number of Rollers : 6

€257.87*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

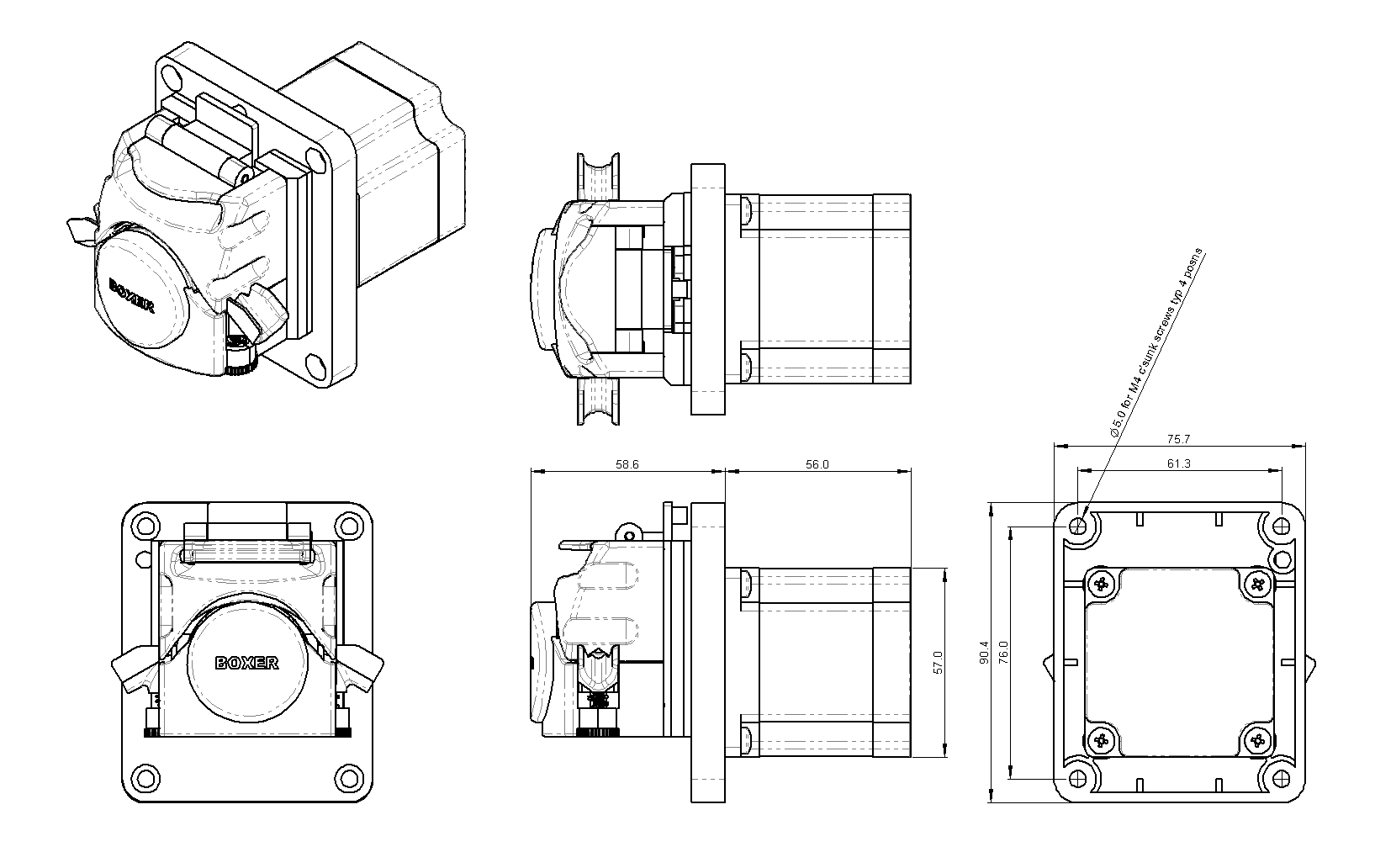

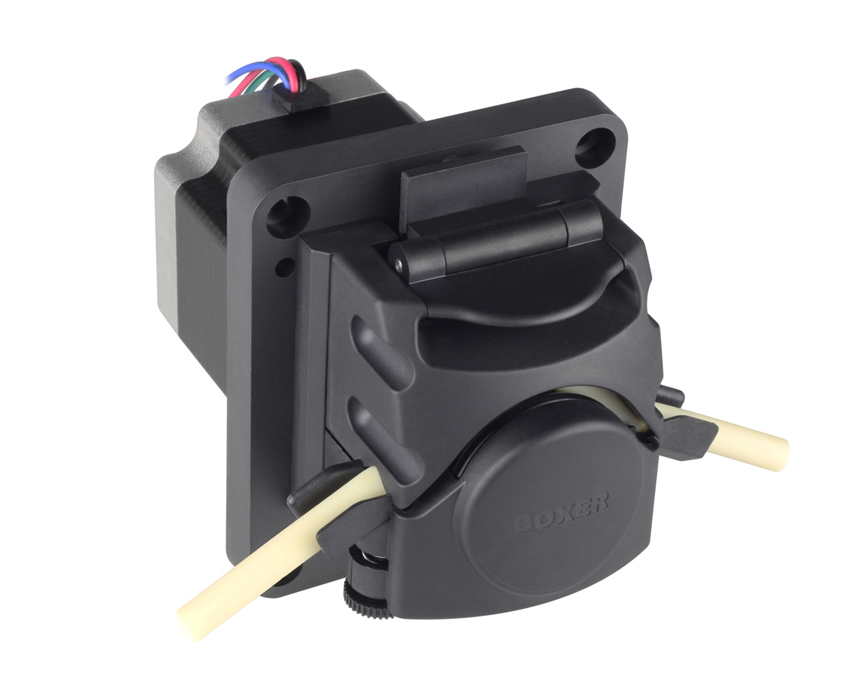

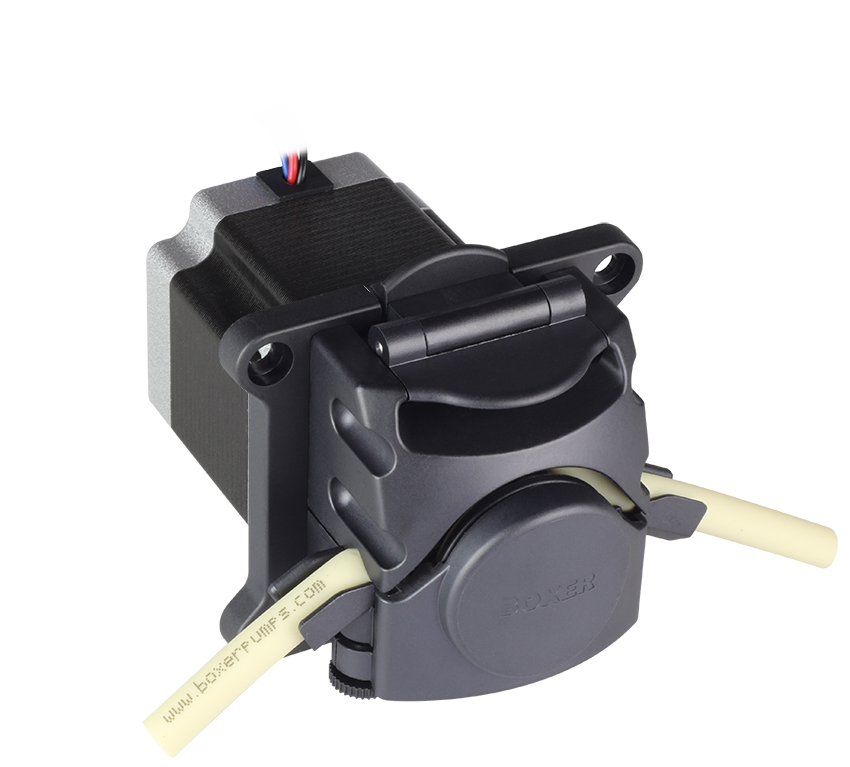

The 15QQ is available with 2 different size 24 V stepper motors. The Nema 23 offers: › Enhanced speed control › High acceleration › High max speed Supplied with stepper motor only or with 3 driver options.

Tube Size (ID) mm	Flow per Revolution (µl)	Flow at 100 rpm (ml/min)	Flow at 500 rpm (ml/min)	Flow at 800 rpm (ml/min)
(x 1.6 mm wall)	Rollers: 4 / 6	Rollers: 4 / 6	Rollers: 4 / 6	Rollers: 4 / 6

∅ 1.6 mm tube	190 / 170	19 / 17	95 / 85	152 / 136
∅ 2.4 mm tube	390 / 320	39 / 32	195 / 160	312 / 256
∅ 3.2 mm tube	660 / 495	66 / 49	330 / 245	528 / 396
∅ 4.8 mm tube	1250 / 830	125 / 83	625 / 415	1000 / 664

Tube Materials		Innovaprene / Innovasil (Silicone) / Pharm-a-line / Lagoprene / ED-Plex


Driver Options
A4		Analogue driver: 0 to 5 V DC speed input, direction and enable inputs

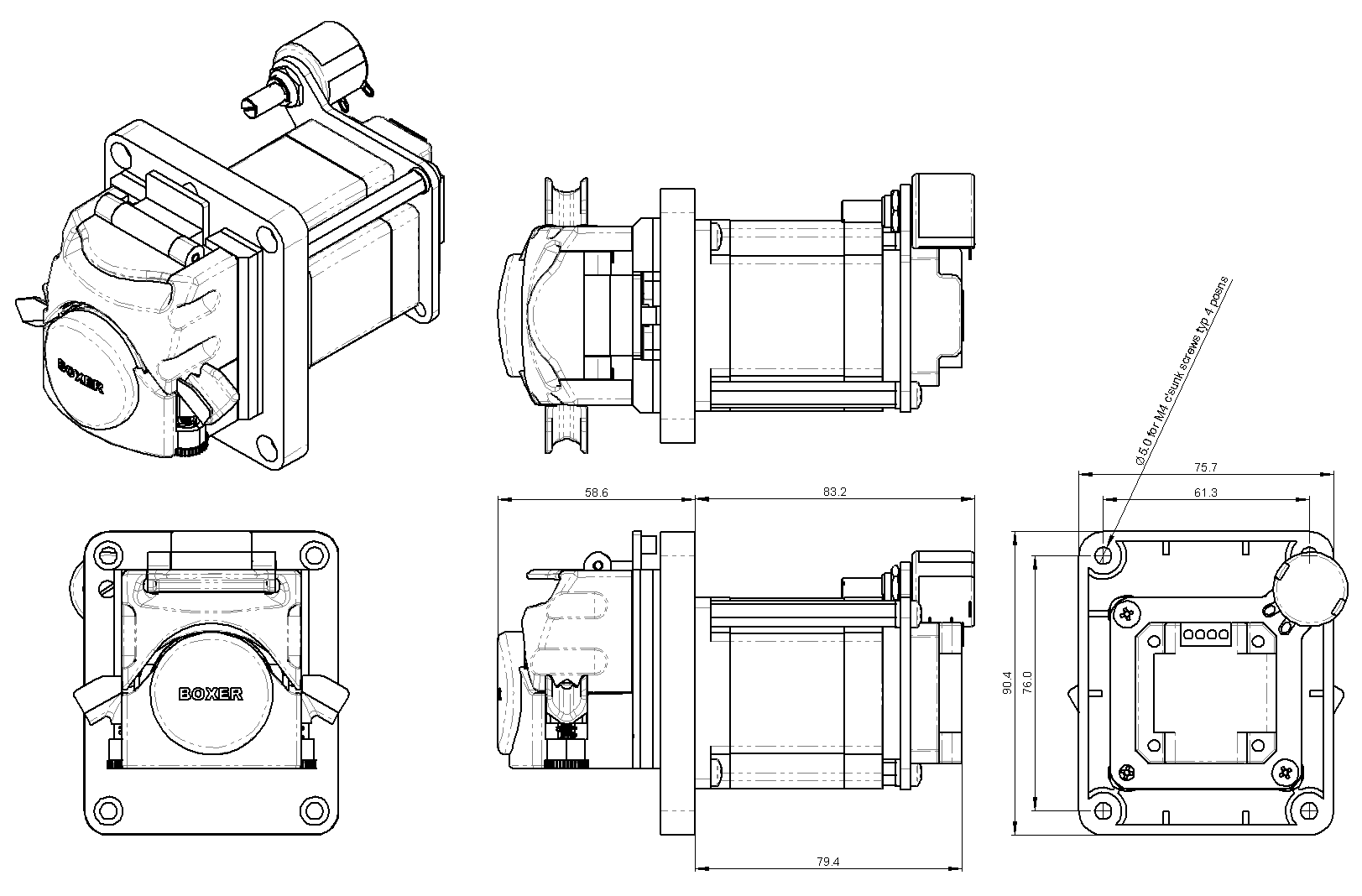

A4p		Analogue driver: speed regulation via mounted potentiometer, direction and enable inputs

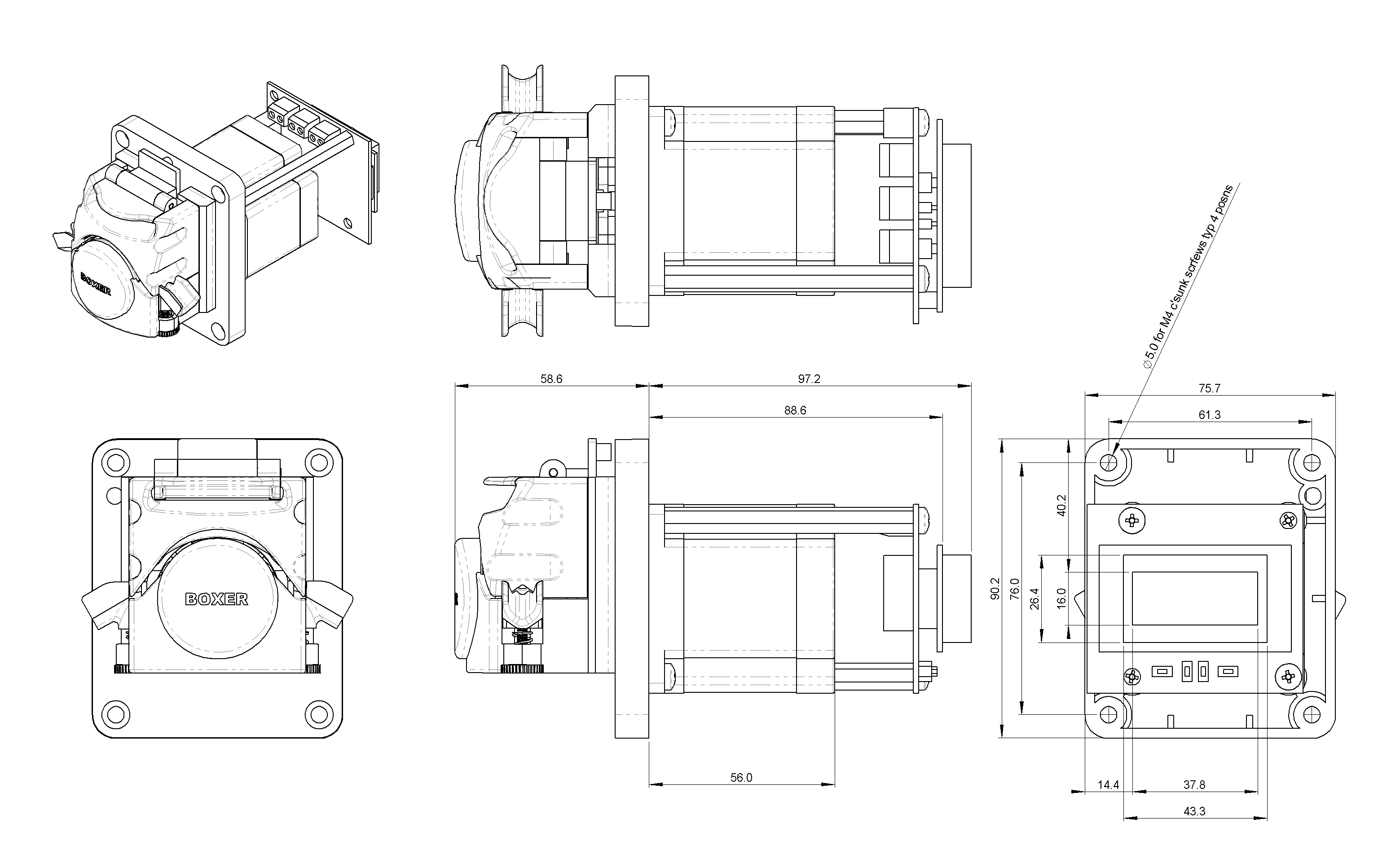

iD		Digital driver with LCD display

Sensor Option
Speed Sensor		Micro reed switch, contacts close once per revolution

General Data
Max Pressure				2.0 bar
Max Suctuion Height				9.0 m H20
Power Consumption				Approx. 18.0 to 20.5 W
Weight				850 g (without driver / encoder)

			Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15902.900

Number of Rollers : 4 | Driver Options: no | Speed Sensor Option: no

€193.55*

Available, shipping in 1 - 2 days

Part Number: 15902.910

Number of Rollers : 4 | Driver Options: no | Speed Sensor Option: yes

€228.42*

Available, shipping in 1 - 2 days

Part Number: 15903.900

Number of Rollers : 6 | Driver Options: no | Speed Sensor Option: no

€197.03*

Available, shipping in 1 - 2 days

Part Number: 15903.910

Number of Rollers : 6 | Driver Options: no | Speed Sensor Option: yes

€231.90*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15902.901

Number of Rollers : 4 | Driver Options: A4 | Speed Sensor Option: no

€337.06*

Available, shipping in 1 - 2 days

Part Number: 15902.911

Number of Rollers : 4 | Driver Options: A4 | Speed Sensor Option: yes

€371.93*

Available, shipping in 1 - 2 days

Part Number: 15903.901

Number of Rollers : 6 | Driver Options: A4 | Speed Sensor Option: no

€340.54*

Available, shipping in 1 - 2 days

Part Number: 15903.911

Number of Rollers : 6 | Driver Options: A4 | Speed Sensor Option: yes

€375.41*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15952.901

Number of Rollers : 4 | Driver Options: A4p | Speed Sensor Option: no

€363.94*

Available, shipping in 1 - 2 days

Part Number: 15952.911

Number of Rollers : 4 | Driver Options: A4p | Speed Sensor Option: yes

€398.81*

Available, shipping in 1 - 2 days

Part Number: 15953.901

Number of Rollers : 6 | Driver Options: A4p | Speed Sensor Option: no

€367.42*

Available, shipping in 1 - 2 days

Part Number: 15953.911

Number of Rollers : 6 | Driver Options: A4p | Speed Sensor Option: yes

€402.29*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15902.905

Number of Rollers : 4 | Driver Options: iD | Speed Sensor Option: no

€408.76*

Available, shipping in 1 - 2 days

Part Number: 15902.915

Number of Rollers : 4 | Driver Options: iD | Speed Sensor Option: yes

€443.63*

Available, shipping in 1 - 2 days

Part Number: 15903.905

Number of Rollers : 6 | Driver Options: iD | Speed Sensor Option: no

€412.24*

Available, shipping in 1 - 2 days

Part Number: 15903.915

Number of Rollers : 6 | Driver Options: iD | Speed Sensor Option: yes

€447.11*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

Additional Accessories

Innovasil (1.6 mm wall)

€8.05*

Details

15KS / 15QQ Innovasil tube length (x 150 mm)

€1.73*

Details

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
