DT80

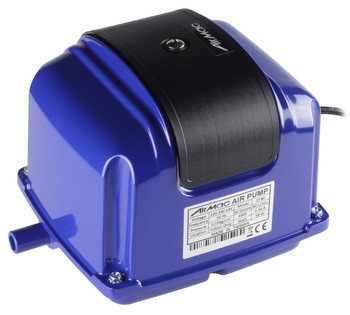

The DT80 is the 80 l/min linear diaphragm pump from the Airmac DT Series. It offers both compact design and extremely low power consumption which significantly reduces operating costs over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug.

› Flow rate of 80 l/mim against 150 mbar
› Extremely low power consumption (58 W)
› Compact design
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)

Return to Linear Diaphragm Pump range.


Available to purchase online via BOX-it (see order information below).

Technical Data

Flow (at 150 mbar) 80 l/min
Operating Pressure Range 100 to 250 mbar
Operating Flow Range 90 to 55 l/min
Current Consumption (at 150 mbar)) 0.34 A
Power Consumption (at 150 mbar) 58 W
Cable Length 1.8 m
Cable Termination EU Plug
Approval CE (according to EN60335, electrical household appliances), RoHS
Operating Temperature Range -10 to +40 °C
Operating Humidity Range 20 to 80% RH
Inlet Via Integrated filter (under housing cover as replaceable item)
Outlet 18 mm OD port
Weight 5.4 kg






Order Information

Part Number:     180080.230     DT80 230 V / 50 Hz     ⇒ BOX-it

Supplied As Standard

Elbow and clamps (x2)

Accessories

Service Kit























All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
