15QQ Series

The 15QQ series is a unique and versatile peristaltic pump range designed for accurate dispensing of liquids.

DC / Gear motor versions offer a range of 30 to 420 rpm with optional back shaft encoder providing accurate feedback of rotor speed.

Stepper motor versions offer the versatility of 2 different size motors and supporting driver options.

AC Synchronous motor versions offer a range of just 8 to 15 rpm.

› Flow rates from 1.4 ml/min (or lower using stepper motor) to 1000 ml/min
› Continuous tube
› Flip-top easy tube exchange
› Unique floating saddle to enhance tube life and/or limit pressure
› Clip-on head
› 4 different tube sizes
› 4 different tube materials
› 2 roller configurations

Tubing must always be ordered separately.

The 15QQ supersedes the 15KS series.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Return to Peristaltic Pumps for Liquid range.

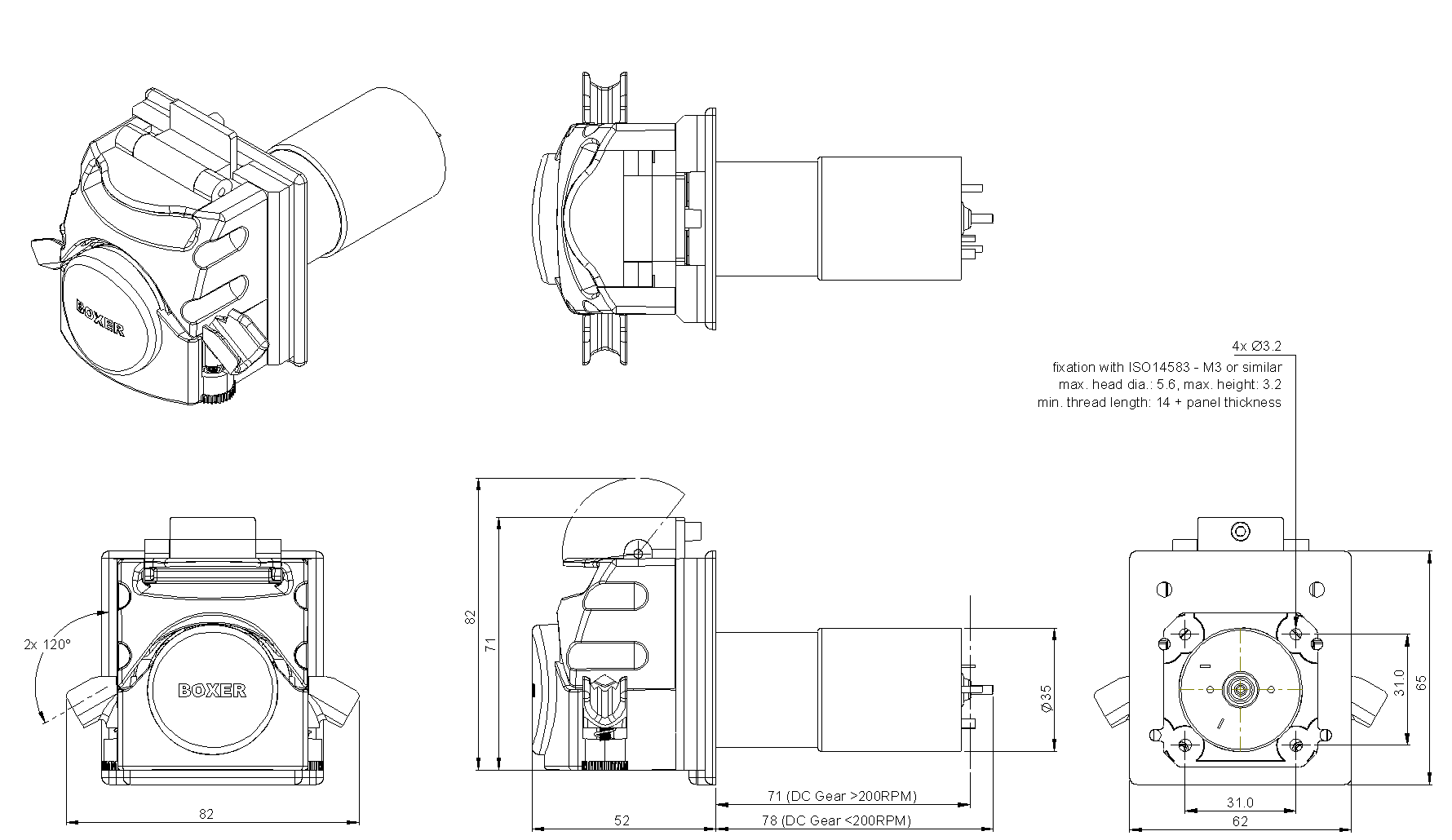

DC / Gear Motor

Economic and versatile available in 12 and 24 V.

Available to purchase online via BOX-it (see order information below).

Technical Data

Flow Data
ID Ø 1.6 mm tube 190 / 170 µl per revolution (4 / 6 Roller)
ID Ø 2.4 mm tube 390 / 320 µl per revolution (4 / 6 Roller)
ID Ø 3.2 mm tube 660 / 495 µl per revolution (4 / 6 Roller)
ID Ø 4.8 mm tube 1250 / 830 µl per revolution (4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM (at nominal voltage)
12 V 30 / 312 / 437
24 V 60 / 298 / 420

Power Comsumption 6.5 to 10.5 W

Tube Materials Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure 2 bar
DC motor life >1000 hour
Weight 405 g

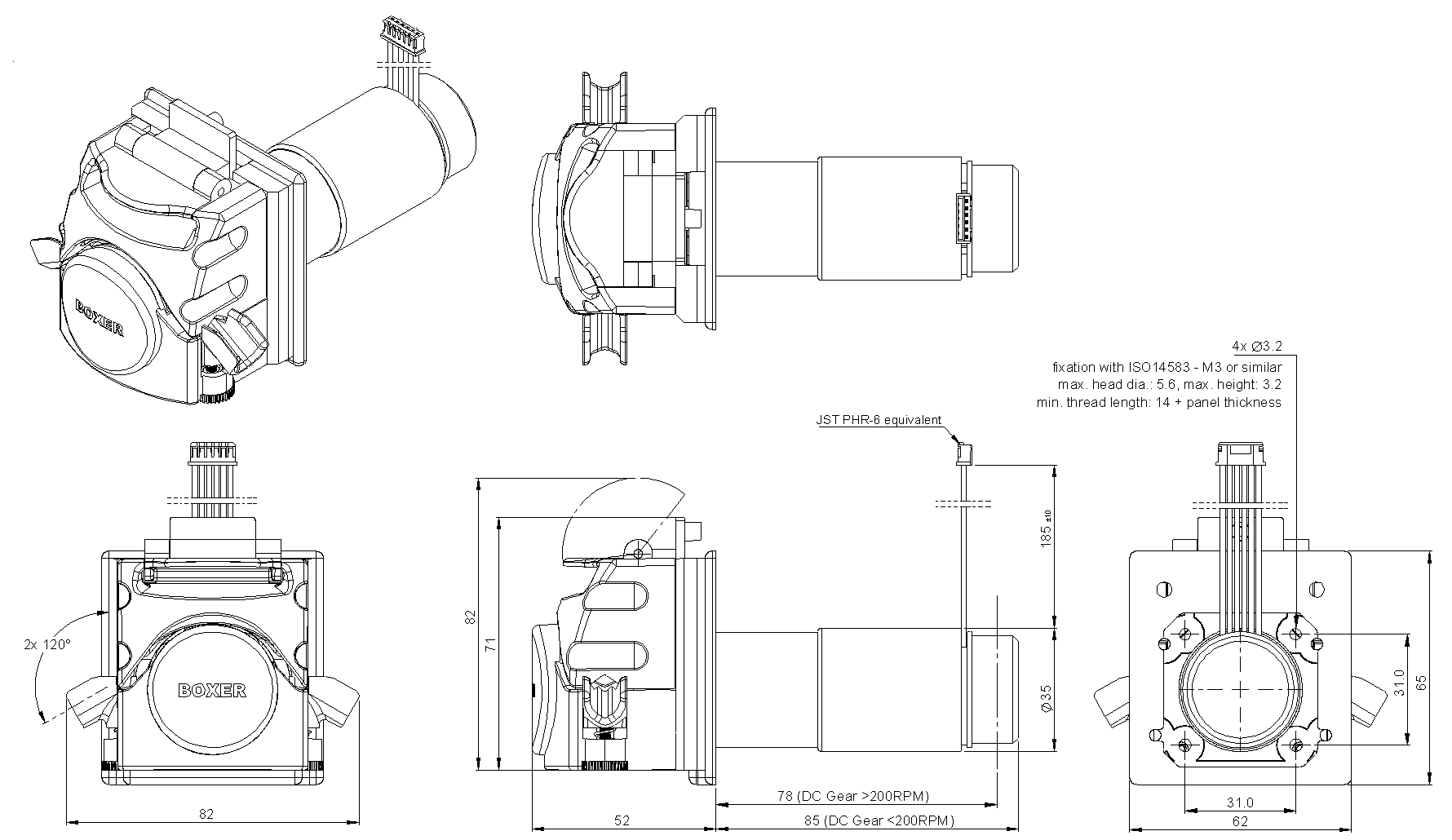

Optional encoder 10 pulses per motor revolution (associated rotor speed depends in gear ratio)

Order Information

Part Number:     15008.900     12 V DC       40 RPM     4 Rollers
Part Number:     15011.900     12 V DC     312 RPM     4 Rollers
Part Number:     15012.900     12 V DC     437 RPM     4 Rollers     ⇒ BOX-it

Part Number:     15009.900     24 V DC       80 RPM     4 Rollers
Part Number:     15013.900     24 V DC     298 RPM     4 Rollers
Part Number:     15014.900     24 V DC     420 RPM     4 Rollers     ⇒ BOX-it

Accessories:
Tubing, encoder, spare rotor

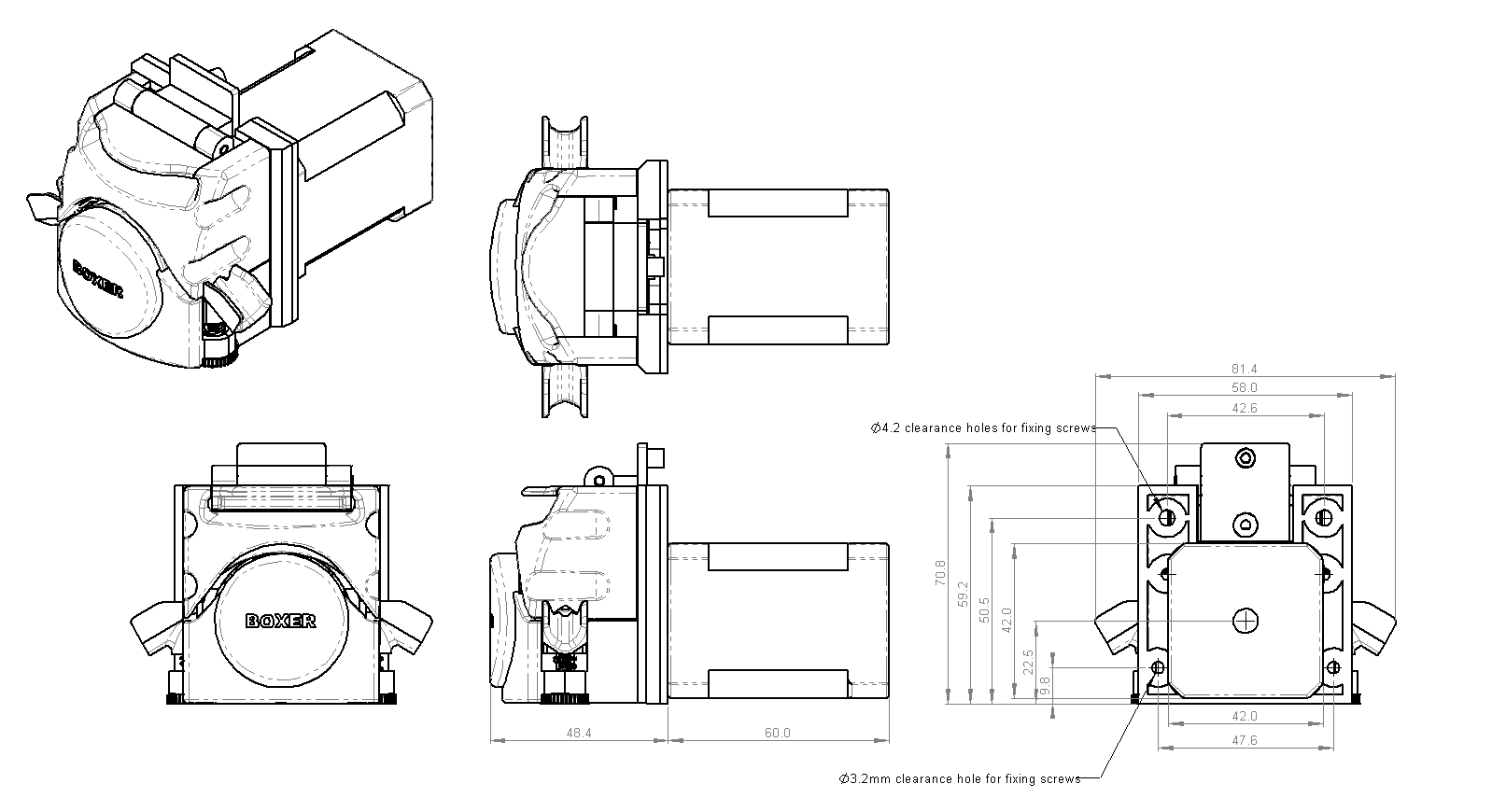

Stepper Motor - Nema 17 Frame

The 15QQ is available with 2 different size 24 V stepper motors.

The Nema 17 frame offers:

› Compact
› Light weight
› Low power consumption

Supplied with stepper motor only or complete with assembled driver.

Available to purchase online via BOX-it (see order information below).

Technical Data

Flow Data
ID Ø 1.6 mm tube 190 / 170 µl per revolution (4 / 6 Roller)
ID Ø 2.4 mm tube 390 / 320 µl per revolution (4 / 6 Roller)
ID Ø 3.2 mm tube 660 / 495 µl per revolution (4 / 6 Roller)
ID Ø 4.8 mm tube 1250 / 830 µl per revolution (4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM 0 to 500 RPM

Power Comsumption 7.0 to 12.0 W

Tube Materials Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure 2 bar
Motor life >10000 hour
Weight 655 g

Stepper Motor

Supplied without driver

Order Information

Part Number:     15602.900     24 V Stepper     4 Roller     ⇒ BOX-it
Part Number:     15603.900     24 V Stepper     6 Roller

Accessories:
Tubing, encoder, spare rotor

Driver

Stepper Motor with Analogue Driver, 0 to 5 V Speed Input (A2)

Supplied with driver assembled.

Order Information

Part Number:     15652.900     24 V Stepper     4 Roller     + A2 Driver     ⇒ BOX-it
Part Number:     15653.900     24 V Stepper     6 Roller     + A2 Driver

Accessories:
Tubing, encoder, spare rotor

Driver

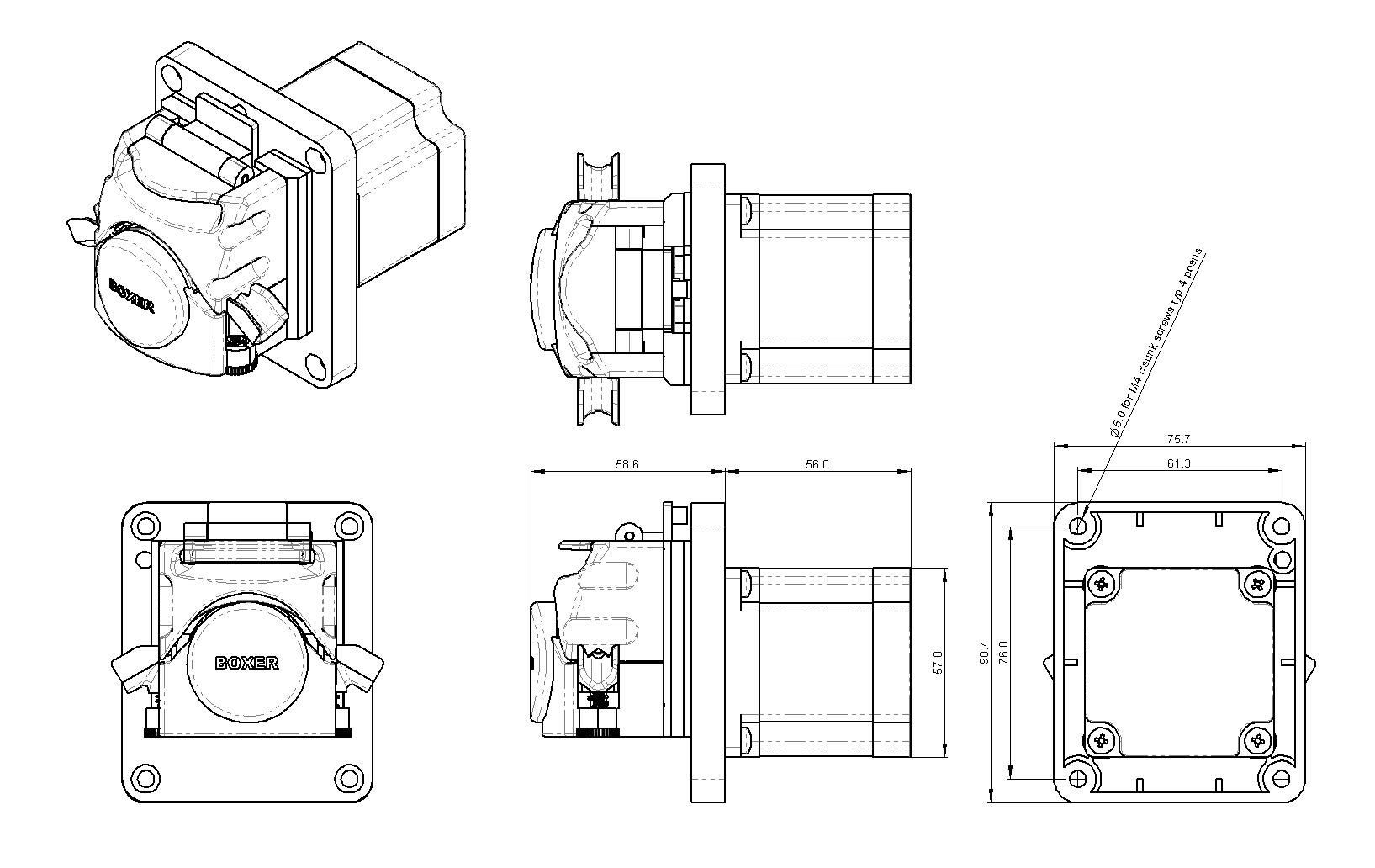

Stepper Motor - Nema 23 Frame

The 15QQ is available with 2 different size 24 V stepper motors.

The Nema 23 frame offers:

› Enhanced speed control
› High acceleration
› High max speed

Supplied with stepper motor only or with 3 driver options.

Available to purchase online via BOX-it (see order information below).

Technical Data

Flow Data
ID Ø 1.6 mm tube 190 / 170 µl per revolution (4 / 6 Roller)
ID Ø 2.4 mm tube 390 / 320 µl per revolution (4 / 6 Roller)
ID Ø 3.2 mm tube 660 / 495 µl per revolution (4 / 6 Roller)
ID Ø 4.8 mm tube 1250 / 830 µl per revolution (4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM 0 to 800 RPM

Power Comsumption 18.0 to 20.5 W

Tube Materials Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure 2 bar
Motor life >10000 hour
Weight 890 g

Stepper Motor

Supplied without driver

Order Information

Part Number:     15702.900     24 V Stepper     4 Roller     ⇒ BOX-it
Part Number:     15703.900     24 V Stepper     6 Roller

Accessories:
Tubing, encoder, spare rotor

Driver

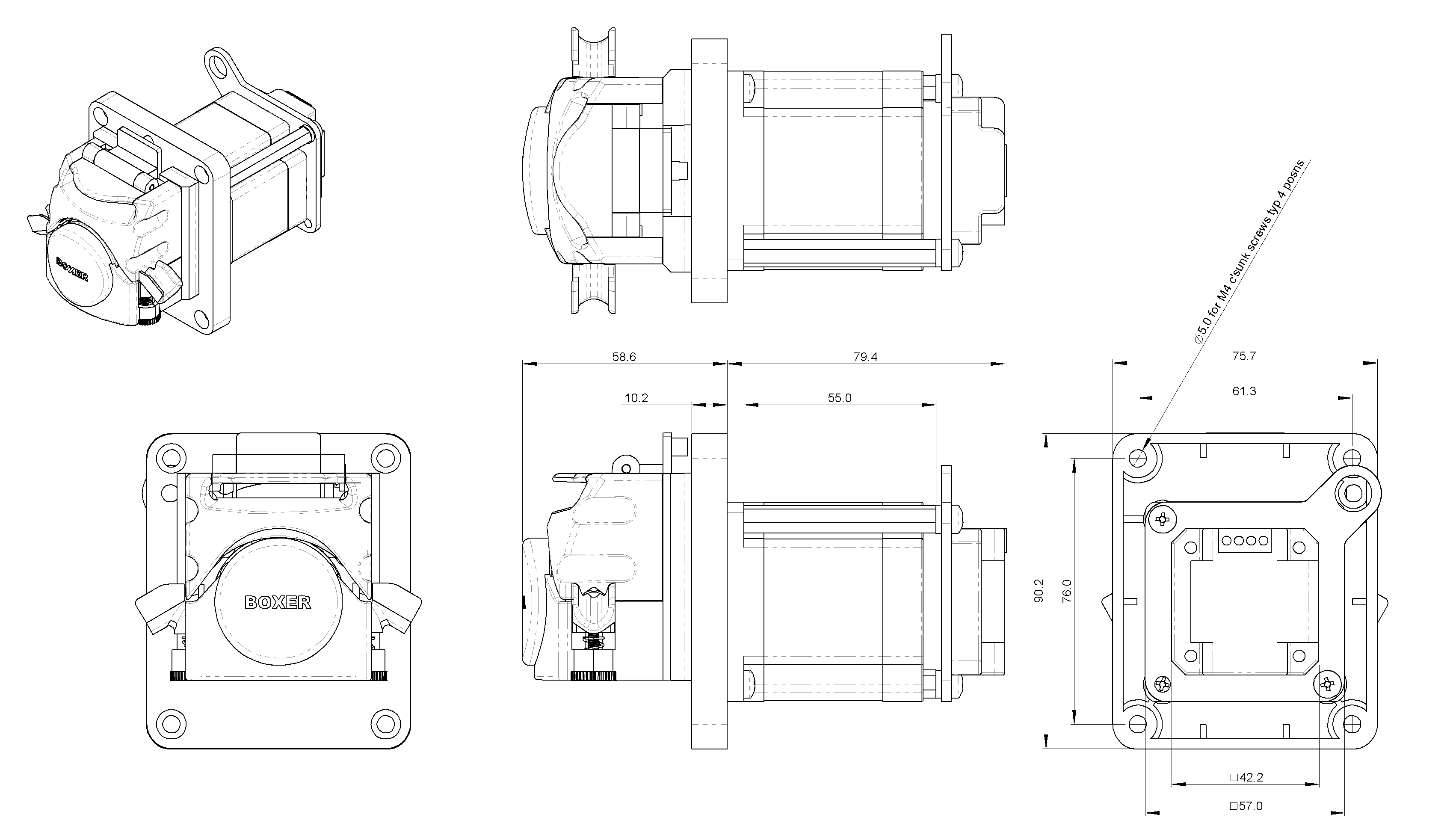

Stepper Motor with Analogue Driver, 0 to 5 V Speed Input (A4)

Supplied with driver assembled.

Order Information

Part Number:     15702.901     24 V Stepper     4 Roller     + A4 Driver     ⇒ BOX-it
Part Number:     15703.901     24 V Stepper     6 Roller     + A4 Driver

Accessories:
Tubing, encoder, spare rotor

Driver

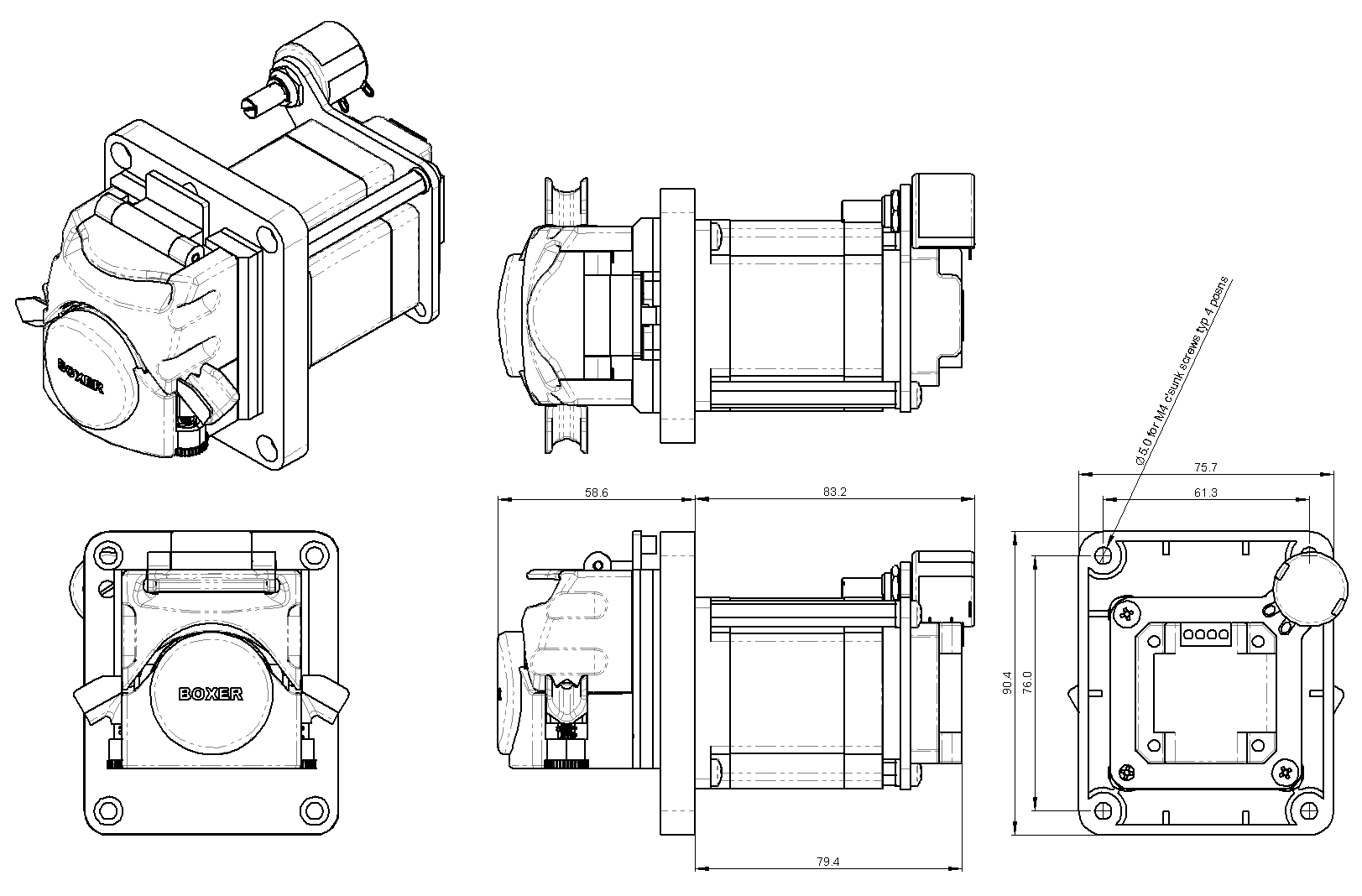

Stepper Motor with Analogue Driver, with Speed Potentiometer (A4p)

Supplied with driver assembled.

Order Information

Part Number:     15752.901     24 V Stepper     4 Roller     + A4p Driver     ⇒ BOX-it
Part Number:     15753.901     24 V Stepper     6 Roller     + A4p Driver

Accessories:
Tubing, encoder, spare rotor

Driver

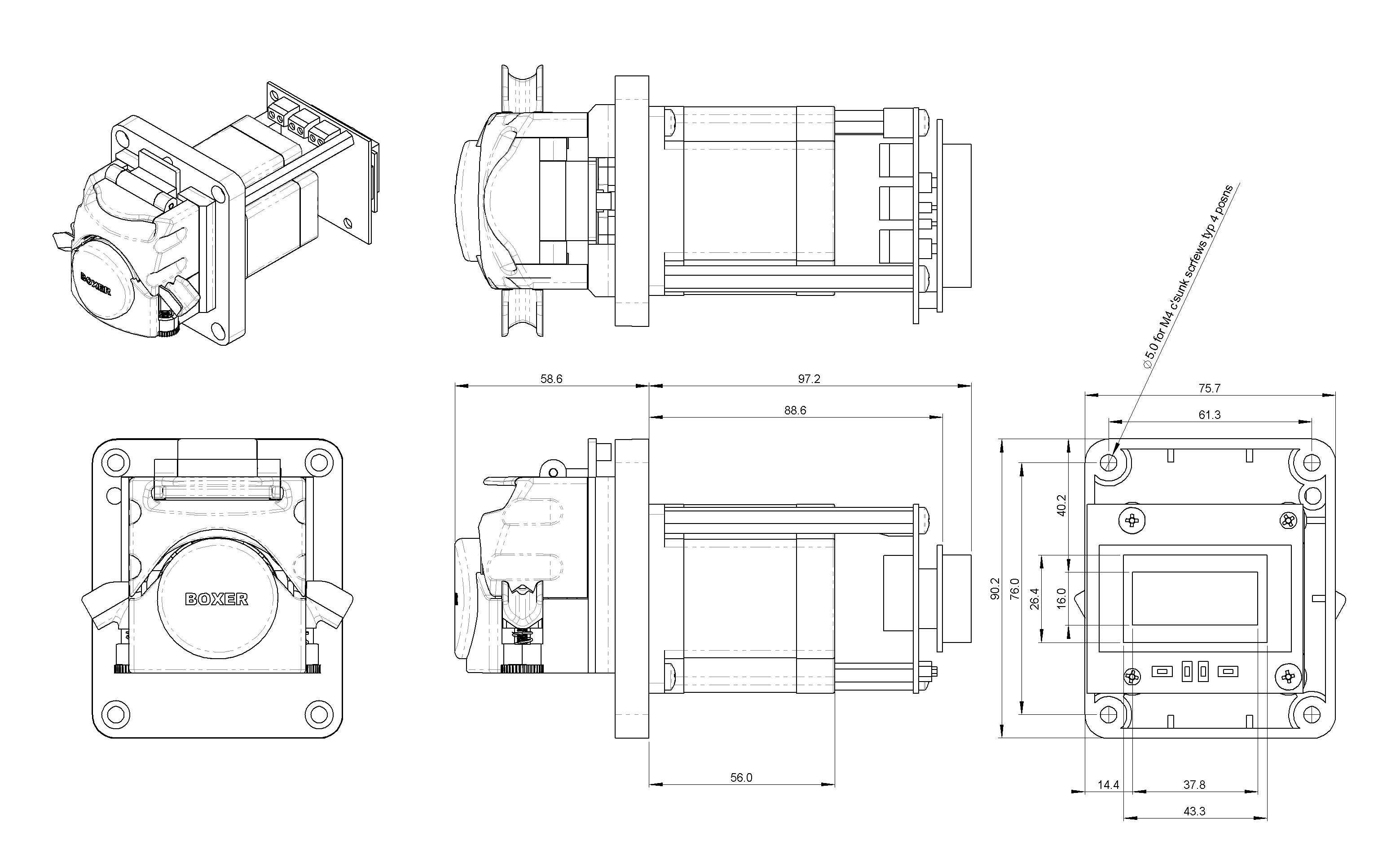

Stepper Motor with Programmable Digital Driver (iD)

Supplied with driver assembled.

Order Information

Part Number:     15702.905     24 V Stepper     4 Roller     + iD Driver     ⇒ BOX-it
Part Number:     15703.905     24 V Stepper     6 Roller     + iD Driver

Accessories:
Tubing, encoder, spare rotor

Driver

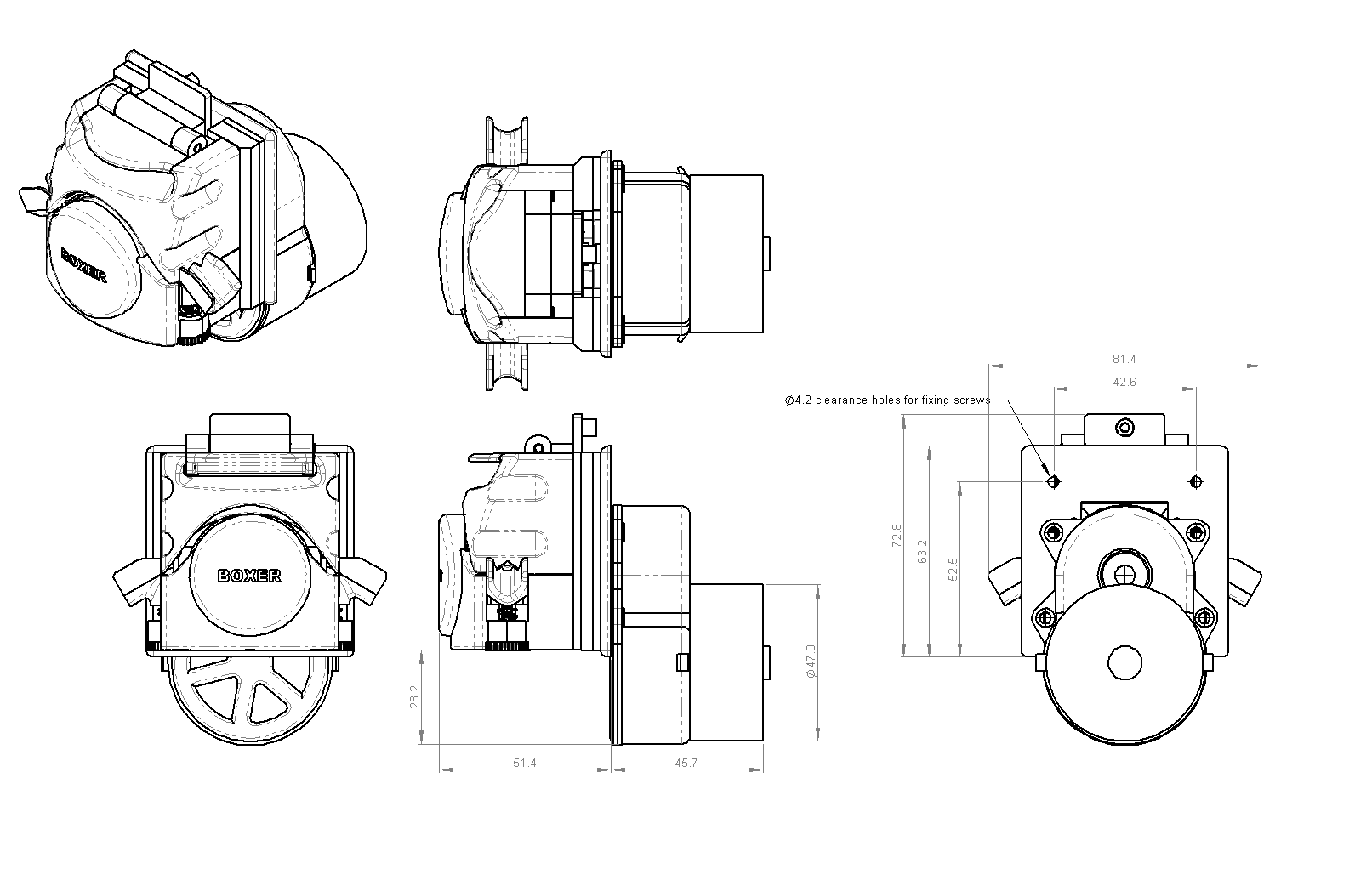

AC Synchronous Motor

Long life and slow running available in 230 V / 50 Hz.

Technical Data

Flow Data
ID Ø 1.6 mm tube 190 µl per revolution (4 Roller)
ID Ø 2.4 mm tube 390 µl per revolution (4 Roller)
ID Ø 3.2 mm tube 660 µl per revolution (4 Roller)
ID Ø 4.8 mm tube 1250 µl per revolution (4 Roller)

RPM
230 V / 50 Hz 8 / 15

Tube Materials Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure 2 bar
Motor life >10000 hour
Weight 409 g







Order Information

Part Number:     15205.900     230 V / 50 Hz       8 RPM     4 Rollers
Part Number:     15204.900     230 V / 50 Hz     15 RPM     4 Rollers

Accessories:
Tubing, encoder, spare rotor

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use. These products are not suitable for in-vivo applications.
