- BOXER 20K Miniature Diaphragm Pump Series
20K Series
The 20K series is a single headed miniature diaphragm pump. With a 'best-in-class' body width of just 12 mm it is designed for applications requiring minimised size, power and weight. Typical examples include portable environmental gas analysis, medical monitoring, medical therapy and chemical agents / biohazard detection.
Recognising that instrument miniaturisation often results in low performance requirements, the 20K is additionally available in a 'Low Flow' configuration which maximises efficiency (hence also battery life) at the lower end flow range of this series. This is achieved through the use of optimised low speed coreless motors combined with a pump head specifically designed for low flow. These pumps are listed as below as 'Coreless LF'. Additionally stable flow valve technology ensures consistent operation at flows below 50 ml/m without influence from the pump's orientation.
Use of high strength glass filled PPS plastics ensure a robust construction with a high degree of air-tightness throughout the performance and environmental operating range.
› Flow rate to 500 ml/min
› Extremely compact with a 12 mm body
› Low Flow option
› Stable flow valve technology
› Choice of iron core, and coreless motors
For extended performance, pulsation reduction and the versatility of 2 independent gas channels, this series is also available as a double headed version (20KD) offering flow to 800 ml/min, vacuum down to 75% and pressure up to 1.4 bar.
Flow control is available in combination with PWM Flow Controller.
Return to Miniature Diaphragm Pumps for Air and Gas range.

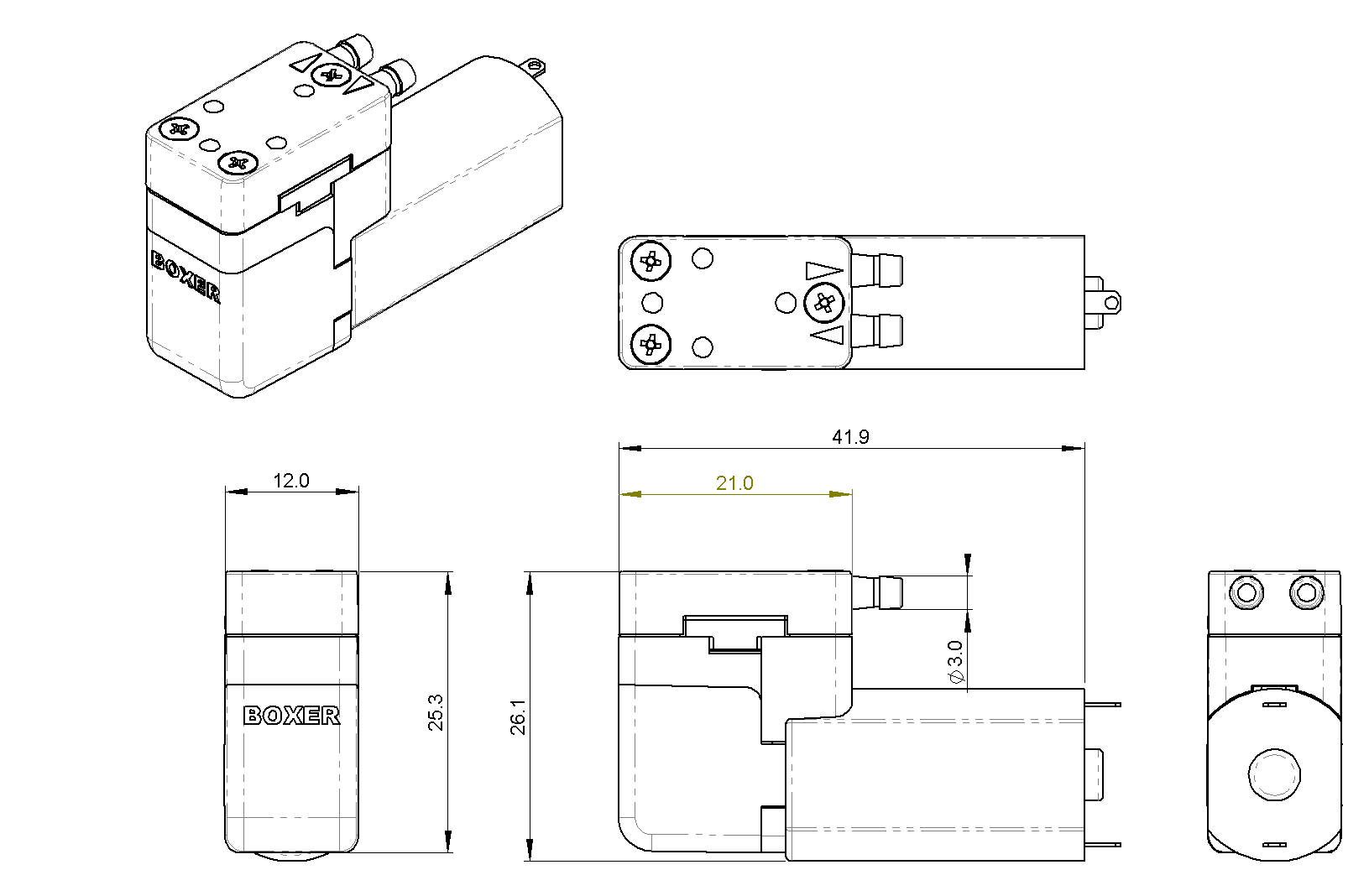

Iron Core Motor - e
Economic motor option available in 6.5 V.
Available to purchase online via BOX-it (see order information below).
Technical Data
| Free Flow (at 6.5 V) | 500 ml/min |
| Max Pressure (at 6.5 V) | 750 mbar |
| Max Vacuum (at 6.5 V) | -550 mbar |
| Power Consumption (at 6.5 V) | 0.3 to 0.7 W |
| Motor Termination | Solder tags |
| Operating Temperature Range | 5 to +60 °C |
| Operating Humidity Range | 5 to 95% RH |
| Elastomers Options | EPDM |
| Other Wetted Parts | PPS (Polyphenylene Sulphide) |
| Tube Connection | 3.0 mm barb for 2.0 to 2.5 mm ∅ tubing |
| Weight | 22g |
Order Information
Part Number: 20000.003 6.5 V DC / EPDM ⇒

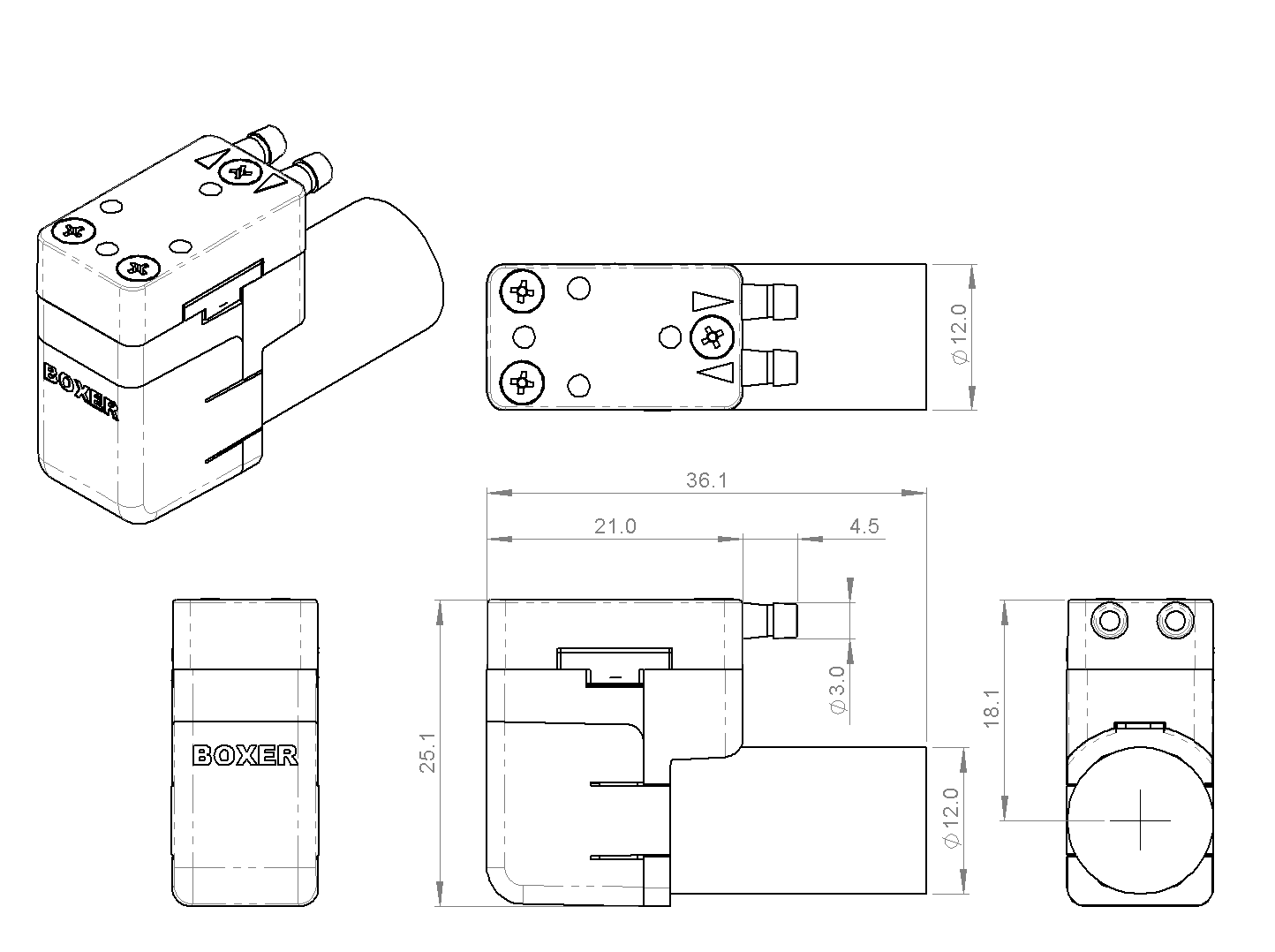

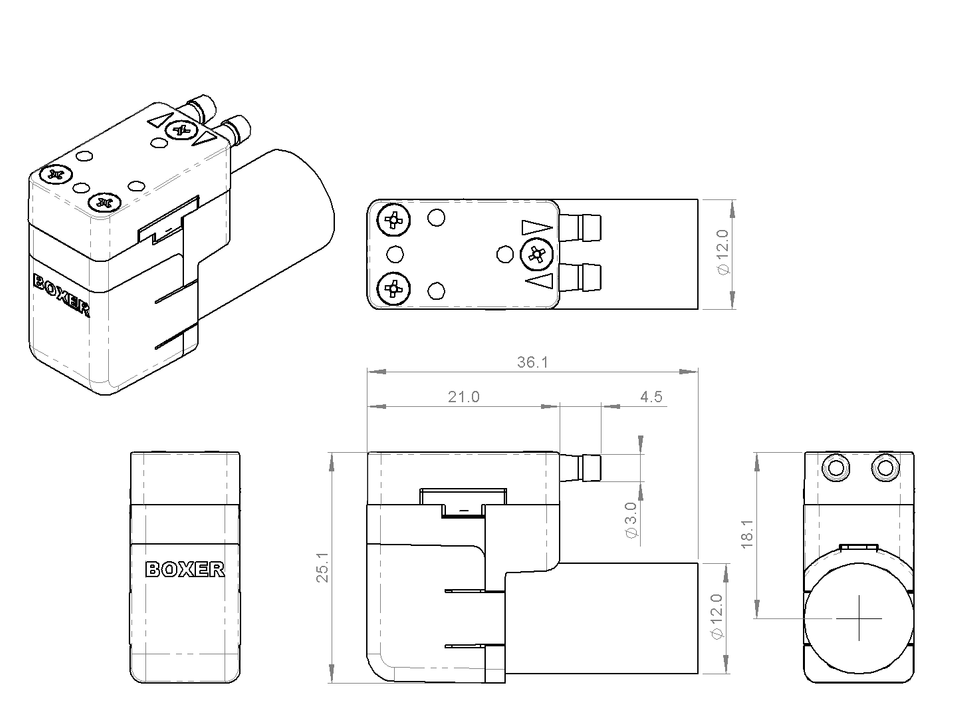

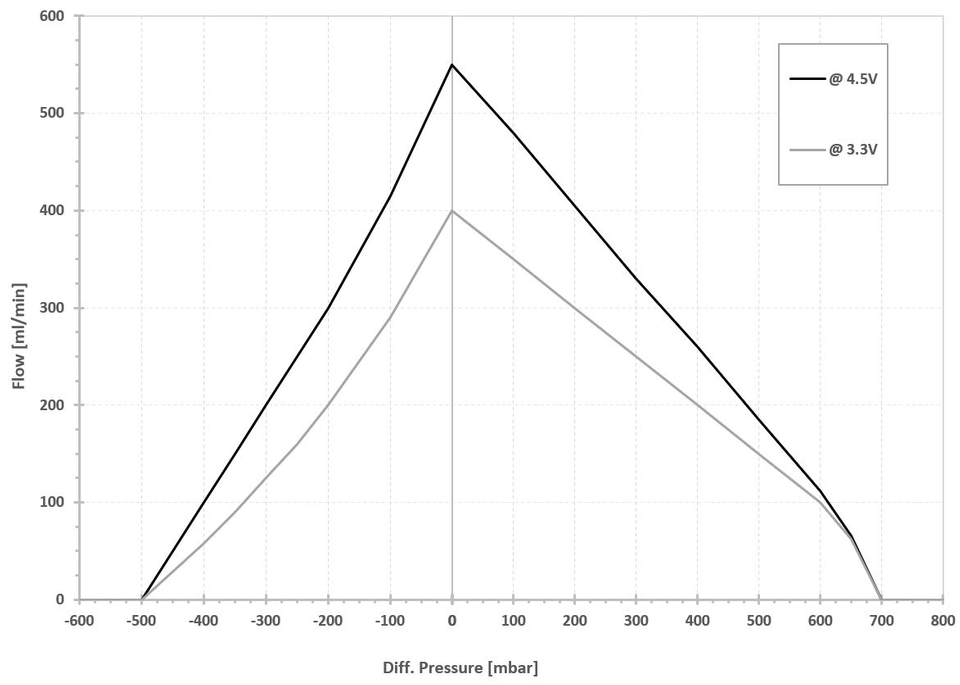

Coreless Motor
Low power consumption with excellent life available in 3.3 V (which may be run to max. 4.5 V).
Available to purchase online via BOX-it (see order information below).
Technical Data
| Free Flow (at 4.5 V) | 500 ml/min |
| Max Pressure (at 4.5 V) | 700 mbar |
| Max Vacuum (at 4.5 V) | -500 mbar |
| Power Consumption (at 4.5 V) | 0.5 to 0.7 W |
| Free Flow (at 3.3 V) | 380 ml/min |
| Max Pressure (at 3.3 V) | 700 mbar |
| Max Vacuum (at 3.3 V) | -500 mbar |
| Power Consumption (at 3.3 V) | 0.3 to 0.5 W |
| Motor Termination | 100 mm leads (red +, black -) |
| Operating Temperature Range | 5 to +60 °C |
| Operating Humidity Range | 5 to 95% RH |
| Elastomers Options | EPDM |
| Other Wetted Parts | PPS (Polyphenylene Sulphide) |
| Tube Connection | 3.0 mm barb for 2.0 to 2.5 mm ∅ tubing |
| Weight | 16g |
Order Information
Part Number: 20100.001 3.3 V DC / EPDM ⇒

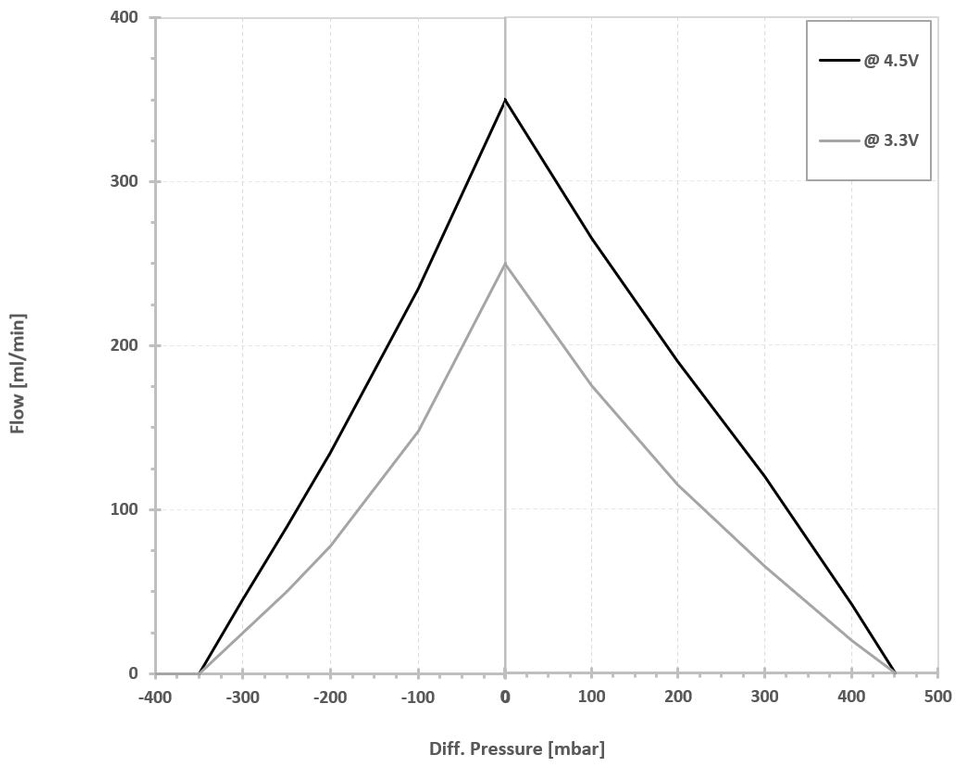

Coreless Motor - LF
The LF option provides the advantages of a coreless motor, however both motor and pump are optimised for low speed / low flow operation. Available in 3.3 V (which may be run to max. 4.5 V).
Available to purchase online via BOX-it (see order information below).
Technical Data
| Free Flow (at 4.5 V) | 350 ml/min |
| Max Pressure (at 4.5 V) | 400 mbar |
| Max Vacuum (at 4.5 V) | -400 mbar |
| Power Consumption (at 4.5 V) | 0.1 to 0.2 W |
| Free Flow (at 3.3 V) | 250 ml/min |
| Max Pressure (rat 3.3 V) | 400 mbar |
| Max Vacuum (at 3.3 V) | -400 mbar |
| Power Consumption (at 3.3 V) | 0.1 to 0.2 W |
| Motor Termination | 100 mm leads (red +, black -) |
| Operating Temperature Range | 5 to +60 °C |
| Operating Humidity Range | 5 to 95% RH |
| Elastomers Options | EPDM |
| Other Wetted Parts | PPS (Polyphenylene Sulphide) |
| Tube Connection | 3.0 mm barb for 2.0 to 2.5 mm ∅ tubing |
| Weight | 16g |
Order Information
Part Number: 20100.002 3.3 V DC / EPDM ⇒
All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
