19K Series

The 19K series is a single headed gas diaphragm pump. A combination of high pneumatic performance and damping chambers to reduce pulsation makes this a very versatile pump for wide range of applications.

High performance engineering plastics also allows use in high temperature applications.

Both brushed and brushless motor options are available.

› Flow rate to 4.3 l/min
› Damping chamber for low pulsation
› Encoder option available for rpm feedback
› Compact design

A liquid and gas / liquid mixtures verison of this pump (19K) is also available which runs at lower speed and stroke.

Flow control is available in combination with PWM Flow Controller.

Return to Miniature Diaphragm Pumps for Air and Gas range.

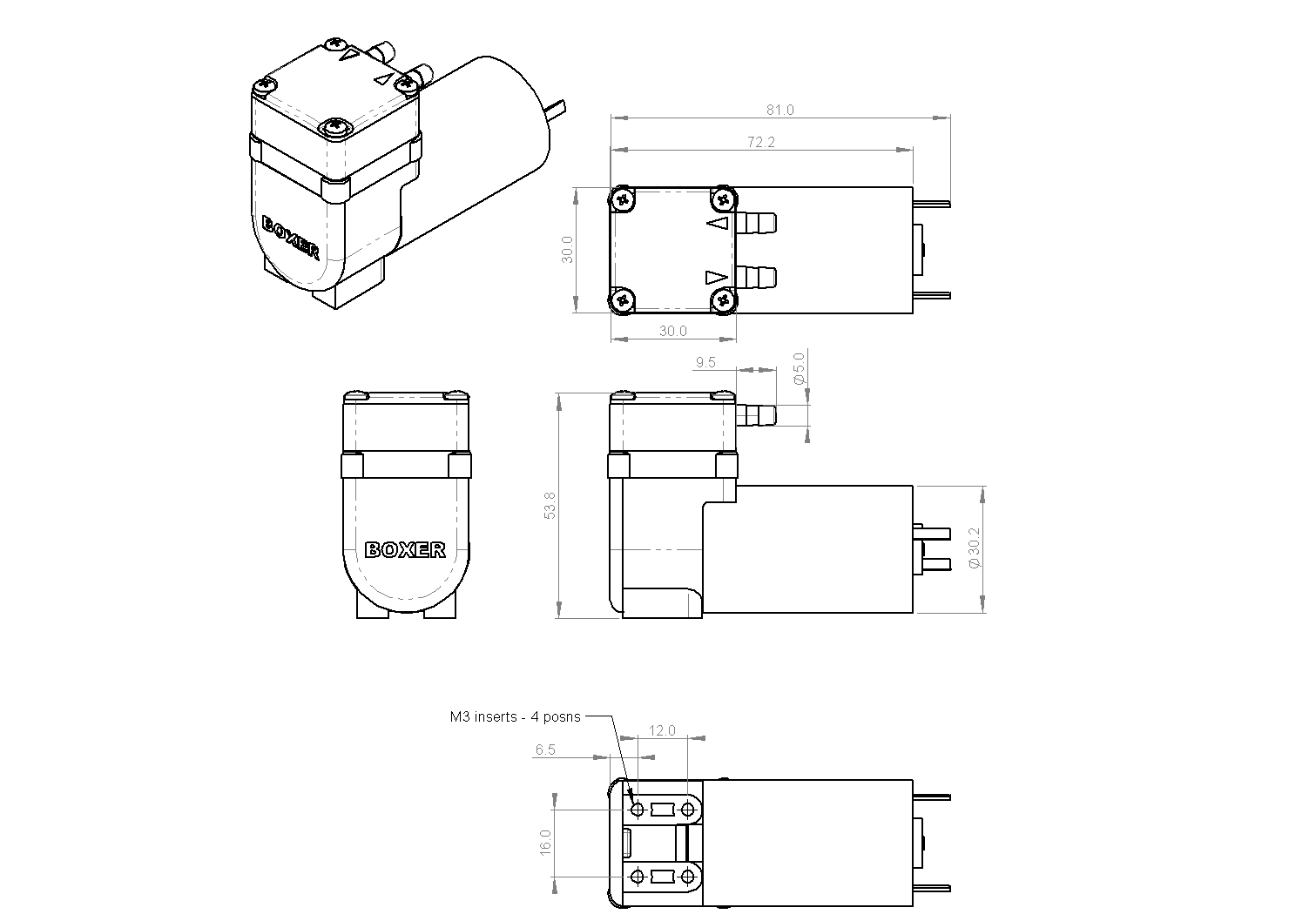

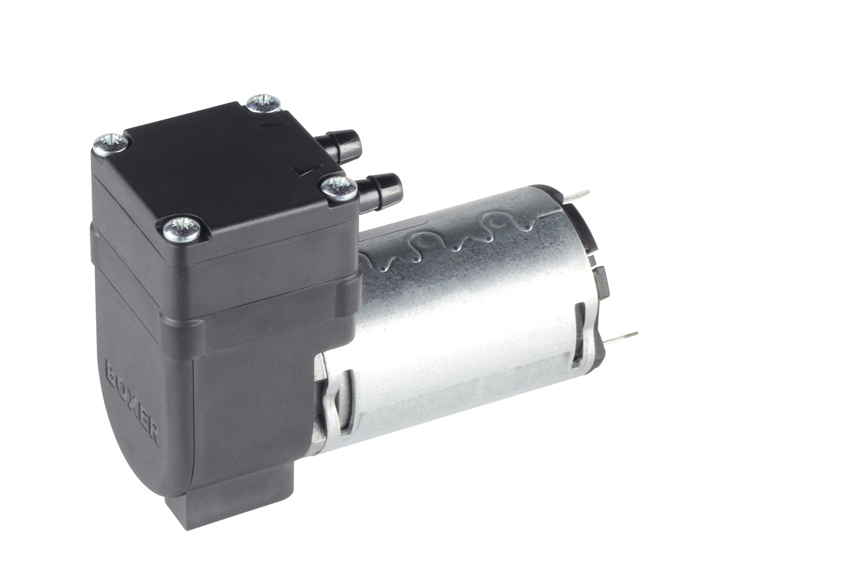

Quality brushed motor available in 12 and 24 V.

Technical Data

Free Flow	3.5 l/min
Max Pressure	2.0 bar
Max Vacuum	-700 mbar

Voltage Options	12 / 24 V DC
Power Consumption	3.0 to 6.6 W

Elastomers Options	EPDM / Nitrile / Viton (FKM) / FFKM
Other Wetted Parts	PPS (polyphenylene sulphide)
Weight	175g

	Full data available in PDF datasheet

Order Information

Part Number: 19101.003 12 V DC / EPDM ⇒ BOX-it
Part Number: 19101.004 24 V DC / EPDM ⇒ BOX-it

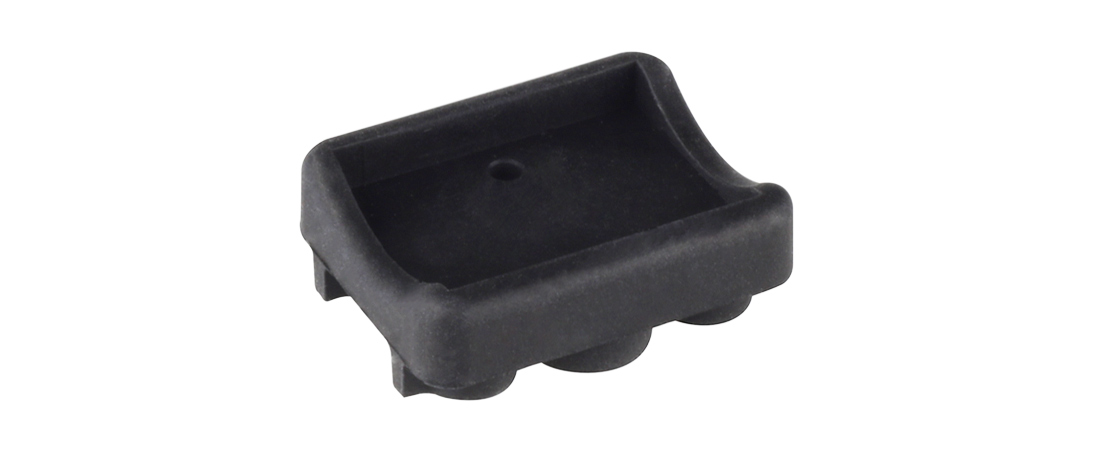

Optional antivibration mounting foot available:

Part Number: 19000.001 ⇒ BOX-it

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.

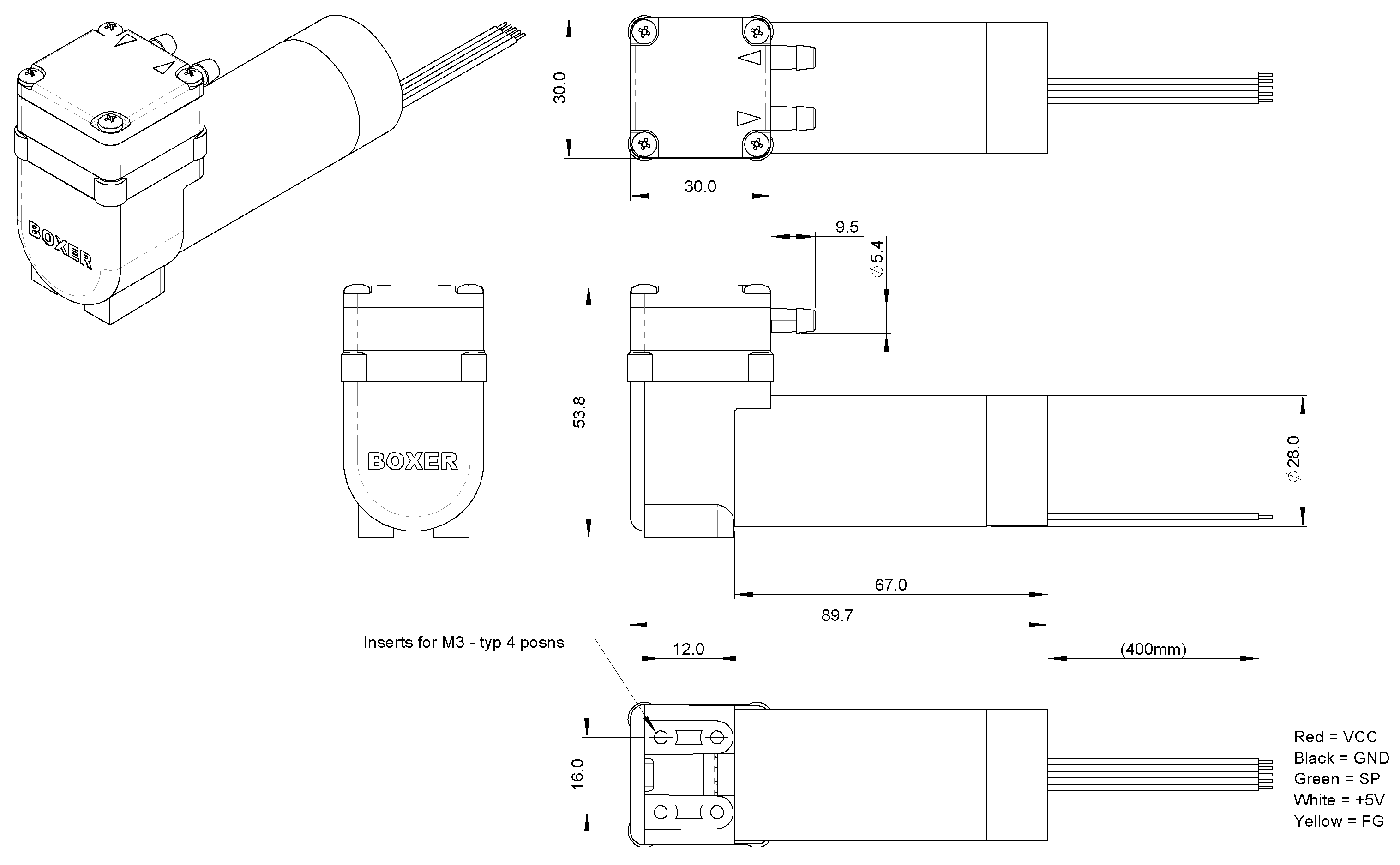

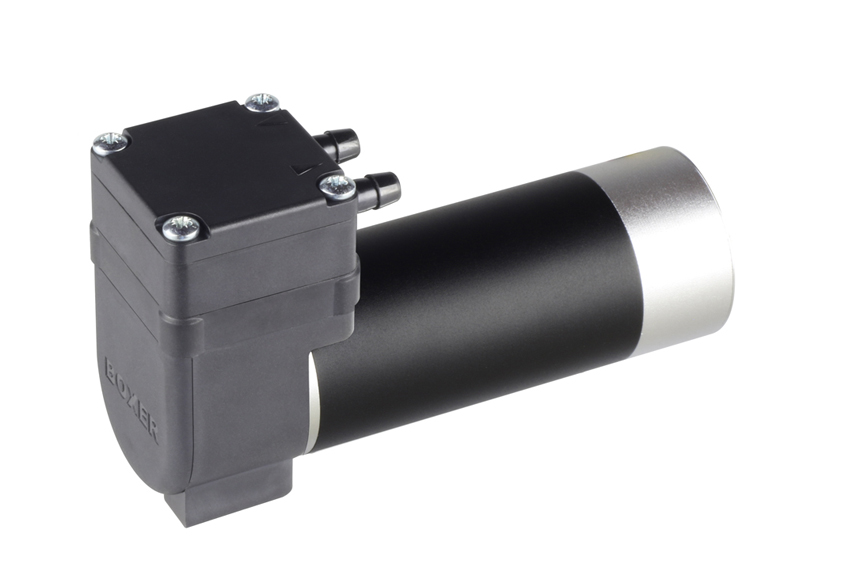

Brushless DC motor in 24 V DC with integrated driver.

Long life combined with elegant speed (flow) control via a 0 to 5V DC input, rpm feedback
output and a 5 V DC output is for convenient speed control via external potentiometer.

Technical Data

Free Flow	4.3 l/min
Max Pressure	2.0 bar
Max Vacuum	-700 mbar

Voltage Options	12 to 24 V DC
Power Consumption	3.0 to 7.5 W

Elastomers Options	EPDM / Nitrile / Viton (FKM) / FFKM
Other Wetted Parts	PPS (polyphenylene sulphide)
Weight	215g

	Full data available in PDF datasheet
