10KD Series

The 10KD series is a compact, robust and versatile double headed gas diaphragm pump. The use of high performance engineering plastics and elastomers allow use in high temperature applications. 2 heads allows flexibility of paralllel or series connection to extend the pressure / vacuum capability or to pump 2 totally separate gasses.

This series is offered with brushed and BLDC motors.

› Flow rate to 6.0 l/min
› Robust / long life
› Encoder option available for rpm feedback
› Single version available as 10K series.

A mounting base is supplied as standard.

Flow control is available in combination with PWM Flow Controller.

Return to Miniature Diaphragm Pumps for Air and Gas range.

Brushed Motor

Quality brushed motor available in 12 and 24 V.

Available to purchase online via BOX-it (see order information below).

Technical Data

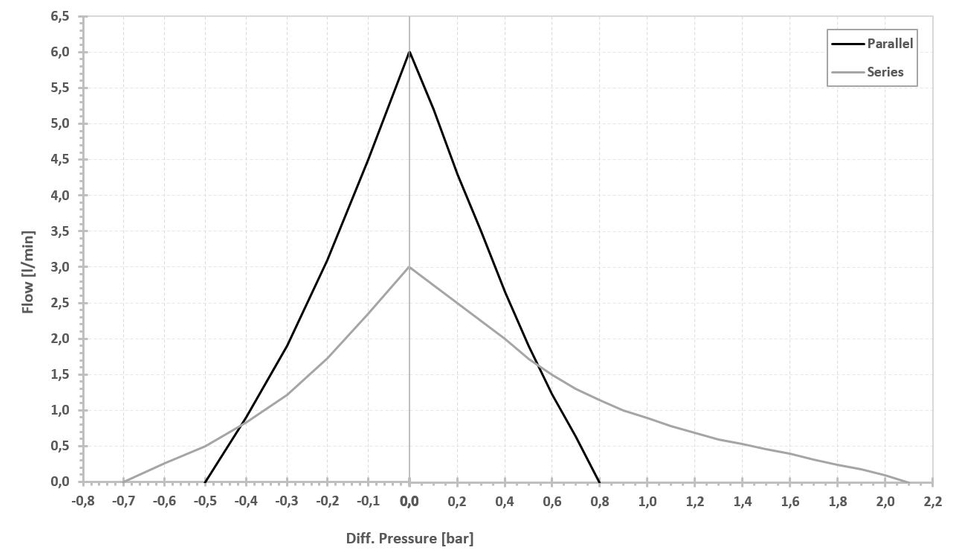

Parallel Connection:
Free Flow 6.0 l/min
Max Pressure 0.8 bar
Max Vacuum -500 mbar

Series Connection:
Free Flow 3.0 l/min
Max Pressure 2.1 bar
Max Vacuum -700 mbar

Voltage Options 12 / 24 V DC

Max Ambient Operating Temperature 50 °C
Max Media Temperature 100 °C

Elastomers Options Nitrile / EPDM
Other Wetted Parts PPS (polyphenylene sulphide)
Weight g





Order Information

Part Number:     10102.001     12 V DC / EPDM
Part Number:     10102.002     24 V DC / EPDM     ⇒ BOX-it


Brushless Motor

Ultimate life and versatility available in 24 V DC.

Technical Data

Parallel Connection:
Free Flow 6.0 l/min
Max Pressure 0.8 bar
Max Vacuum -500 mbar

Series Connection:
Free Flow 3.0 l/min
Max Pressure 2.1 bar
Max Vacuum -700 mbar

Voltage Options 24 V DC

Max Ambient Operating Temperature 50 °C
Max Media Temperature 100 °C

Elastomers Options Nitrile / EPDM
Other Wetted Parts PPS (polyphenylene sulphide)
Weight g









Order Information

Part Number:     10102.601     24 V DC / Nitrile

Part Number:     6900.005     External BLDC Driver, including speed pot and case

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
