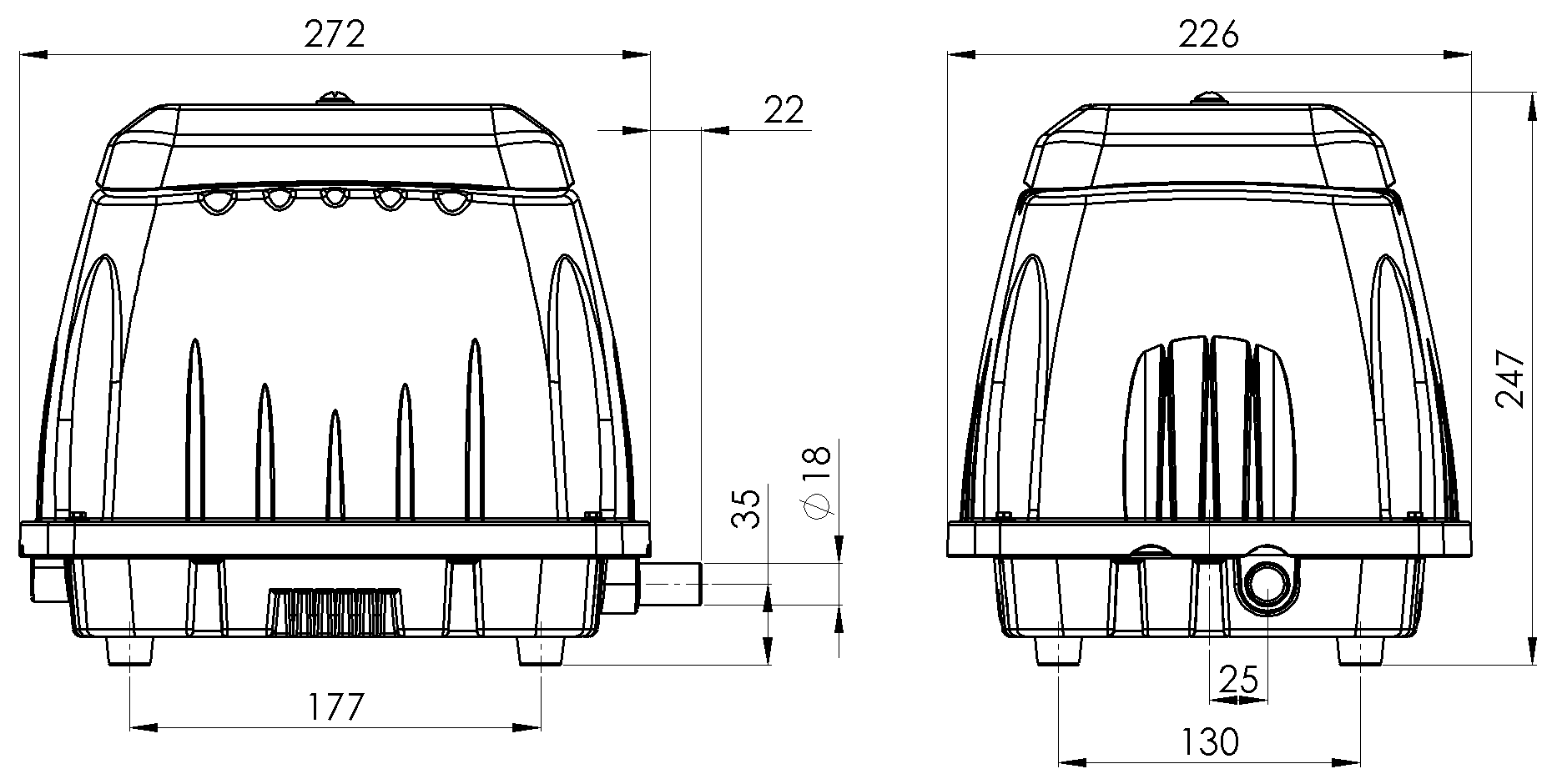

The DBMX150 is the 150 l/min linear diaphragm pump from the Airmac DBMX Series. It offers low noise with stable performance over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug. To accomodate the increased performance when compared to the 80, 100 and 120 l/min DBMX pumps, the height of the housing is increased by 25mm.

› Flow rate of 150 l/mim against 200 mbar
› Low power consumption (170 W)
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)

Return to Linear Diaphragm Pump range.

Available to purchase online via BOX-it (see order information below).

Technical Data

Flow (at 200 mbar) 150 l/min
Operating Pressure Range 100 to 250 mbar
Operating Flow Range 220 to 120 l/min
Current Consumption (at 200 mbar)) 1.2 A
Power Consumption (at 200 mbar) 170 W
Cable Length 1.8 m
Cable Termination EU Plug
Approval CE (according to EN60335, electrical household appliances), RoHS
Operating Temperature Range -10 to +40 °C
Operating Humidity Range 20 to 80% RH
Inlet Via Integrated filter (under housing cover as replaceable item)
Outlet 18 mm OD port
Weight 12.8 kg



Order Information

Part Number:     190150.230     DBMX150 230 V / 50 Hz

Supplied As Standard

Elbow and clamps (x2)


Service Kit












All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
