DBMX120

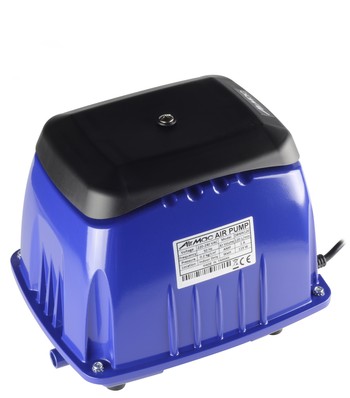

The DBMX120 is the 120 l/min linear diaphragm pump from the Airmac DBMX Series. It offers low noise with stable performance over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug.

› Flow rate of 120 l/mim against 200 mbar
› Low power consumption (119 W)
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)

Return to Linear Diaphragm Pump range.


Available to purchase online via BOX-it (see order information below).

Technical Data

Flow (at 200 mbar) 120 l/min
Operating Pressure Range 100 to 250 mbar
Operating Flow Range 155 to 100 l/min
Current Consumption (at 180 mbar)) 1.0 A
Power Consumption (at 150 mbar) 119 W
Cable Length 1.8 m
Cable Termination EU Plug
Approval CE (according to EN60335, electrical household appliances), RoHS
Operating Temperature Range -10 to +40 °C
Operating Humidity Range 20 to 80% RH
Inlet Via Integrated filter (under housing cover as replaceable item)
Outlet 18 mm OD port
Weight 9.2 kg






Order Information

Part Number:     190120.230     DBMX120 230 V / 50 Hz

Supplied As Standard

Elbow and clamps (x2)

Accessories

Service Kit























All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
