7KQ Diaphragm Pump
Part Number:
7004.024
24 V DC motor driven gas diaphragm pump.
Red marking on heads indicates outlet ports.

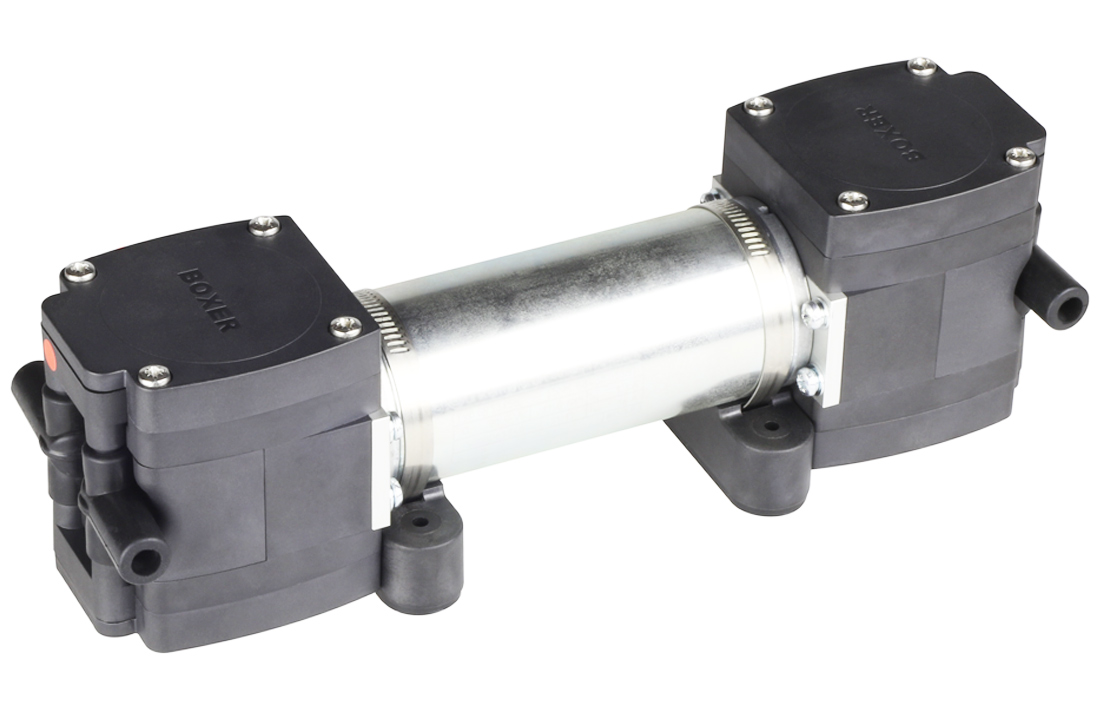

Supplied with vibration mounts (as shown in photo).
Addtionally supplied with 4 x L and 2 x T barb connectors
for 8mm ID tubing to allow series or parallel configuration
(not shown in photo).
Recommended tubing: 8.0mm ID silicone (see accessories below)
Product information "7KQ Diaphragm Pump"
Flow to 62.0 l/m
Pressure to 600 mbar
Vacuum to -400 / -850* mbar
* with all 4 heads connected in series.
