3MQ Liquid Diaphragm Pump
Part Number:
3234.660
24 V BLDC liquid diaphragm pump.
4 wires:
red = supply (+24 V DC)
black = GND
green = speed input (0 to 5V or 0 to 100% PWM)
yellow = tacho output (1 pulse per revolution)
*can be connected to supply valtage for full speed

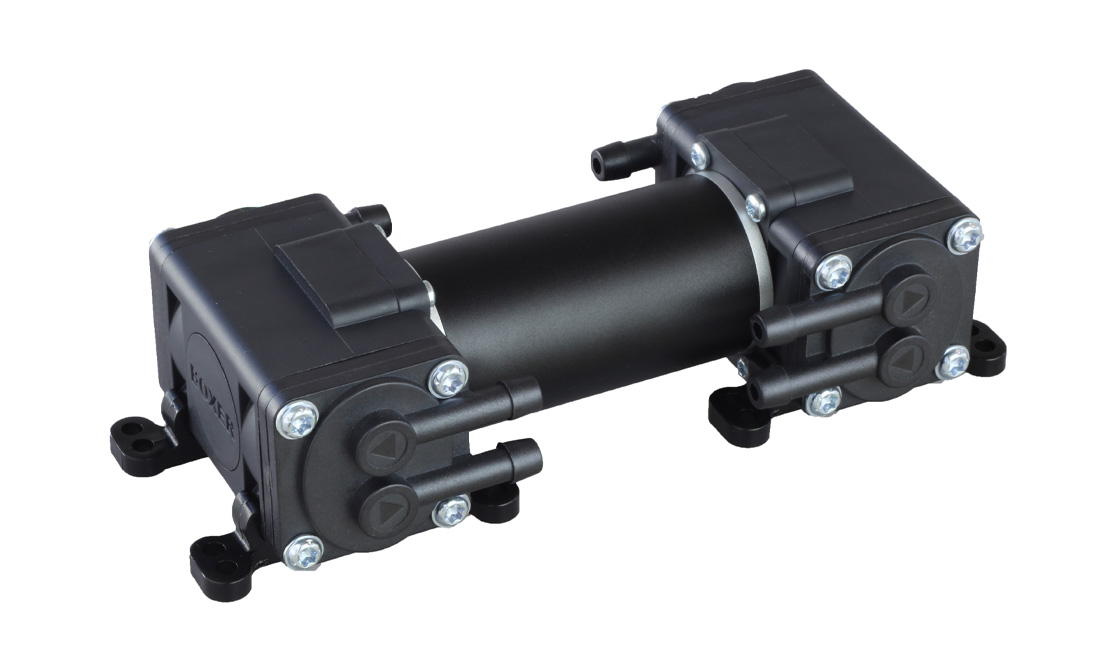

Supplied with 4 mounting clip (as shown in photo).
Recommended tubing: 4.8mm ID silicone (see accessories below)
Product information "3MQ Liquid Diaphragm Pump"
Flow to 3.4 l/m
Pressure to 2.0 bar
Vacuum to -500 mbar
Suction height (dry) to 3.0 m
