30KS Peristaltic Pump Series
The 30KS is a derivative of the popular 25K peristaltic pump series. It differs primarily through simplified mounting which is accessible without removing the pump head. This series offers a very costs effective solution through elimination of the removable head design and associated coupling between the motor and pump head. Additionally, for 1.6 mm wall tubing a shorter stack stepper motor is available for further cost optimisation.
› Flow rates to 2000 ml/min
› Suitable for 1.6 and 2.4 mm wall tubing to maximum 8.0 mm ID
› Short stack and long stack stepper motor options
› 3 and 4 roller options
› Cost effective design
› Lid and speed sensor options
› Available with mounted stepper drivers (in 2 options) for 'plug-and-play'
› Panel mount with mounting gasket supplied as standard
The 30KS is as an alternative to the 25K series offering the user choice of cost optimisation versus a removable head design (facilitating mounting hidden inside the pump body).
Technical Data
| Flow per Revolution | |
| ID Ø 2.4 mm | 0.60 / 0.50 ml per revolution (3 / 4 roller) |
| ID Ø 3.2 mm | 0.90 / 0.80 ml per revolution (3 / 4 roller) |
| ID Ø 4.8 mm | 2.00 / 1.80 ml per revolution (3 / 4 roller) |
| ID Ø 6.4 mm | 3.50 / 2.80 ml per revolution (3 / 4 roller) |
| ID Ø 8.0 mm | 5.00 / 3.60 ml per revolution (3 / 4 roller) |
| Flow at max Speed (using A4 or A4p driver)) | |
| ID Ø 2.4 mm | 240 ml at 400 rpm / 150 ml at 300 rpm (3 / 4 roller) |
| ID Ø 3.2 mm | 360 ml at 400 rpm / 240 ml at 300 rpm (3 / 4 roller) |
| ID Ø 4.8 mm | 800 ml at 400 rpm / 540 ml at 300 rpm (3 / 4 roller) |
| ID Ø 6.4 mm | 1400 ml at 400 rpm / 840 ml at 300 rpm (3 / 4 roller) |
| ID Ø 8.0 mm | 2000 ml at 400 rpm / 1080 ml at 300 rpm (3 / 4 roller) |
| General Data | |
| Power consumption (including A4 driver) | 13 to 24 W |
| Recommended driver | 4.0 A, limited to 2.8 A |
| Max pressure | 2.0 bar |
| Max suction height | 9.0 m H20 |
| Weight (without driver) | 955 g |
| Optional sensors | Lid closure / Speed |
| Full data available in PDF datasheet | |

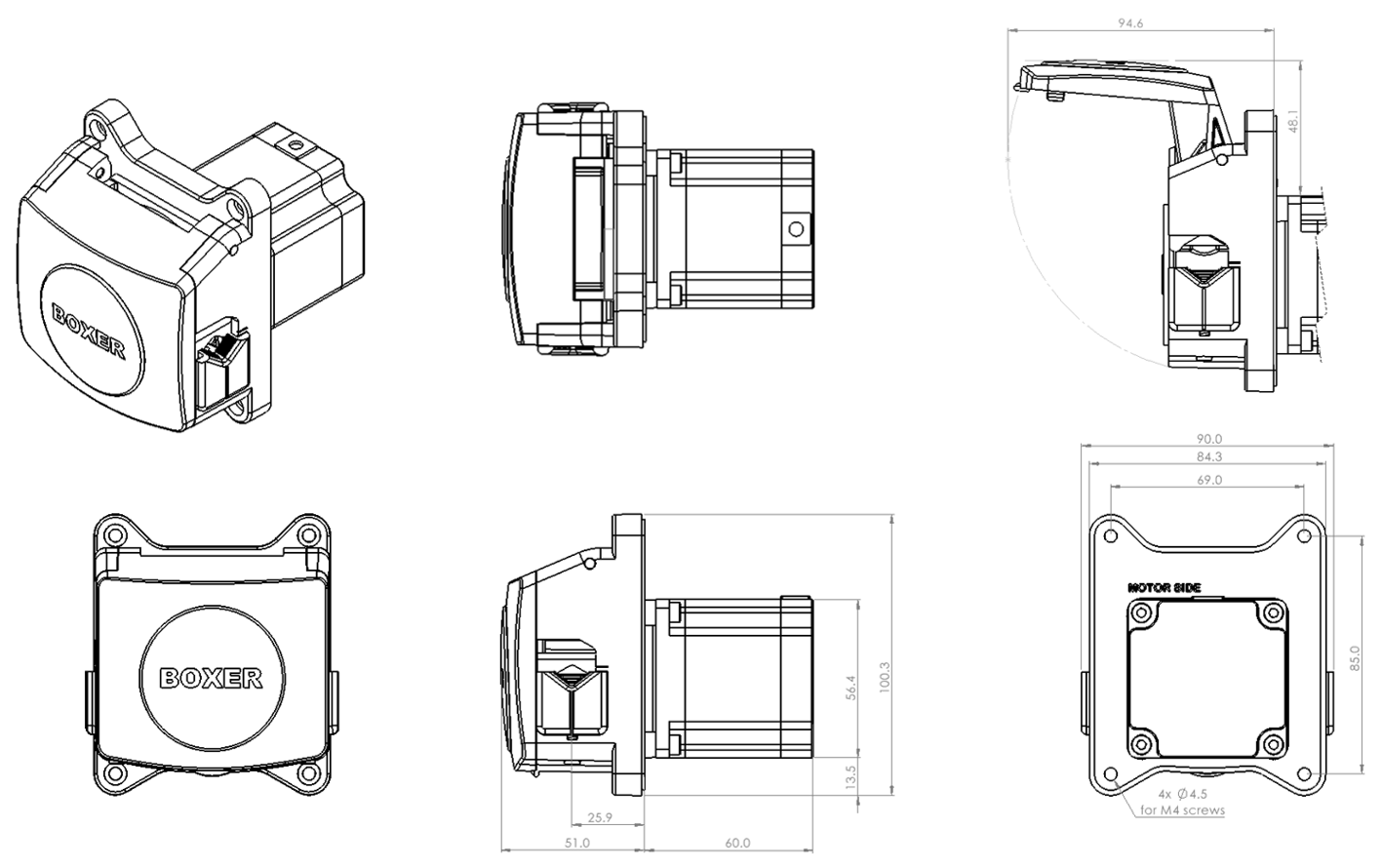

Supplied without stepper driver
Order Information

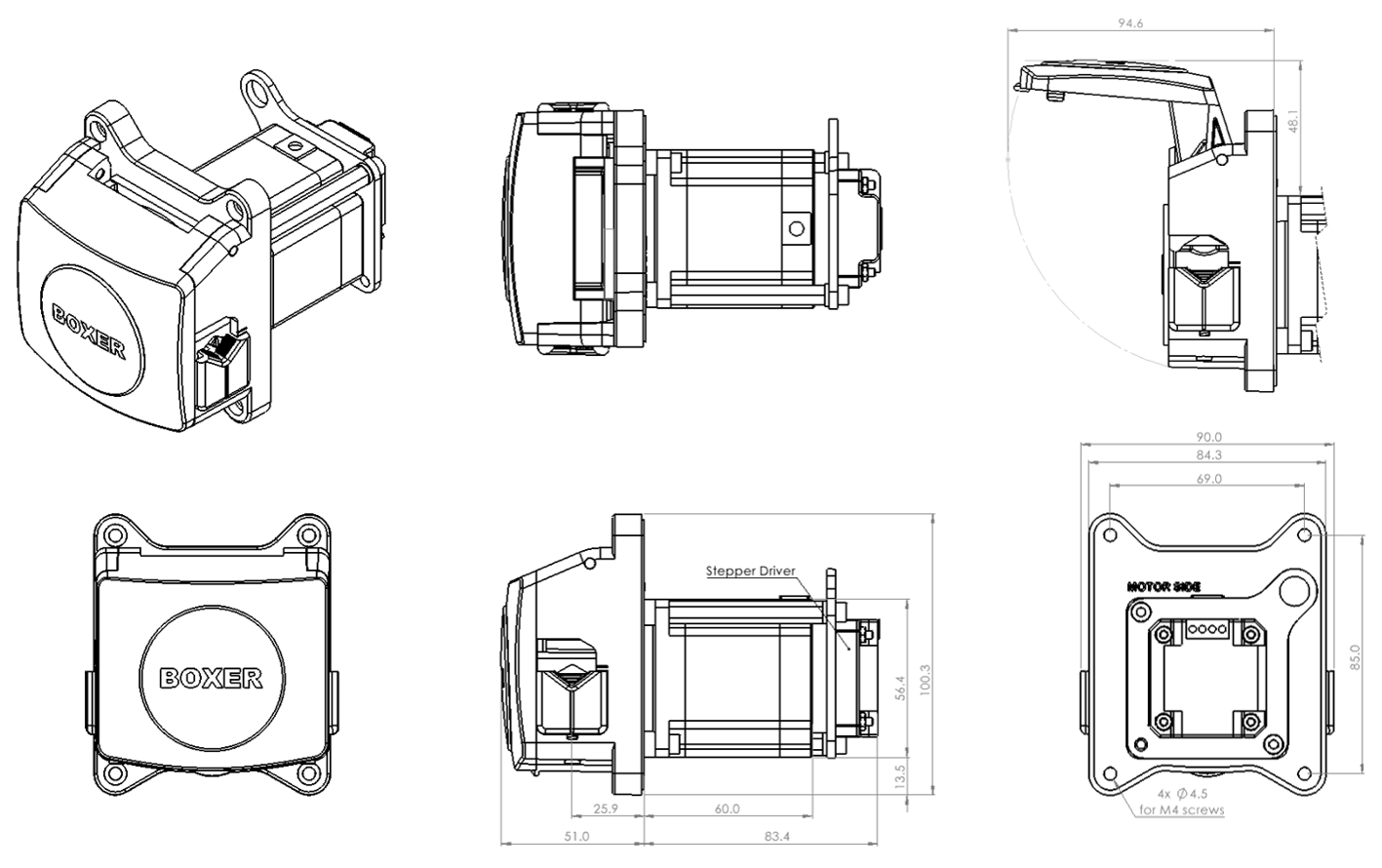

Supplied with pre-assembled A4 stepper driver (0 to 5V speed input)
Order Information

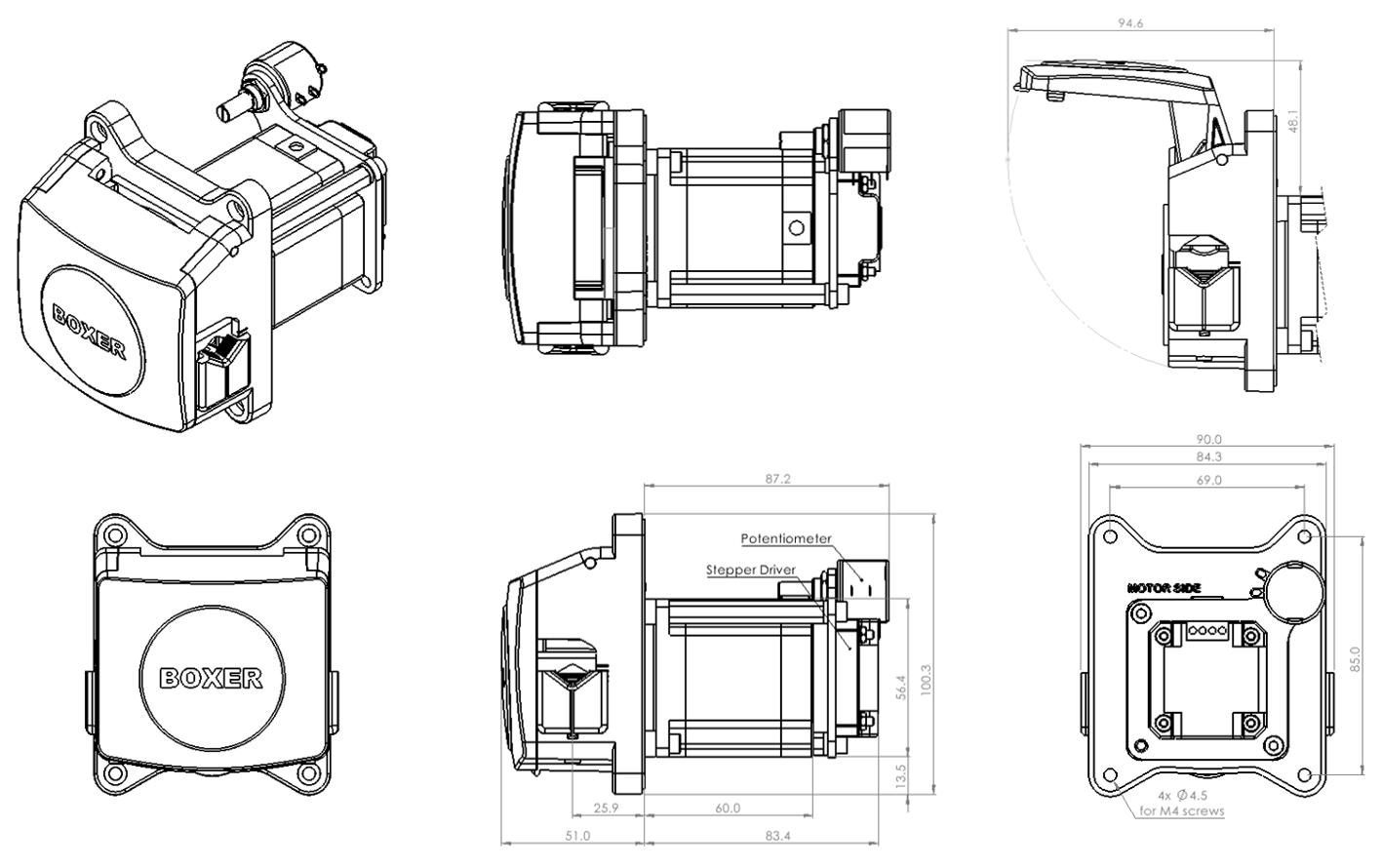

Supplied with pre-assembled A4p stepper driver (10 turn speed potentiometer)
Order Information
Technical Data
| Flow per Revolution | |
| ID Ø 6.4 mm | 3.10 / 2.60 ml per revolution (3 / 4 roller) |
| ID Ø 8.0 mm | 4.30 / 3.50 ml per revolution (3 / 4 roller) |
| Flow at max Speed (using A4 or A4p driver)) | |
| ID Ø 6.4 mm | 1085 ml at 350 rpm / 780 ml at 300 rpm (3 / 4 roller) |
| ID Ø 8.0 mm | 1505 ml at 350 rpm / 1050 ml at 300 rpm (3 / 4 roller) |
| General Data | |
| Power consumption (including A4 driver) | 20 to 33 W |
| Recommended driver | 4.0 A, limited to 4.0 A |
| Max pressure | 2.0 bar |
| Max suction height | 9.0 m H20 |
| Weight (without driver) | 1295 g |
| Optional sensors | Lid closure / Speed |
| Full data available in PDF datasheet | |

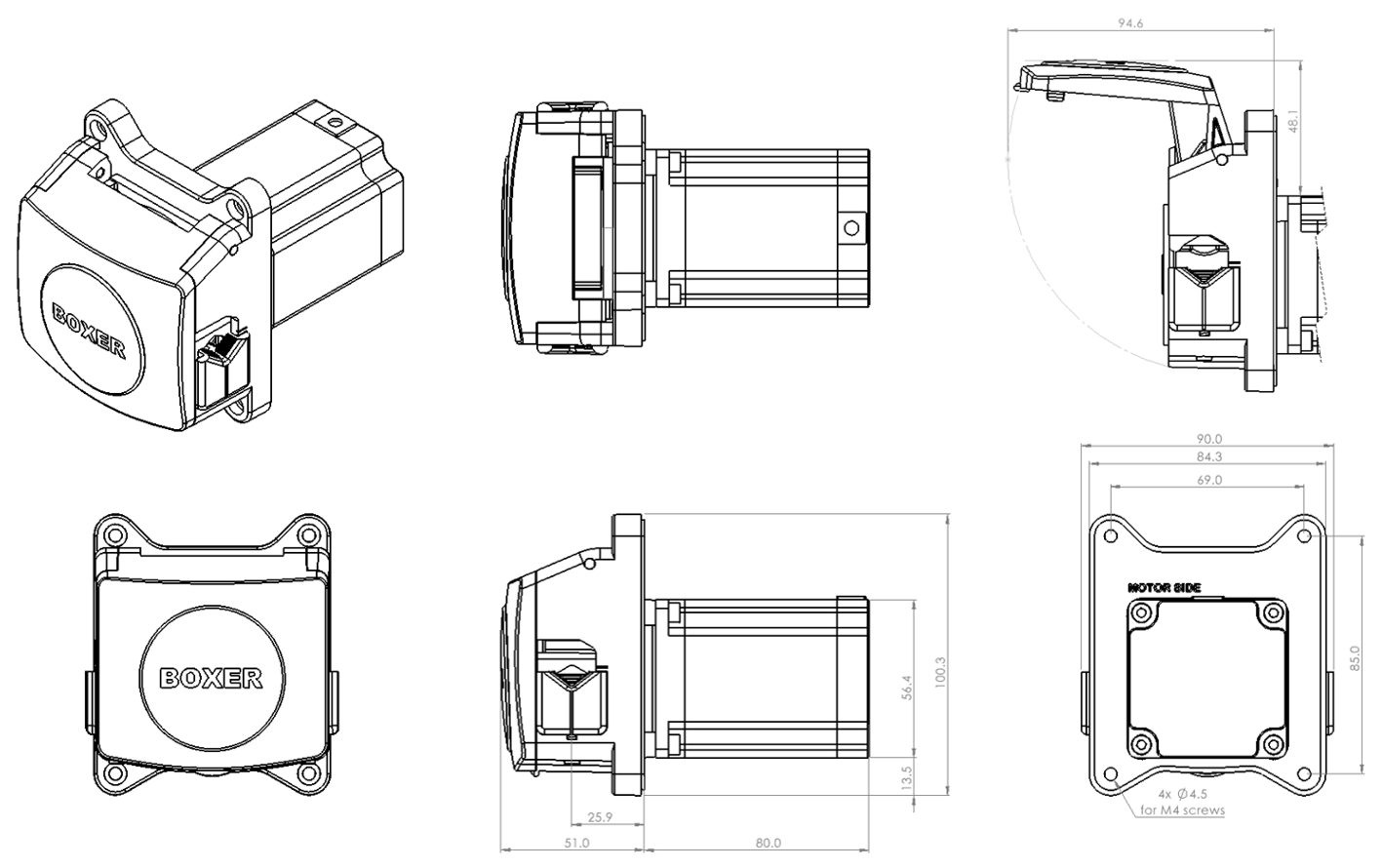

Supplied without stepper driver
Order Information

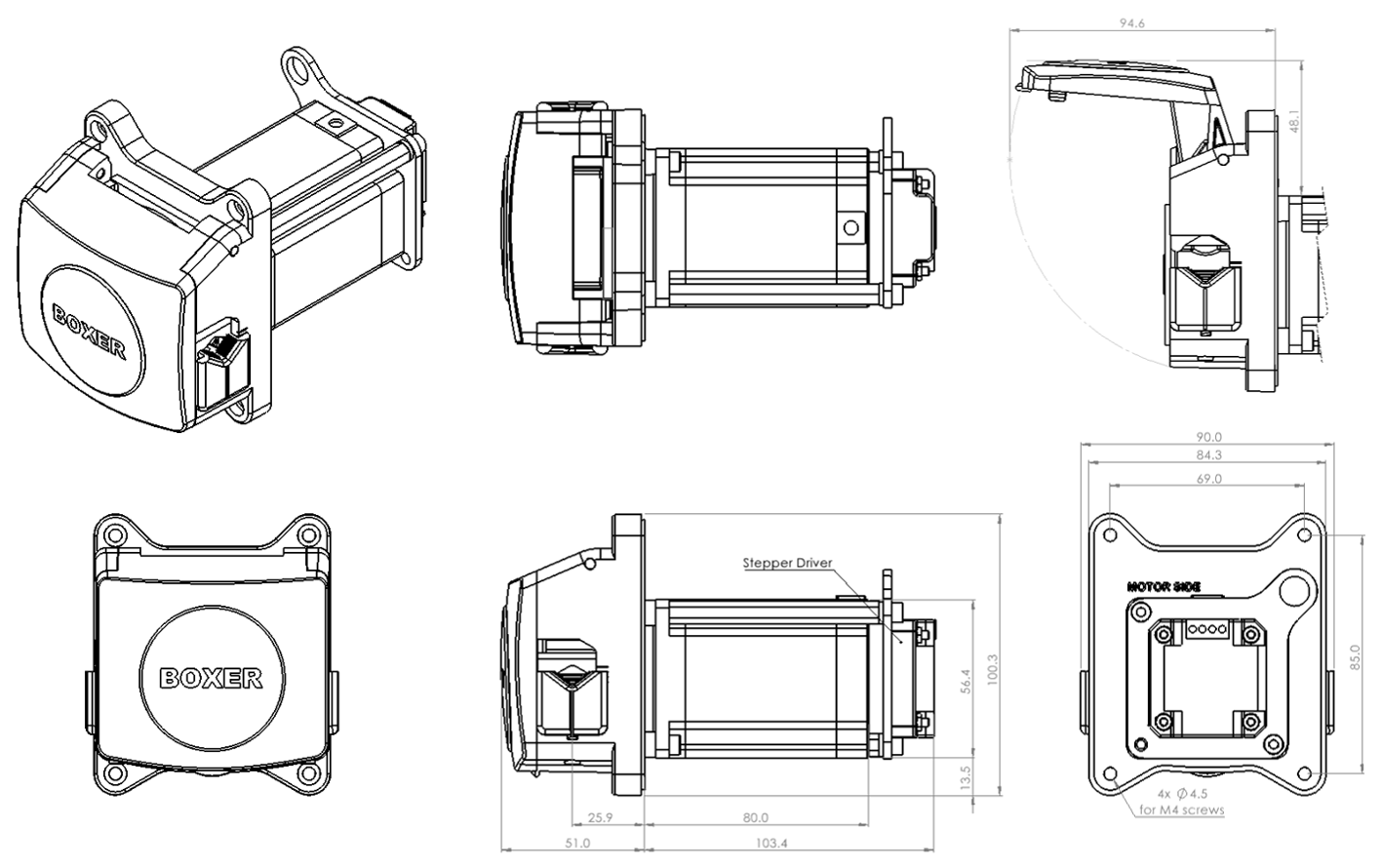

Supplied with pre-assembled A4 stepper driver (0 to 5V speed input)
Order Information

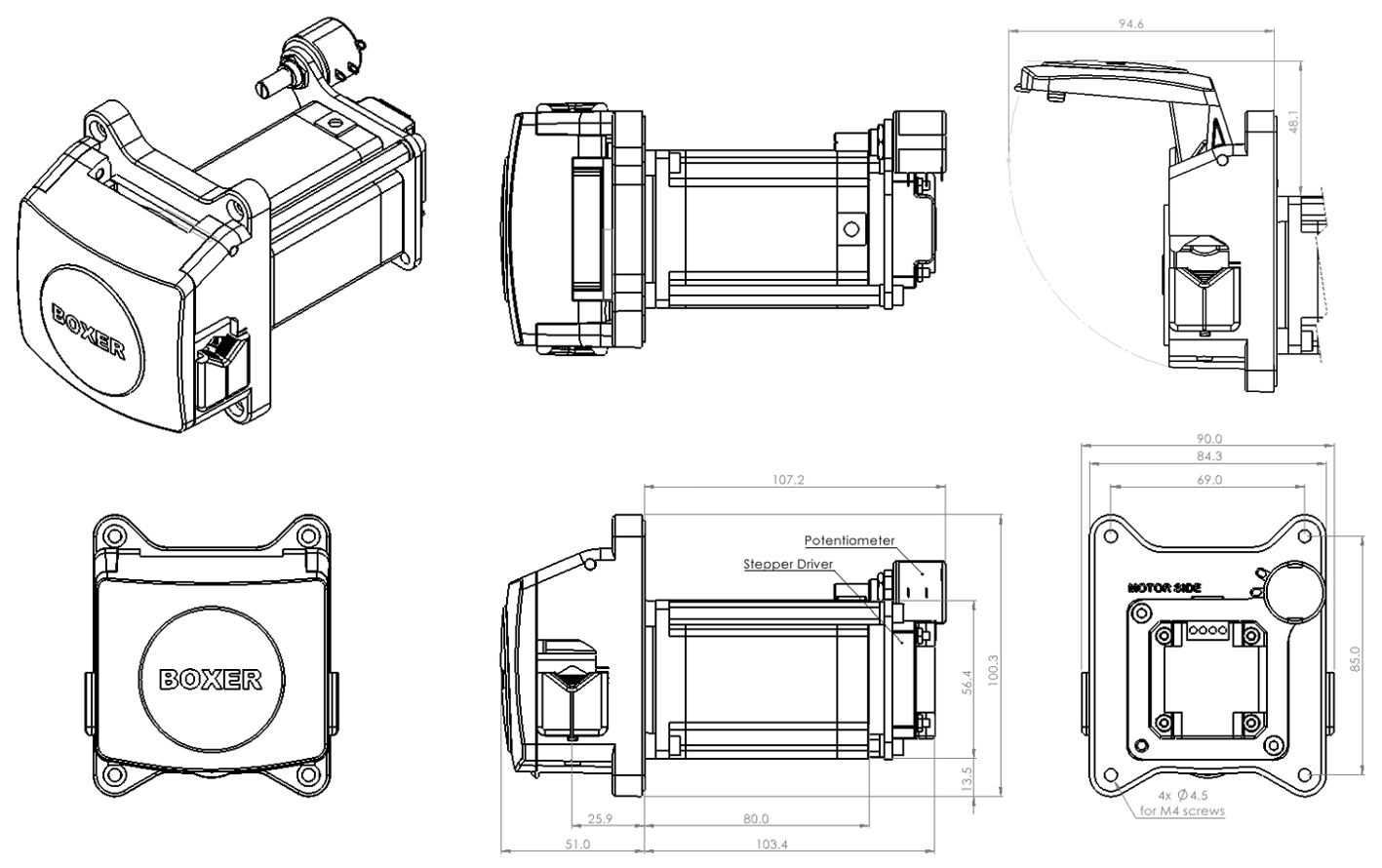

Supplied with pre-assembled A4p stepper driver (10 turn speed potentiometer)
Order Information
All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use. These products are not suitable for in-vivo applications.
