12KD Series

The 7KD series is unique high performance gas diaphragm which is particularly suited for gas / dust monitoring as well as industrial vacuum applications. The pump is fitted with internal damping chambers and resonanting membrane. The dual head arrangement further balances flow.

The use of high performance plastics facilitates use in high temperature applications such as combusion gas analysis. The overall construction is extremely robust.

Vibration mounts are fitted as standard.

This pumps is also available in a quad head arrangement (see 7KQ series).

Return to Miniature Diaphragm Pumps for Air and Gas range.

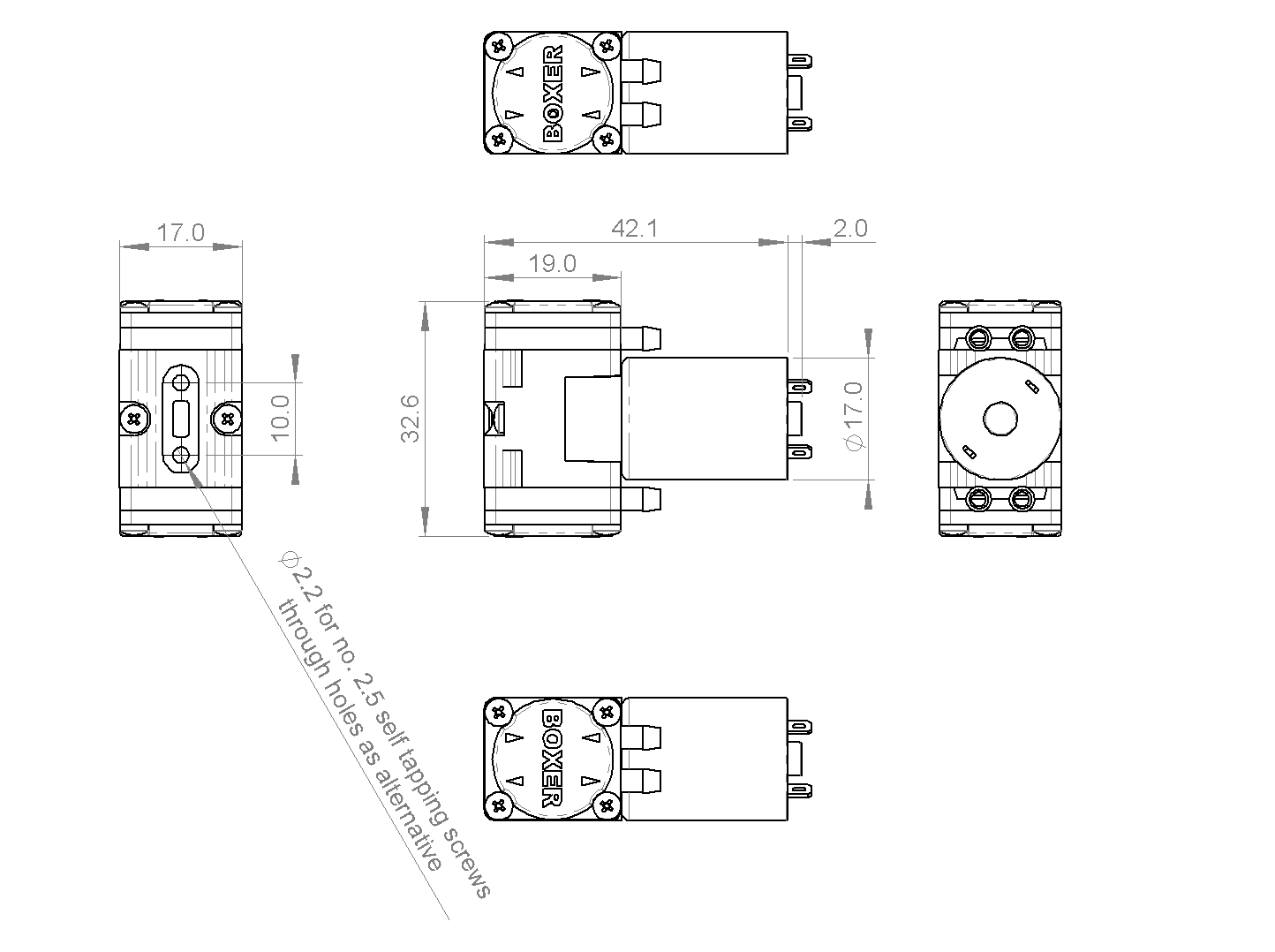

Economic motor option available in 4.5 and 6.5 V.

Technical Data

Parallel Connection:
Free Flow	2.0 l/min
Max Pressure	+600 mbar
Max Vacuum	-400 mbar

Series Connection:
Free Flow	1.2 l/min
Max Pressure	900 mbar
Max Vacuum	-600 mbar

Voltage Options	4.5 / 6.5 V DC

Elastomers Options	EPDM, Silicone, Nitrile
Other Wetted Parts	PPS (Polyphenylene Sulphide)
Tube Connection	∅2.5 mm
Weight	35 g

Order Information

Part Number: 1212.204 4.5 V DC / EPDM
Part Number: 1212.205 6.5 V DC / EPDM

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.

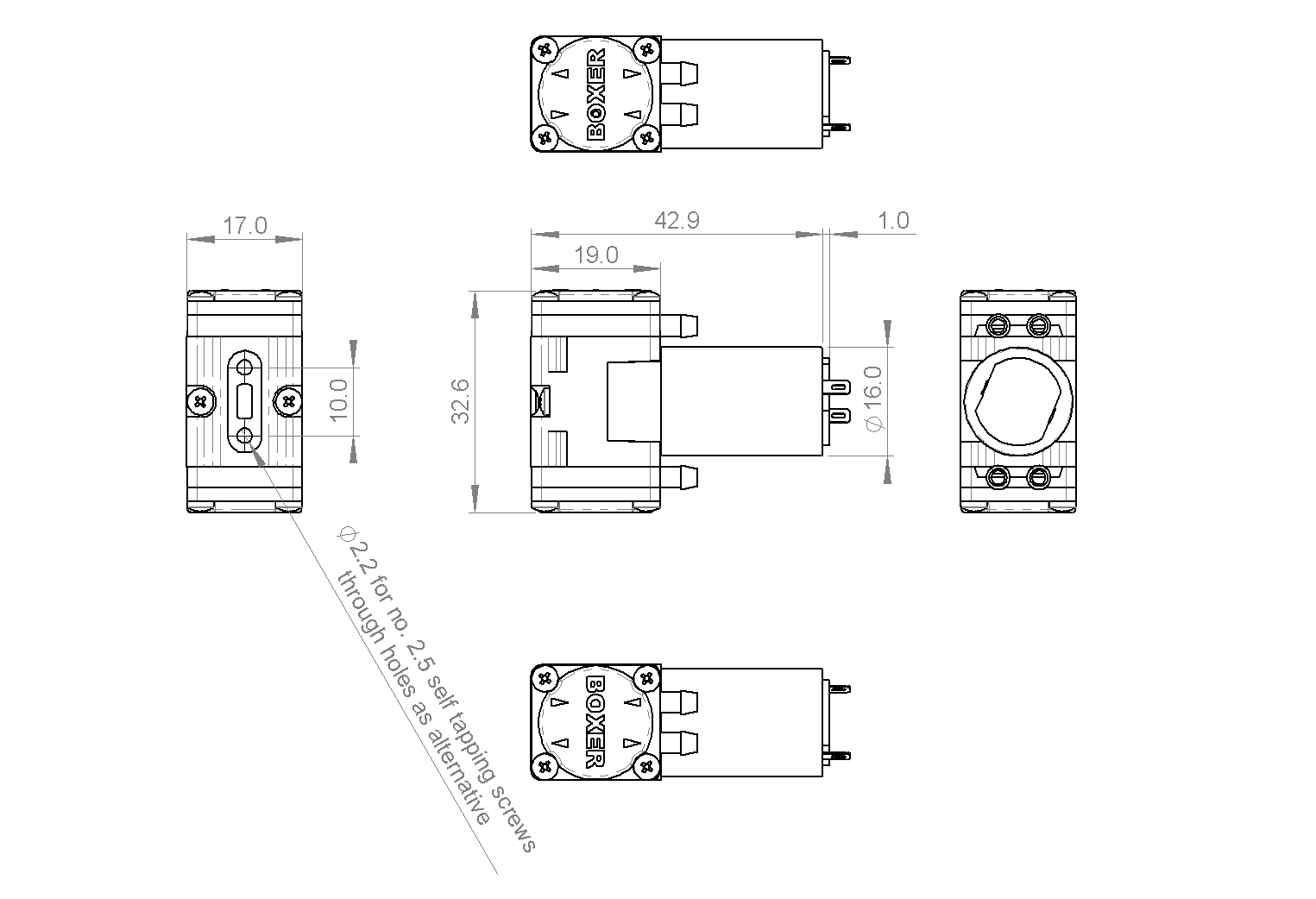

Low power consumption with excellent life available in 4.0, 7.0, 9.0, 13.5 and 18.0 V.

Technical Data

Parallel Connection:
Free Flow	2.0 l/min
Max Pressure	+600 mbar
Max Vacuum	-400 mbar

Series Connection:
Free Flow	1.2 l/min
Max Pressure	900 mbar
Max Vacuum	-600 mbar

Voltage Options	4.0 / 7.0 / 9.0 / 13.5 / 18.0 V DC

Elastomers Options	EPDM, Silicone, Nitrile
Other Wetted Parts	PPS (Polyphenylene Sulphide)
Tube Connection	∅2.5 mm
Weight	35 g

Order Information

Part Number:     1212.124     4.0 V DC / EPDM
Part Number:     1212.125     7.0 V DC / EPDM
Part Number:     1212.126     9.0 V DC / EPDM
Part Number:     1212.123 13.5 V DC / EPDM
Part Number:     1212.106     18.0 V DC / EPDM
