10K Series

The 10K series is a compact, robust and versatile single headed gas diaphragm pump. The use of high performance engineering plastics and elastomers allow use in high temperature applications.

This series is offered with brushed and BLDC motors.

› Flow rate to 3.0 l/min
› Robust / long life
› Encoder option available for rpm feedback
› Double version available as 10KD series

A mounting base is supplied as standard.

Flow control is available in combination with PWM Flow Controller.

Return to Miniature Diaphragm Pumps for Air and Gas range.

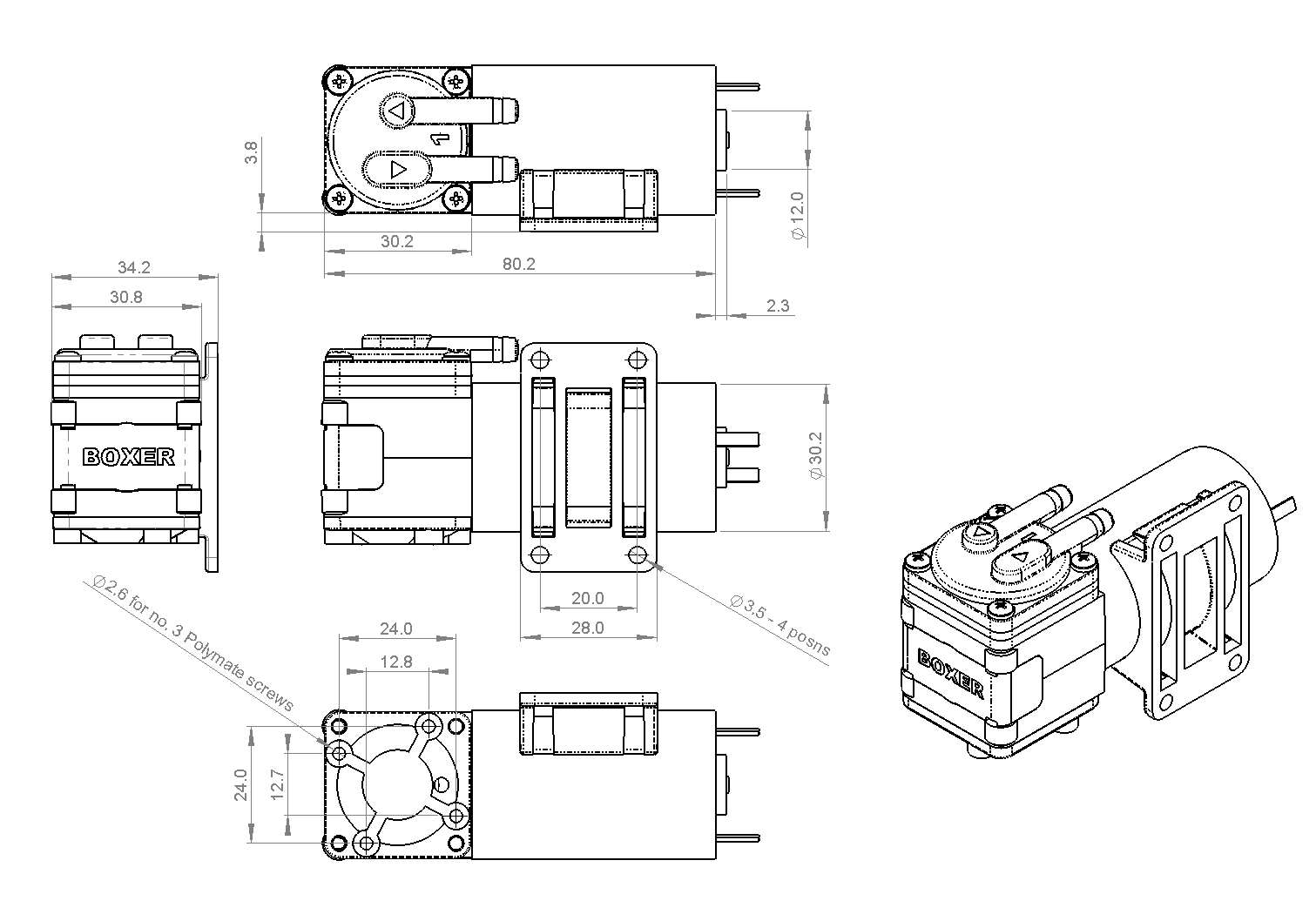

Boxer 10K diaphragm pump

Brushed Motor

Quality brushed motor available in 12 and 24 V.

Technical Data

Free Flow 3.0 l/min
Max Pressure 0.8 bar
Max Vacuum -500 mbar

Voltage Options 12 / 24 V DC

Max Ambient Operating Temperature 50 °C
Max Media Temperature 100 °C

Elastomers Options Nitrile / EPDM
Other Wetted Parts PPS (polyphenylene sulphide)
Weight g





Order Information

Part Number:     10101.001     12 V DC / EPDM
Part Number:     10101.002     24 V DC / EPDM

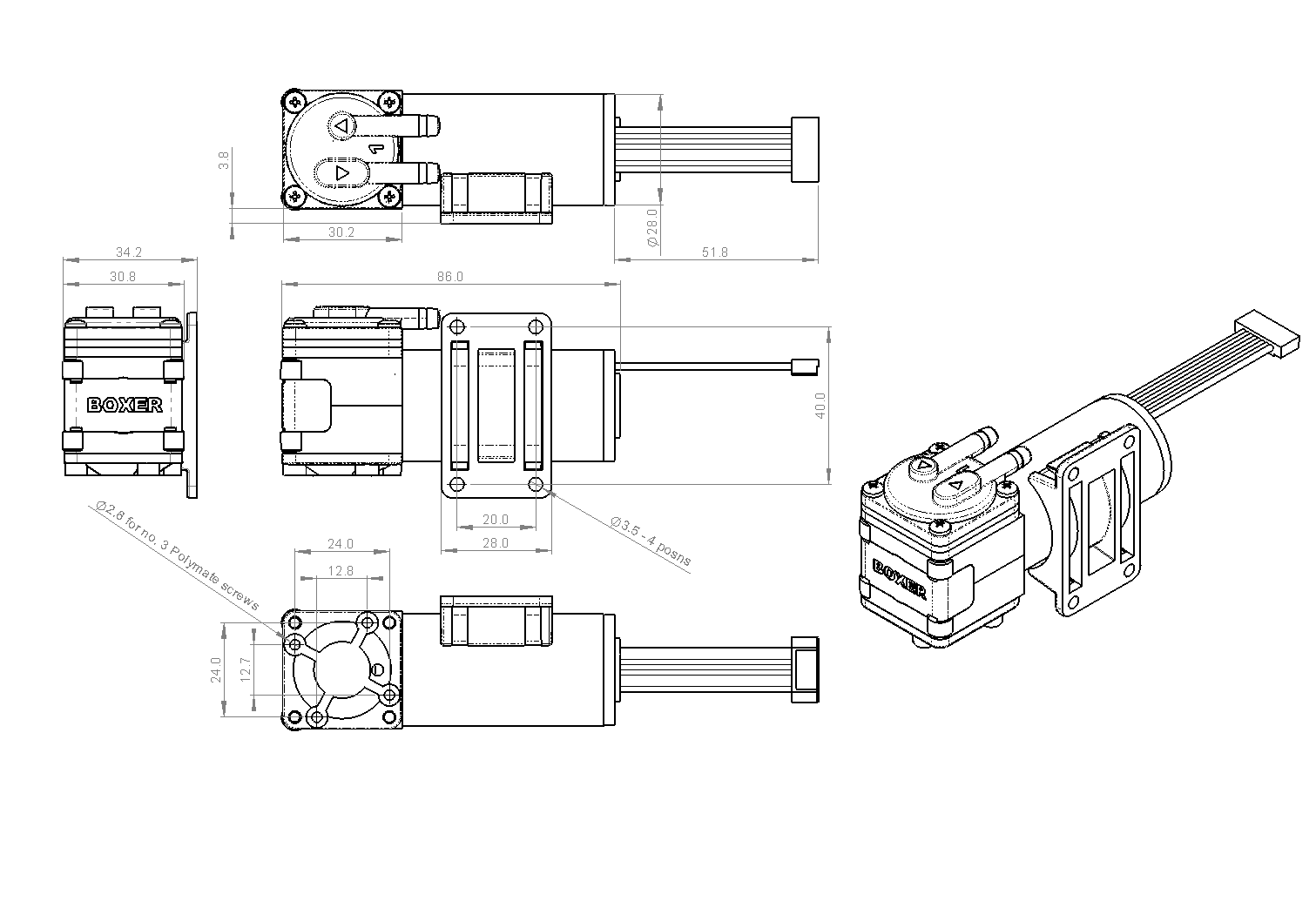

Boxer 10K bldc diaphragm pump

Brushless Motor

Ultimate life and versatility available in 24 V DC.

Technical Data

Free Flow 3.0 l/min
Max Pressure 0.8 bar
Max Vacuum -500 mbar

Voltage Options 24 V DC

Max Ambient Operating Temperature 50 °C
Max Media Temperature 100 °C

Elastomers Options Nitrile / EPDM
Other Wetted Parts PPS (polyphenylene sulphide)
Weight g







Order Information

Part Number:     10101.601     24 V DC / EPDM

Part Number:     6900.005     External BLDC Driver, including speed pot and case

All data is representative for initial selection purposes. It is the responsibility of the user to determine suitability for the intended use.
