22K Series

The 22K series is a single headed miniature diaphragm pump designed for a wide range of applications including gas sampling, gas detection and laboratory pipetting. The strength of this series is the versatility of available configurations and wide flow range.

Like all other pumps in the Boxer range, this series of miniature diaphragm pump can be customised to specific requirements. Diaphragms are available not only in different materials but also different thicknesses and profiles depending on the exact needs of the application. Likewise eccentrics from 0.5 to 0.85 mm can be configured.

This series is available with either iron core and coreless DC motors.

› Flow rate to 1.4 l/min
› Wide range of configurations
› Compact and versatile
› Antivibration mounting foot available

Flow control is available in combination with PWM Flow Controller.

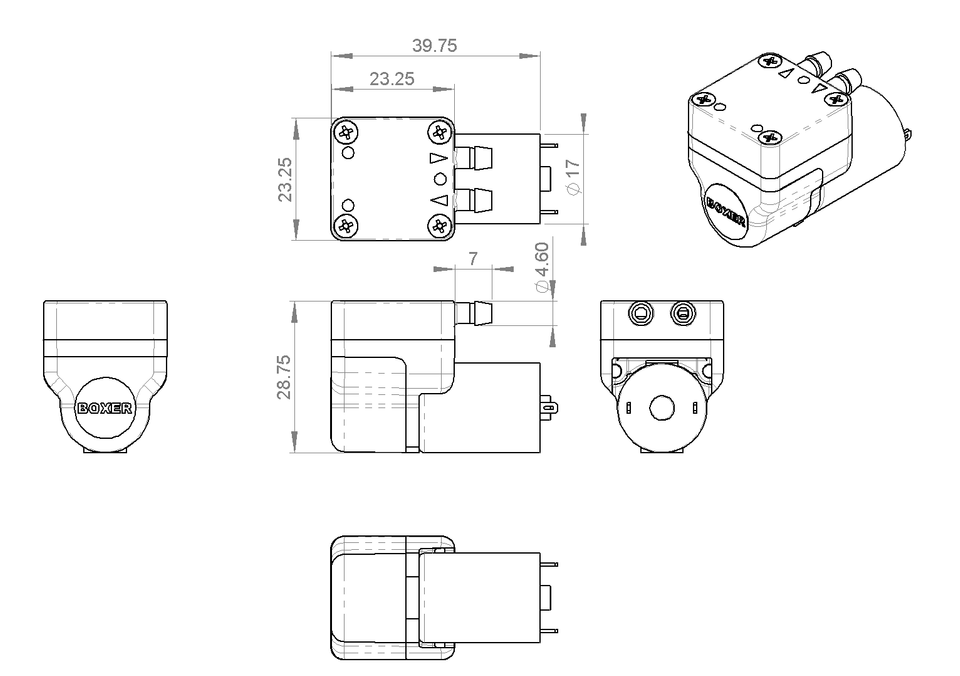

Economic motor option available in 6.5 V (which may be run to max. 8.0 V)

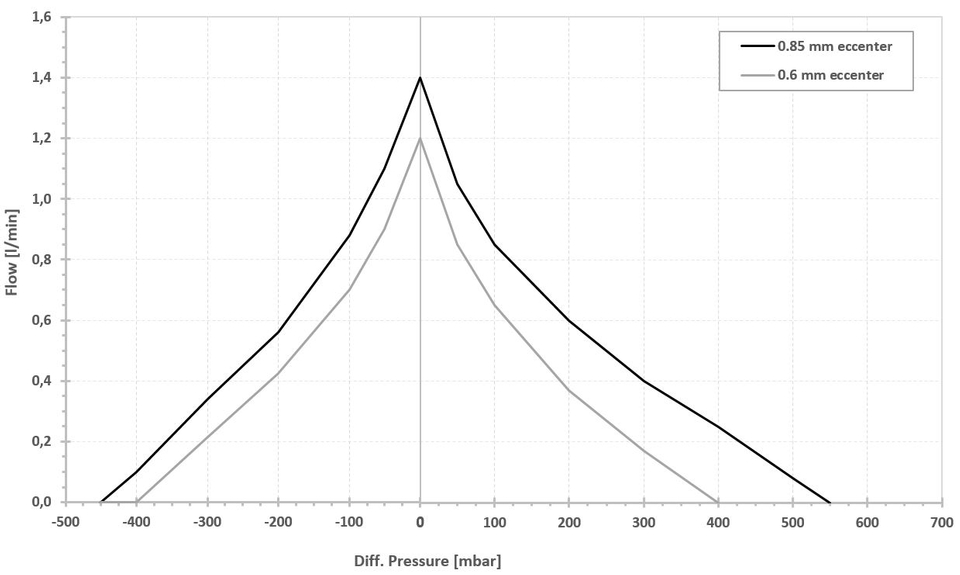

0.85 mm Eccenter
Free Flow 1.4 l/min
Max Pressure 550 mbar
Max Vacuum -450 mbar

Power Consumption 0.5 to 1.6 W

0.6 mm Eccenter
Free Flow 1.2 l/min
Max Pressure 400 mbar
Max Vacuum -400 mbar

Power Consumption 0.5 to 1.0 W

General Data
Voltage Options 3.0 / 4.5 V DC
Motor Termination Solder tags (no preferred rotational direction)

Operating Temperature Range 5 to +60 °C
Operating Humidity Range 5 to 95% RH

Elastomers Options EPDM, Silicone
Other Wetted Parts PPS (Polyphenylene Sulphide)
Tube Connection Barb for ∅ 4.0 mm tubing
Weight 32g
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 22000.010
Motor / Voltage / Eccenter: Iron Core Motor / 3.0 V / 0.6 eccenter
€54.78*

Available, shipping in 1 - 2 days

Part Number: 22000.011
Motor / Voltage / Eccenter: Iron Core Motor / 4.5 V / 0.6 eccenter
€54.78*

Available, shipping in 1 - 2 days

Part Number: 22000.005
Motor / Voltage / Eccenter: Iron Core Motor / 3.0 V / 0.85 eccenter
€54.78*

Available, shipping in 1 - 2 days

Part Number: 22000.006
Motor / Voltage / Eccenter: Iron Core Motor / 4.5 V / 0.85 eccenter
€54.78*

Available, shipping in 1 - 2 days

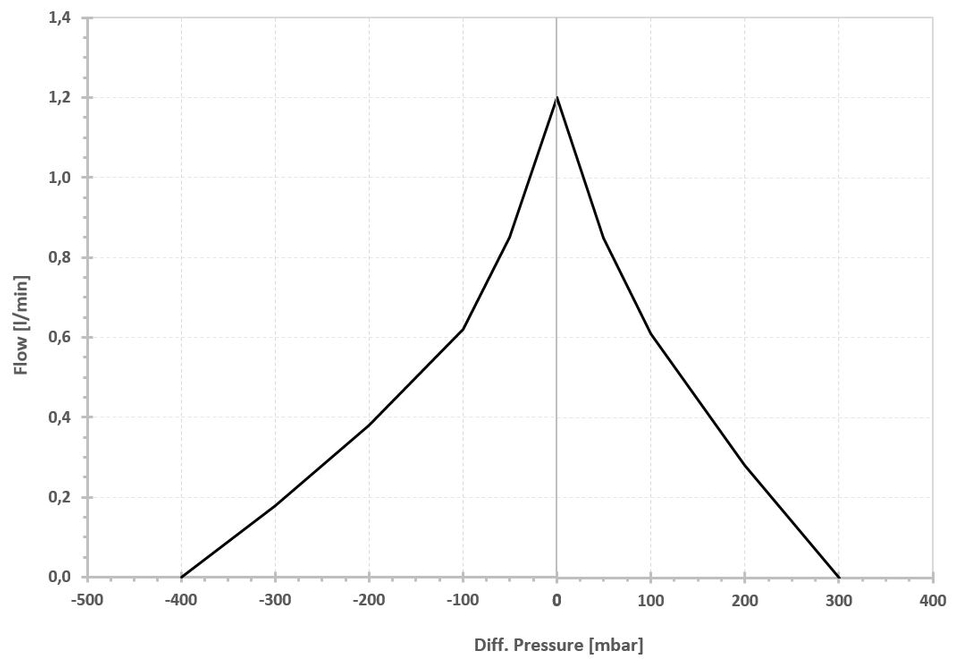

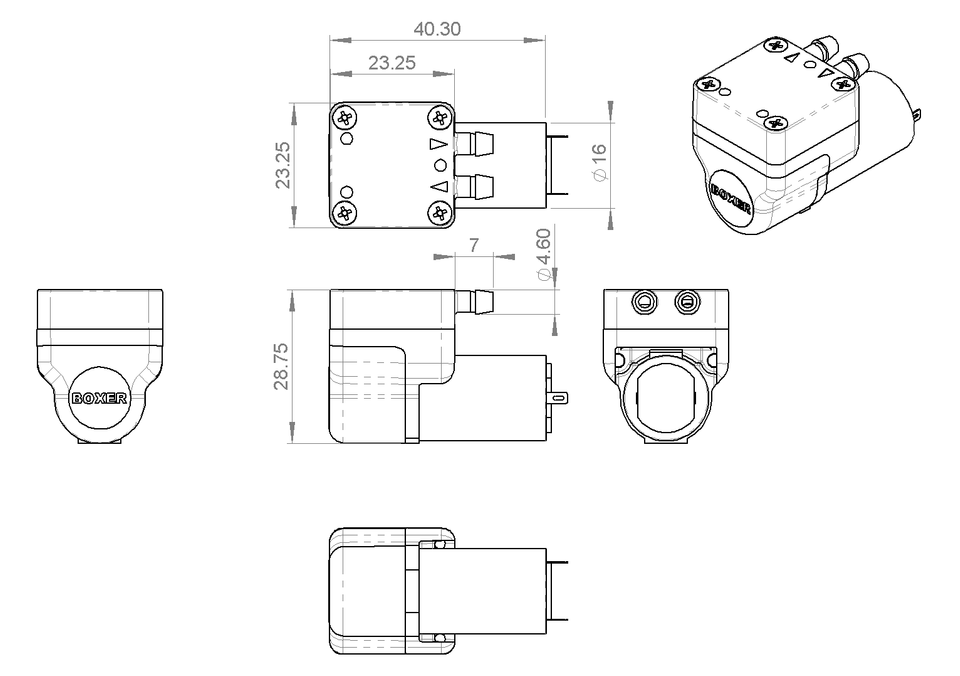

Low power consumption with excellent life available in 3.5, 5.0, 6.5, 10.0 and 13.0 V.
Free Flow 1.2 l/min
Max Pressure 300 mbar
Max Vacuum -400 mbar

Voltage Options 3.5 / 5.0 / 6.5 / 10.0 / 13.0 V DC
Power Consumption 0.3 to 1.2 W
Motor Termination 3.5 / 5.0 / 6.5 V motors: Solder tags (marked + and -)
  10.0 / 13.0 V motors: 150 mm leads (red +, black -)

Operating Temperature Range 5 to +60 °C
Operating Humidity Range 5 to 95% RH

Elastomers Options EPDM, Silicone
Other Wetted Parts PPS (Polyphenylene Sulphide)
Tube Connection Barb for ∅ 4.0 mm tubing
Weight 36g
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number: 22100.003
Motor / Voltage / Eccenter: Coreless Motor / 5.0 V / 0.6 eccenter
€154.79*

Available, shipping in 1 - 2 days

Part Number: 22100.007
Motor / Voltage / Eccenter: Coreless Motor / 10.0 V / 0.6 eccenter
€154.79*

Available, shipping in 1 - 2 days

Part Number: 22100.009
Motor / Voltage / Eccenter: Coreless Motor / 13.0 V / 0.6 eccenter
€154.79*

Available, shipping in 1 - 2 days
